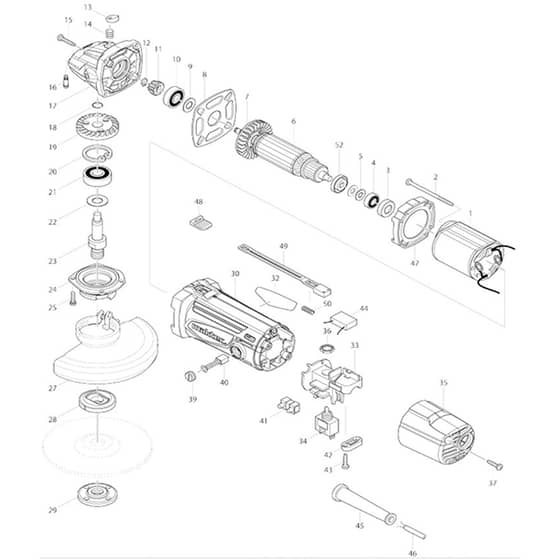

Makita MT963 - Angle Grinder - Power Tool Diagram

Description

Model No. MT963

Angle Grinder

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK654501-6 Available to backorder	Non-Insulated Splice P-1.25 (C20)	£0.48 £0.40
1	MK654221-2 Available to backorder	Ring Terminal (C10)	£0.48 £0.40
1	MK593523-0 Available to backorder	Field Assembly 220-240V	£9.19 £7.66
1	MK654485-8 Available to backorder	Non-Insulated Splice > (C21)	£0.48 £0.40
2	MK266325-4 Available to backorder	Binding Head Tapping Screw 4x7	£0.48 £0.40
3	MK421808-3 Available to backorder	Rubber Ring 19	£0.58 £0.48
4	MK210062-2 Available to backorder	Ball Bearing 607Zz	£1.16 £0.97
5	MK267245-5 Available to backorder	Flat Washer 7	£0.48 £0.40
6	MK510173-6 Available to backorder	Armature Assembly 240V (INC. 4 5 7 52)	£23.59 £19.66
7	MK240059-7 Available to backorder	Fan 50	£0.85 £0.71
8	MK285704-7 Available to backorder	Bearing Retainer 69	£0.85 £0.71
9	MK267256-0 Available to backorder	Flat Washer 10	£0.48 £0.40
10	MK210199-5 Available to backorder	Ball Bearing 6000Zz (Alt.)	£1.24 £1.03
10	MK210067-2 Available to backorder	Ball Bearing 6000Zz	£1.32 £1.10
11	MK227451-4 Available to backorder	Spiral Bevel Gear 11	£5.23 £4.36
12	MK961002-0 Available to backorder	Retaining Ring (Ext) S-6	£0.48 £0.40
13	MK417771-6 In stock	Pin Cap	£0.48 £0.40
14	MK233376-2 Available to backorder	Compression Spring 8	£0.48 £0.40
15	MK266324-6 Available to backorder	Binding Head Tapping Screw 4x2	£0.48 £0.40
16	MK256486-8 Available to backorder	Shoulder Pin 4	£0.58 £0.48
17	MK140433-8 Available to backorder	Gear Housing Complete	£10.03 £8.36
17	MK213445-5 Available to backorder	O-Ring 26 (C10)	£0.48 £0.40
18	MK233950-6 Available to backorder	Ring Spring 11	£0.86 £0.72
19	MK227452-2 Available to backorder	Spiral Bevel Gear 36	£4.39 £3.66
20	MK962151-6 Available to backorder	Retaining Ring (Int) R-32	£0.58 £0.48
21	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
22	MK267238-2 Available to backorder	Flat Washer 12	£0.48 £0.40
23	MK325978-9 Available to backorder	Spindle	£3.95 £3.29
24	MK318374-8 Available to backorder	Bearing Box	£3.54 £2.95
25	MK265100-5 Available to backorder	Pan Head Screw M4x16	£0.48 £0.40
27	MK213009-5 Available to backorder	O-Ring 4 (C10)	£0.48 £0.40
27	MK123099-9 Available to backorder	Wheel Cover 125Ak Assembly <	£8.08 £6.73
29	MK224554-5 In stock	Lock Nut 14-45	£5.52 £4.60
30	MK643455-2 Available to backorder	Brush Holder 6x9 (C10)	£1.60 £1.33
30	MK140434-6 Available to backorder	Motor Housing Complete	£9.74 £8.12
30	MK643858-0 Available to backorder	Brush Holder 6x9 (Alt.) (C11)	£1.44 £1.20
33	MK418397-7 Available to backorder	Support	£0.85 £0.71
34	MK651424-9 Available to backorder	Switch	£1.69 £1.41
35	MK451916-6 Available to backorder	Rear Cover	£1.99 £1.66
36	MK652112-1 Available to backorder	Hex. Nut	£0.56 £0.47
37	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x1	£0.48 £0.40
39	MK643987-9 Available to backorder	Holder Cap 5-8	£0.56 £0.47
40	MK195010-1 Available to backorder	Carbon Brush Set Cb-411 (Alt.)	£3.16 £2.63
41	MK654532-5 Available to backorder	Terminal Block 1P (Alt.)	£3.46 £2.88
42	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
44	MK645190-8 Available to backorder	Noise Suppressor	£0.74 £0.62
45	MK682569-2 Available to backorder	Cord Guard 8-85	£0.58 £0.48
47	MK418015-7 Available to backorder	Baffle Plate	£0.48 £0.40
48	MK418016-5 Available to backorder	Switch Knob	£0.48 £0.40
49	MK418017-3 Available to backorder	Switch Lever	£0.56 £0.47
50	MK233360-7 Available to backorder	Compression Spring 4	£0.48 £0.40
52	MK681636-0 Available to backorder	Insulation Washer	£2.02 £1.68
901	MK153489-2 In stock	Grip 36 Complete (A01)	£1.38 £1.15
902	MK782423-1 In stock	Lock Nut Wrench 35 (A02)	£1.87 £1.56
