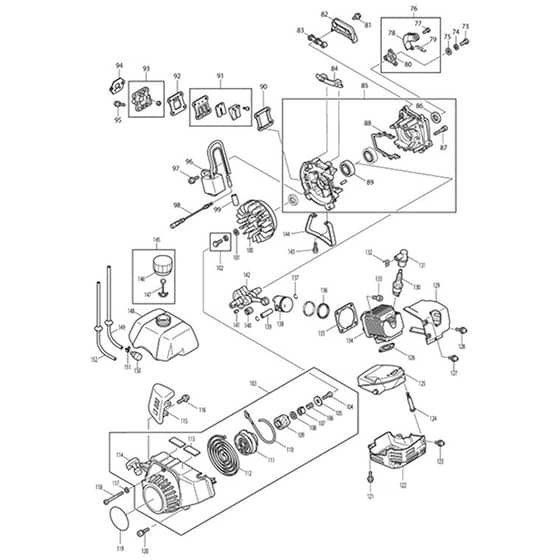

Makita MS-4200E - Brush Cutter - Power Tool 03 Diagram

Description

Model No. MS-4200E

Brush Cutter

Power Tool 03 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
73	MK6202500400 Available to backorder	Bolt	£5.09 £4.24
73	MK266746-0 Available to backorder	Hex. Head Bolt M6x14 (Alt.)	£2.69 £2.24
75	MK267429-5 Available to backorder	Flat Washer 6 (Alt.)	£0.74 £0.62
75	MK6202500600 Available to backorder	Washer	£0.74 £0.62
76	MK6452002000 Available to backorder	Clutch	£129.62 £108.02
76	MK140897-6 Available to backorder	Clutch (Alt.)	£129.62 £108.02
77	MK6452500600 Available to backorder	Clutch Bolt	£7.34 £6.12
77	MK266825-4 Available to backorder	Shoulder Hex. Bolt M8 (Alt.)	£7.34 £6.12
78	MK168803-9 Available to backorder	Clutch Shoe Complete (Alt.)	£22.03 £18.36
78	MK6452003000 Available to backorder	Clutch Shoe Complete	£35.17 £29.31
79	MK234291-3 Available to backorder	Tension Spring 6 (Alt.)	£4.94 £4.12
79	MK6452500400 Available to backorder	Spring	£5.94 £4.95
80	MK313256-9 Available to backorder	Holder (Alt.)	£18.72 £15.60
81	MK266595-5 Available to backorder	Hex. Head Bolt M5x14 (Alt.)	£0.56 £0.47
82	MK168586-1 Available to backorder	Fuel Tank Bracket Assembly	£2.54 £2.12
82	MK455434-6 Available to backorder	Fuel Tank Bracket S	£1.69 £1.41
83	MK5416505700 Available to backorder	Damper	£2.54 £2.12
83	MK424335-9 Available to backorder	Bracket Damper (Alt.)	£3.26 £2.72
83	MK424660-8 Available to backorder	Bracket Damper S	£0.82 £0.68
84	MK5416503500 Available to backorder	Damper (-)	£4.51 £3.76
85	MK5411005001 Available to backorder	Crank Case Ass'y	£185.69 £154.74
86	MK213546-9 Available to backorder	Oil Seal 15 (Alt.)	£3.40 £2.83
88	MK442157-5 Available to backorder	Crankcase Gasket (Alt.)	£1.69 £1.41
89	MK210202-2 Available to backorder	Ball Bearing 6202 (Alt.)	£11.17 £9.31
90	MK5413502800 Available to backorder	Bracket Gasket	£1.14 £0.95
90	MK442160-6 Available to backorder	Lead Valve Gasket (Alt.)	£1.40 £1.17
91	MK126211-0 Available to backorder	Lead Valve Assembly (Alt.)	£53.52 £44.60
92	MK442189-2 Available to backorder	Insulator Gasket (Alt.)	£0.72 £0.60
92	MK5403500600 Available to backorder	Insulater Gasket	£0.72 £0.60
93	MK453971-4 Available to backorder	Insulator (Alt.)	£5.18 £4.32
94	MK5416504000 Available to backorder	Gasket (Carburetor)	£0.85 £0.71
95	MK266793-1 Available to backorder	Hex. S.H.B. M5x25 With Wr (Alt.)	£2.02 £1.68

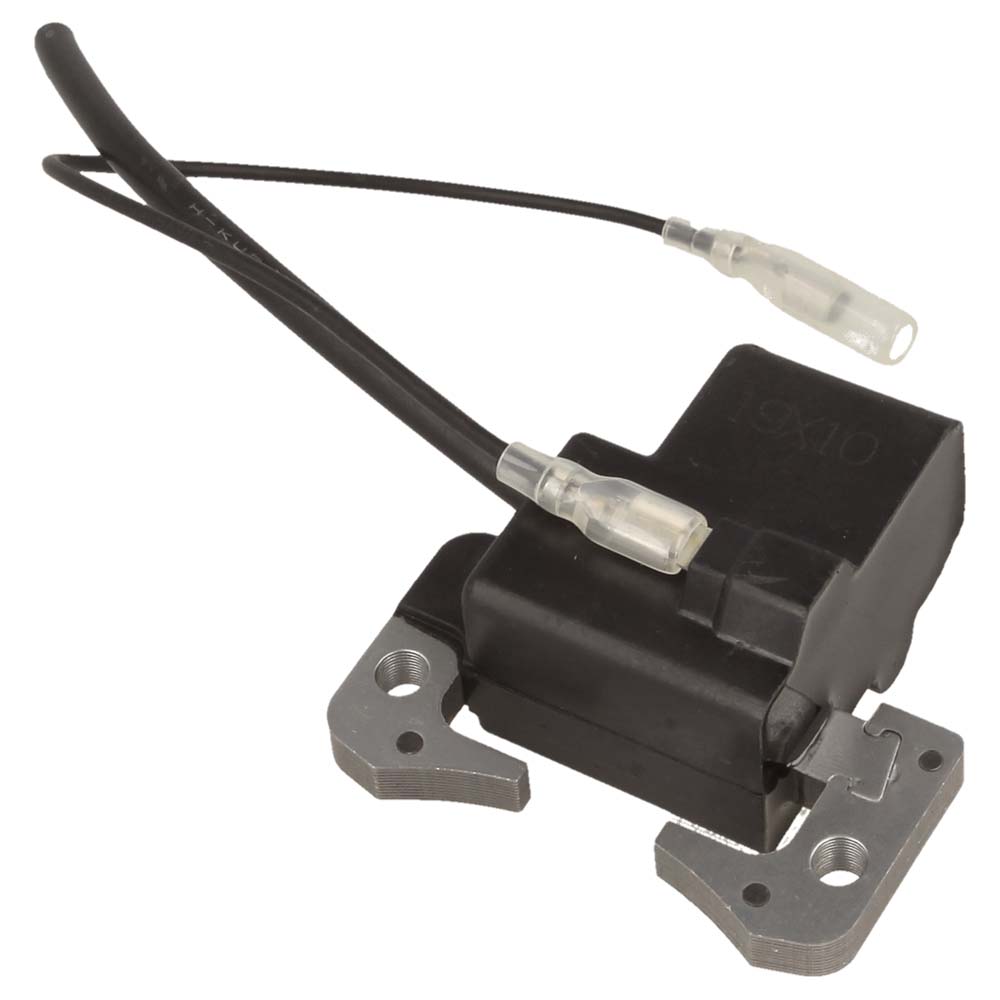

96	MK168587-9 Available to backorder	Ignition Coil (Alt.)	£48.24 £40.20
96	MK5417041020 Available to backorder	Ignition Coil	£48.02 £40.02
98	MK5607005000 Available to backorder	Wire Complete (2)	£4.04 £3.37
99	MK422059-1 Available to backorder	Tube (Alt.)	£1.28 £1.07
100	MK318739-4 Available to backorder	Flywheel Magnet (Alt.)	£142.38 £118.65
100	MK5417023010 Available to backorder	Flywheel	£142.49 £118.74
102	MK266596-3 Available to backorder	Hex. Head Bolt M6x16	£0.74 £0.62
103	MK5415047000 Available to backorder	Rewind Starter	£102.10 £85.08
104	MK5245001010 Available to backorder	Bind Screw	£1.28 £1.07
104	MK266670-7 Available to backorder	Pan Head Screw M5x18 (Alt.)	£1.57 £1.31
105	MK267443-1 Available to backorder	Washer 5 (Alt.)	£0.85 £0.71
105	MK5415001060 Available to backorder	Washer	£0.72 £0.60
106	MK5415001050 Available to backorder	Friction Spring	£0.72 £0.60
106	MK233994-6 Available to backorder	Friction Spring (Alt.)	£1.14 £0.95
107	MK452768-8 Available to backorder	Ratchet Guide (Alt.)	£1.69 £1.41
107	MK5415001040 Available to backorder	Ratchet Guide	£1.69 £1.41
108	MK5415001220 Available to backorder	Thrust Washer	£1.28 £1.07
108	MK267444-9 Available to backorder	Thrust Washer 10 (Alt.)	£1.28 £1.07
109	MK5415001020 Available to backorder	Ratchet	£3.95 £3.29
109	MK452767-0 Available to backorder	Ratchet (Alt.)	£3.95 £3.29
110	MK5415001140 Available to backorder	Starter Rope	£5.80 £4.83
110	MK444030-5 Available to backorder	Starter Rope (Alt.)	£5.60 £4.67
111	MK452766-2 Available to backorder	Reel (Alt.)	£7.63 £6.36
111	MK5415001010 Available to backorder	Reel	£8.06 £6.72
112	MK233993-8 Available to backorder	Spiral Spring (Alt.)	£10.03 £8.36
112	MK5415001030 Available to backorder	Spiral Spring	£11.29 £9.41
113	MK5416505300 Available to backorder	Damper	£2.26 £1.88
114	MK5305002110 Available to backorder	Starter Knob	£8.24 £6.87
114	MK140884-5 Available to backorder	Starter Knob Complete (Alt.)	£7.64 £6.37
115	MK5415504500 Available to backorder	Starter Cover	£9.31 £7.76
116	MK6218501500 Available to backorder	Screw	£0.72 £0.60
116	MK266739-7 Available to backorder	Tapping Screw 5x16 (Alt.)	£0.56 £0.47
117	MK267446-5 Available to backorder	Washer 5 (Alt.)	£0.48 £0.40
118	MK266592-1 Available to backorder	Hex. Socket Head Bolt M5x50	£1.16 £0.97
119	MK6419511800 Available to backorder	Model Label	£6.94 £5.78
122	MK5413500100 Available to backorder	Muffler Cover	£16.82 £14.02
122	MK452762-0 Available to backorder	Muffler Cover (Alt.)	£11.59 £9.66
123	MK266677-3 Available to backorder	Pan Head Screw M5x14 (Alt.)	£0.82 £0.68
124	MK266589-0 Available to backorder	Hex. Socket Head Bolt M6x60	£0.72 £0.60
125	MK168649-3 Available to backorder	Exhaust Muffler (Alt.)	£38.64 £32.20
125	MK5323006000 Available to backorder	Exhaust Muffler	£39.97 £33.31
126	MK168584-5 Available to backorder	Muffler Gasket (Alt.)	£2.14 £1.78
126	MK5323500600 Available to backorder	Muffler Gasket	£2.54 £2.12
128	MK265A11-0 Available to backorder	Pan Head Screw M5x20 (Alt.)	£0.70 £0.58
129	MK5415505900 Available to backorder	Cylinder Cover	£18.35 £15.29
130	2134 In stock	Spark Plug (Bpmr7A) (Alt.)	£2.26 £1.88
131	MK424337-5 Available to backorder	Plug Cap (Alt.)	£1.44 £1.20
132	MK324891-8 Available to backorder	Plug Cap Spring (Alt.)	£0.58 £0.48
134	MK5411500300 Available to backorder	Cylinder	£161.69 £134.74
134	MK318630-6 Available to backorder	Cylinder (Alt.)	£88.00 £73.33
135	MK442156-7 Available to backorder	Cylinder Gasket (Alt.)	£3.26 £2.72
136	MK257309-3 Available to backorder	Piston Ring (Alt.)	£5.09 £4.24
136	MK5402500600 Available to backorder	Piston Ring	£5.36 £4.47
137	MK233983-1 Available to backorder	Clip (Alt.)	£0.58 £0.48
138	MK5412505301 Available to backorder	Piston	£32.75 £27.29
138	MK318631-4 Available to backorder	Piston (Alt.)	£27.95 £23.29
139	MK257797-4 Available to backorder	Piston Pin (Alt.)	£3.83 £3.19
139	MK5412505200 Available to backorder	Piston Pin	£4.24 £3.53
140	MK212085-6 Available to backorder	Needle Cage1014 (Alt.)	£9.40 £7.83
140	MK5412501300 Available to backorder	Needle Roller Bearing	£8.24 £6.87
141	MK254040-2 Available to backorder	Woodruff Key 3 (Alt.)	£3.76 £3.13
142	MK142159-8 Available to backorder	Crankshaft Complete (Alt.)	£62.69 £52.24
143	MK922316-2 Available to backorder	Hex. Socket Head Bolt M6x14	£0.74 £0.62
144	MK346443-5 Available to backorder	Stand (Alt.)	£15.52 £12.93
145	MK168668-9 Available to backorder	Fuel Tank Cap Complete (Alt.)	£13.16 £10.97
146	MK452920-8 Available to backorder	Fuel Tank Cap (Alt.)	£7.96 £6.63
147	MK140436-2 Available to backorder	Strap Complete (Alt.)	£5.56 £4.63
147	MK5256067000 Available to backorder	Strap	£6.64 £5.53
148	MK5416504101 Available to backorder	Fuel Tank	£33.60 £28.00
148	MK454558-5 Available to backorder	Fuel Tank <	£23.59 £19.66
149	MK168765-1 Available to backorder	Tube Complete (Alt.)	£5.52 £4.60
150	MK163447-0 In stock	Fuel Filter (Alt.)	£2.69 £2.24
151	MK345920-4 Available to backorder	Hose Clamp (Alt.)	£0.58 £0.48
152	MK168766-9 Available to backorder	Tube Complete (Alt.)	£6.49 £5.41
