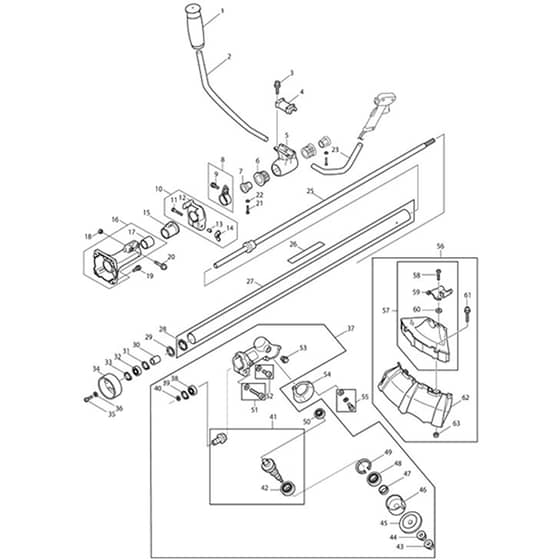

Makita MS-4200E - Brush Cutter - Power Tool 01 Diagram

Name: Makita MS-4200E - Brush Cutter - Power Tool 01 Diagram
SKU: ms_4200e_brush_cutter_power_tool_01-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita MS-4200E - Brush Cutter - Power Tool 01 Diagram

Description

Model No. MS-4200E

Brush Cutter

Power Tool 01 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK273526-7 Available to backorder	Grip 18 (Alt.)	£3.16 £2.63
1	MK6274501000 Available to backorder	Grip	£8.92 £7.43
2	MK6414507400 Available to backorder	Handle	£30.37 £25.31
3	MK266805-0 Available to backorder	H.S.H.Bolt M5x25 With W (Alt.)	£0.86 £0.72
4	MK318272-6 Available to backorder	Handle Holder 1 (Alt.)	£4.88 £4.07
4	MK6254503802 Available to backorder	Handle Holder 1	£4.94 £4.12
5	MK6414507201 Available to backorder	Handle Holder	£27.11 £22.59
6	MK422405-8 Available to backorder	Bush (Alt.)	£3.42 £2.85
7	MK6404506200 Available to backorder	Stopper	£36.72 £30.60
8	MK125941-0 Available to backorder	Hanger Assembly (Alt.)	£28.80 £24.00
8	MK6407006001 Available to backorder	Hanger Ass'y	£22.46 £18.72
11	MK266666-8 Available to backorder	Hex.Bolt M6x50 (Alt.)	£1.24 £1.03
12	MK318732-8 Available to backorder	Stopper (Alt.)	£8.92 £7.43
12	MK6401503002 Available to backorder	Stopper	£13.14 £10.95
13	MK6401032010 Available to backorder	Bush	£0.72 £0.60
13	MK326119-0 Available to backorder	Spacer (Alt.)	£0.70 £0.58
15	MK6411502101 Available to backorder	Stopper	£15.68 £13.07
15	MK413154-8 Available to backorder	Stopper (Alt.)	£14.69 £12.24
16	MK140628-3 Available to backorder	Clutch Case Complete (Alt.)	£106.74 £88.95
17	MK257289-3 Available to backorder	Spacer (Alt.)	£1.52 £1.27
19	MK266668-4 Available to backorder	Hex.Socket Head Bolt M6x18	£0.85 £0.71
20	MK266667-6 Available to backorder	Pan Head Screw M6x35 (Alt.)	£0.54 £0.45
21	MK922352-8 Available to backorder	Hex. Socket Head Bolt M6x30	£0.74 £0.62
23	MK6414507300 Available to backorder	Handle	£27.95 £23.29
25	MK140892-6 Available to backorder	Shaft Complete (Alt.)	£147.29 £122.74
27	MK140891-8 Available to backorder	Shaft Pipe Complete (Alt.)	£235.75 £196.46
28	MK257974-8 Available to backorder	Retaining Ring (Ext)28 (Alt.)	£1.78 £1.48
29	MK267445-7 Available to backorder	Washer 24.5 (Alt.)	£1.36 £1.13
30	MK424403-8 Available to backorder	Damper (Alt.)	£14.83 £12.36
30	MK6411008000 Available to backorder	Damper	£6.37 £5.31
31	MK961057-5 Available to backorder	Retaining Ring S-17 (Alt.)	£0.48 £0.40
32	MK210126-2 Available to backorder	Ball Bearing 6003Llu (Alt.)	£2.76 £2.30
33	MK962153-2 Available to backorder	Retaining Ring R-35 (Alt.)	£0.74 £0.62
34	MK6342002000 Available to backorder	Clutch Drum Complete	£58.46 £48.72
34	MK140846-3 Available to backorder	Clutch Drum Complete (Alt.)	£59.88 £49.90
35	MK6202500400 Available to backorder	Bolt	£5.09 £4.24
35	MK266746-0 Available to backorder	Hex. Head Bolt M6x14 (Alt.)	£2.69 £2.24
36	MK267429-5 Available to backorder	Flat Washer 6 (Alt.)	£0.74 £0.62
36	MK6202500600 Available to backorder	Washer	£0.74 £0.62
37	MK6353001000 Available to backorder	Gear Case Ass'y	£281.86 £234.88
38	MK210129-6 Available to backorder	Ball Bearing 6001Zz (Alt.)	£13.43 £11.19
39	MK961052-5 Available to backorder	Retaining Ring S-12 (Alt.)	£0.48 £0.40
41	MK6413003000 Available to backorder	Gear Set	£92.92 £77.43
42	MK210128-8 Available to backorder	Ball Bearing 6201 (Alt.)	£11.00 £9.17
43	MK6308503300 Available to backorder	Nut	£4.24 £3.53
43	MK264062-4 Available to backorder	Nut M10 (Alt.)	£4.24 £3.53
44	MK264058-5 Available to backorder	Nut M10 (Alt.)	£2.26 £1.88
44	MK6308503200 Available to backorder	Nut	£2.26 £1.88
45	MK6308503100 Available to backorder	Clamp Washer	£13.00 £10.83
45	MK346441-9 Available to backorder	Clamp Washer (Alt.)	£23.15 £19.29
46	MK326053-4 Available to backorder	Receive Washer (Alt.)	£16.82 £14.02
46	MK6418500101 Available to backorder	Receive Washer	£32.75 £27.29
47	MK6413500500 Available to backorder	Spacer	£3.54 £2.95
47	MK326052-6 Available to backorder	Spacer (Alt.)	£3.83 £3.19
48	MK213596-4 Available to backorder	Oil Seal 18 (Alt.)	£4.51 £3.76
48	MK6413500400 Available to backorder	Oil Seal	£4.24 £3.53
49	MK962151-6 Available to backorder	Retaining Ring R-32 (Alt.)	£0.58 £0.48
50	MK210127-0 Available to backorder	Ball Bearing 627Zz (Alt.)	£6.94 £5.78
51	MK266669-2 Available to backorder	Hex.Bolt M6x32 (Alt.)	£0.54 £0.45
52	MK266662-6 Available to backorder	Hex.Bolt M6x14 (Alt.)	£0.56 £0.47
53	MK6413500600 Available to backorder	Oil Bolt	£3.26 £2.72
53	MK266671-5 Available to backorder	Hex.Socket Head Bolt M10x9	£3.95 £3.29
54	MK412099-7 Available to backorder	Guard (Alt.)	£3.54 £2.95
54	MK6418500200 Available to backorder	Guard	£8.34 £6.95
55	MK265195-8 Available to backorder	+Pan Head Screw M5x12 (Alt.)	£0.48 £0.40
57	MK6358007004 Available to backorder	Protector Ass'y	£26.59 £22.16
58	MK266617-1 Available to backorder	Cross-Recessed Head Bolt M6x23	£2.32 £1.93
59	MK346444-3 Available to backorder	Protector Clamp (Alt.)	£3.28 £2.73
59	MK6418501700 Available to backorder	Protector Clamp	£4.51 £3.76
60	MK413143-3 Available to backorder	Washer	£0.48 £0.40
62	MK140424-9 Available to backorder	Protector Complete (Alt.)	£17.20 £14.33
62	MK6258053001 Available to backorder	Protector Complete	£26.42 £22.02
63	MK264035-7 Available to backorder	Hex. Nut M5 (Alt.)	£0.48 £0.40
