Makita MS-335.4C - Petrol Brushcutter - Power Tool 01 Diagram

Description

Model No. MS-335.4C

Petrol Brushcutter

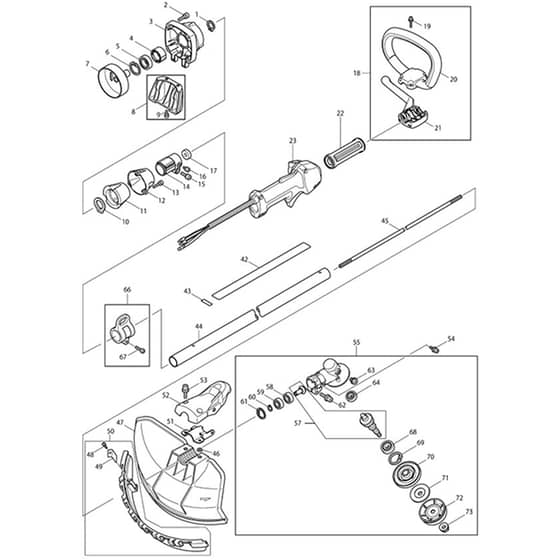

Power Tool 01 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK961057-5 Available to backorder	Retaining Ring S-17	£0.48 £0.40
2	MK922331-6 Available to backorder	Hex. Socket Head Bolt M6x20	£0.74 £0.62
3	MK318421-5 Available to backorder	Clutch Case	£13.28 £11.07
4	MK451157-4 Available to backorder	Spacer	£1.60 £1.33
5	MK211338-0 Available to backorder	Ball Bearinng 6003Llu	£7.96 £6.63
5	MK210126-2 Available to backorder	Ball Bearing 6003Llu (Alt.)	£2.76 £2.30
6	MK962153-2 Available to backorder	Retaining Ring R-35	£0.74 £0.62
7	MK165577-3 Available to backorder	Clutch Drum	£9.12 £7.60
8	MK195144-0 Available to backorder	Stand Set	£2.60 £2.17
9	MK911218-7 In stock	Pan Head Screw M5x14	£0.48 £0.40
10	MK961151-3 Available to backorder	Retaining Ring S-32	£1.02 £0.85
11	MK424204-4 Available to backorder	Damper	£4.04 £3.37
12	MK318453-2 Available to backorder	Pipe Retainer	£4.78 £3.98
13	MK922231-0 Available to backorder	Hex. Socket Head Bolt M5x20	£0.58 £0.48
14	MK318454-0 Available to backorder	Pipe Bracket	£7.80 £6.50
16	MK922201-9 Available to backorder	Hex. Socket Head Bolt M5x8	£0.74 £0.62
17	MK443146-3 Available to backorder	Felt Ring 8	£1.02 £0.85
18	MK195251-9 Available to backorder	Loop Handle Set	£11.66 £9.72
18	MK783014-1 Available to backorder	+ Screw Driver 2 (C10)	£2.22 £1.85
19	MK911253-5 Available to backorder	Pan Head Screw M5x30	£0.58 £0.48
20	MK451596-8 Available to backorder	Loop Handle 28	£8.24 £6.87
21	MK451597-6 Available to backorder	Handle Clamp 28	£2.76 £2.30
22	MK451600-3 Available to backorder	Spacer 28	£10.26 £8.55
24	MK266130-9 Available to backorder	Tapping Screw Bind Pt 3x16	£0.48 £0.40
25	MK451595-0 Available to backorder	Switch Cover	£1.32 £1.10
26	MK451594-2 Available to backorder	Switch Lever	£1.32 £1.10
27	MK232251-9 Available to backorder	Leaf Spring	£0.74 £0.62
28	MK188831-8 Available to backorder	Lever Case Set	£11.56 £9.63
29	MK346249-1 Available to backorder	Pipe Clamp 28	£1.60 £1.33
30	MK922218-2 Available to backorder	H.S.H.Bolt M5x14 With Wr	£0.58 £0.48
31	MK451593-4 Available to backorder	Lock Lever	£1.32 £1.10
32	MK233541-3 Available to backorder	Torsion Spring 7	£0.48 £0.40
33	MK168549-7 Available to backorder	Control Cable	£3.92 £3.27
34	MK233540-5 Available to backorder	Torsion Spring 11	£0.48 £0.40
35	MK451592-6 Available to backorder	Throttle Lever	£2.02 £1.68
36	MK638676-9 Available to backorder	Lead Unit	£1.60 £1.33
38	MK451602-9 Available to backorder	Corrugate Tube	£1.88 £1.57
39	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
43	MK801D19-4 Available to backorder	Serial No. Label <	£1.02 £0.85
43	MK814A82-0 Available to backorder	Date Code Label x	£0.82 £0.68
44	MK140042-3 Available to backorder	Shaft Pipe Complete	£51.42 £42.85
46	MK413143-3 Available to backorder	Washer	£0.48 £0.40
47	MK452259-9 Available to backorder	Protector	£11.60 £9.67
49	MK346074-0 Available to backorder	Cutter	£1.16 £0.97
50	MK135398-7 Available to backorder	Protector Extension Assy	£7.88 £6.57
51	MK346072-4 Available to backorder	Protector Clamp	£1.88 £1.57
52	MK451090-0 Available to backorder	Protector Cover	£4.20 £3.50
53	MK266579-3 Available to backorder	Hex Socket Head Bolt M6x30	£0.58 £0.48
55	MK123835-3 Available to backorder	Gear Case Assembly S	£57.94 £48.28
55	MK126260-7 Available to backorder	Gear Case Assembly (Alt.)	£145.76 £121.47
55	MK213459-4 Available to backorder	O Ring 32 (Alt.) (C10)	£2.02 £1.68
55	MK125557-1 Available to backorder	Gear Case Assembly	£124.52 £103.77
57	MK183K07-8 Available to backorder	Cutter Shaft Set (Alt.)	£29.92 £24.93
57	MK188865-1 Available to backorder	Cutter Shaft Set	£67.02 £55.85
57	MK187644-4 Available to backorder	Cutter Shaft Set (Alt.)	£26.44 £22.03
58	MK211064-1 Available to backorder	Ball Bearing 6000	£2.18 £1.82
59	MK211062-5 Available to backorder	Ball Bearing 6000Zz	£4.34 £3.62
59	MK210160-2 Available to backorder	Ball Bearing 6000Zz >	£2.46 £2.05
60	MK961006-2 Available to backorder	Retaining Ring S-10	£0.48 £0.40
61	MK257988-7 Available to backorder	Retaining Ring (Int) R-26 (Alt.)	£0.70 £0.58
62	MK922353-6 Available to backorder	Hex.Socket Head Bolt M6x30	£0.86 £0.72
63	MK265590-2 Available to backorder	+Hex.Bolt M8x10 With R	£0.58 £0.48
64	MK210081-8 Available to backorder	Ball Bearing 629Zz	£3.34 £2.78
66	MK125558-9 Available to backorder	Hanger Assembly	£5.78 £4.82
67	MK922233-6 Available to backorder	H.S.H.Bolt M5x20 With Wr	£0.86 £0.72
67	MK922232-8 Available to backorder	Hex. Socket Head Bolt M5x20	£0.48 £0.40
68	MK210116-5 Available to backorder	Ball Bearing 6201Llu	£5.94 £4.95
69	MK962151-6 Available to backorder	Retaining Ring R-32	£0.58 £0.48
70	MK331860-2 Available to backorder	Receive Washer	£8.24 £6.87
71	MK346084-7 Available to backorder	Clamp Washer	£1.60 £1.33
71	MK346355-2 Available to backorder	Clamp Washer <	£20.38 £16.98
72	MK168526-9 Available to backorder	Cup	£4.78 £3.98
73	MK264025-0 Available to backorder	Hex. Nut M10-17	£3.04 £2.53
