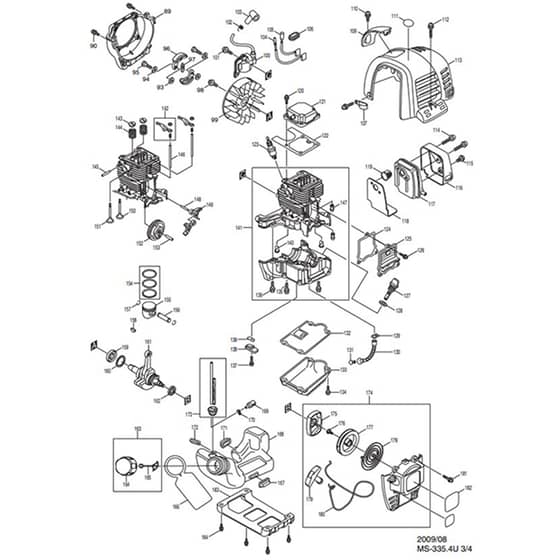

Makita MS-335.4 - Brush Cutter - Power Tool 03 Diagram

Description

Model No. MS-335.4

Brush Cutter

Power Tool 03 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
89	MK318614-4 Available to backorder	Blower Housing	£22.98 £19.15
90	MK922223-9 Available to backorder	H.S.H.Bolt M5x16 With Wr	£0.74 £0.62
93	MK253762-1 Available to backorder	Flat Washer 8	£1.44 £1.20
94	MK267832-0 Available to backorder	Wave Washer 10	£1.16 £0.97
95	MK266571-9 Available to backorder	Shoulder Hex. Bolt M8x23	£2.18 £1.82
96	MK125757-3 Available to backorder	Clutch Assembly	£11.14 £9.28
96	MK168563-3 Available to backorder	Clutch Shoe	£11.56 £9.63
97	MK231863-5 Available to backorder	Tension Spring 9	£3.34 £2.78
98	MK265577-4 Available to backorder	Hex Head Bolt M6x16	£0.58 £0.48
99	MK318611-0 Available to backorder	Flywheel	£15.60 £13.00
101	MK922138-0 Available to backorder	H.S.H.Bolt M4x20 With Wr	£2.76 £2.30
102	MK324891-8 Available to backorder	Plug Cap Spring	£0.58 £0.48
103	MK424105-6 Available to backorder	Plug Cap	£1.02 £0.85
104	MK638664-6 Available to backorder	Lead Unit	£1.16 £0.97
105	MK638665-4 Available to backorder	Lead Unit	£1.16 £0.97
106	MK424313-9 Available to backorder	Grommet	£0.58 £0.48
107	MK345963-6 Available to backorder	Clamp	£0.74 £0.62
109	MK451876-2 Available to backorder	Plug Cover	£1.60 £1.33
110	MK266572-7 Available to backorder	+ Truss Head Screw M5x8	£0.48 £0.40
112	MK911213-7 Available to backorder	Pan Head Screw M5x12	£0.48 £0.40
114	MK266440-4 Available to backorder	Hex Socket Head Bolt M5x40	£1.02 £0.85
115	MK265184-3 Available to backorder	+Truss Head Screw M5x5	£0.58 £0.48
116	MK345915-7 Available to backorder	Muffler Cover	£2.46 £2.05
117	MK168469-5 Available to backorder	Exhaust Muffler	£7.66 £6.38
118	MK345916-5 Available to backorder	Muffler Gasket	£1.88 £1.57
119	MK324980-9 Available to backorder	Spark Arrester	£1.16 £0.97
120	MK922217-4 Available to backorder	Hex. Socket Head Bolt M5x14	£0.58 £0.48
121	MK140419-2 Available to backorder	Rocker Cover Complete	£8.66 £7.22
122	MK162307-3 Available to backorder	Rocker Cover Gasket	£2.02 £1.68
123	9379 In stock	Spark Plug	£4.43 £3.69
124	MK162274-2 Available to backorder	Cam Gear Cover Gasket	£2.02 £1.68
125	MK318443-5 Available to backorder	Cam Gear Cover	£3.92 £3.27
126	MK922212-4 Available to backorder	Hex. Socket Head Bolt M5x12	£0.48 £0.40
127	MK450565-6 Available to backorder	Oil Gauge	£2.02 £1.68
128	MK424100-6 Available to backorder	Gasket	£0.74 £0.62
129	MK282020-8 Available to backorder	Hose Clamp	£0.58 £0.48
130	MK424202-8 Available to backorder	Oil Tube	£3.46 £2.88
131	MK325666-8 Available to backorder	Oil Weight	£1.32 £1.10
132	MK162308-1 Available to backorder	Case Gasket	£2.60 £2.17
133	MK318612-8 Available to backorder	Oil Case	£5.64 £4.70
135	MK266573-5 Available to backorder	Hex. Socket Head Bolt M5x33	£0.58 £0.48
136	MK922222-1 Available to backorder	Hex. Socket Head Bolt M5x16	£0.48 £0.40
137	MK922112-8 Available to backorder	Hex. Socket Head Bolt M4x10	£0.48 £0.40
138	MK318440-1 Available to backorder	Retainer Plate	£1.88 £1.57
139	MK346083-9 Available to backorder	Lead Valve	£1.88 £1.57
141	MK135373-3 Available to backorder	Cylinder Block Assembly	£173.92 £144.93
142	MK125554-7 Available to backorder	Rocker Arm Assembly	£4.34 £3.62
143	MK325912-9 Available to backorder	Spring Retainer	£1.60 £1.33
144	MK234181-0 Available to backorder	Compression Spring 11	£1.02 £0.85
145	MK256200-2 Available to backorder	Pin 5	£0.74 £0.62
146	MK256866-8 Available to backorder	Rod 2.5	£0.74 £0.62
147	MK424200-2 Available to backorder	Spacer	£0.74 £0.62
148	MK268239-3 Available to backorder	Pin 4	£0.58 £0.48
149	MK313169-4 Available to backorder	Cam Lifter	£3.34 £2.78
150	MK325913-7 Available to backorder	Exhaust Valve	£4.10 £3.42
151	MK325914-5 Available to backorder	Intake Valve	£4.20 £3.50
152	MK125552-1 Available to backorder	Cam Gear Assembly	£11.42 £9.52
153	MK268238-5 Available to backorder	Pin 5	£0.86 £0.72
154	MK195141-6 Available to backorder	Piston Ring Set	£18.78 £15.65
155	MK318613-6 Available to backorder	Piston	£14.16 £11.80
156	MK257796-6 Available to backorder	Piston Pin	£2.02 £1.68
157	MK233983-1 Available to backorder	Clip	£0.58 £0.48
158	MK254040-2 Available to backorder	Woodruff Key 3	£3.76 £3.13
159	MK213537-0 Available to backorder	Oil Seal 12	£3.46 £2.88
160	MK267425-3 Available to backorder	Flat Washer 26	£0.74 £0.62
161	MK125756-5 Available to backorder	Crankshaft Assembly	£79.44 £66.20
162	MK213148-1 Available to backorder	Oil Seal 10	£2.60 £2.17
163	MK125472-9 Available to backorder	Fuel Tank Cap Assembly	£6.94 £5.78
164	MK140435-4 Available to backorder	Fuel Tank Cap	£6.22 £5.18
165	MK140436-2 Available to backorder	Strap Complete	£5.56 £4.63
166	MK810455-9 Available to backorder	Caution Plate	£1.16 £0.97
167	MK424104-8 Available to backorder	Damper	£1.88 £1.57
168	MK451877-0 Available to backorder	Fuel Tank	£16.34 £13.62
169	MK163447-0 In stock	Gasoline Filter	£2.69 £2.24
170	MK345920-4 Available to backorder	Hose Clamp	£0.58 £0.48
171	MK424103-0 Available to backorder	Plate	£0.74 £0.62
173	MK162309-9 Available to backorder	Tube	£4.78 £3.98
174	MK126475-6 Available to backorder	Starter Cover Assembly	£27.32 £22.77
174	MK195142-4 Available to backorder	Recoil Starter Set	£33.22 £27.68
175	MK168827-5 Available to backorder	Pulley	£3.62 £3.02
175	MK165606-2 Available to backorder	Pulley	£5.36 £4.47
176	MK266580-8 Available to backorder	Tapping Screw 5x10	£0.86 £0.72
177	MK451923-9 Available to backorder	Reel	£4.78 £3.98
178	MK232257-7 Available to backorder	Spiral Spring	£14.32 £11.93
179	MK424317-1 Available to backorder	Starter Knob	£3.46 £2.88
180	MK444018-5 Available to backorder	Starter Rope	£3.76 £3.13
181	MK911218-7 In stock	Pan Head Screw M5x14	£0.48 £0.40
183	MK162310-4 Available to backorder	Tank Guard	£4.48 £3.73
