Makita MS-245.4U - Brush Cutter - Power Tool 01 Diagram

Name: Makita MS-245.4U - Brush Cutter - Power Tool 01 Diagram
SKU: ms_245_4u_brush_cutter_power_tool_01-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

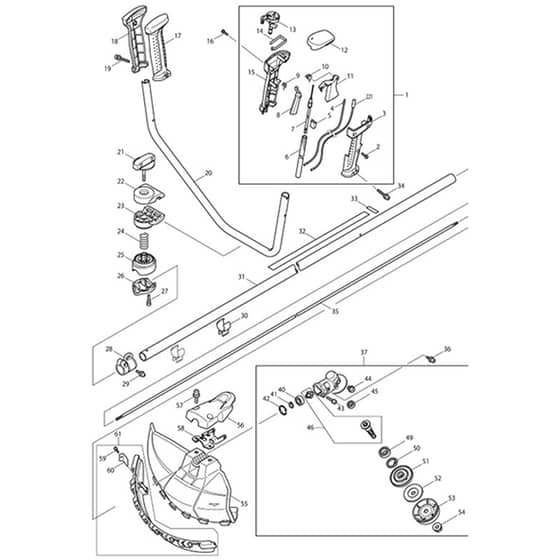

Makita MS-245.4U - Brush Cutter - Power Tool 01 Diagram

Description

Model No. MS-245.4U

Brush Cutter

Power Tool 01 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK125544-0 Available to backorder	Control Lever Assembly	£25.42 £21.18
2	MK266326-2 Available to backorder	Tapping Screw 4x18 (Refs 016 \| 059)	£0.48 £0.40
3	MK183A10-9 Available to backorder	Lever Case Set S	£7.80 £6.50
4	MK638663-8 Available to backorder	Lead Unit	£1.74 £1.45
5	MK451081-1 Available to backorder	Cable Holder	£0.86 £0.72
6	MK451213-0 Available to backorder	Corrugate Tube	£3.46 £2.88
7	MK168527-7 Available to backorder	Control Cable	£4.34 £3.62
8	MK451083-7 Available to backorder	Lock Off Lever	£1.16 £0.97
9	MK233541-3 Available to backorder	Torsion Spring 7	£0.48 £0.40
10	MK233540-5 Available to backorder	Torsion Spring 11	£0.48 £0.40
11	MK451084-5 Available to backorder	Throttle Lever	£1.60 £1.33
12	MK451085-3 Available to backorder	Switch Cover	£1.88 £1.57
12	MK455722-1 Available to backorder	Switch Cover S	£1.02 £0.85
13	MK451082-9 Available to backorder	Switch Lever	£1.44 £1.20
14	MK232251-9 Available to backorder	Leaf Spring	£0.74 £0.62
17	MK188659-4 Available to backorder	Grip Set S	£6.06 £5.05
19	MK922256-4 Available to backorder	Hex. Socket Head Bolt M5x35	£0.86 £0.72
20	MK331862-8 Available to backorder	Handle 19	£15.76 £13.13
21	MK168796-0 Available to backorder	Knob 57 <	£4.48 £3.73
21	MK168524-3 Available to backorder	Knob 57	£3.92 £3.27
22	MK318429-9 Available to backorder	Handle Clamp	£5.06 £4.22
23	MK318428-1 Available to backorder	Handle Holder	£4.78 £3.98
24	MK233202-5 Available to backorder	Compression Spring 20	£0.86 £0.72
25	MK318427-3 Available to backorder	Pipe Holder	£5.48 £4.57
26	MK318426-5 Available to backorder	Pipe Clamp	£2.60 £2.17
27	MK922241-7 Available to backorder	Hex. Socket Head Bolt M5x25	£0.80 £0.67
28	MK195143-2 Available to backorder	Hanger Set	£3.92 £3.27
29	MK911233-1 Available to backorder	Pan Head Screw M5x20	£0.48 £0.40
30	MK451526-9 Available to backorder	Wire Clamp	£1.92 £1.60
31	MK140041-5 Available to backorder	Shaft Pipe Complete	£44.20 £36.83
33	MK801D19-4 Available to backorder	Serial No. Label <	£1.02 £0.85
33	MK814A82-0 Available to backorder	Date Code Label x	£0.82 £0.68
35	MK324893-4 Available to backorder	Shaft	£15.40 £12.83
35	MK327056-1 Available to backorder	Shaft (Alt.)	£6.52 £5.43
36	MK922218-2 Available to backorder	H.S.H.Bolt M5x14 With Wr	£0.58 £0.48
36	MK922206-9 Available to backorder	Hex. Socket Head Bolt M5x10	£0.58 £0.48
37	MK123833-7 Available to backorder	Gear Case Assembly S	£54.46 £45.38
40	MK210157-1 Available to backorder	Ball Bearing 609Zz (Alt.)	£1.64 £1.37
40	MK210049-4 Available to backorder	Ball Bearing 609Zz	£3.92 £3.27
41	MK257986-1 Available to backorder	Retaining Ring (Ext) S-9 (Alt.)	£3.92 £3.27
41	MK961005-4 Available to backorder	Retaining Ring S-9	£0.48 £0.40
42	MK962103-7 Available to backorder	Retaining Ring R-24	£0.74 £0.62
42	MK257987-9 Available to backorder	Retaining Ring (Int)R-24 (Alt.)	£1.16 £0.97
44	MK265590-2 Available to backorder	+Hex.Bolt M8x10 With R	£0.58 £0.48
45	MK211019-6 Available to backorder	Ball Bearing 626	£7.38 £6.15
46	MK183A00-2 Available to backorder	Cutter Shaft Set (Alt.)	£40.74 £33.95
49	MK210115-7 Available to backorder	Ball Bearing 6001Llu	£8.54 £7.12
50	MK962106-1 Available to backorder	Retaining Ring R-28	£1.32 £1.10
51	MK331861-0 Available to backorder	Receive Washer	£12.00 £10.00
52	MK346084-7 Available to backorder	Clamp Washer	£1.60 £1.33
53	MK168526-9 Available to backorder	Cup	£4.78 £3.98
54	MK264025-0 Available to backorder	Hex. Nut M10-17	£3.04 £2.53
55	MK451098-4 Available to backorder	Protector	£7.78 £6.48
55	MK452260-4 Available to backorder	Protector S	£12.02 £10.02
56	MK451097-6 Available to backorder	Protector Cover	£2.46 £2.05
57	MK266579-3 Available to backorder	Hex Socket Head Bolt M6x30	£0.58 £0.48
57	MK922353-6 Available to backorder	Hex.Socket Head Bolt M6x30	£0.86 £0.72
57	MK266280-0 Available to backorder	Hex. Socket Head Bolt M6x25	£0.86 £0.72
58	MK346073-2 Available to backorder	Protector Clamp	£1.60 £1.33
60	MK346074-0 Available to backorder	Cutter	£1.16 £0.97
61	MK135753-3 Available to backorder	Protector Extension Assy	£8.66 £7.22
61	MK135398-7 Available to backorder	Protector Extension Assy	£7.88 £6.57
221	MK638671-9 Available to backorder	Lead Unit	£1.74 £1.45
