Makita MG5300.4 - Petrol Blower - Power Tool 06 Diagram

Name: Makita MG5300.4 - Petrol Blower - Power Tool 06 Diagram
SKU: mg5300_4_petrol_blower_power_tool_06-group
Price: 0.4 GBP
Availability: InStock

Part No. mg5300_4_petrol_blower_power_tool_06-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

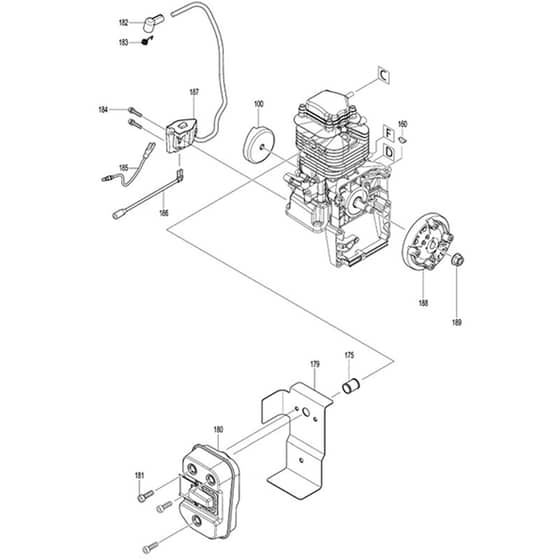

Makita MG5300.4 - Petrol Blower - Power Tool 06 Diagram

Description

Model No. MG5300.4

Petrol Blower

Power Tool 06 Parts Diagrams

	Part No.	Details
100	MK161599-1 Available to backorder	Pulley (Alt.)	£3.24 £2.70
100	MK5975500000 Available to backorder	Pulley	£9.48 £7.90
160	MK254001-2 Available to backorder	Woodruff Key 4	£0.89 £0.74
175	MK331987-8 Available to backorder	Exhaust Port Spacer	£1.73 £1.44
176	MK331967-4 Available to backorder	Cotter	£1.03 £0.86
179	MK347077-7 Available to backorder	Muffler Gasket	£3.12 £2.60
180	MK161518-7 Available to backorder	Muffler	£13.32 £11.10
181	MK922332-4 Available to backorder	Hex. Socket Head Bolt M6x20	£0.48 £0.40
182	MK424105-6 Available to backorder	Plug Cap	£1.22 £1.02
183	MK324891-8 Available to backorder	Plug Cap Spring	£0.70 £0.58
184	MK922138-0 Available to backorder	H.S.H.Bolt M4x20 With Wr	£3.01 £2.51

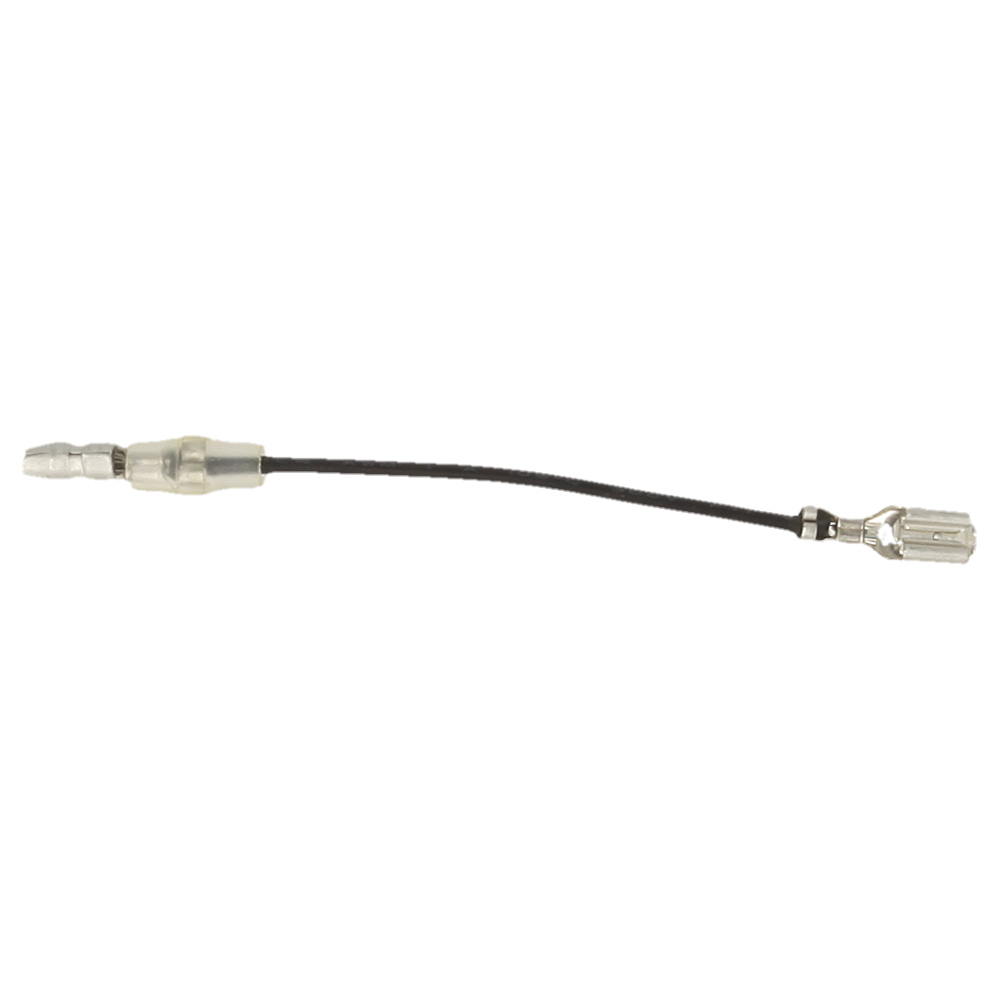

185	MK632J30-9 Available to backorder	Lead Unit A	£1.22 £1.02

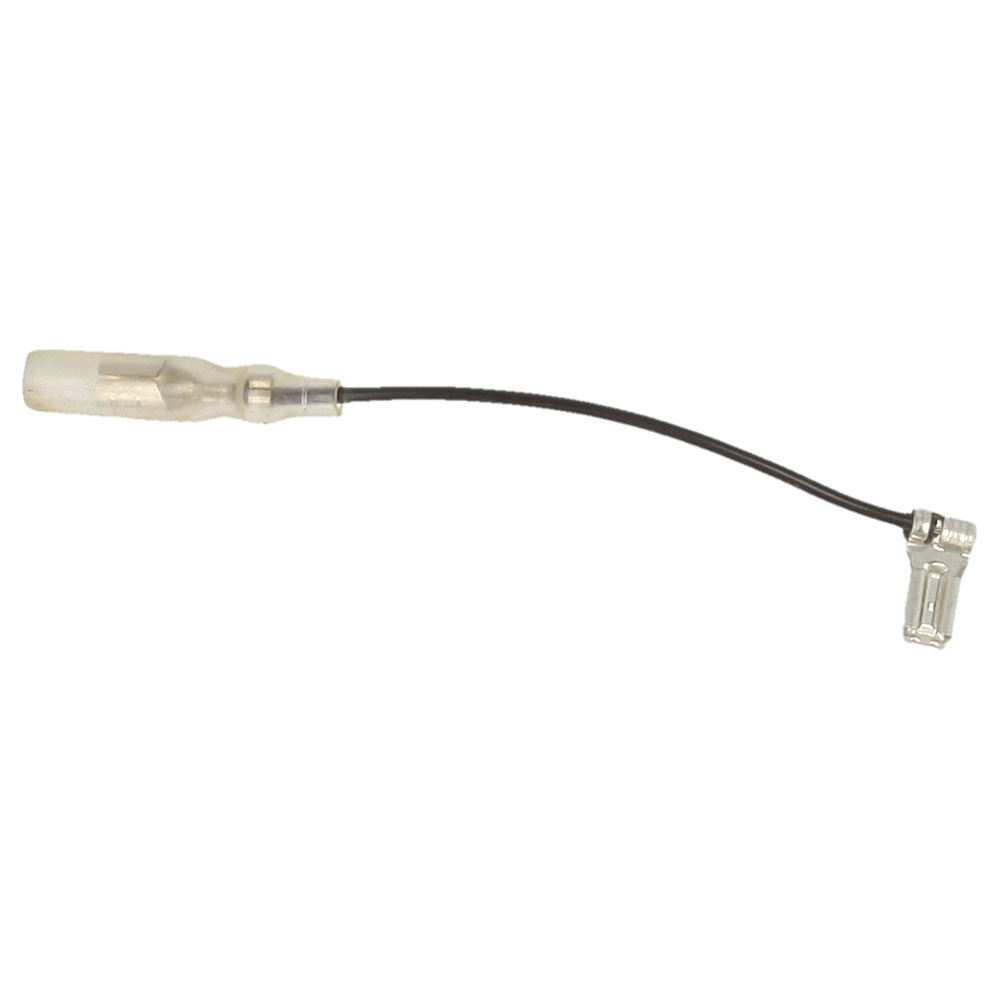

186	MK632J50-3 Available to backorder	Lead Unit B	£1.03 £0.86

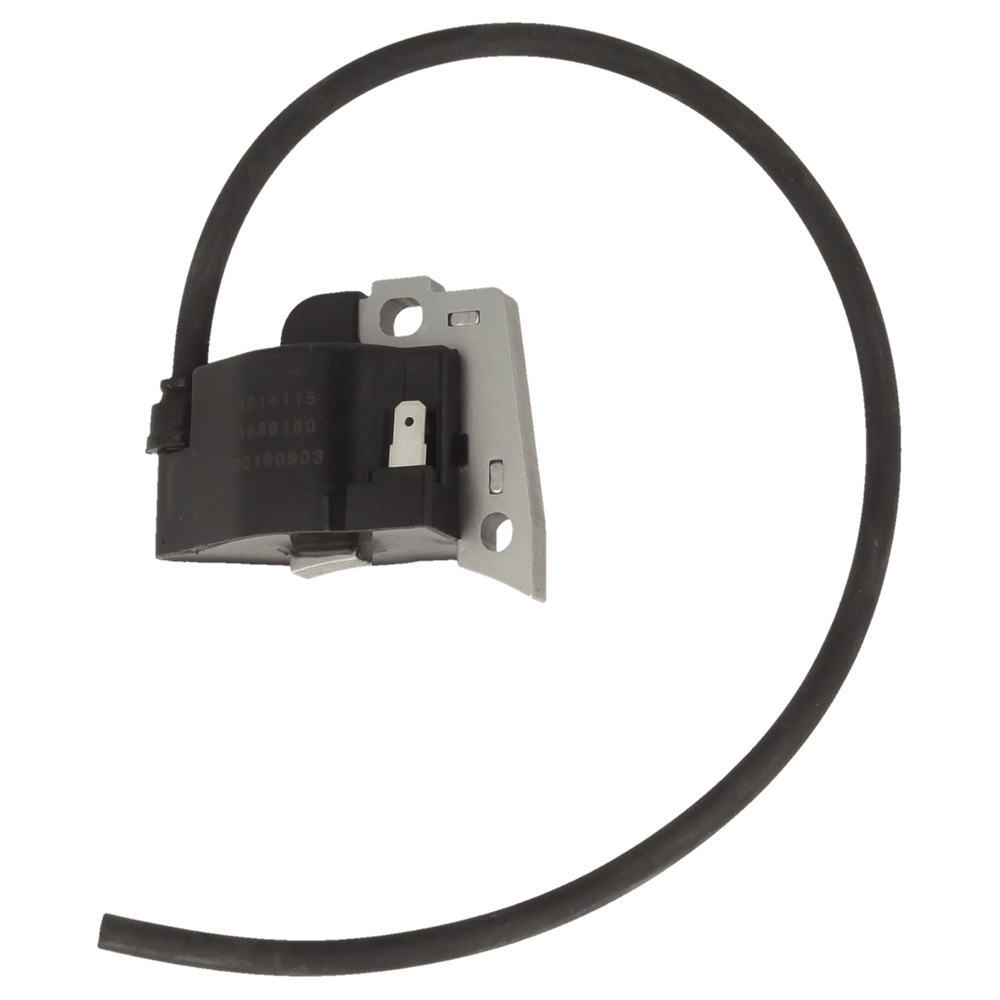

187	MK161411-5 Available to backorder	Ignition Coil	£18.24 £15.20
188	MK319391-1 Available to backorder	Flywheel	£13.68 £11.40
189	MK264054-3 Available to backorder	Flange Nut M10	£0.48 £0.40
