Makita M9400 - Belt Sander - Power Tool Diagram

Description

Model No. M9400

Belt Sander

Power Tool Parts Diagrams

	Part No.	Details
1	MK318921-5 Available to backorder	Dust Collector Bracket	£10.56 £8.80
2	MK266326-2 Available to backorder	Tapping Screw 4x18 (Refs 025 \| 029 \| 062 \| 063)	£0.48 £0.40
3	MK241662-7 Available to backorder	Fan 80	£6.72 £5.60
4	MK265170-4 Available to backorder	+Pan Head Screw M5x12	£0.48 £0.40
5	MK419580-9 Available to backorder	Separate	£1.03 £0.86
6	MK319296-5 Available to backorder	Dust Collector Cover	£18.48 £15.40
7	MK266560-4 Available to backorder	Tapping Screw 4x40 (Refs 009 \| 010 \| 012)	£0.48 £0.40
8	MK265169-9 Available to backorder	+Pan Head Screw M4x45	£0.48 £0.40
13	MK211480-7 Available to backorder	Ball Bearing 6000Zz	£1.63 £1.36
14	MK240013-1 Available to backorder	Fan 84	£1.90 £1.58
15	MK510292-8 Available to backorder	Armature Ass'y 240V (INC. 13 14 16 17)	£45.48 £37.90
16	MK681649-1 Available to backorder	Insulation Washer	£0.89 £0.74
18	MK453968-3 Available to backorder	Baffle Plate	£1.49 £1.24
19	MK266397-9 Available to backorder	Tapping Screw Bind 5x50	£0.48 £0.40
20	MK654449-2 Available to backorder	Ring Terminal (Alt.) (C11)	£0.65 £0.54
20	MK596298-0 Available to backorder	Field Ass'y 220-240V	£24.48 £20.40
20	MK654485-8 Available to backorder	Parallel Splice > (C21)	£0.48 £0.40
20	MK654501-6 Available to backorder	Connector P-1.25 (C20)	£0.48 £0.40
20	MK654220-4 Available to backorder	Ring Terminal (C10)	£0.48 £0.40
21	MK643650-4 Available to backorder	Brush Holder Cap 6.5-13.5	£0.89 £0.74
22	MK194985-1 Available to backorder	Carbon Brush Set Cb-153 (Alt.)	£4.44 £3.70
23	MK643653-8 Available to backorder	Brush Holder 6.5-13.5 (C10)	£3.60 £3.00
23	MK141760-6 Available to backorder	Motor Housing Complete <	£34.56 £28.80
24	MK222168-4 Available to backorder	V-Pulley 6-23	£4.68 £3.90
27	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.58 £1.32
28	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
30	MK654532-5 Available to backorder	Terminal Block 1P	£3.60 £3.00
31	MK645240-9 Available to backorder	Noise Suppressor	£0.65 £0.54
32	MK650545-4 Available to backorder	Switch Tga115Ct-2	£2.83 £2.36
33	MK418871-5 Available to backorder	Lock On Button	£0.70 £0.58
34	MK233423-9 Available to backorder	Compression Spring 9	£0.48 £0.40
35	MK418873-1 Available to backorder	Switch Lever	£0.89 £0.74
36	MK453965-9 Available to backorder	Handle Cover <	£5.40 £4.50
37	MK265763-7 Available to backorder	Thumb Screw M6x25	£0.70 £0.58
38	MK267356-6 Available to backorder	Flat Washer 16	£0.48 £0.40
39	MK231225-7 Available to backorder	Compression Spring 16	£0.48 £0.40
40	MK158070-4 Available to backorder	Frame Complete	£45.72 £38.10
41	MK271325-1 Available to backorder	Knob 55	£2.21 £1.84
42	MK252172-9 Available to backorder	Hex. Nut M10	£0.48 £0.40
43	MK345726-0 Available to backorder	Edge Slider	£0.70 £0.58
44	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
45	MK163477-1 Available to backorder	Tension Roller Arm	£14.16 £11.80
46	MK253922-5 Available to backorder	Cup Washer 12	£1.03 £0.86
47	MK142719-6 In stock	Tension Roller Complete	£15.24 £12.70
47	MK214116-7 Available to backorder	Plane Bearing 12 (C10)	£1.58 £1.32
47	MK424614-5 Available to backorder	Sponge Sheet 42-42 (C20)	£0.48 £0.40
49	MK323829-0 Available to backorder	Tension Roller Shaft	£4.80 £4.00
50	MK265112-8 Available to backorder	+Pan Head Screw M4x18 (Refs 054 \| 066 \| 070 \| 076)	£0.48 £0.40
51	MK344622-9 Available to backorder	Safety Cover	£2.53 £2.11
52	MK162248-3 Available to backorder	Driving Roller	£8.64 £7.20
53	MK252087-0 Available to backorder	Hex. Nut M12-19	£1.39 £1.16
55	MK344623-7 Available to backorder	Strap Washer	£1.03 £0.86

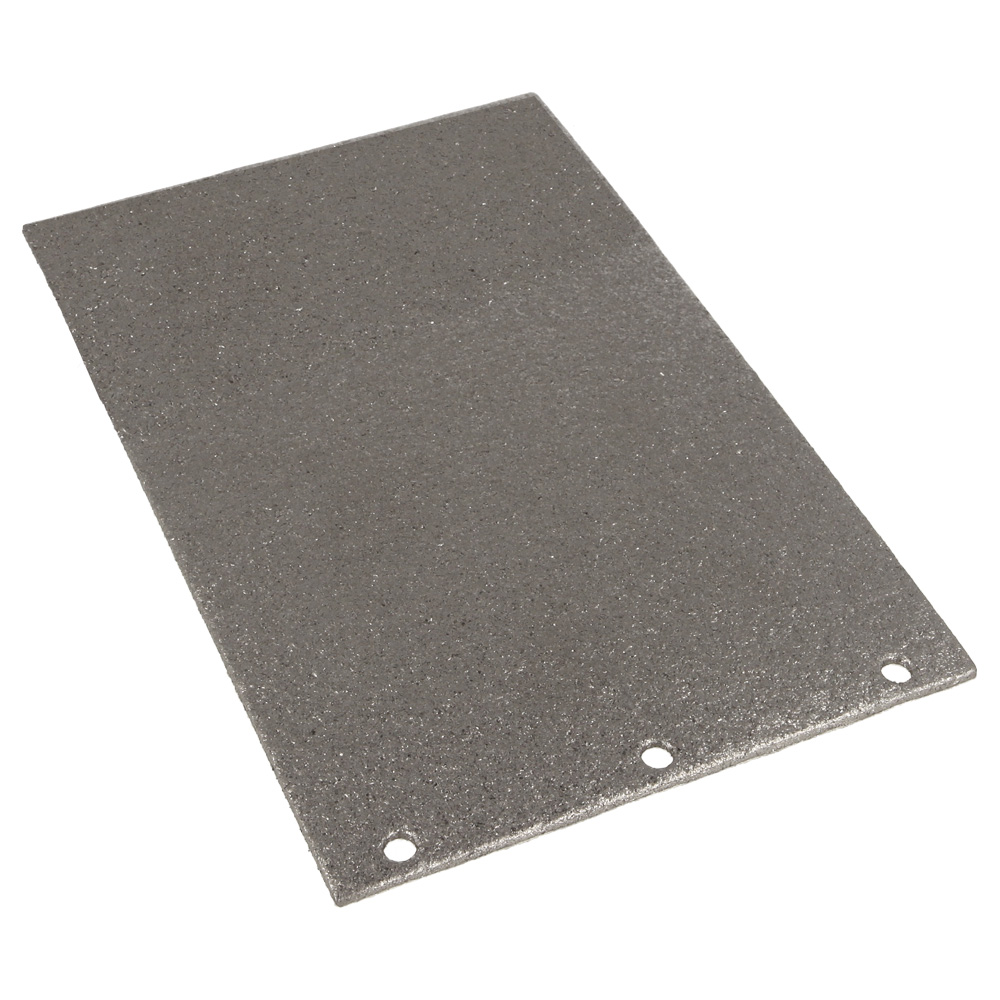

56	MK424057-1 Available to backorder	Carbon Plate	£1.74 £1.45

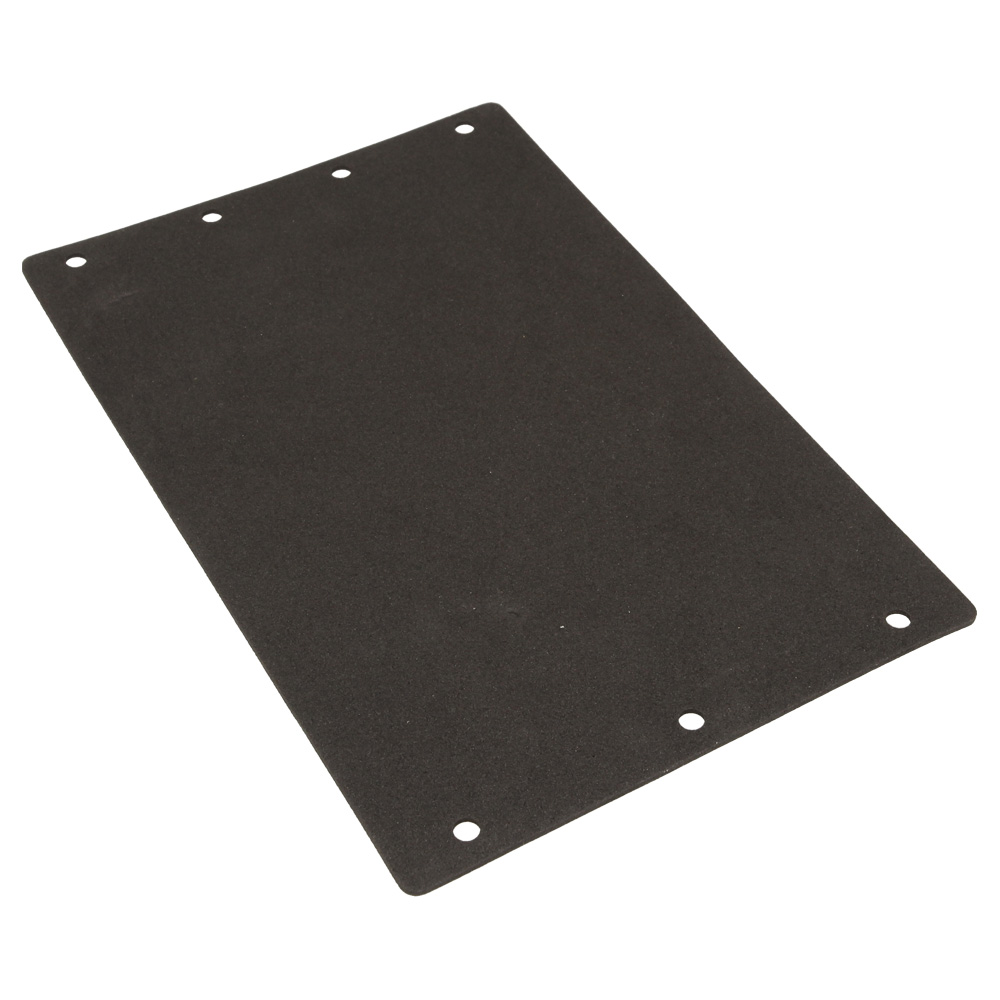

57	MK424058-9 In stock	Rubber Plate	£1.61 £1.34
58	MK233235-0 Available to backorder	Compression Spring 12	£1.03 £0.86
59	MK231819-8 Available to backorder	Tension Spring 4	£0.70 £0.58
60	MK211477-6 Available to backorder	Ball Bearing 6201Zz	£1.90 £1.58
61	MK321980-0 Available to backorder	Support Pin	£1.90 £1.58
64	MK158072-0 Available to backorder	Helical Gear 42 Complete	£10.32 £8.60
65	MK850W26-8 Available to backorder	M9400 Name Plate	£0.48 £0.40
67	MK226634-3 Available to backorder	Helical Gear 10	£7.32 £6.10
68	MK211476-8 Available to backorder	Ball Bearing 6200Zz	£1.74 £1.45
69	MK318074-0 Available to backorder	Gear Cover	£8.16 £6.80
71	MK222169-2 Available to backorder	V-Pulley 6-52.9	£5.28 £4.40
73	MK225091-2 Available to backorder	Poly V-Belt 6-355	£2.83 £2.36
75	MK419581-7 Available to backorder	Belt Cover	£2.53 £2.11
901	MK123328-0 Available to backorder	Dust Bag Ass'y (A01)	£8.64 £7.20
901	MK419876-8 Available to backorder	Fastener (C10)	£0.89 £0.74
902	MK345729-4 Available to backorder	Step (A02)	£1.79 £1.49
