Makita M9204 - Random Orbit Sander - Power Tool Diagram

Description

Model No. M9204

Random Orbit Sander

Power Tool Parts Diagrams

	Part No.	Details
1	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 003 \| 023 \| 027)	£0.48 £0.40
2	MK452778-5 Available to backorder	Top Cover	£4.32 £3.60
4	MK645228-9 Available to backorder	Noise Suppressor	£0.70 £0.58
5	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
6	MK682569-2 Available to backorder	Cord Guard 8-85	£0.70 £0.58
8	MK195015-1 Available to backorder	Carbon Brush Set Cb-419 (Alt.)	£5.04 £4.20
8	MK191962-4 Available to backorder	Carbon Brush Set Cb-419	£5.40 £4.50

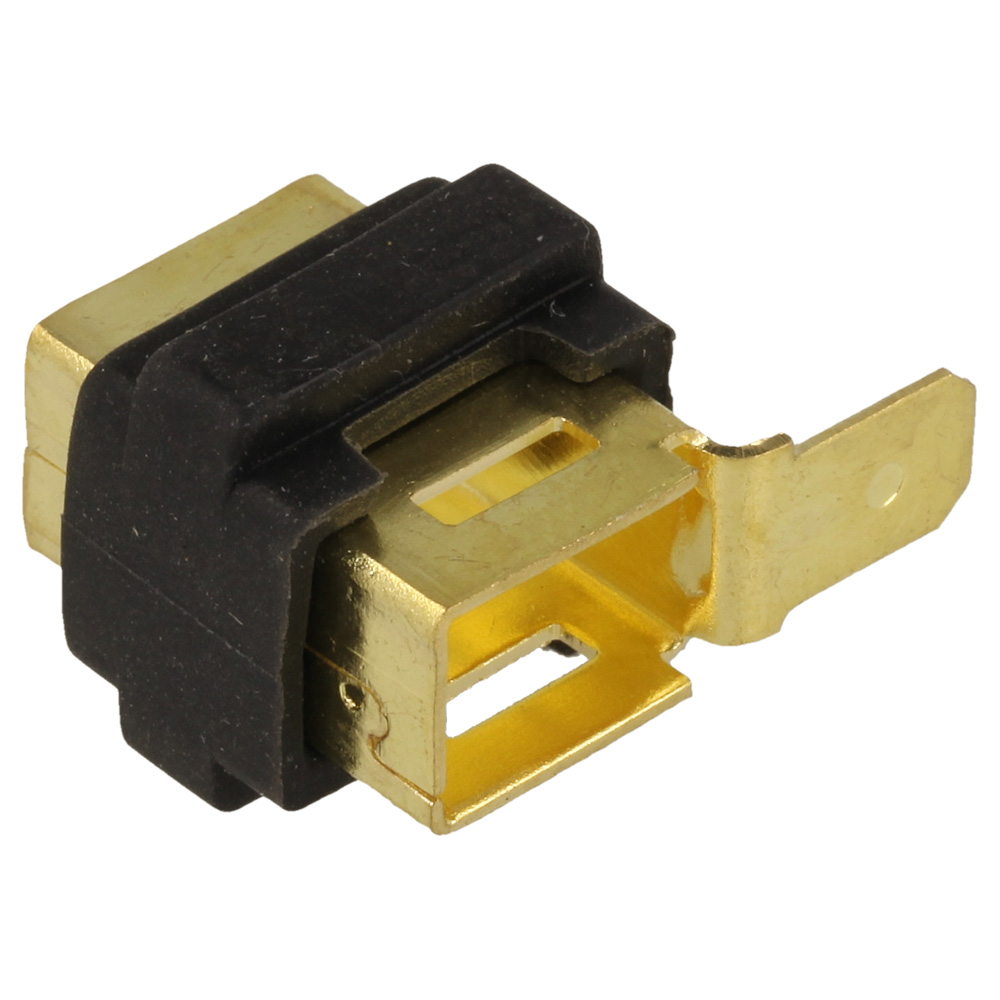

9	MK643995-0 Available to backorder	Brush Holder	£1.58 £1.32
10	MK654532-5 Available to backorder	Terminal Block 1P	£3.60 £3.00
11	MK651527-9 Available to backorder	Switch	£3.48 £2.90
13	MK456560-4 Available to backorder	Motor Housing	£14.64 £12.20
14	MK852B84-4 Available to backorder	Name Plate M9204	£0.48 £0.40
15	MK633688-7 Available to backorder	Field 220-240V	£18.48 £15.40
16	MK266425-0 Available to backorder	Binding Head Tapping Screw 4x45	£0.48 £0.40
17	MK210028-2 Available to backorder	Ball Bearing 606Zz	£1.39 £1.16
18	MK681675-0 Available to backorder	Insulation Washer	£0.48 £0.40
19	MK510251-2 Available to backorder	Armature Assembly 220-240V (INC. 17 18 20 21)	£22.68 £18.90
20	MK267806-1 Available to backorder	Washer 9	£0.70 £0.58
21	MK211092-6 Available to backorder	Ball Bearing 629Ddw	£8.28 £6.90
22	MK450672-5 Available to backorder	Bracket	£2.38 £1.98
24	MK241673-2 Available to backorder	Fan 88	£5.28 £4.40
25	MK267164-5 Available to backorder	Flat Washer 15	£0.70 £0.58
26	MK187059-5 Available to backorder	Skirt Set (INC. 28 *)	£4.80 £4.00
26	MK183S19-9 Available to backorder	Skirt Set < (INC. 28)	£4.08 £3.40
29	MK318304-9 Available to backorder	Bearing Box	£2.53 £2.11
30	MK211228-7 Available to backorder	Ball Bearing 6202Ddw	£9.72 £8.10
31	MK424131-5 Available to backorder	Brake Ring	£5.28 £4.40
32	MK318303-1 Available to backorder	Bearing Box Cover	£1.39 £1.16
33	MK253739-6 Available to backorder	Flat Washer 4	£1.03 £0.86
34	MK265099-4 Available to backorder	Pan Head Screw M4x14	£0.48 £0.40
35	MK743081-8 Available to backorder	Pad 123	£36.84 £30.70
36	MK265112-8 Available to backorder	Pan Head Screw M4x18	£0.48 £0.40
901	MK161431-9 Available to backorder	Dust Bag (A01)	£4.44 £3.70
902	MK257202-1 Available to backorder	Ring 25 (A02)	£3.48 £2.90

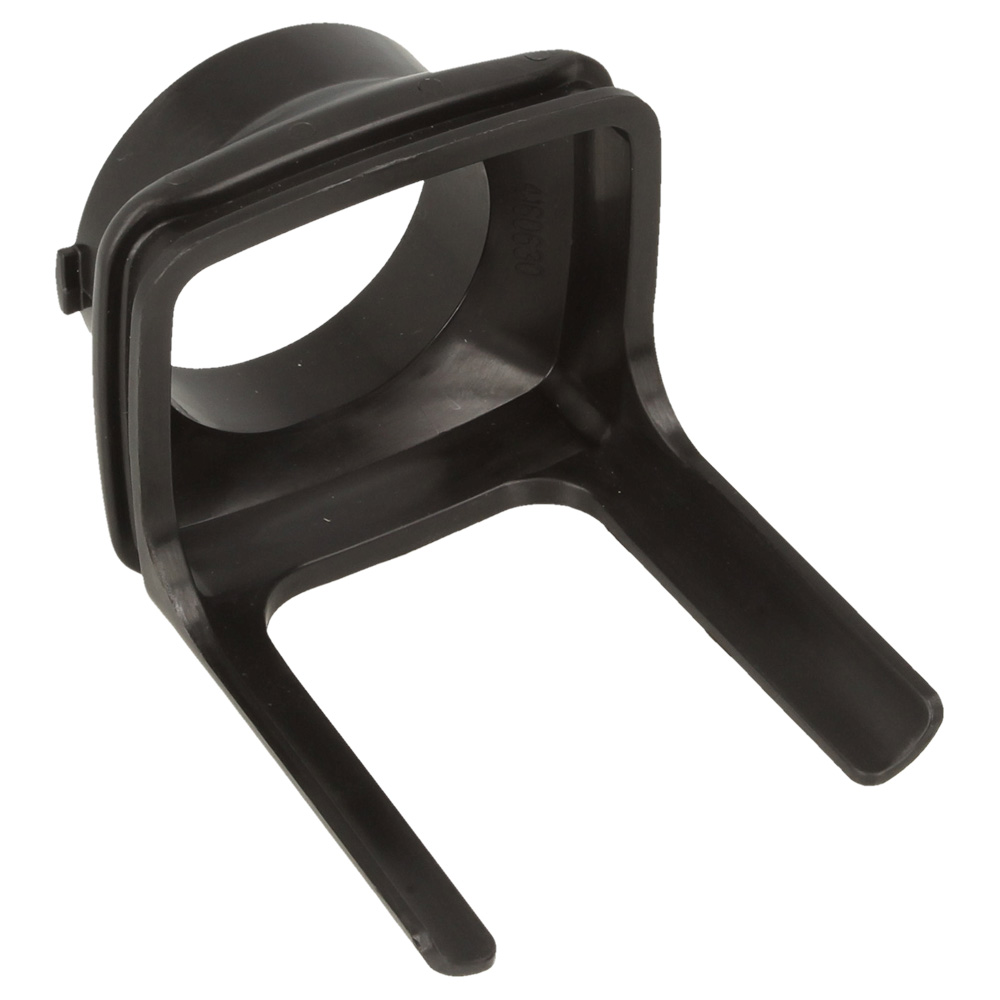

903	MK416063-0 Available to backorder	Dust Bag Nozzle (A03)	£2.99 £2.49
904	MK416064-8 Available to backorder	Dust Nozzle (A04)	£3.60 £3.00
905	MK794544-7 Available to backorder	Abrasive Disc 125-120 (10 Pcs) (A05)	£16.44 £13.70
