Makita M9000 - 180mm Angle Grinder - Power Tool Diagram

Description

Model No. M9000

180mm Angle Grinder

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
3	MK266373-3 Available to backorder	Tapping Screw 5x35	£0.48 £0.40
4	MK142753-6 Available to backorder	Gear Housing Complete (INC. 33)	£23.15 £19.29
5	MK252194-9 Available to backorder	Hex. Nut M8	£0.48 £0.40
6	MK227488-1 Available to backorder	Spiral Bevel Gear 16	£5.20 £4.33
7	MK210104-2 Available to backorder	Ball Bearing 6301Ddw	£3.40 £2.83
8	MK262085-6 Available to backorder	Rubber Ring 38	£0.74 £0.62
9	MK267299-2 Available to backorder	Flat Washer 20	£0.74 £0.62
10	MK962211-4 Available to backorder	Retaining Ring R-42	£1.60 £1.33
11	MK240081-4 Available to backorder	Fan 80	£2.46 £2.05
12	MK516948-1 Available to backorder	Armature Ass'y 220-240V (INC. 11 13 14)	£41.66 £34.72
13	MK681630-2 Available to backorder	Insulation Washer	£0.48 £0.40
14	MK210070-3 Available to backorder	Ball Bearing 6200Zz	£1.60 £1.33
15	MK419135-0 Available to backorder	Baffle Plate	£0.74 £0.62
16	MK596279-4 Available to backorder	Field Ass'y 240V	£32.06 £26.72
16	MK654486-6 Available to backorder	Parallel Splice > (C21)	£0.48 £0.40
16	MK654502-4 Available to backorder	Connector P-2 (C20)	£0.58 £0.48
16	MK654197-3 Available to backorder	Ring Terminal (C10)	£0.74 £0.62
17	MK266352-1 Available to backorder	Tapping Screw 5x65	£0.58 £0.48
19	MK643564-7 Available to backorder	Brush Holder (C10)	£1.69 £1.41
19	MK143118-5 Available to backorder	Motor Housing Complete	£20.48 £17.07
20	MK645240-9 Available to backorder	Noise Suppressor	£0.54 £0.45
21	MK643700-5 Available to backorder	Brush Holder Cap 7-18	£0.86 £0.72

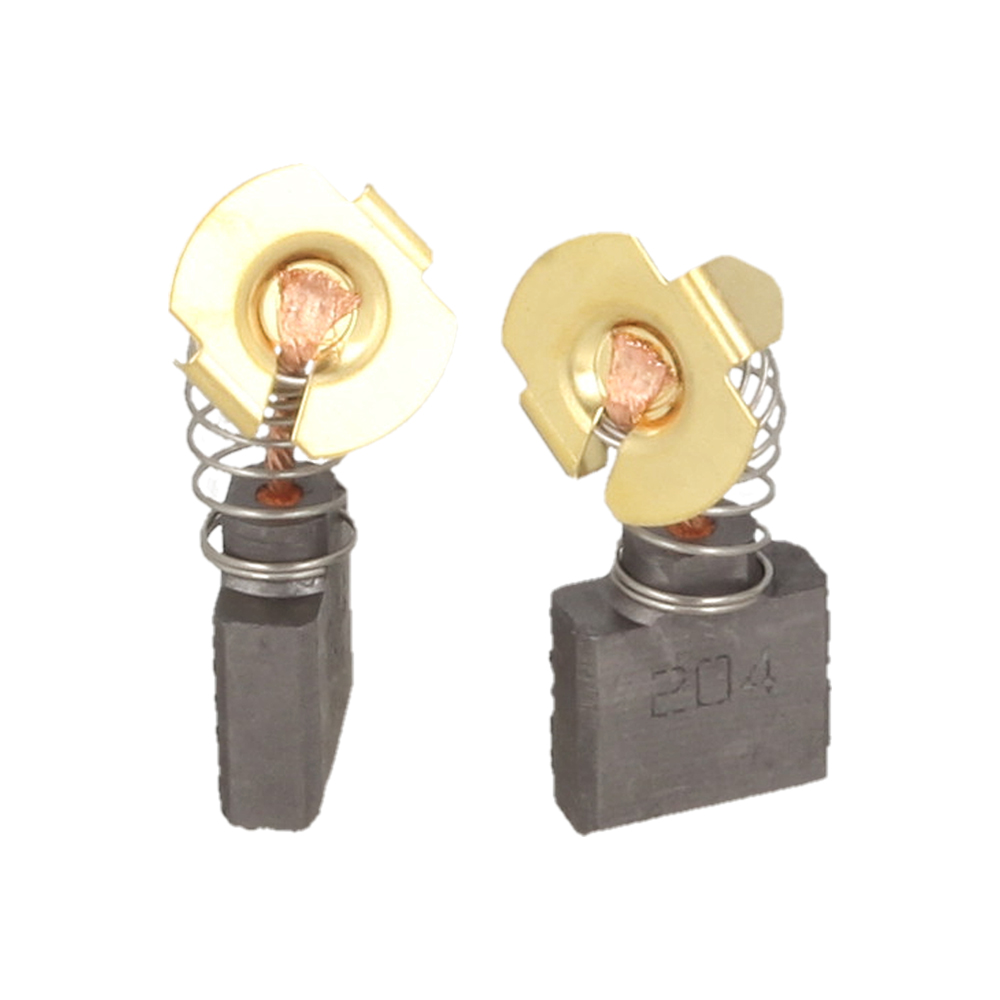

22	MK191957-7 Available to backorder	A.C. Carbon Brush Cb-204	£8.08 £6.73
24	MK651183-5 Available to backorder	Switch Hy44B	£12.86 £10.72
25	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
26	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
27	MK188895-2 Available to backorder	Handle Set (INC. 30)	£8.34 £6.95
29	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
31	MK266374-1 Available to backorder	Tapping Screw 4x25	£0.48 £0.40
32	MK256491-5 Available to backorder	Shoulder Pin 5	£0.86 £0.72
33	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
34	MK210067-2 Available to backorder	Ball Bearing 6000Zz	£1.32 £1.10
34	MK210199-5 Available to backorder	Ball Bearing 6000Zz (Alt.)	£1.24 £1.03
35	MK227489-9 Available to backorder	Spiral Bevel Gear 53 B	£12.42 £10.35
36	MK265120-9 Available to backorder	Pan Head Screw M5x16	£0.48 £0.40
37	MK285724-1 Available to backorder	Bearing Retainer 50	£0.58 £0.48
38	MK210239-9 Available to backorder	Ball Bearing 6203Ddw (Alt.)	£1.78 £1.48
38	MK211285-5 Available to backorder	Ball Bearing 6203Ddw	£1.88 £1.57
39	MK318617-8 Available to backorder	Bearing Box	£6.37 £5.31
40	MK265541-5 Available to backorder	Hex. Socket Head Bolt M6x22	£0.58 £0.48
41	MK158209-9 Available to backorder	Spindle Complete	£5.94 £4.95
43	MK213017-6 Available to backorder	O Ring 6 (Alt.) (C10)	£0.48 £0.40
43	MK122889-7 Available to backorder	Wheel Cover 180K Assembly (Alt.)	£11.26 £9.38
43	MK265198-2 Available to backorder	+Pan Head Screw M8x25 (C20)	£0.86 £0.72
44	MK224490-5 In stock	Inner Flange 14-45 (Alt.)	£1.90 £1.58

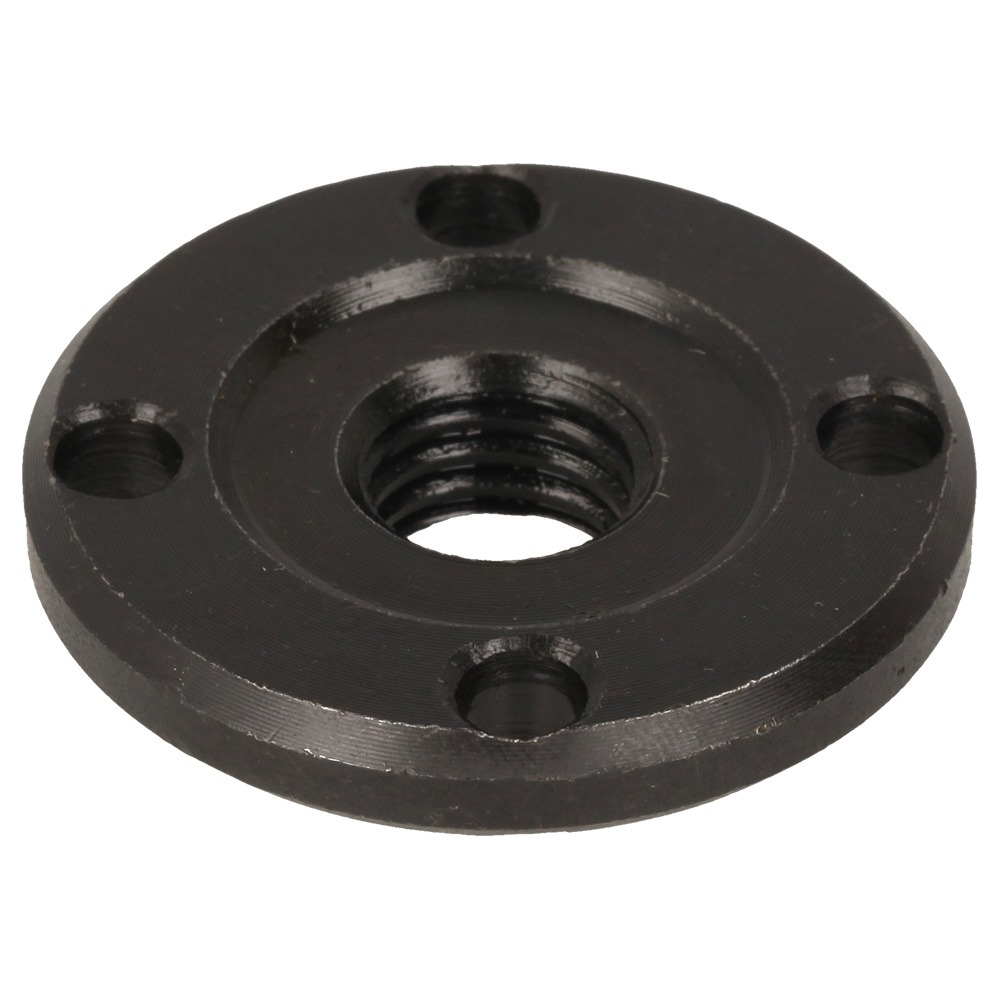

45	MK224543-0 In stock	Lock Nut 14-45	£2.21 £1.84
46	MK233946-7 Available to backorder	Ring Spring 15	£0.48 £0.40
47	MK892810-7 Available to backorder	Clear Label	£0.48 £0.40
901	MK152539-0 In stock	Grip 36 Complete (A01)	£3.94 £3.28
