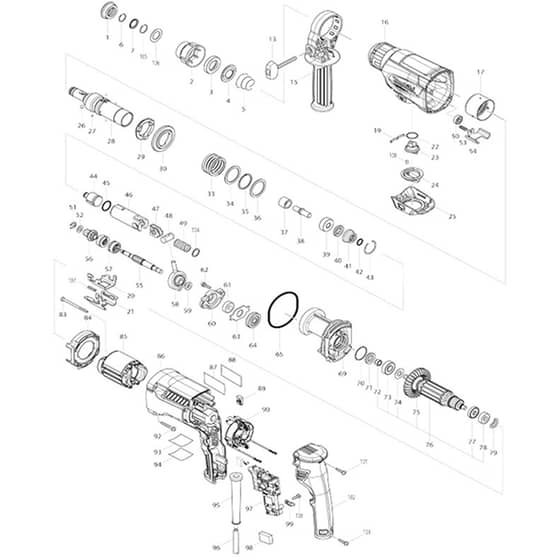

Makita M8701 - 26mm Combination Hammer - Power Tool Diagram

Description

Model No. M8701

26mm Combination Hammer

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details

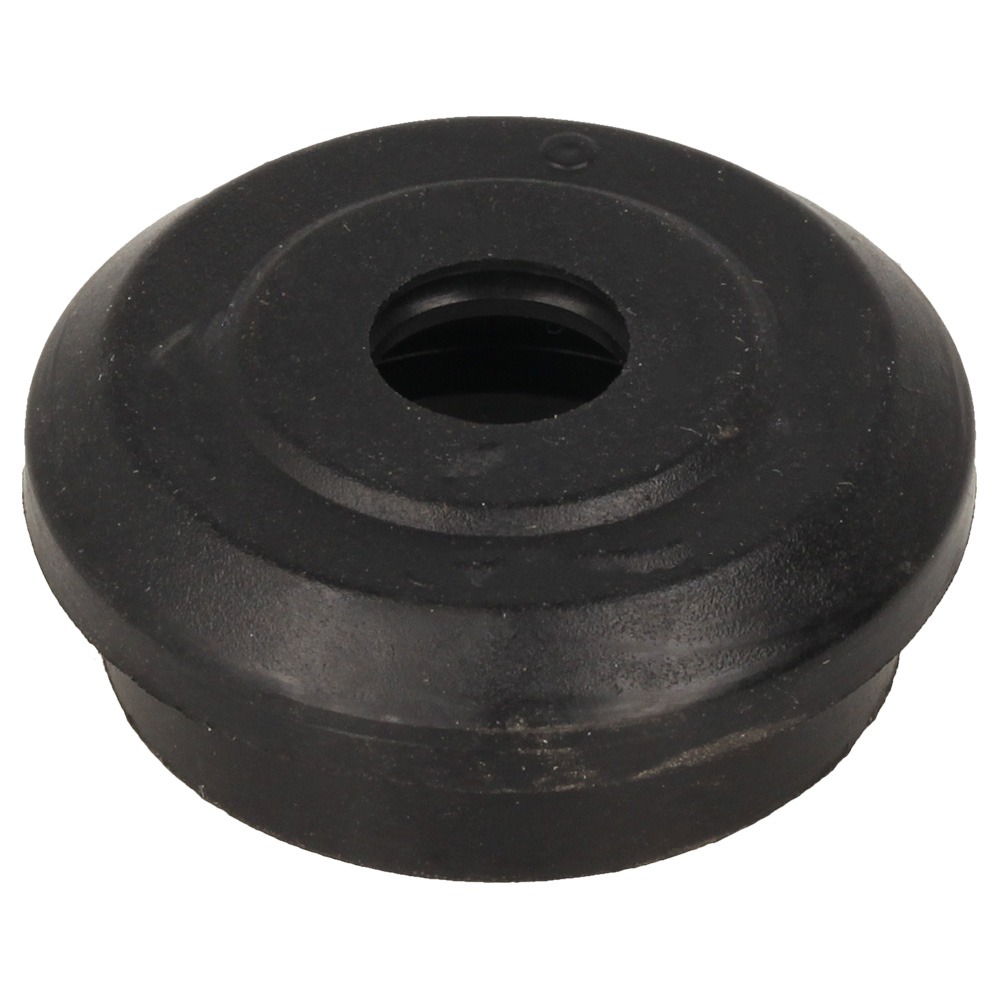

1	MK286288-8 In stock	Cap 35	£0.80 £0.67
2	MK455393-4 Available to backorder	Chuck Cover <	£0.74 £0.62
2	MK456529-8 Available to backorder	Chuck Cover	£0.85 £0.71

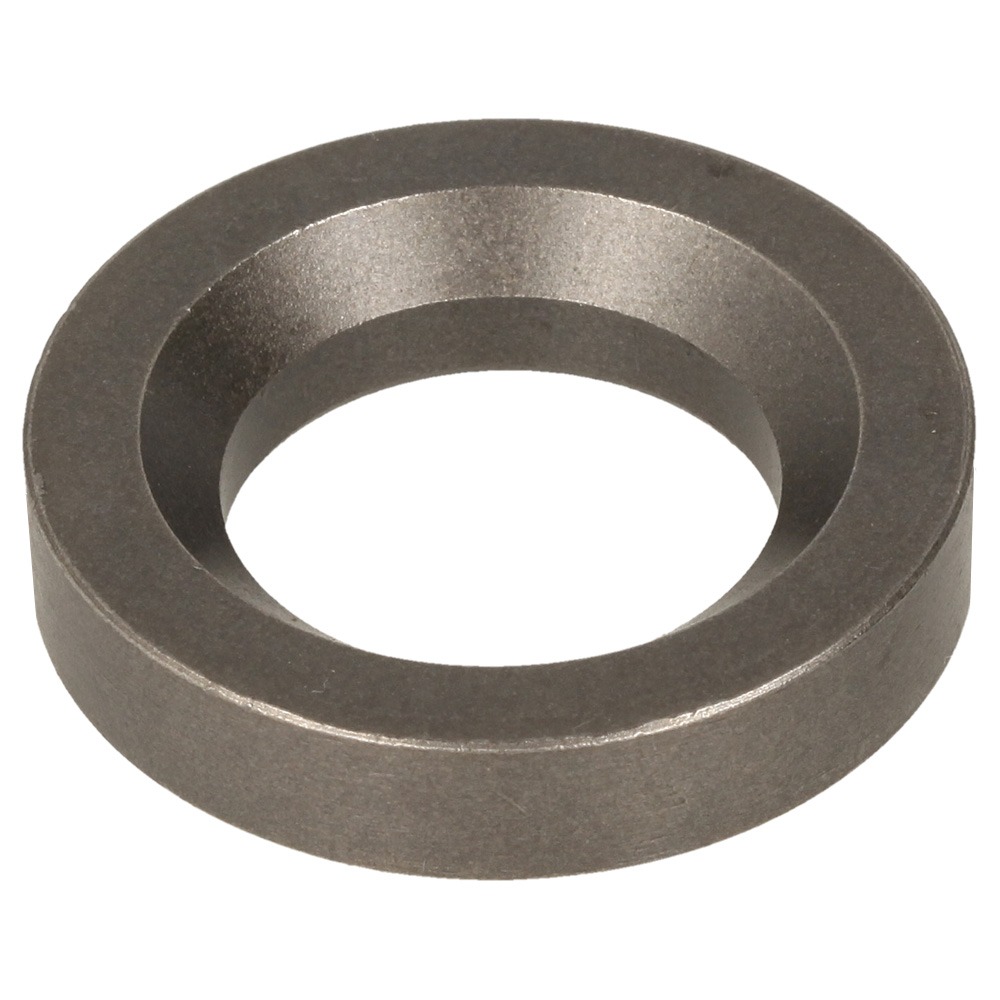

3	MK325813-1 In stock	Ring 21	£1.60 £1.33

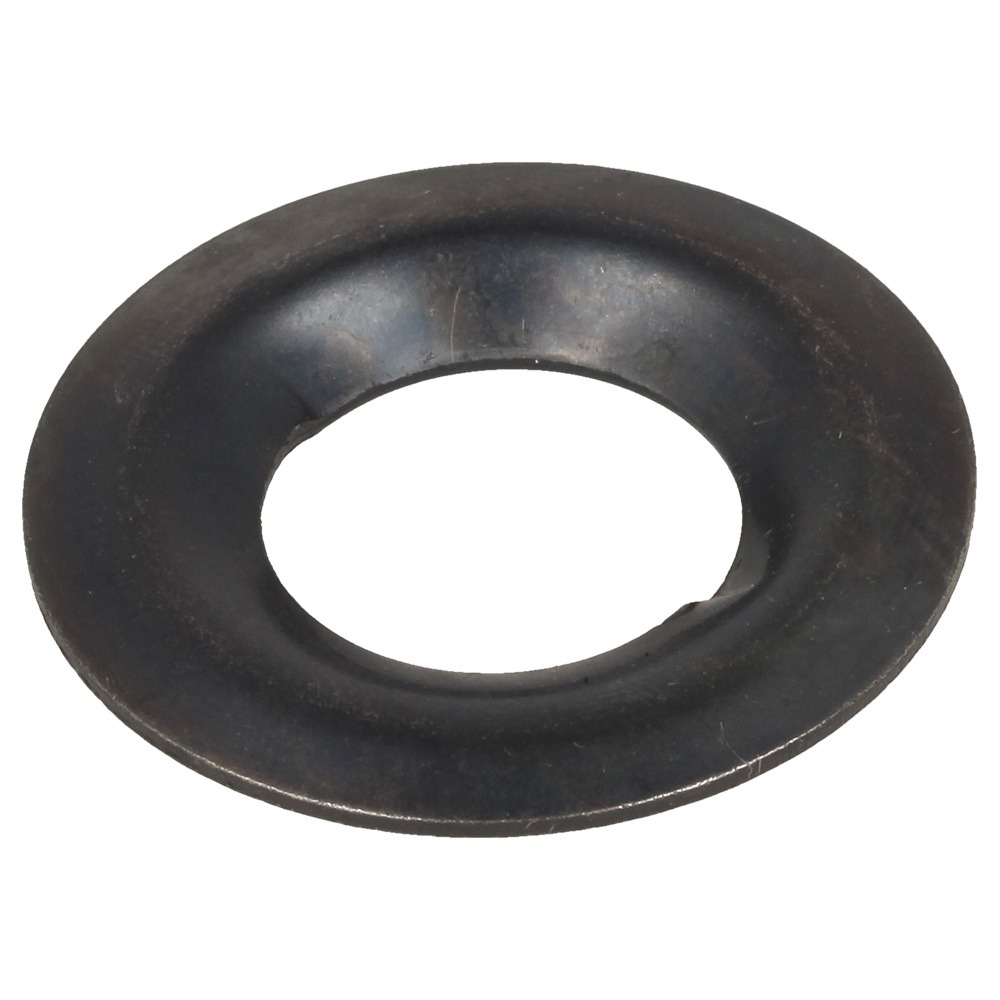

4	MK346177-0 In stock	Guide Washer	£0.64 £0.53
5	MK233916-6 In stock	Conical Compression Spring	£0.48 £0.40
6	MK233989-9 In stock	Ring Spring 14	£0.64 £0.53
7	MK346834-0 Available to backorder	Washer 16	£0.74 £0.62
13	MK265795-4 Available to backorder	Thumb Screw M6x52	£1.14 £0.95
15	MK452985-0 Available to backorder	Grip 34	£4.51 £3.76
16	MK213636-8 Available to backorder	Oil Seal 25 (C10)	£6.06 £5.05
16	MK144216-8 Available to backorder	Gear Housing Complete	£12.02 £10.02
17	MK143962-0 Available to backorder	Needle Bearing Complete	£5.80 £4.83
19	MK232286-0 Available to backorder	Leaf Spring	£0.58 £0.48
20	MK347000-2 Available to backorder	Change Plate B	£1.28 £1.07
21	MK346999-8 Available to backorder	Change Plate A	£1.69 £1.41
22	MK213278-8 Available to backorder	O-Ring 17	£0.48 £0.40
23	MK455392-6 Available to backorder	Change Lever	£0.74 £0.62
24	MK455394-2 Available to backorder	Change Lever Cap	£0.58 £0.48
25	MK456528-0 Available to backorder	Change Lever Cover	£1.00 £0.83
26	MK216022-2 Available to backorder	Steel Ball 7.0	£0.48 £0.40
27	MK216019-1 Available to backorder	Steel Ball 3	£0.47 £0.39
28	MK213344-1 Available to backorder	Oil Seal 9 (C10)	£4.48 £3.73
28	MK144215-0 Available to backorder	Tool Holder Complete	£21.34 £17.78
29	MK332139-4 Available to backorder	Driving Flange	£5.20 £4.33
30	MK227360-7 Available to backorder	Spur Gear 51	£6.52 £5.43
33	MK231899-4 Available to backorder	Compression Spring 31	£1.28 £1.07
34	MK267153-0 Available to backorder	Flat Washer 30	£0.74 £0.62
35	MK257932-4 Available to backorder	Spiro Lock Washer 30	£4.48 £3.73
37	MK325782-6 Available to backorder	Sleeve 9A	£1.88 £1.57
38	MK325789-2 Available to backorder	Impact Bolt A	£1.44 £1.20
39	MK325794-9 Available to backorder	Ring 10A	£1.44 £1.20
40	MK424267-0 Available to backorder	Cushion Ring 12	£1.60 £1.33
41	MK325798-1 Available to backorder	O-Ring Case A	£3.34 £2.78
42	MK213073-6 Available to backorder	O-Ring 9	£1.16 £0.97
43	MK233979-2 Available to backorder	Ring Spring 28	£0.48 £0.40
44	MK325784-2 Available to backorder	Striker	£3.04 £2.53
45	MK213258-4 Available to backorder	O-Ring 17.5	£2.18 £1.82
46	MK310345-1 Available to backorder	Piston Cylinder	£9.54 £7.95
47	MK346036-8 Available to backorder	Guide Plate	£0.74 £0.62
48	MK324215-8 Available to backorder	Piston Joint	£1.60 £1.33
49	MK234098-7 Available to backorder	Compression Spring 14	£0.58 £0.48
50	MK210137-7 Available to backorder	Ball Bearing 606Zz	£1.02 £0.85
51	MK257336-0 Available to backorder	Stop Ring (Ext) U-6	£0.48 £0.40
52	MK253186-1 Available to backorder	Flat Washer 7	£0.58 £0.48
53	MK233360-7 Available to backorder	Compression Spring 4	£0.48 £0.40
54	MK346998-0 Available to backorder	Lock Plate	£1.14 £0.95
55	MK326448-1 Available to backorder	Cam Shaft	£5.94 £4.95
56	MK227359-2 Available to backorder	Spur Gear 10	£20.22 £16.85
57	MK310678-4 Available to backorder	Clutch Cam	£1.44 £1.20
58	MK219021-3 Available to backorder	Swash Bearing 10	£17.20 £14.33
59	MK257321-3 Available to backorder	Ring 8	£0.58 £0.48
60	MK310344-3 Available to backorder	Bearing Box	£2.76 £2.30
61	MK210046-0 Available to backorder	Ball Bearing 608Zz	£1.00 £0.83
62	MK266437-3 Available to backorder	Hex. Socket Head Bolt M4x16	£1.02 £0.85
63	MK285735-6 Available to backorder	Bearing Retainer	£0.86 £0.72
64	MK227748-1 Available to backorder	Helical Gear 27	£2.02 £1.68
65	MK213727-5 Available to backorder	O-Ring 63	£3.46 £2.88
69	MK141664-2 Available to backorder	Inner Housing Complete	£14.08 £11.73
69	MK443153-6 Available to backorder	Felt (C10)	£0.74 £0.62
70	MK213407-3 Available to backorder	O-Ring 26	£0.86 £0.72
71	MK213678-2 Available to backorder	Oil Seal 12	£5.64 £4.70
72	MK262571-7 Available to backorder	Sleeve 8	£0.96 £0.80
73	MK211480-7 Available to backorder	Ball Bearing 6000Zz	£1.36 £1.13
74	MK267213-8 Available to backorder	Flat Washer 10	£0.48 £0.40
75	MK240084-8 Available to backorder	Fan 60	£1.16 £0.97
76	MK513944-0 Available to backorder	Armature Assembly 240V (INC. 72-75 77 78)	£23.62 £19.68
77	MK681652-2 Available to backorder	Insulation Washer	£0.58 £0.48
78	MK210050-9 Available to backorder	Ball Bearing 627Zz	£1.00 £0.83
79	MK267804-5 Available to backorder	Wave Washer 15	£0.48 £0.40
83	MK266334-3 Available to backorder	Binding Head Tapping Screw 4x60	£0.48 £0.40
84	MK452984-2 Available to backorder	Baffle Plate	£0.70 £0.58
85	MK633793-0 Available to backorder	Field 220-240V	£16.82 £14.02
86	MK452979-5 Available to backorder	Motor Housing	£10.52 £8.77
87	MK852T28-2 Available to backorder	Name Plate M8701	£0.48 £0.40
88	MK890304-6 Available to backorder	Clear Label	£0.48 £0.40
89	MK195026-6 Available to backorder	Carbon Brush Set (Alt.)	£2.83 £2.36
90	MK638747-2 Available to backorder	Brush Holder Unit	£9.19 £7.66
92	MK266361-0 Available to backorder	Binding Head Tapping Screw 4x30	£0.48 £0.40
93	MK852T30-5 Available to backorder	Serial No. Label M8701	£0.48 £0.40
94	MK890297-7 Available to backorder	Clear Label	£0.48 £0.40
95	MK682566-8 Available to backorder	Cord Guard 10	£1.16 £0.97
96	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0 (Alt.)	£10.52 £8.77
97	MK650671-9 Available to backorder	Switch Tg853Tb-1C	£12.70 £10.58
98	MK645267-9 Available to backorder	Noise Suppressor (Alt.)	£0.74 £0.62
98	MK645190-8 Available to backorder	Noise Suppressor	£0.74 £0.62
99	MK687682-1 Available to backorder	Strain Relief	£0.58 £0.48
100	MK266385-6 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
101	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
102	MK413S72-4 Available to backorder	Handle Cover <	£4.92 £4.10
102	MK452981-8 Available to backorder	Handle Cover	£4.78 £3.98
104	MK267447-3 Available to backorder	Flat Washer 14	£0.58 £0.48
105	MK233992-0 In stock	Ring Spring 15	£0.58 £0.48
106	MK267114-0 Available to backorder	Flat Washer 17	£0.74 £0.62
107	MK231900-5 Available to backorder	Compression Spring 5	£0.48 £0.40
108	MK263005-3 In stock	Rubber Pin 6	£0.47 £0.39
901	MK198221-7 Available to backorder	Hammer Service Kit (For High) (B01)	£15.16 £12.63
901	MK195127-0 Available to backorder	Oil Vessel Set (C10)	£3.44 £2.87
901	MK321144-6 Available to backorder	Depth Gauge (A01)	£1.44 £1.20
902	MK821660-3 Available to backorder	Plastic Case (A02A)	£24.43 £20.36
902	MK452432-1 Available to backorder	Slide Latch (C10)	£1.10 £0.92
902	MK806G57-9 Available to backorder	Makita Mt Logo Label (C20)	£0.82 £0.68
903	MK810V59-9 Available to backorder	Plastic Case Label M8701 (A03A)	£0.48 £0.40
