Makita M8700 - 20mm Rotary Hammer - Power Tool Diagram

Description

Model No. M8700

20mm Rotary Hammer

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK286288-8 In stock	Cap 35	£0.80 £0.67
2	MK455393-4 Available to backorder	Chuck Cover <	£0.74 £0.62
2	MK452986-8 Available to backorder	Chuck Cover	£1.00 £0.83
2	MK456529-8 Available to backorder	Chuck Cover S	£0.85 £0.71
3	MK325813-1 In stock	Ring 21	£1.60 £1.33
4	MK346177-0 In stock	Guide Washer	£0.64 £0.53
5	MK233916-6 In stock	Conical Compression Spring 21-29	£0.48 £0.40
6	MK233989-9 In stock	Ring Spring 14	£0.64 £0.53
7	MK346221-3 Available to backorder	Washer 16	£0.86 £0.72
7	MK346834-0 Available to backorder	Washer 16 S	£0.74 £0.62
13	MK265795-4 Available to backorder	Thumb Screw M6x52	£1.14 £0.95
14	MK267415-6 Available to backorder	Flat Washer 33	£0.56 £0.47
15	MK452985-0 Available to backorder	Grip 34	£4.51 £3.76
16	MK213636-8 Available to backorder	Oil Seal 25 (C10)	£6.06 £5.05
16	MK143120-8 Available to backorder	Gear Housing Complete	£10.60 £8.83
17	MK346178-8 Available to backorder	Cup Sleeve	£0.85 £0.71
18	MK211423-9 Available to backorder	Ball Bearing 6806Ddw	£4.20 £3.50
19	MK232152-1 Available to backorder	Leaf Spring	£2.02 £1.68

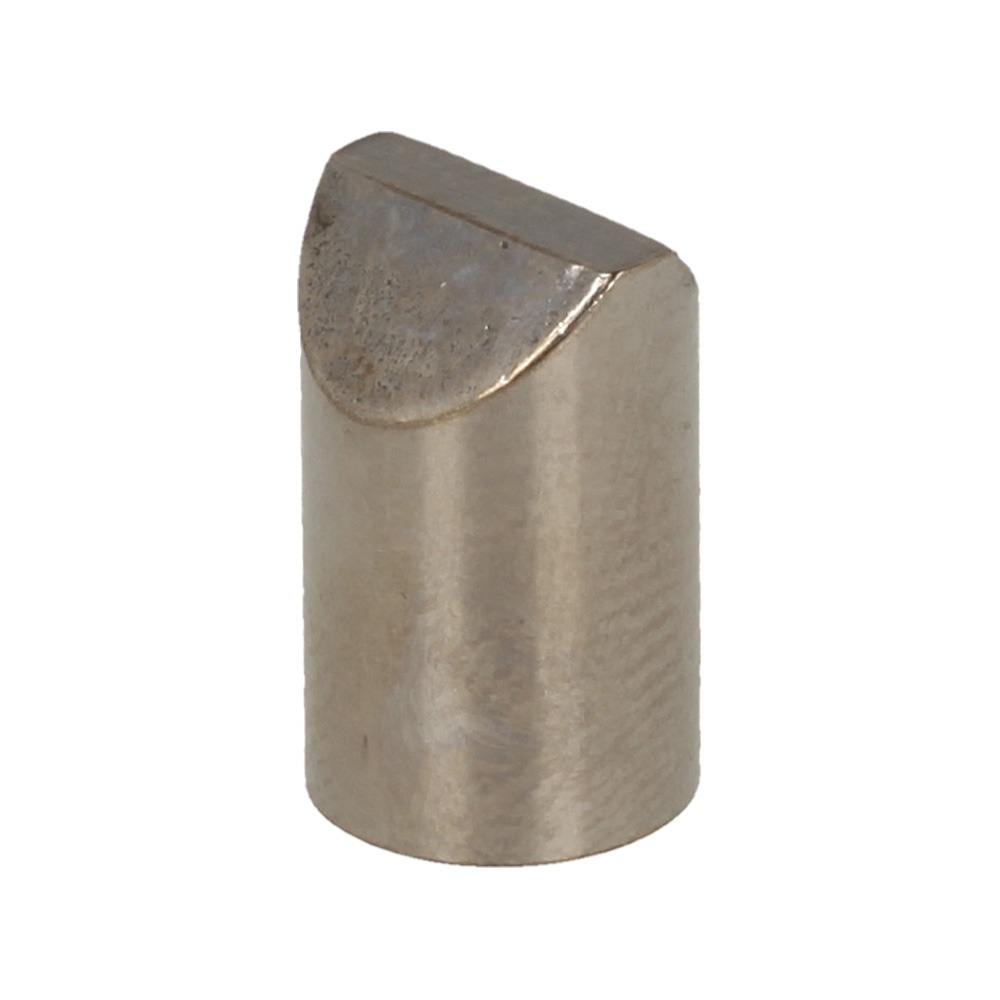

20	MK325785-0 Available to backorder	Push Cone	£1.12 £0.93
21	MK234147-0 Available to backorder	Compression Spring 5	£0.48 £0.40
22	MK253308-3 In stock	Thin Washer 6	£0.47 £0.39
23	MK213258-4 Available to backorder	O-Ring 17.5	£2.18 £1.82
24	MK452983-4 Available to backorder	Change Lever	£0.85 £0.71
25	MK452982-6 Available to backorder	Change Lever Cover	£1.00 £0.83
26	MK216022-2 Available to backorder	Steel Ball 7.0	£0.48 £0.40
27	MK216019-1 Available to backorder	Steel Ball 3	£0.47 £0.39
28	MK141068-8 Available to backorder	Tool Holder Complete	£22.46 £18.72
28	MK144273-6 Available to backorder	Tool Holder Complete <	£16.66 £13.88
31	MK267153-0 Available to backorder	Flat Washer 30	£0.74 £0.62
32	MK234222-2 Available to backorder	Compression Spring 31	£0.85 £0.71
33	MK227268-5 Available to backorder	Spur Gear 51	£1.84 £1.53
34	MK313218-7 Available to backorder	Driving Flange	£1.99 £1.66
36	MK213075-2 Available to backorder	x-Ring 9	£0.86 £0.72
37	MK325782-6 Available to backorder	Sleeve 9A	£1.88 £1.57
38	MK325789-2 Available to backorder	Impact Bolt A	£1.44 £1.20
39	MK325794-9 Available to backorder	Ring 10A	£1.44 £1.20
40	MK424267-0 Available to backorder	Cushion Ring 12	£1.60 £1.33
41	MK325798-1 Available to backorder	O-Ring Case A	£3.34 £2.78
42	MK213073-6 Available to backorder	O-Ring 9	£1.16 £0.97
43	MK233979-2 Available to backorder	Ring Spring 28	£0.48 £0.40
44	MK326096-6 Available to backorder	Striker	£3.66 £3.05
46	MK310345-1 Available to backorder	Piston Cylinder	£9.54 £7.95
47	MK346036-8 Available to backorder	Guide Plate	£0.74 £0.62
48	MK324215-8 Available to backorder	Piston Joint (Alt.)	£1.60 £1.33
49	MK234098-7 Available to backorder	Compression Spring 14	£0.58 £0.48
50	MK210028-2 Available to backorder	Ball Bearing 606Zz	£1.16 £0.97
56	MK227269-3 Available to backorder	Spur Gear 10	£5.65 £4.71
57	MK223174-2 Available to backorder	Clutch Cam	£2.14 £1.78
58	MK219021-3 Available to backorder	Swash Bearing 10	£17.20 £14.33
59	MK257321-3 Available to backorder	Ring 8	£0.58 £0.48
60	MK310344-3 Available to backorder	Bearing Box	£2.76 £2.30
61	MK210029-0 Available to backorder	Ball Bearing 608Zz	£1.16 £0.97
62	MK266437-3 Available to backorder	Hex. Socket Head Bolt M4x16	£1.02 £0.85
63	MK285735-6 Available to backorder	Bearing Retainer	£0.86 £0.72
64	MK227748-1 Available to backorder	Helical Gear 27	£2.02 £1.68
65	MK213727-5 Available to backorder	O-Ring 63	£3.46 £2.88
69	MK141664-2 Available to backorder	Inner Housing Complete	£14.08 £11.73
69	MK443153-6 Available to backorder	Felt (C10)	£0.74 £0.62
70	MK213407-3 Available to backorder	O-Ring 26	£0.86 £0.72
71	MK213678-2 Available to backorder	Oil Seal 12	£5.64 £4.70
72	MK262571-7 Available to backorder	Sleeve 8	£0.96 £0.80
73	MK210067-2 Available to backorder	Ball Bearing 6000Zz	£1.32 £1.10
74	MK267213-8 Available to backorder	Flat Washer 10	£0.48 £0.40
75	MK240084-8 Available to backorder	Fan 60	£1.16 £0.97
76	MK515859-7 Available to backorder	Armature Assembly 240V (INC. 72-75 77 78)	£30.37 £25.31
77	MK681652-2 Available to backorder	Insulation Washer	£0.58 £0.48
78	MK210030-5 Available to backorder	Ball Bearing 627Zz	£1.16 £0.97
79	MK267804-5 Available to backorder	Wave Washer 15	£0.48 £0.40
83	MK266334-3 Available to backorder	Binding Head Tapping Screw 4x60	£0.48 £0.40
84	MK452984-2 Available to backorder	Baffle Plate	£0.70 £0.58
85	MK633793-0 Available to backorder	Field 220-240V	£16.82 £14.02
86	MK452979-5 Available to backorder	Motor Housing <	£10.52 £8.77
86	MK453915-4 Available to backorder	Motor Housing	£10.16 £8.47
87	MK850W86-0 Available to backorder	Name Plate M8700	£0.48 £0.40
88	MK890304-6 Available to backorder	Clear Label	£0.48 £0.40
89	MK195026-6 Available to backorder	Carbon Brush Set (Alt.)	£2.83 £2.36
90	MK638747-2 Available to backorder	Brush Holder Unit	£9.19 £7.66
92	MK266361-0 Available to backorder	Binding Head Tapping Screw 4x30	£0.48 £0.40
93	MK850W88-6 Available to backorder	Serial No. Label M8700	£0.48 £0.40
94	MK890297-7 Available to backorder	Clear Label	£0.48 £0.40
95	MK682566-8 Available to backorder	Cord Guard 10	£1.16 £0.97
96	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.52 £8.77
97	MK650671-9 Available to backorder	Switch Tg853Tb-1C	£12.70 £10.58
98	MK645190-8 Available to backorder	Noise Suppressor	£0.74 £0.62
99	MK687682-1 Available to backorder	Strain Relief	£0.58 £0.48
100	MK266385-6 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
101	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
102	MK413S72-4 Available to backorder	Handle Cover <	£4.92 £4.10
102	MK452981-8 Available to backorder	Handle Cover <	£4.78 £3.98
102	MK453916-2 Available to backorder	Handle Cover	£5.09 £4.24
104	MK267447-3 Available to backorder	Flat Washer 14	£0.58 £0.48
105	MK233992-0 In stock	Ring Spring 15	£0.58 £0.48
106	MK267437-6 Available to backorder	Flat Washer 17	£0.58 £0.48
106	MK267114-0 Available to backorder	Flat Washer 17 S	£0.74 £0.62
107	MK424364-2 Available to backorder	Rubber Washer 16	£0.58 £0.48
901	MK195796-7 Available to backorder	Hammer Service Kit (B01)	£17.38 £14.48
901	MK195127-0 Available to backorder	Oil Vessel Set (C10)	£3.44 £2.87
901	MK321144-6 Available to backorder	Depth Gauge (A01)	£1.44 £1.20
902	MK806G57-9 Available to backorder	Makita Mt Logo Label (C20)	£0.82 £0.68
902	MK821660-3 Available to backorder	Plastic Case (A02)	£24.43 £20.36
902	MK452432-1 Available to backorder	Slide Latch (C10)	£1.10 £0.92
903	MK807W93-4 Available to backorder	Plastic Case Label M8700 < (A03-1)	£0.48 £0.40
