Makita M4501 - Recipro Saw - Power Tool Diagram

Name: Makita M4501 - Recipro Saw - Power Tool Diagram
SKU: m4501_recipro_saw_power_tool-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita M4501 - Recipro Saw - Power Tool Diagram

Description

Model No. M4501

Recipro Saw

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details

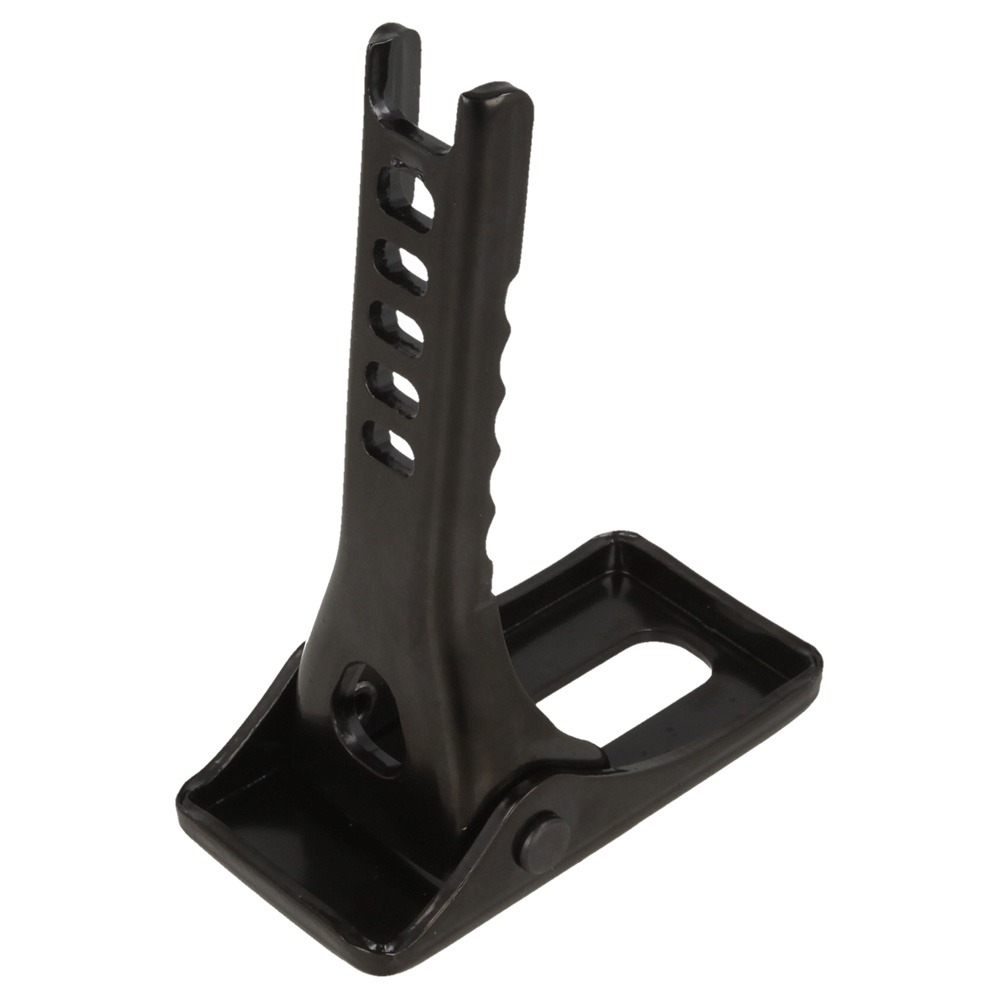

1	MK163451-9 In stock	Shoe (Alt.)	£5.64 £4.70
2	MK424587-2 Available to backorder	Insulation Cover	£11.59 £9.66

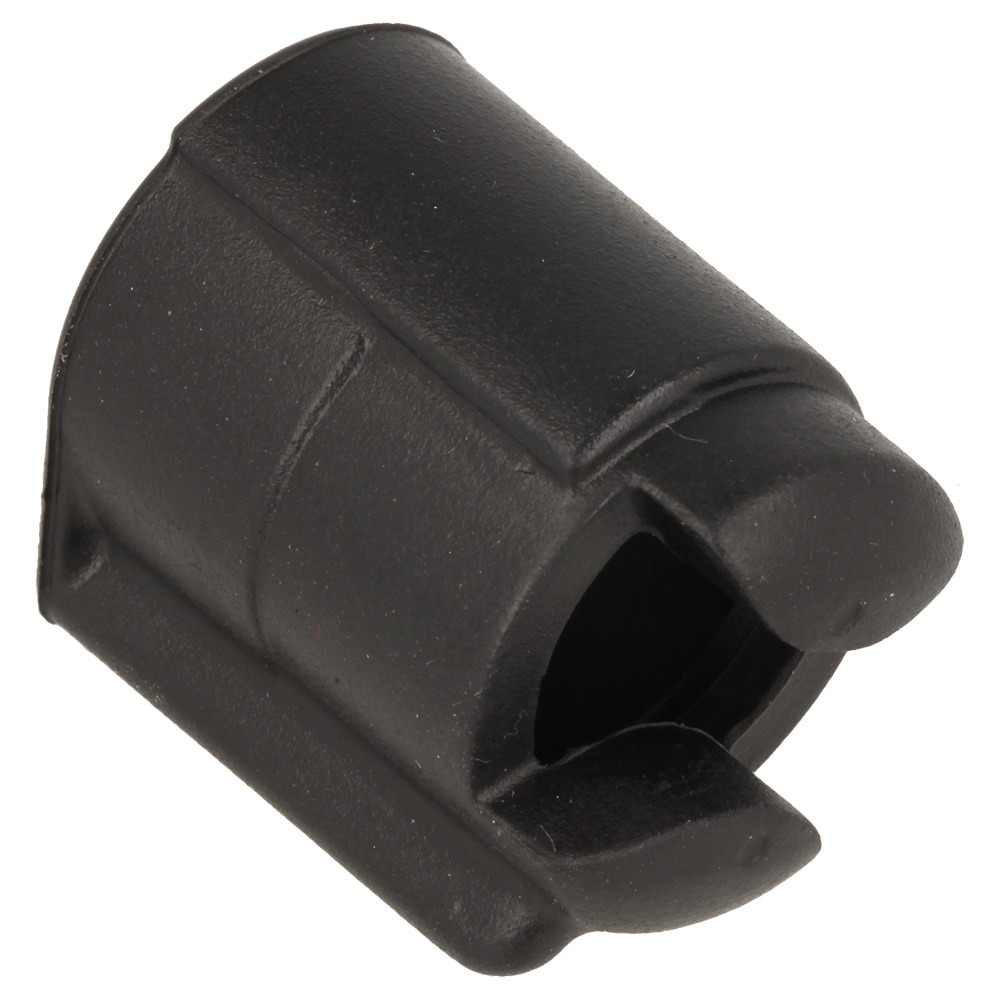

3	MK424147-0 In stock	Protector	£0.74 £0.62
4	MK257430-8 Available to backorder	Retaining Ring(Ext)18 S	£0.86 £0.72
5	MK310285-3 Available to backorder	Driving Sleeve	£6.06 £5.05
6	MK256492-3 Available to backorder	Shoulder Pin 5	£1.16 £0.97
7	MK233345-3 Available to backorder	Compression Spring 6	£0.74 £0.62
8	MK268094-3 Available to backorder	Pin 3	£2.32 £1.93
9	MK327043-0 Available to backorder	Guide Sleeve S	£1.32 £1.10
10	MK256158-5 Available to backorder	Pin 3	£0.74 £0.62
11	MK417791-0 Available to backorder	Driving Sleeve Guide	£2.02 £1.68
12	MK418311-3 Available to backorder	Sleeve	£0.86 £0.72
13	MK345214-7 Available to backorder	Push Plate	£0.86 £0.72
14	MK233025-1 Available to backorder	Compression Spring 2	£0.58 £0.48
15	MK231687-9 Available to backorder	Torsion Spring 17	£0.58 £0.48
18	MK213151-2 Available to backorder	Oil Seal 14 (C10)	£2.32 £1.93
18	MK142177-6 Available to backorder	Gear Housing Cover Complete	£13.99 £11.66
18	MK213174-0 Available to backorder	x Ring 14 (C20)	£3.62 £3.02
19	MK418806-6 Available to backorder	Cap	£0.58 £0.48
20	MK911258-5 Available to backorder	Pan Head Screw M5x35	£0.58 £0.48
21	MK911243-8 Available to backorder	Pan Head Screw M5x25	£0.48 £0.40
22	MK232221-8 Available to backorder	Leaf Spring A	£0.48 £0.40
23	MK162236-0 Available to backorder	Shift Button	£2.46 £2.05
24	MK424586-4 Available to backorder	Seal Ring	£1.57 £1.31
25	MK346714-0 Available to backorder	Slide Plate	£1.14 £0.95
26	MK214169-6 Out of stock	Plane Bearing 14	£1.28 £1.07
27	MK341462-6 Available to backorder	Plate	£0.74 £0.62
28	MK911225-0 Available to backorder	Pan Head Screw M5x16 (Refs 032 \| 033 \| 043)	£0.48 £0.40
29	MK161601-0 Available to backorder	Slider <	£15.25 £12.71
34	MK346715-8 Out of stock	Gear Plate	£0.72 £0.60
35	MK267475-8 Available to backorder	Flat Washer 6	£0.85 £0.71
36	MK251969-3 Out of stock	Hex. Socket Head Bolt M5x12	£0.48 £0.40
37	MK212959-1 Available to backorder	Needle Bearing 708	£4.20 £3.50
38	MK142176-8 Available to backorder	Gear Complete	£17.94 £14.95
39	MK267474-0 Available to backorder	Flat Washer 14	£0.72 £0.60
41	MK232222-6 Available to backorder	Leaf Spring B	£0.58 £0.48
42	MK346713-2 Available to backorder	Shoe Guide	£1.14 £0.95
44	MK266459-3 Available to backorder	Tapping Screw 5x25	£0.48 £0.40
45	MK852C78-5 Available to backorder	M4501 Name Plate	£0.48 £0.40
46	MK265530-0 Out of stock	Hex.Socket Head Bolt M5x8	£0.56 £0.47
47	MK941151-9 Available to backorder	Flat Washer 6 (C20)	£0.48 £0.40
47	MK931302-2 Available to backorder	Hex. Nut M6 (C10)	£0.48 £0.40
47	MK142178-4 Available to backorder	Gear Housing Complete	£16.94 £14.12
48	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
49	MK210107-6 Available to backorder	Ball Bearing 6001Zz	£1.60 £1.33
50	MK285737-2 Available to backorder	Bearing Retainer	£1.69 £1.41
51	MK241863-7 Available to backorder	Fan 70	£2.02 £1.68
53	MK681644-1 Available to backorder	Insulation Washer	£0.74 £0.62
54	MK210046-0 Available to backorder	Ball Bearing 608Zz	£1.00 £0.83
55	MK454596-7 Available to backorder	Baffle Plate	£1.14 £0.95
56	MK654449-2 Available to backorder	Ring Terminal (Alt.) (C11)	£0.54 £0.45
56	MK594629-7 Available to backorder	Field Ass'y 220-240V	£20.89 £17.41
56	MK654501-6 Available to backorder	Connector P-1.25 (C20)	£0.48 £0.40
56	MK654220-4 Available to backorder	Ring Terminal (C10)	£0.48 £0.40
56	MK654485-8 Available to backorder	Parallel Splice > (C21)	£0.48 £0.40
57	MK266418-7 Available to backorder	Tapping Screw 5x55	£0.48 £0.40
59	MK194996-6 Available to backorder	Carbon Brush Set Cb-303 (Alt.)	£3.92 £3.27
60	MK643750-0 Available to backorder	Brush Holder Cap 7-11	£1.32 £1.10
61	MK143587-0 Available to backorder	Motor Housing Complete	£17.23 £14.36
61	MK643708-9 Available to backorder	Brush Holder 5-11 (C10)	£2.18 £1.82
64	MK187717-3 Available to backorder	Handle Set (INC. 72 *)	£10.03 £8.36
65	MK650004-8 Available to backorder	Switch Tn04-6/1Bek x	£7.64 £6.37
65	MK650714-7 Available to backorder	Switch Tn04-6/1Bek	£9.31 £7.76
66	MK645190-8 Available to backorder	Noise Suppressor	£0.74 £0.62
68	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
69	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
70	MK682573-1 Available to backorder	Cord Guard 10	£0.74 £0.62
901	MK806G57-9 Available to backorder	Makita Mt Logo Label (C20)	£0.82 £0.68
901	MK452432-1 Available to backorder	Slide Latch (C10)	£1.10 £0.92
