Model No. M3602

Router

Power Tool Parts Diagrams

	Part No.	Details
1	MK266326-2 Available to backorder	Tapping Screw 4x18 (Refs 023 \| 039 \| 046 \| 049)	£0.48 £0.40
3	MK643564-7 Available to backorder	Brush Holder (C10)	£1.90 £1.58
3	MK816811-1 Available to backorder	Scale Label (C20)	£0.48 £0.40
5	MK654486-6 Available to backorder	Parallel Splice (C20)	£0.48 £0.40
5	MK654451-5 Available to backorder	Ring Terminal (C10)	£0.65 £0.54
6	MK418486-8 Available to backorder	Baffle Plate	£1.58 £1.32
7	MK211381-9 Available to backorder	Ball Bearing 629Zz	£1.58 £1.32
8	MK681666-1 Available to backorder	Insulation Washer	£0.70 £0.58
9	MK517884-4 Available to backorder	Armature Ass'y 240V	£63.72 £53.10
10	MK240069-4 Available to backorder	Fan 83	£3.84 £3.20
11	MK285711-0 Available to backorder	Bearing Retainer 50	£1.22 £1.02
12	MK211335-6 Available to backorder	Ball Bearing 6004Zz	£3.48 £2.90
13	MK187512-1 Available to backorder	Grip L Set	£4.68 £3.90
15	MK141868-6 Available to backorder	Motor Bracket Complete	£27.96 £23.30
16	MK911268-2 Available to backorder	Pan Head Screw M5x45	£0.89 £0.74
17	MK233397-4 Available to backorder	Compression Spring 11	£0.48 £0.40
18	MK324424-9 Available to backorder	Half Nut	£2.69 £2.24
19	MK763629-0 Available to backorder	Collet Nut	£11.16 £9.30
20	MK763628-2 Available to backorder	Collet Cone 12mm	£35.52 £29.60
22	MK187515-5 Available to backorder	Grip R Set	£4.68 £3.90
24	MK265099-4 Available to backorder	Pan Head Screw M4x14	£0.48 £0.40
25	MK454033-1 Available to backorder	Lock Lever	£1.03 £0.86
26	MK266335-1 Available to backorder	Set Bolt M8x16	£1.03 £0.86
27	MK231670-6 Available to backorder	Torsion Spring 16	£0.48 £0.40
28	MK286270-7 Available to backorder	Cap 11	£0.70 £0.58
29	MK256482-6 Available to backorder	Shoulder Pin 6	£1.03 £0.86
30	MK233396-6 Available to backorder	Compression Spring 7	£0.48 £0.40
31	MK265759-8 Available to backorder	Thumb Screw M10x80	£3.84 £3.20
32	MK265135-6 Available to backorder	+ Countersunk Head Screw M4x10	£0.48 £0.40
33	MK266328-8 Available to backorder	Tapping Screw 5x80	£0.48 £0.40
34	MK643700-5 Available to backorder	Brush Holder Cap 7-18	£1.03 £0.86

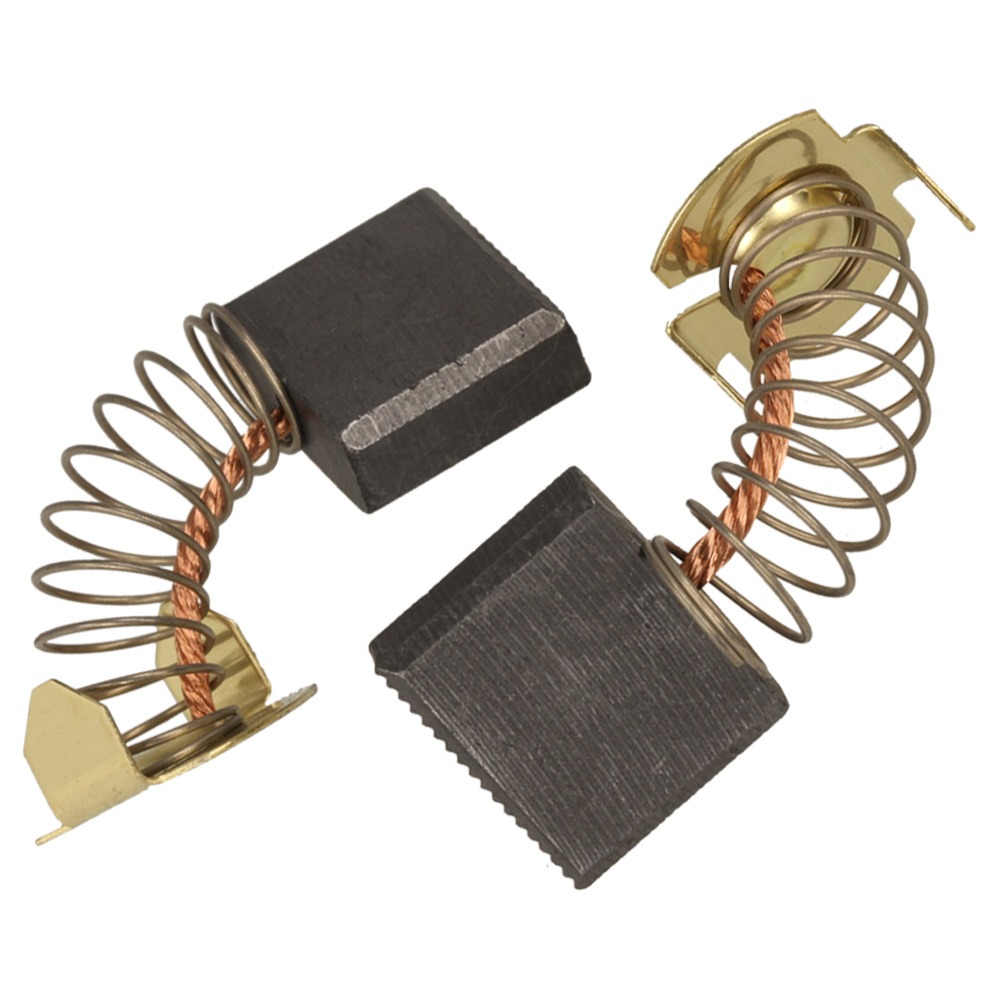

35	MK194991-6 In stock	Carbon Brush Set Cb203 (Alt.)	£5.10 £4.25
36	MK682574-9 Available to backorder	Cord Guard 10-90	£1.39 £1.16
38	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
40	MK654741-6 Available to backorder	Terminal Block (Alt.)	£1.66 £1.38
40	MK654531-7 Available to backorder	Terminal Block 2P	£2.21 £1.84
41	MK651066-9 Available to backorder	Switch St115A-Tb-S1	£2.69 £2.24
42	MK645238-6 Available to backorder	Noise Suppressor	£1.73 £1.44
43	MK418484-2 Available to backorder	Nylon Nut M10	£1.03 £0.86
44	MK153764-6 Available to backorder	Knob 50 Complete	£4.08 £3.40
45	MK317747-2 Available to backorder	Bearing Box	£5.28 £4.40
50	MK418492-3 Available to backorder	Pole	£0.70 £0.58
51	MK233456-4 Available to backorder	Compression Spring 11	£0.70 £0.58
52	MK141867-8 Available to backorder	Base Complete	£34.32 £28.60
53	MK454032-3 Available to backorder	Chip Deflector	£1.90 £1.58
56	MK265133-0 Available to backorder	+ Binding Head Screw M5x10	£0.48 £0.40
57	MK454026-8 Available to backorder	Base Plate	£5.28 £4.40
58	MK324425-7 Available to backorder	Lock Pin	£0.70 £0.58
59	MK317748-0 Available to backorder	Stopper	£1.90 £1.58
61	MK233398-2 Available to backorder	Compression Spring 12	£0.48 £0.40
62	MK265587-1 Available to backorder	+Hex. Bolt M5x20	£1.03 £0.86
63	MK251470-8 Available to backorder	- Flat Head Screw M6	£1.22 £1.02
67	MK265586-3 Available to backorder	+Hex. Bolt M5x14	£1.03 £0.86
69	MK265761-1 Available to backorder	Thumb Screw M5x16	£0.89 £0.74
901	MK122699-2 Available to backorder	Trimmer Guide Ass'y (A01)	£3.60 £3.00
902	MK122700-3 Available to backorder	Guide Holder Ass'y (A02)	£17.76 £14.80
903	MK193894-1 Available to backorder	Dust Cover Set (A03)	£2.56 £2.13
904	MK345387-6 Available to backorder	Templet Guide 16 (A04)	£2.32 £1.93
907	MK781034-9 Available to backorder	Wrench 8-24 (A07)	£3.72 £3.10
908	MK342428-9 Available to backorder	Straight Guide (A08)	£14.28 £11.90
910	MK415412-8 Available to backorder	Dust Nozzle (A10)	£28.80 £24.00
