Model No. M2300

255mm Compound Miter Saw

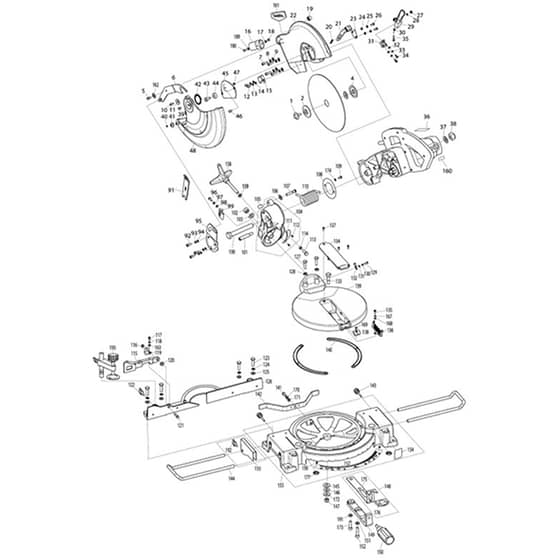

Power Tool 01 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MKJM23000054 Available to backorder	Blade Lock Bolt M8x20 (Lh)	£0.72 £0.60
2	MKJM23000065 Available to backorder	Flange	£2.98 £2.48
5	MKJM23000057 Available to backorder	Stepped Bolt M6	£0.85 £0.71
6	MKJM23000058 Available to backorder	Link Comp.	£3.95 £3.29
7	MKJM23000052 Available to backorder	Hex. Socket Head Bolt M6x20	£0.85 £0.71
8	MKJM23000040 Available to backorder	Spring Washer6 (Refs 093 \| 170)	£0.56 £0.47
9	MKJM23000041 Available to backorder	Flat Washer6 (Refs 094 \| 171)	£0.56 £0.47
10	MKJM23000055 Available to backorder	Stepped Bolt M5	£0.85 £0.71
11	MKJM23000056 Available to backorder	Bush	£0.72 £0.60
12	MKJM23000069 Available to backorder	Pan Head Screw M5x12 x	£0.85 £0.71
12	MKJM23000032 Available to backorder	Pan Head Screw M5 x 10 (Refs 096 \| 129)	£0.85 £0.71
13	MKJM23000031 Available to backorder	Spring Washer5 (Refs 025 \| 097 \| 130)	£0.56 £0.47
14	MKJM23000030 Available to backorder	Flat Washer5 (Refs 017 \| 024 \| 028 \| 098 \| 131 \| 165 \| 166)	£0.56 £0.47
15	MKJM23000053 Available to backorder	Plate	£0.72 £0.60
16	MKJM23000178 Available to backorder	Dust Nozzle 38 x	£1.69 £1.41
17	MKJM23000136 Available to backorder	Flat Washer4 x (Refs 032 \| 163 \| 168 \| 188 \| 189)	£0.56 £0.47
18	MKJM23000060 Available to backorder	Pan Head Screw M4	£0.56 £0.47
18	MKJM23000138 Available to backorder	Pan Head Screw M4x10 x (Refs 034 \| 109 \| 135 \| 190)	£0.85 £0.71
19	MKJM23000063 Available to backorder	Limit Ring	£1.69 £1.41
20	MKJM23000066 Available to backorder	Lock Spring	£2.26 £1.88
21	MKJM23000067 Available to backorder	Shaft Lock	£1.69 £1.41
22	MKJM23000061 Available to backorder	Blade Case Comp	£47.03 £39.19
22	MKJM00000065 Available to backorder	Blade Case Complete x	£33.46 £27.88
23	MKJM23000068 Available to backorder	Cover	£0.72 £0.60
27	MKJM23000139 Available to backorder	Anti-Loose Nutm5	£0.85 £0.71
29	MKJM23000133 Available to backorder	Lock Lever	£0.72 £0.60
30	MKJM23000134 Available to backorder	Spring	£1.57 £1.31
31	MKJM23000132 Available to backorder	Bracket	£1.14 £0.95
33	MKJM23000137 Available to backorder	Spring Washer4 (Refs 118 \| 163 \| 167)	£0.56 £0.47
35	MKJM23000135 Available to backorder	Screw M5	£0.85 £0.71
37	MKJM23000070 Available to backorder	Flat Washer16	£0.56 £0.47
38	MKJM23000071 Available to backorder	Anti-Loose Nut16	£0.85 £0.71
39	MKJM23000074 Available to backorder	Square Neck Boltm6x10	£0.85 £0.71
40	MKJM23000076 Available to backorder	Push Nut	£0.56 £0.47
41	MKJM23000075 Available to backorder	Wheel	£0.72 £0.60
42	MKJM23000073 Available to backorder	Torsion Spring	£3.66 £3.05
43	MKJM23000077 Available to backorder	Stepped Bolt M6	£0.85 £0.71
44	MKJM23000078 Available to backorder	Rubber Sleeve	£1.28 £1.07
45	MKJM23000079 Available to backorder	Fix Plate	£1.28 £1.07
46	MKJM23000081 Available to backorder	Stepped Bolt M5	£0.85 £0.71
47	MKJM23000080 Available to backorder	Anti-Loose Nutm6	£0.85 £0.71
48	MKJM23000072 Available to backorder	Safety Cover Comp.	£22.46 £18.72
49	MKJM23000096 Available to backorder	Hex.Nutm4	£0.56 £0.47
50	MKJM23000097 Available to backorder	Handle Cover	£4.09 £3.41
50	MKJM00000028 Available to backorder	Handle Cover Red x	£4.92 £4.10
51	MKJM23000106 Available to backorder	Self Tapping Screwst4.2x12	£0.85 £0.71
51	MKJM23000113 Available to backorder	Self Taping Screwst 3x8	£0.56 £0.47
52	MKJM00000067 Available to backorder	Switch x	£9.82 £8.18
53	MKJM00000272 Available to backorder	Switch Lever x	£24.02 £20.02
53	MKJM23000114 Available to backorder	Switch Lever	£1.28 £1.07
54	MKJM23000115 Available to backorder	Self Tapping Screw St 4.2x12	£0.85 £0.71
54	MKJM00000211 Available to backorder	Taping Screw St2.9x17 x	£0.96 £0.80
55	MKJM23000116 Available to backorder	Terminal Base	£1.69 £1.41
56	MKJM23000111 Available to backorder	Clamp	£0.72 £0.60
58	MKJM23000107 Available to backorder	Strain Relief	£0.85 £0.71
59	MKJM23000109 Available to backorder	Cord Guard	£1.28 £1.07
61	MKJM23000110 Available to backorder	Choke Coil	£0.72 £0.60
62	MKJM00000030 Available to backorder	Motor Housing Complete	£31.66 £26.38
62	MKJM23000212 Available to backorder	Motor Housing Comp.	£15.12 £12.60
63	MKJM23000118 Available to backorder	Pan Head Screw M4x30	£0.72 £0.60
64	MKJM23000119 Available to backorder	Selftapping Screw	£0.56 £0.47
64	MKJM00000212 Available to backorder	Tapping Screw St2.9x30 x	£0.70 £0.58
65	MKJM00000214 Available to backorder	Pan Head Screw M5x25 x	£0.54 £0.45
66	MKJM23000124 Available to backorder	Self Tapping Screw St 5.2x12	£0.85 £0.71
66	MKJM00000213 Available to backorder	Self Taping Screw St4.8x9 x	£0.70 £0.58
67	MKJM23000125 Available to backorder	Motor Rear Cover	£0.72 £0.60
68	MKJM23000123 In stock	Carbon Brush 2Pcs/Set	£2.32 £1.93
69	MKJM23000122 Available to backorder	Hex. Socket Head Bolt M5x8	£0.85 £0.71
71	MKJM23000120 Available to backorder	Brush Holder Cap	£0.72 £0.60
72	MKJM23000084 Available to backorder	Spindle	£2.98 £2.48
73	MKJM23000090 Available to backorder	Truss Head Screw M8x12	£0.85 £0.71
74	MKJM23000085 Available to backorder	Key5x10	£0.85 £0.71
75	MKJM23000086 Available to backorder	Ball Bearing 6304-Rz	£3.40 £2.83
76	MKJM23000087 Available to backorder	Retaining Ring S-20	£0.56 £0.47
77	MKJM23000088 Available to backorder	Helical Gear	£5.36 £4.47
78	MKJM23000089 Available to backorder	Retaining Ring S-16	£0.72 £0.60
79	MKJM23000092 Available to backorder	Pan Head Screw M5 x 25	£0.72 £0.60
80	MKJM23000093 Available to backorder	Limit Plate	£0.72 £0.60
81	MKJM23000094 Available to backorder	Limit Pad	£0.72 £0.60
82	MKJM23000095 Available to backorder	Adjust Pad	£0.72 £0.60
83	MKJM23000091 Available to backorder	Gear Housing Comp.	£39.25 £32.71
84	MKJM23000098 Available to backorder	Fan Guide	£1.40 £1.17
85	MKJM23000099 Available to backorder	Ball Bearing 6201Z	£3.40 £2.83
86	MKJM23000100 Available to backorder	Armature Ass'y (230V)	£55.22 £46.02
87	MKJM23000101 Available to backorder	Self Tapping Screw St 4.8x70	£0.85 £0.71
88	MKJM23000102 Available to backorder	Ball Bearing 6001Z	£3.40 £2.83
89	MKJM23000103 Available to backorder	Rubber Ring	£0.85 £0.71
90	MKJM23000104 Available to backorder	Field Ass'y (230V)	£55.22 £46.02
91	MKJM23000130 Available to backorder	Wrench 13	£0.80 £0.67
92	MKJM23000039 Available to backorder	Pan Head Screw M6 x 16	£0.85 £0.71
95	MKJM23000038 Available to backorder	Link Support Plate	£1.24 £1.03
99	MKJM23000042 Available to backorder	Clip	£1.14 £0.95
100	MKJM23000037 Available to backorder	Shaft	£2.98 £2.48
101	MKJM23000049 Available to backorder	Limit Pin	£0.85 £0.71
102	MKJM23000044 Available to backorder	Anti-Loose Nutm12	£0.85 £0.71
103	MKJM23000045 Available to backorder	Flat Washer12	£0.56 £0.47
104	MKJM23000036 Available to backorder	Arm Complete	£28.80 £24.00
105	MKJM23000046 Available to backorder	Lock Pin Cap	£0.72 £0.60
106	MKJM23000047 Available to backorder	O Ring (Alt.)	£0.85 £0.71
107	MKJM23000048 Available to backorder	Pin	£0.85 £0.71
108	MKJM23000051 Available to backorder	Ring	£1.28 £1.07
109	MKJM23100014 Available to backorder	Cross Head Screw M4x15	£0.85 £0.71
110	MKJM23000050 Available to backorder	Torsional Spring	£7.91 £6.59
111	MKJM23000035 Available to backorder	Scale Label	£1.28 £1.07
112	MKJM23000034 Available to backorder	Rivet	£0.48 £0.40
113	MKJM23000033 Available to backorder	Hex. Bolt M8x16	£0.85 £0.71
114	MKJM23000028 Available to backorder	Hex. Nut M8	£0.56 £0.47
115	MKJM23000203 Available to backorder	Sub Fence	£9.04 £7.53
115	MKJM23010001 Available to backorder	Sub Fence Complete x	£10.32 £8.60
115	MKJM23380067 Available to backorder	Caution Label (C10)	£10.16 £8.47
116	MKJM21000033 Available to backorder	Hex Lock Nut M6	£0.91 £0.76
116	MKJM23100110 Available to backorder	Hex Lock Nut M6 (Alt.)	£0.85 £0.71
117	MKJM23100033 Available to backorder	Pan Head Screw M4x12 x	£0.72 £0.60
119	MKJM23000202 Available to backorder	Fix Plate	£0.72 £0.60
120	MKJM23300239 Available to backorder	Fence Press Plat	£1.40 £1.17
120	MKJM23100071 Available to backorder	Thin Flat Washer 6 x	£0.56 £0.47
121	MKJM23000201 Available to backorder	Countersunk Head Screw M6x25	£0.85 £0.71
122	MKJM23000126 Available to backorder	Wing Bolt M6x12	£0.85 £0.71
123	MKJM23000024 Available to backorder	Hex.Bolt M8x30	£0.85 £0.71
124	MKJM23000025 Available to backorder	Spring Washer8	£0.48 £0.40
125	MKJM23000026 Available to backorder	Flat Washer8	£0.56 £0.47
126	MKJM23000204 Available to backorder	Guide Rule	£30.35 £25.29
127	MKJM23000027 Available to backorder	Hex. Bolt M8 x 20	£0.85 £0.71
132	MKJM23000029 Available to backorder	Bevel Pointer	£0.72 £0.60
133	MKJM23000019 Available to backorder	Pivot	£1.69 £1.41
135	MKJM23000018 Available to backorder	Countersunk Head Screw M4x10	£0.85 £0.71
136	MKJM23000022 Available to backorder	Protection Net	£1.69 £1.41
138	MKJM23000017 Available to backorder	Miter Angle Pointer	£0.80 £0.67
139	MKJM23000021 Available to backorder	Turn Base Comp.	£55.22 £46.02
140	MKJM23000016 Available to backorder	Slide Plate	£1.28 £1.07
141	MKJM23000012 Available to backorder	Screw	£0.85 £0.71
142	MKJM23000011 Available to backorder	Base Supporter	£2.98 £2.48
143	MKJM23000006 Available to backorder	Lock Knob For Ext.Wings	£1.14 £0.95
144	MKJM23000127 Available to backorder	Holder	£14.69 £12.24
145	MKJM23000013 Available to backorder	Flat Washer10 (Refs 159 \| 172)	£0.56 £0.47
146	MKJM23000014 Available to backorder	Wave Washer 6	£0.56 £0.47
147	MKJM23000015 Available to backorder	Anti-Loose Nutm10	£0.72 £0.60
148	MKJM23000200 Available to backorder	Knock Spring Set	£5.60 £4.67
149	MKJM23000002 Available to backorder	Handle Bracket	£2.98 £2.48
150	MKJM23000001 Available to backorder	Grip	£1.69 £1.41
151	MKJM23000003 Available to backorder	Spring Washer8	£0.56 £0.47
152	MKJM23000004 Available to backorder	Hex Socket Head Bolt M8x25	£0.85 £0.71
152	MKJM00000207 Available to backorder	Hex Socket Head Bolt M8x30	£0.82 £0.68
153	MKJM23000128 Available to backorder	Set Plate	£1.40 £1.17
154	MK810965-6 Available to backorder	Caution Label	£0.48 £0.40
155	MKJM23000009 Available to backorder	Base Comp	£49.57 £41.31
155	MKJM00000066 Available to backorder	Base Comp x	£68.94 £57.45
156	MKJM23000008 Available to backorder	Rivet	£0.48 £0.40
157	MKJM23000007 Available to backorder	Miter Angle Label	£1.28 £1.07
158	MKJM23000043 Available to backorder	Knob Bolt M10 Red	£5.09 £4.24
160	MK810964-8 Available to backorder	Caution Label	£1.57 £1.31
161	MKJM23080143 Available to backorder	Logo Label	£0.72 £0.60
164	MKJM00000210 Available to backorder	Pan Head Screw M4x28	£0.70 £0.58
169	MKJM00000206 Available to backorder	Flat Head Screw M4x8	£0.54 £0.45
174	MKJM00000208 Available to backorder	Cone Washer 6	£0.70 £0.58
175	MKJM23000005 Available to backorder	Knock Spring	£4.24 £3.53
176	MKJM23000185 Available to backorder	Locking Knob	£1.14 £0.95
177	MKJM2708B060 Available to backorder	Caution Label	£0.48 £0.40
192	MKJM23000129 Available to backorder	Wing Bolt M6x20	£0.85 £0.71
193	MKJM23000131 Available to backorder	Vise Ass'y	£9.91 £8.26
194	MKJM23000183 Available to backorder	Capacitor	£1.69 £1.41
195	MKJM23180056 Available to backorder	Caution Label	£1.00 £0.83
901	MK198687-1 Available to backorder	Stand Set < (F01-1)	£511.82 £426.52
902	MKJM23010002 Available to backorder	Sub Fence Complete (A02)	£10.16 £8.47
904	MKJM23380068 Available to backorder	Caution Label (A04)	£0.72 £0.60
908	MK762001-3 Available to backorder	Triangular Rule (A08)	£1.22 £1.02
909	MKJM23000172 Available to backorder	Saw Blade 255-30 (A09)	£32.56 £27.13
910	MKJM23100144 Available to backorder	Ring 30 (A10)	£1.28 £1.07

Makita M2300 - 255mm Compound Miter Saw - Power Tool 01 Diagram

Description

Description

Reviews

Compatibility

Product Questions

Recommended for you

Recently viewed products

Makita M2300 - 255mm Compound Miter Saw - Power Tool 01 Diagram

Description

Description

Reviews

Compatibility

Product Questions

Related Products

Customers also bought

Recommended for you

Recently viewed products
