Makita LS1221 - Compound Miter Saw 305mm - Power Tool 02 Diagram

Description

Model No. LS1221

Compound Miter Saw 305mm

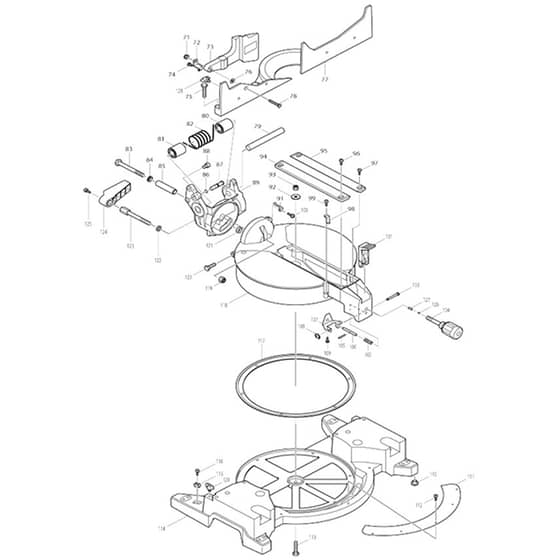

Power Tool 02 Parts Diagrams

	Part No.	Details
71	MK252014-7 Available to backorder	Hex. Lock Nut M6-10	£0.89 £0.74
72	MK344463-3 Available to backorder	Sub Fence Plate	£1.03 £0.86
73	MK810967-2 Available to backorder	Caution Label (C10)	£1.58 £1.32
74	MK911108-4 Available to backorder	Pan Head Screw M4x8	£0.48 £0.40
75	MK922461-3 Available to backorder	Hex. Socket Head Bolt M8x40	£1.03 £0.86
76	MK253804-1 Available to backorder	Flat Washer 6	£0.48 £0.40
78	MK912357-6 Available to backorder	Countersunk Head Screw M6x35	£0.70 £0.58
79	MK323740-6 Available to backorder	Rod 16	£2.83 £2.36
80	MK416358-1 Available to backorder	Sleeve 17	£1.03 £0.86
84	MK941251-5 Available to backorder	Flat Washer 10	£0.48 £0.40
86	MK213011-8 Available to backorder	O Ring 7 (Alt.)	£0.70 £0.58
87	MK322629-5 Available to backorder	Stopper Pin S	£3.72 £3.10
88	MK922412-6 Available to backorder	Hex. Socket Head Bolt M8x12	£0.70 £0.58
91	MK416355-7 Available to backorder	Indication Plate	£1.90 £1.58
92	MK253852-0 Available to backorder	Flat Washer 8	£1.22 £1.02
93	MK252105-4 Available to backorder	Hex. Lock Nut M8-13	£1.22 £1.02
96	MK266026-4 Available to backorder	Tapping Screw Bind Ct 4x12 (Refs 097 \| 099 \| 109 \| 112)	£0.48 £0.40
100	MK911118-1 Available to backorder	Pan Head Screw M4x12	£0.48 £0.40
102	MK231325-3 Available to backorder	Compression Spring 6	£0.70 £0.58
103	MK256626-8 Available to backorder	Pin 4	£0.70 £0.58
105	MK256158-5 Available to backorder	Pin 3	£0.89 £0.74
108	MK961017-7 Available to backorder	Stop Ring E-3	£0.48 £0.40
110	MK286212-1 Available to backorder	Cap 20	£0.70 £0.58
113	MK921462-8 Available to backorder	Hex. Bolt M8x40	£0.70 £0.58
114	MK810965-6 Available to backorder	Caution Label (C20)	£0.48 £0.40
114	MK813L22-1 Available to backorder	Caution Label (C10)	£0.48 £0.40
119	MK252130-5 Available to backorder	Hex. Lock Nut M10-17	£1.74 £1.45
121	MK262158-5 Available to backorder	Rubber Ring 9	£0.70 £0.58
124	MK416006-2 Available to backorder	Lever 100	£5.52 £4.60
126	MK216001-0 Available to backorder	Steel Ball 3.5	£0.48 £0.40
128	MK251887-5 In stock	Screw M6x10 (Refs 129 \| A07)	£2.47 £2.06
131	MK271601-3 Available to backorder	Knob 20 S	£0.70 £0.58
901	MK762001-3 Available to backorder	Triangular Rule (A01)	£1.46 £1.22
901	MK651941-9 Available to backorder	Switch V-15-2A5 (E01)	£4.68 £3.90
902	MK654086-2 Available to backorder	Receptacle (E02)	£2.38 £1.98
902	MK781044-6 Available to backorder	Hex. Wrench 6 (A02)	£2.83 £2.36
903	MK122852-0 In stock	Dust Bag Ass'y (A03)	£4.80 £4.00
903	MK645105-5 Available to backorder	Noise Suppressor (E03)	£2.38 £1.98
905	MK410047-0 Available to backorder	Wrench Holder 5.6 (A05)	£1.03 £0.86
906	MK316938-2 Available to backorder	Vise Arm (C10)	£26.16 £21.80
906	MK122540-9 Available to backorder	Vise Ass'y (A06)	£19.68 £16.40
908	MK322983-7 Available to backorder	Vise Rod (A08)	£5.88 £4.90
909	MK271303-1 Available to backorder	Knob 40 (A09)	£6.48 £5.40
911	MK343651-9 Available to backorder	Vise Plate (A11)	£1.58 £1.32
912	MK251370-2 Available to backorder	+ Pan Head Screw M5 (A12)	£0.70 £0.58
913	MK323726-0 Available to backorder	Holder 160 (A13)	£7.56 £6.30
