Model No. LS1040FS

Miter Saw 255mm

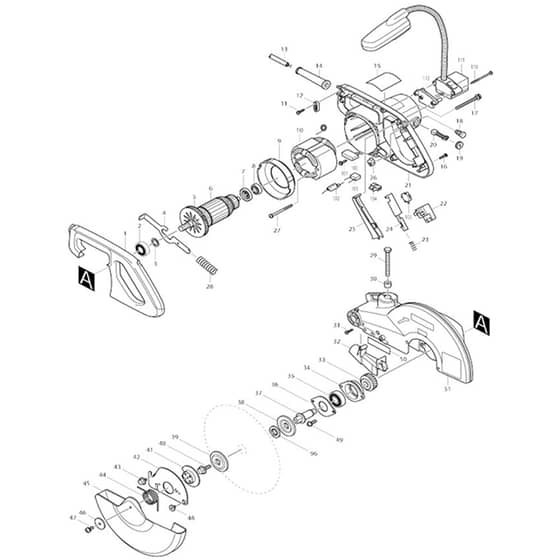

Power Tool 01 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK458787-2 Available to backorder	Handle Cover	£3.82 £3.18
2	MK211206-7 Available to backorder	Ball Bearing 6202Llb	£3.62 £3.02
3	MK267280-3 Available to backorder	Flat Washer 15	£0.48 £0.40
4	MK343641-2 Available to backorder	Shaft Lock	£2.42 £2.02
5	MK241909-9 Available to backorder	Fan 80	£6.94 £5.78
7	MK681640-9 Available to backorder	Insulation Washer	£0.74 £0.62
8	MK211061-7 Available to backorder	Ball Bearing 6000Llb	£8.08 £6.73
8	MK211097-6 Available to backorder	Ball Bearing 6000Llb (Alt.)	£6.64 £5.53
9	MK416442-2 Available to backorder	Baffle Plate	£0.56 £0.47
10	MK654502-4 Available to backorder	Connector P-2 (C20)	£0.58 £0.48
10	MK654020-2 Available to backorder	Ring Terminal (C10)	£0.74 £0.62
11	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 016 \| 031)	£0.48 £0.40
12	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
14	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
14	MK682574-9 Available to backorder	Cord Guard 10-90 (Alt.)	£1.16 £0.97
17	MK911383-2 Available to backorder	Pan Head Screw M6x60	£1.32 £1.10
18	MK417113-4 Available to backorder	Switch Button	£1.02 £0.85
19	MK643650-4 Available to backorder	Brush Holder Cap 6.5-13.5	£0.74 £0.62
20	MK194985-1 Available to backorder	Carbon Brush Set Cb-153 (Alt.)	£4.24 £3.53
21	MK154562-1 Available to backorder	Motor Housing Complete	£19.92 £16.60
21	MK643536-2 Available to backorder	Brush Holder 6.5x13.5 (C22)	£2.18 £1.82
21	MK810964-8 Available to backorder	Caution Label (C10)	£1.57 £1.31
22	MK651923-1 Available to backorder	Switch Tg70B	£18.78 £15.65
23	MK231457-6 Available to backorder	Compression Spring 3	£0.58 £0.48
24	MK416000-4 Available to backorder	Lock Off Lever	£1.57 £1.31
25	MK459017-4 Available to backorder	Switch Lever	£0.96 £0.80
26	MK414546-4 Available to backorder	Cam	£1.14 £0.95
27	MK266029-8 Available to backorder	Tapping Screw 5x65	£1.16 £0.97
28	MK231297-2 Available to backorder	Compression Spring 9	£0.74 £0.62
29	MK251667-9 Available to backorder	Hex. Bolt M8x75	£1.40 £1.17
30	MK262511-5 Available to backorder	Rubber Sleeve 6	£0.58 £0.48
32	MK453695-2 Available to backorder	Guide Cover	£0.85 £0.71
33	MK226465-0 Available to backorder	Helical Gear 42	£9.74 £8.12
34	MK316821-3 Available to backorder	Bearing Box	£6.08 £5.07
35	MK211256-2 Available to backorder	Ball Bearing 6203Llb	£11.56 £9.63
36	MK285685-5 Available to backorder	Bearing Retainer 64	£1.40 £1.17
37	MK322865-3 Available to backorder	Spindle	£15.97 £13.31
38	MK224333-1 Available to backorder	Flange 53	£4.04 £3.37
40	MK265355-2 Available to backorder	Hex. Flange Head Bolt M8x20	£1.69 £1.41
41	MK343639-9 Available to backorder	Center Plate	£5.52 £4.60
42	MK344380-7 Available to backorder	Center Cover	£2.54 £2.12
43	MK265324-3 Available to backorder	Hex. Flange Head Bolt M8x12	£1.44 £1.20
44	MK231593-8 Available to backorder	Torsion Spring 36	£0.72 £0.60
45	MK416003-8 Available to backorder	Safety Cover	£13.28 £11.07
46	MK267136-0 Available to backorder	Flat Washer 5	£0.74 £0.62
47	MK922211-6 Available to backorder	H.S.H.Bolt M5x12 With W	£0.58 £0.48
48	MK265985-9 Available to backorder	Hex.Socket Head Bolt M6	£3.04 £2.53
49	MK911223-4 Available to backorder	Pan Head Screw M5x16	£0.48 £0.40
51	MK816847-0 Available to backorder	Operational Indication Label (C10)	£0.74 £0.62
51	MK263005-3 In stock	Rubber Pin 6 (C30)	£0.47 £0.39
51	MK810968-0 Available to backorder	Caution Label (C20)	£1.60 £1.33
52	MK265488-3 Available to backorder	Hex. Bolt M8x30	£0.72 £0.60
53	MK318847-1 Available to backorder	Guide Rule	£28.99 £24.16
54	MK912342-9 Available to backorder	Countersunk Head Screw M6x25	£0.56 £0.47
55	MK253715-0 Available to backorder	Flat Washer 6	£0.48 £0.40
56	MK810967-2 Available to backorder	Caution Label (C10)	£1.28 £1.07
56	MK142816-8 Available to backorder	Sub Fence Complete	£9.79 £8.16
57	MK344476-4 Available to backorder	Sub Fence Plate	£0.72 £0.60
58	MK252014-7 Available to backorder	Hex. Lock Nut M6-10	£0.74 £0.62
59	MK251961-9 Available to backorder	H.S.Set Screw (Flat Point) M6x10	£0.48 £0.40
60	MK257162-7 Available to backorder	Ring 7	£1.99 £1.66
61	MK253823-7 Available to backorder	Flat Washer 7	£0.48 £0.40
62	MK265984-1 Available to backorder	Hex.Socket Button Head Bolt M6	£1.28 £1.07
63	MK344377-6 Available to backorder	Link Plate	£2.54 £2.12
67	MK416006-2 Available to backorder	Lever 100	£5.36 £4.47
68	MK911113-1 Available to backorder	Pan Head Screw M4x10	£0.48 £0.40
69	MK265437-0 Available to backorder	Hex. Bolt M10	£4.24 £3.53
70	MK253024-7 Available to backorder	Flat Washer 10	£0.74 £0.62
71	MK256836-7 Available to backorder	Rod 16	£2.42 £2.02
72	MK816310-3 Available to backorder	Scale Label (C10)	£0.56 £0.47
73	MK322317-4 Available to backorder	Stopper Pin	£3.40 £2.83
74	MK213021-5 Available to backorder	O Ring 5 (Alt.)	£0.48 £0.40
75	MK233152-4 Available to backorder	Compression Spring 28	£3.95 £3.29
76	MK344464-1 Available to backorder	Spring Holder	£1.28 £1.07
77	MK256280-8 Available to backorder	Pin 8	£1.57 £1.31
80	MK344385-7 Available to backorder	Pointer	£0.72 £0.60
81	MK343799-7 Available to backorder	Slide Plate	£1.40 £1.17
82	MK921452-1 Available to backorder	Hex. Bolt M8x30	£0.74 £0.62
83	MK911213-7 Available to backorder	Pan Head Screw M5x12	£0.48 £0.40
84	MK273495-2 Available to backorder	Grip 32	£5.80 £4.83
85	MK344381-5 Available to backorder	Knock Spring	£3.95 £3.29
86	MK810965-6 Available to backorder	Caution Label (C20)	£0.48 £0.40
86	MK816311-1 Available to backorder	Miter Scale Plate (C10)	£4.09 £3.41
86	MK813L22-1 Available to backorder	Caution Label (C30)	£0.48 £0.40
87	MK316824-7 Available to backorder	Turn Base	£57.62 £48.02
88	MK416001-2 Available to backorder	Kerf Board	£0.85 £0.71
90	MK265455-8 Available to backorder	Hex. Bolt M8x28	£1.57 £1.31
92	MK252105-4 Available to backorder	Hex. Lock Nut M8-13	£1.02 £0.85
93	MK253762-1 Available to backorder	Flat Washer 8	£1.44 £1.20
96	MK257262-3 Available to backorder	Ring 16	£1.16 £0.97
97	MK251887-5 In stock	Screw M6x10	£2.18 £1.82
98	MK265708-5 Available to backorder	Thumb Screw M6x20	£2.32 £1.93
100	MK631588-5 Available to backorder	Soft Start Circuit	£41.66 £34.72
101	MK265678-8 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
102	MK646073-5 Available to backorder	Choke Coil	£3.40 £2.83
104	MK654575-7 Available to backorder	Terminal Block	£2.32 £1.93
105	MK654086-2 Available to backorder	Receptacle (C10)	£2.18 £1.82
105	MK651941-9 Available to backorder	Switch V-15-2A5	£4.39 £3.66
110	MK266091-3 Available to backorder	Tapping Screw 4x50	£0.58 £0.48
111	MK125180-2 Available to backorder	Light Ass'y	£39.83 £33.19
111	MK152923-9 Available to backorder	Lamp Box Complete (C10)	£1.99 £1.66
111	MK193730-1 Available to backorder	Fluorescent Light Set (C22)	£8.92 £7.43
112	MK418072-5 Available to backorder	Supporter	£1.14 £0.95
902	MK762001-3 Available to backorder	Triangular Rule (A02)	£1.22 £1.02
903	MK782212-4 Available to backorder	Socket Wrench 13 (A03)	£6.38 £5.32
904	MK122852-0 In stock	Dust Bag Ass'y (A04-1)	£4.66 £3.88
904	MK410602-8 Available to backorder	Fastener (C10)	£0.58 £0.48
905	MK921431-9 Available to backorder	Hex. Bolt M8x20 (C20)	£1.32 £1.10
905	MK252148-6 Available to backorder	Square Nut M8 (C10)	£0.48 £0.40
906	MK271286-5 Available to backorder	Knob 40 (C40)	£8.48 £7.07
906	MK322313-2 Available to backorder	Vise Rod (C60)	£8.08 £6.73
906	MK122536-0 Available to backorder	Vise Ass'y (A06)	£25.39 £21.16
906	MK251370-2 Available to backorder	+ Pan Head Screw M5 (C10)	£0.58 £0.48
906	MK316938-2 Available to backorder	Vise Arm (C50)	£25.28 £21.07
906	MK343651-9 Available to backorder	Vise Plate (C70)	£1.32 £1.10
906	MK253804-1 Available to backorder	Flat Washer 6 (C30)	£0.48 £0.40
907	MK257022-3 Available to backorder	Ring 16 (A07)	£3.76 £3.13
908	MK322312-4 Available to backorder	Holder (A08-1)	£9.24 £7.70
909	MKA-80961 Available to backorder	T.C.T.Saw Blade 255x32x30 (A09)	£38.86 £32.38
