Makita LS1019 - 260mm Slide Compound Miter Saw - Power Tool 01 Diagram

Description

Model No. LS1019

260mm Slide Compound Miter Saw

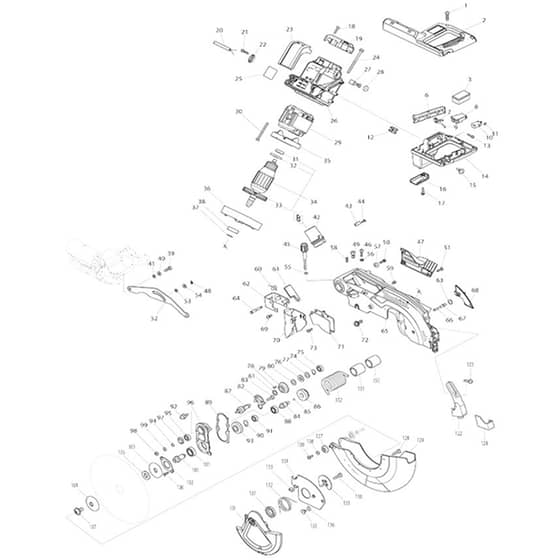

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 013 \| 017 \| 018 \| 021 \| 140)	£0.48 £0.40
2	MK183H20-8 Available to backorder	Handle Set (INC. 14)	£14.88 £12.40
2	MK810486-8 Available to backorder	Caution Label (C10)	£0.48 £0.40
3	MK451015-4 Available to backorder	Cover	£1.22 £1.02
6	MK451003-1 Available to backorder	Switch Lever	£1.73 £1.44
7	MK416356-5 Available to backorder	Lock-Off Lever	£1.58 £1.32
8	MK650687-4 Available to backorder	Switch Tgc32B	£9.24 £7.70
9	MK231026-3 Available to backorder	Compression Spring 4	£0.48 £0.40
10	MK651941-9 Available to backorder	Switch V-15-2A5	£4.68 £3.90
11	MK686015-7 Available to backorder	Receptacle Sleeve	£0.48 £0.40
12	MK654531-7 Available to backorder	Terminal Block 2P	£2.21 £1.84
12	MK654561-8 Available to backorder	Terminal Block	£1.90 £1.58
15	MK451037-4 Available to backorder	Switch Button	£1.03 £0.86
16	MK457662-9 Available to backorder	Cover Holder	£0.84 £0.70
19	MK457652-2 Available to backorder	Rear Cover	£2.10 £1.75
20	MK695217-4 Available to backorder	Power Supply Cord 1.5-2-2.5	£12.00 £10.00
20	MK692527-0 Available to backorder	Power Supply Cord 1.0-2-2.5	£30.48 £25.40
22	MK687053-2 Available to backorder	Strain Relief	£1.03 £0.86
22	MK687052-4 Available to backorder	Strain Relief	£0.89 £0.74
23	MK631866-3 Available to backorder	Controller	£41.52 £34.60
23	MK631864-7 Available to backorder	Controller	£48.24 £40.20
24	MK911948-0 Available to backorder	Pan Head Screw M6x80	£1.03 £0.86
25	MK853H95-8 Available to backorder	Ls1019 Name Plate	£0.48 £0.40
26	MK144533-6 Available to backorder	Motor Housing Complete	£26.52 £22.10
26	MK643660-1 Available to backorder	Brush Holder 6.5-13.5 (C10)	£3.12 £2.60
27	MK194985-1 Available to backorder	Carbon Brush Set Cb-153 (Alt.)	£4.44 £3.70
28	MK643650-4 Available to backorder	Brush Holder Cap 6.5-13.5	£0.89 £0.74
29	MK654502-4 Available to backorder	Connector P-2 (C20)	£0.70 £0.58
29	MK590023-1 Available to backorder	Field Ass'y 115V	£54.24 £45.20
29	MK654020-2 Available to backorder	Ring Terminal (C10)	£0.89 £0.74
29	MK596349-9 Available to backorder	Field Ass'y 240V	£71.16 £59.30
30	MK266095-5 Available to backorder	Tapping Screw 5x55	£1.03 £0.86
31	MK210067-2 Available to backorder	Ball Bearing 6000Zz	£1.58 £1.32
32	MK681642-5 Available to backorder	Insulation Washer	£10.32 £8.60
33	MK240001-8 Available to backorder	Fan 80	£3.84 £3.20
34	MK510143-5 Available to backorder	Armature Ass'y 115V (INC. 31-33)	£69.36 £57.80
34	MK517824-2 Available to backorder	Armature Ass'y 240V (INC. 31-33)	£69.36 £57.80
35	MK451001-5 Available to backorder	Baffle Plate	£1.22 £1.02
36	MK319591-3 Available to backorder	Motor Bracket	£14.52 £12.10
37	MK961057-5 Available to backorder	Retaining Ring S-17	£0.48 £0.40
38	MK211275-8 Available to backorder	Ball Bearing 6003Ddw	£12.12 £10.10
39	MK922331-6 Available to backorder	Hex. Socket Head Bolt M6x20	£0.89 £0.74
40	MK253804-1 Available to backorder	Flat Washer 6	£0.48 £0.40

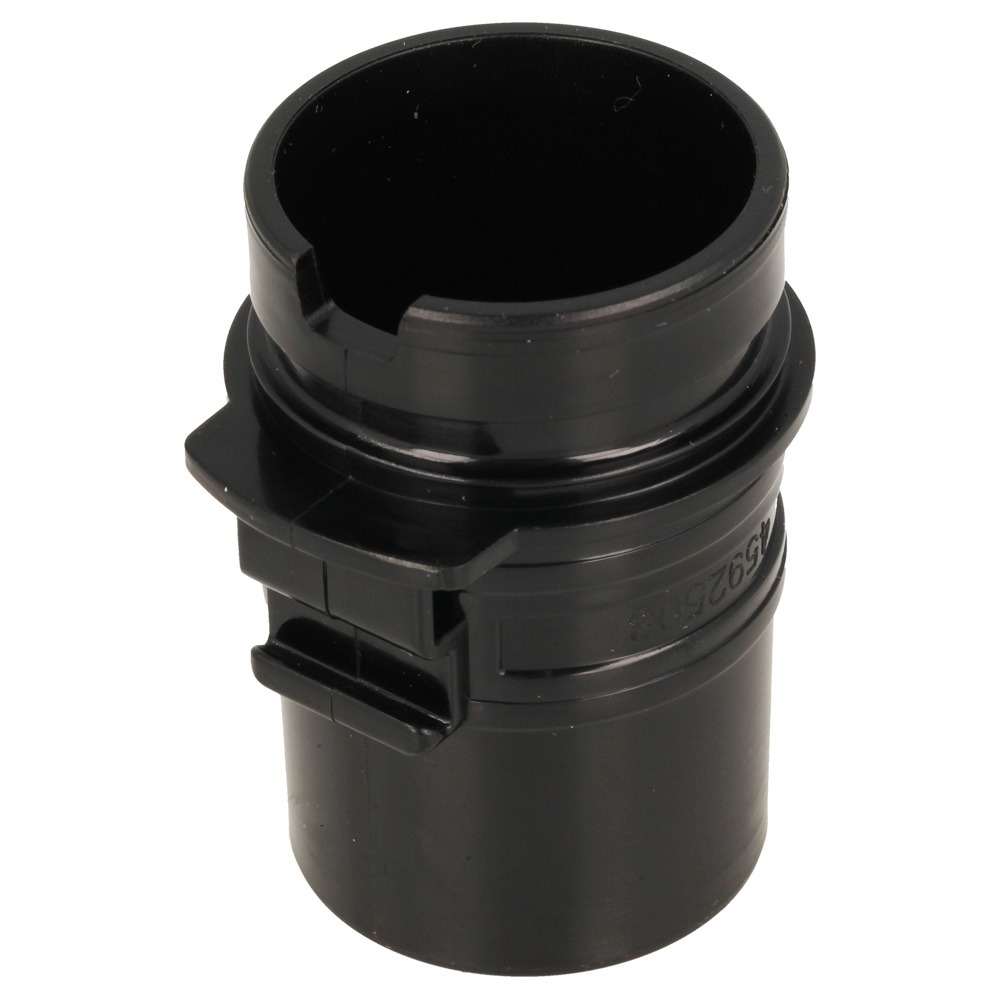

42	MK459250-8 Available to backorder	Dust Nozzle S	£2.53 £2.11
43	MK687042-7 Available to backorder	Strain Relief	£0.70 £0.58
44	MK266034-5 Available to backorder	Tapping Screw Ct 4x16 < (Refs 051 \| 123)	£0.48 £0.40
44	MK266026-4 Available to backorder	Tapping Screw Bind Ct 4x12	£0.48 £0.40
45	MK251554-2 Available to backorder	Thumb Screw M6x40	£1.63 £1.36
46	MK922332-4 Available to backorder	Hex. Socket Head Bolt M6x20	£0.48 £0.40
47	MK457667-9 Available to backorder	Logo Plate	£2.24 £1.87
48	MK961018-5 Available to backorder	Stop Ring E-5	£0.48 £0.40
49	MK251547-9 Available to backorder	Hex.Socket Head Bolt M8x25	£0.84 £0.70
50	MK922226-3 Available to backorder	Hex. Socket Head Bolt M5x18	£0.89 £0.74
52	MK144529-7 Available to backorder	Link Plate Complete	£7.92 £6.60
55	MK262001-8 Available to backorder	Urethane Ring 5	£1.90 £1.58
56	MK253428-3 Available to backorder	Spring Washer 6 (Alt.)	£0.48 £0.40
57	MK257785-1 Available to backorder	Sleeve 6	£0.89 £0.74
58	MK266321-2 Available to backorder	H.S.Set Screw (Flat Point) M6x16	£0.48 £0.40
59	MK911114-9 Available to backorder	Pan Head Screw M4x10	£0.48 £0.40
60	MK232412-1 Available to backorder	Torsion Spring 11	£0.48 £0.40
61	MK457764-1 Available to backorder	Dust Guide Plate	£1.39 £1.16
62	MK161647-6 Available to backorder	Guard Holder	£4.92 £4.10
63	MK231928-3 Available to backorder	Ring Spring 8	£0.48 £0.40
64	MK251544-5 Available to backorder	Shoulder Hex. Bolt M4	£0.89 £0.74
65	MK144636-6 Available to backorder	Blade Case Complete	£100.68 £83.90
65	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
66	MK231240-1 Available to backorder	Compression Spring 7	£0.48 £0.40
67	MK256633-1 Available to backorder	Pin 6	£0.70 £0.58
68	MK457659-8 Available to backorder	Lead Cover	£0.84 £0.70
69	MK265028-7 Available to backorder	+ Pan Head Screw M4x11	£1.73 £1.44
70	MK422155-5 Available to backorder	Guard	£2.53 £2.11
71	MK347215-1 Available to backorder	Guard Plate	£2.38 £1.98
72	MK266283-4 Available to backorder	Hex. Socket Hex. Bolt M8x20	£1.90 £1.58
73	MK266020-6 Available to backorder	Tapping Screw 4x12	£0.48 £0.40
74	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
75	MK210005-4 Available to backorder	Ball Bearing 608Ddw (Refs 091 \| 095)	£8.04 £6.70
76	MK261104-5 Available to backorder	Rubber Washer 12	£0.48 £0.40
77	MK253744-3 Available to backorder	Flat Washer 12	£0.70 £0.58
78	MK254001-2 Available to backorder	Woodruff Key 4	£0.89 £0.74
79	MK227550-2 Available to backorder	Spiral Bevel Gear 32	£7.44 £6.20
81	MK253313-0 Available to backorder	Thin Washer 14	£0.70 £0.58
82	MK451002-3 Available to backorder	Grease Holder	£0.70 £0.58
84	MK325643-0 Available to backorder	Gear Shaft	£4.08 £3.40
85	MK216024-8 Available to backorder	Steel Ball 4	£0.48 £0.40
86	MK227702-5 Available to backorder	Helical Gear 27	£6.48 £5.40
87	MK227701-7 Available to backorder	Helical Gear 14	£6.24 £5.20
89	MK442147-8 Available to backorder	Gasket	£2.38 £1.98
90	MK961055-9 Available to backorder	Retaining Ring S-15	£0.48 £0.40
92	MK911223-4 Available to backorder	Pan Head Screw M5x16	£0.48 £0.40
93	MK227703-3 Available to backorder	Helical Gear 28	£6.24 £5.20
94	MK267010-2 Available to backorder	Flat Washer 5	£0.48 £0.40
96	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
96	MK158957-0 Available to backorder	Bearing Box Complete	£8.28 £6.90
97	MK285847-5 Available to backorder	Bearing Retainer 14-23	£4.44 £3.70
98	MK931202-6 Available to backorder	Hex. Nut M5	£0.48 £0.40
99	MK253427-5 Available to backorder	Spring Washer 5 (Alt.)	£0.48 £0.40
99	MK942101-7 Available to backorder	Spring Washer 5	£0.48 £0.40
100	MK325644-8 Available to backorder	Spindle	£5.52 £4.60
101	MK211236-8 Available to backorder	Ball Bearing 6002Ddw	£8.04 £6.70
102	MK285732-2 Available to backorder	Bearing Retainer 51	£1.03 £0.86
103	MK224431-1 Available to backorder	Inner Flange 53	£4.20 £3.50
104	MK224432-9 Available to backorder	Outer Flange 53	£4.44 £3.70
105	MK257262-3 Available to backorder	Ring 16	£1.39 £1.16
106	MK265034-2 Available to backorder	+ Countersunk Head Screw M5x16	£0.70 £0.58
107	MK266755-9 Available to backorder	Hex.Socket Head Bolt M10x20	£1.73 £1.44
108	MK941051-3 Available to backorder	Flat Washer 4	£0.48 £0.40
122	MK457661-1 Available to backorder	Blade Case Cover	£4.20 £3.50
124	MK457664-5 Available to backorder	Protector	£0.84 £0.70
127	MK424193-3 Available to backorder	Roller	£0.89 £0.74
128	MK266385-6 Available to backorder	Tapping Screw 4x14	£0.48 £0.40
129	MK457499-4 Available to backorder	Seafty Cover B	£19.92 £16.60
131	MK347213-5 Available to backorder	Center Plate	£1.39 £1.16
132	MK231634-0 Available to backorder	Torsion Spring 45	£0.89 £0.74
133	MK424190-9 Available to backorder	Cushion	£0.70 £0.58
134	MK347214-3 Available to backorder	Center Cover	£3.01 £2.51
135	MK265985-9 Available to backorder	Hex.Socket Head Bolt M6	£3.12 £2.60
136	MK253932-2 Available to backorder	Wave Washer 10	£0.48 £0.40
137	MK210168-6 Available to backorder	Ball Bearing 6805Ddw	£2.53 £2.11
138	MK458437-9 Available to backorder	Safety Cover A (Alt.)	£5.64 £4.70
139	MK458939-5 Available to backorder	Button A S (C10)	£0.65 £0.54
139	MK123980-4 Available to backorder	Dust Nozzle Assembly (INC. 140-145 147 148 *)	£69.00 £57.50
139	MK232485-4 Available to backorder	Compression Spring 5 S (C20)	£0.48 £0.40
139	MK127427-0 Available to backorder	Dust Nozzle Assembly S (INC. 140-144 147 148 *)	£26.16 £21.80
