Makita LS0714 - Slide Compound Saw 190mm - Power Tool 01 Diagram

Name: Makita LS0714 - Slide Compound Saw 190mm - Power Tool 01 Diagram
SKU: ls0714_slide_compound_saw_190mm_power_tool_01-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita LS0714 - Slide Compound Saw 190mm - Power Tool 01 Diagram

Description

Model No. LS0714

Slide Compound Saw 190mm

Power Tool 01 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK911228-4 Available to backorder	Pan Head Screw M5x18 Wr	£1.64 £1.37
1	MK265491-4 Available to backorder	Hex. Socket Button Head Bolt M5x16	£0.58 £0.48
2	MK267136-0 Available to backorder	Flat Washer 5	£0.74 £0.62
3	MK453297-4 Available to backorder	Safety Cover <	£23.03 £19.19
4	MK265008-3 Available to backorder	Flat Head Shoulder Screw M5	£2.02 £1.68
5	MK266733-9 Available to backorder	Hex. Socket Head Flange Bolt M6x16	£0.86 £0.72
5	MK265461-3 Available to backorder	Hex. Head Bolt M6x18	£1.14 £0.95
6	MK224370-5 Available to backorder	Inner Flange 40 S	£5.06 £4.22
7	MK285715-2 Available to backorder	Bearing Retainer 55	£0.72 £0.60
8	MK323798-5 Available to backorder	Spindle	£13.28 £11.07
9	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
10	MK317037-3 Available to backorder	Bearing Box	£7.78 £6.48
11	MK213565-5 Available to backorder	O-Ring 42	£0.74 £0.62
12	MK257010-0 Available to backorder	Ring 12	£0.58 £0.48
13	MK226497-7 Available to backorder	Helical Gear 47	£9.04 £7.53
14	MK211021-9 Available to backorder	Ball Bearing 607Llb	£7.80 £6.50
15	MK263005-3 In stock	Rubber Pin 6	£0.47 £0.39
15	MK817667-5 Available to backorder	Caution Label (C20)	£0.58 £0.48
15	MK810968-0 Available to backorder	Caution Label (C10)	£1.60 £1.33
16	MK188248-5 Available to backorder	Blade Case Set <	£77.66 £64.72
16	MK153951-7 Available to backorder	Blade Case Complete (Alt.)	£59.88 £49.90
17	MK231934-8 Available to backorder	Spiral Spring 26	£3.34 £2.78
18	MK345589-4 Available to backorder	Center Washer S	£1.16 £0.97
19	MK265473-6 Available to backorder	Hex. Head Bolt M6x14	£1.14 £0.95
19	MK266732-1 Available to backorder	Hex. Socket Head Bolt M6x16 <	£0.58 £0.48
20	MK344641-5 Available to backorder	Center Cover	£2.42 £2.02
21	MK345410-7 Available to backorder	Center Plate	£3.26 £2.72
21	MK345585-2 Available to backorder	Center Plate S	£2.18 £1.82
22	MK224282-2 Available to backorder	Outer Flange 40	£5.34 £4.45
22	MK224275-9 Available to backorder	Outer Flange 40 S	£10.26 £8.55
23	MK911223-4 Available to backorder	Pan Head Screw M5x16 Wr	£0.48 £0.40
24	MK922331-6 Available to backorder	Hex. Socket Head Bolt M6x20 W	£0.74 £0.62
25	MK253804-1 Available to backorder	Flat Washer 6	£0.48 £0.40
27	MK345411-5 Available to backorder	Link Plate	£6.16 £5.13
27	MK154643-1 Available to backorder	Link Plate Complete S	£14.32 £11.93
30	MK961018-5 Available to backorder	Stop Ring (Ext) E-5	£0.48 £0.40
31	MK266061-2 Available to backorder	Binding Head Tapping Screw 4x8	£0.48 £0.40
32	MK213460-9 Available to backorder	O-Ring 35	£2.02 £1.68
33	MK419277-0 Available to backorder	Dust Nozzle (Alt.)	£2.18 £1.82
34	MK819063-3 Available to backorder	Makita Logo Label	£1.16 £0.97
34	MK819197-2 Available to backorder	Makita Logo Label <	£0.54 £0.45
35	MK265381-1 Available to backorder	Hex. Head Bolt M6x16	£1.40 £1.17
35	MK266757-5 Available to backorder	Hex. Socket Head Bolt M6x16 <	£0.48 £0.40
36	MK262001-8 Available to backorder	Urethane Ring 5	£1.74 £1.45
36	MK262190-9 Available to backorder	Urethane Ring 5 <	£0.74 £0.62
37	MK265717-4 Available to backorder	Thumb Screw M6x43	£2.32 £1.93
38	MK165414-1 Available to backorder	Guard Plate Complete S	£2.18 £1.82
38	MK345438-5 Available to backorder	Guard Plate	£0.82 £0.68
39	MK911113-1 Available to backorder	Pan Head Screw M4x10 Wr (Refs 069A \| 071A)	£0.48 £0.40
40	MK423333-0 Available to backorder	Guard	£1.10 £0.92
40	MK421626-9 Available to backorder	Guard S	£0.86 £0.72
40	MK424045-8 Available to backorder	Guard	£1.24 £1.03
62	MK324455-8 Available to backorder	Lock Pin	£2.60 £2.17
63	MK418655-1 Available to backorder	Rod Holder	£1.60 £1.33
64	MK266034-5 Available to backorder	Binding Head Tapping Screw 4x16	£0.48 £0.40
65	MK231316-4 Available to backorder	Compression Spring 7	£0.58 £0.48
66	MK324456-6 Available to backorder	Rod 8	£7.49 £6.24
67	MK421589-9 Available to backorder	Cap	£0.86 £0.72
68	MK345807-0 Available to backorder	Lock Lever S	£2.98 £2.48
70	MK345436-9 Available to backorder	Lock Plate	£0.72 £0.60
72	MK266046-8 Available to backorder	Binding Head Tapping Screw 5x50	£0.86 £0.72
73	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
74	MK211101-1 Available to backorder	Ball Bearing 6001Llb	£10.98 £9.15
76	MK233092-6 Available to backorder	Compression Spring 5	£0.48 £0.40
77	MK344642-3 Available to backorder	Shaft Lock	£2.26 £1.88
78	MK240030-1 Available to backorder	Fan 70	£11.59 £9.66
80	MK681644-1 Available to backorder	Insulation Washer	£0.74 £0.62
81	MK211031-6 Available to backorder	Ball Bearing 608Llb	£3.62 £3.02
82	MK261110-0 Available to backorder	Urethane Washer 18	£1.69 £1.41
83	MK416537-1 Available to backorder	Baffle Plate	£2.14 £1.78
84	MK810966-4 Available to backorder	Caution Label (C10)	£1.57 £1.31
84	MK654020-2 Available to backorder	Ring Terminal 36L (C10)	£0.74 £0.62
84	MK654485-8 Available to backorder	Non-Insulated Splice (C20)	£0.48 £0.40
85	MK638360-6 Available to backorder	Support Complete	£4.52 £3.77
86	MK188113-8 Available to backorder	Handle Set (Alt.)	£30.37 £25.31
88	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
88	MK682574-9 Available to backorder	Cord Guard 10 (Alt.)	£1.16 £0.97
89	MK687124-5 Available to backorder	Strain Relief (Alt.)	£0.48 £0.40
89	MK687052-4 Available to backorder	Strain Relief	£0.74 £0.62
90	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
91	MK151900-8 Available to backorder	Motor Housing Complete (INC. 73)	£30.37 £25.31
91	MK810964-8 Available to backorder	Caution Label (C20)	£1.57 £1.31
91	MK643708-9 Available to backorder	Brush Holder 5-11 (C10)	£2.18 £1.82
92	MK416538-9 Available to backorder	Upper Cover	£1.69 £1.41
93	MK911273-9 Available to backorder	Pan Head Screw M5x50 Wr	£0.70 £0.58
94	MK194996-6 Available to backorder	Carbon Brush Set (Alt.)	£3.92 £3.27
95	MK643750-0 Available to backorder	Holder Cap 7-11	£1.32 £1.10
95	MK643515-0 Available to backorder	Holder Cap 7-11 (Alt.)	£1.02 £0.85
96	MK862821-6 Available to backorder	Name Plate Ls0714 <	£0.72 £0.60
97	MK651922-3 Available to backorder	Switch Tg71B	£14.30 £11.92
98	MK645105-5 Available to backorder	Noise Suppressor	£2.18 £1.82
99	MK416534-7 Available to backorder	Switch Lever	£1.57 £1.31
99	MK452130-7 Available to backorder	Switch Lever	£5.36 £4.47
102	MK256098-7 Available to backorder	Pin 5	£0.86 £0.72
103	MK416533-9 Available to backorder	Lock Off Lever	£1.44 £1.20
104	MK231026-3 Available to backorder	Compression Spring 4	£0.48 £0.40

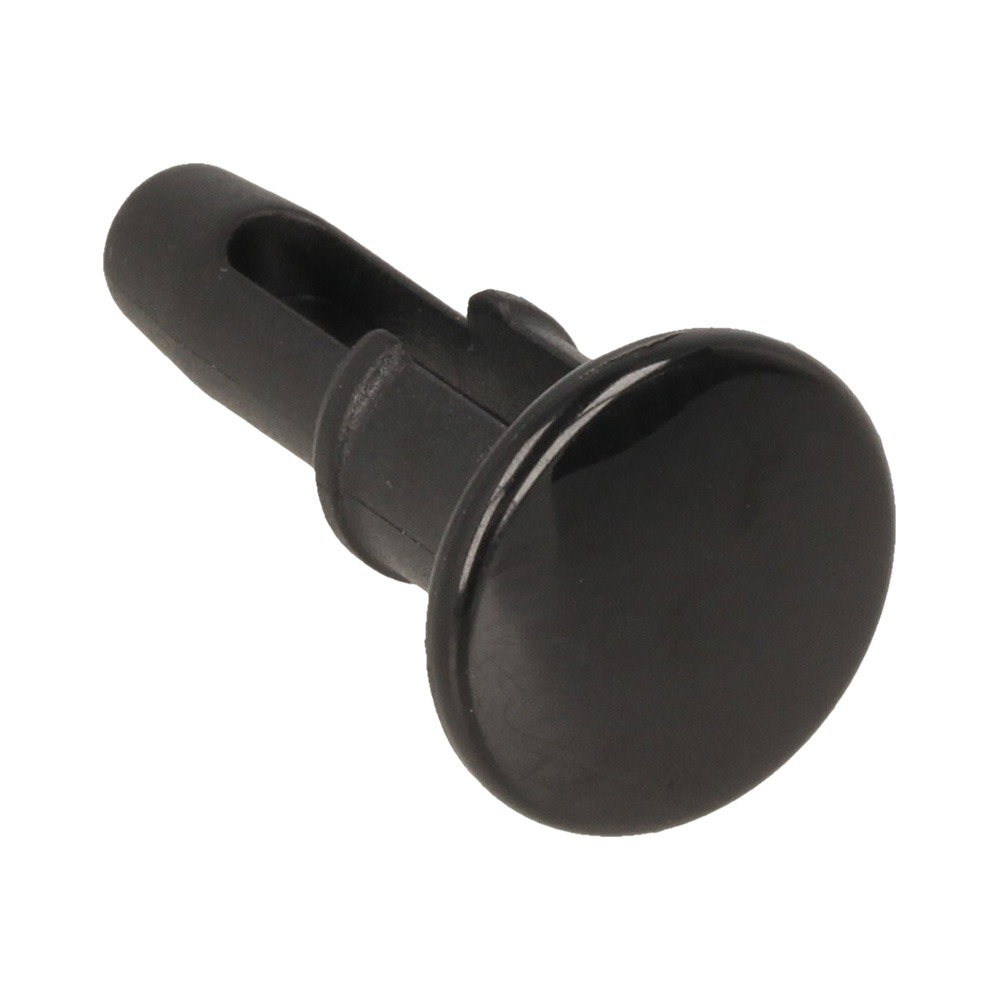

107	MK411478-6 In stock	Switch Button	£1.16 £0.97
107	MK417113-4 Available to backorder	Switch Button	£1.02 £0.85
