Model No. LS002G

216mm Dc Slide Cpd. Miter Saw

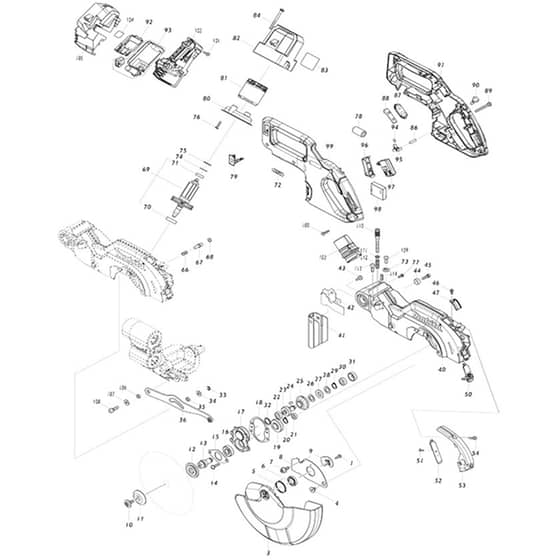

Power Tool 01 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK266385-6 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
1	MK266192-7 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
3	MK412933-1 Available to backorder	Safety Cover	£21.72 £18.10
4	MK265985-9 Available to backorder	Hex. Socket Shoulder Head Bolt M6x9	£3.04 £2.53

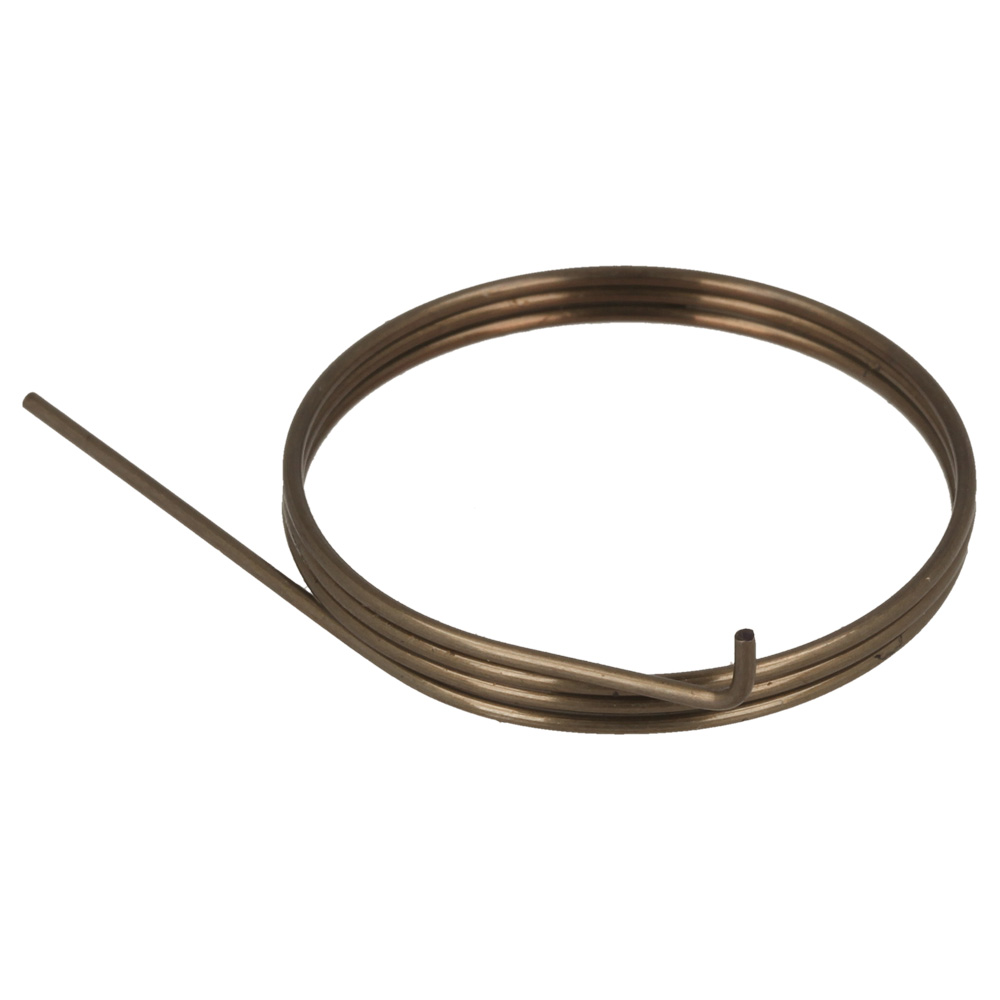

5	MK232311-7 Available to backorder	Torsion Spring 30	£2.18 £1.82
6	MK210150-5 Available to backorder	Ball Bearing 6803Ddw	£3.18 £2.65
7	MK266732-1 Available to backorder	Hex. Socket Head Bolt M6x16	£0.58 £0.48
8	MK347731-3 Available to backorder	Center Cover	£2.60 £2.17

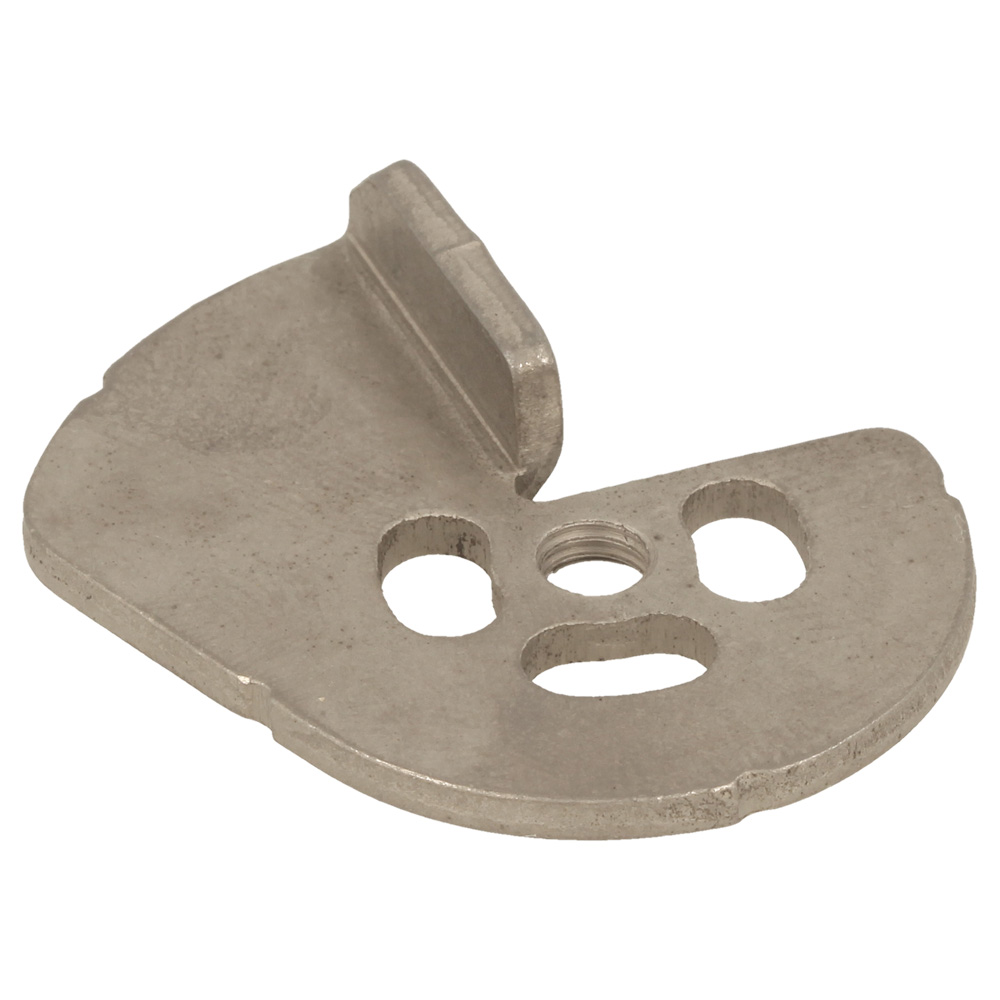

9	MK347059-9 Available to backorder	Center Plate	£5.94 £4.95
10	MK266733-9 Available to backorder	Hex. Socket Head Flange Bolt M6x16	£0.86 £0.72
11	MK224275-9 Available to backorder	Outer Flange 40	£10.26 £8.55
12	MK224614-3 Available to backorder	Inner Flange 40	£2.34 £1.95
13	MK327697-3 Available to backorder	Spindle	£3.96 £3.30
14	MK911233-1 Available to backorder	Pan Head Screw M5x20 Wr (Refs 198 \| 200 \| 202 \| 212)	£0.48 £0.40
15	MK285043-5 Available to backorder	Bearing Retainer 52	£1.36 £1.13
16	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.22 £6.02
17	MK312A44-7 Available to backorder	Bearing Box	£7.64 £6.37
18	MK422652-1 Available to backorder	Gasket	£2.18 £1.82
19	MK227838-0 Available to backorder	Helical Gear 43	£4.24 £3.53
20	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
21	MK210006-2 Available to backorder	Ball Bearing 696Zz	£3.04 £2.53
22	MK211021-9 Available to backorder	Ball Bearing 607Llb	£7.80 £6.50
23	MK227837-2 Available to backorder	Helical Gear 30	£5.74 £4.78
24	MK254011-9 Available to backorder	Woodruff Key 4	£0.74 £0.62
25	MK227836-4 Available to backorder	Spiral Bevel Gear 33	£7.52 £6.27
26	MK253744-3 Available to backorder	Flat Washer 12	£0.58 £0.48
27	MK261104-5 Available to backorder	Rubber Washer 12	£0.48 £0.40
32	MK261153-2 Available to backorder	Urethane Washer 15	£1.64 £1.37
33	MK961018-5 Available to backorder	Stop Ring (Ext) E-5 (Refs 122 \| 139 \| 180)	£0.48 £0.40
34	MK253804-1 Available to backorder	Flat Washer 6 (Refs 107 \| C50)	£0.48 £0.40
36	MK140W98-4 Available to backorder	Link Plate Complete	£11.20 £9.33
40	MK140W84-5 Available to backorder	Blade Case Complete	£85.06 £70.88
40	MK322316-6 Available to backorder	Link Shaft 6 (C30)	£2.26 £1.88
40	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
41	MK422651-3 Available to backorder	Guard	£1.36 £1.13
42	MK345438-5 Available to backorder	Guard Plate	£0.82 £0.68
43	MK911119-9 Available to backorder	Pan Head Screw M4x12 Wg (Refs 127 \| 169 \| 182)	£0.48 £0.40
44	MK257785-1 Available to backorder	Sleeve 6	£0.74 £0.62
45	MK922226-3 Available to backorder	Hex. Socket Head Bolt M5x18 W	£0.74 £0.62
46	MK911118-1 Available to backorder	Pan Head Screw M4x12 Wr (Refs 077 \| 132 \| 140 \| 143 \| 149 \| 161)	£0.48 £0.40
47	MK458075-7 Available to backorder	Lead Cover	£2.34 £1.95
50	MK140X03-7 Available to backorder	Lens Complete	£2.18 £1.82
51	MK266421-8 Available to backorder	Binding Head Tapping Screw 3x10	£0.48 £0.40
52	MK620E07-6 Available to backorder	Led Circuit	£6.82 £5.68
53	MK931102-0 Available to backorder	Hex. Nut M4 (C20)	£0.58 £0.48
53	MK141A59-5 Available to backorder	Led Cover Complete	£3.28 £2.73
54	MK266034-5 Available to backorder	Binding Head Tapping Screw 4x16	£0.48 £0.40
66	MK231240-1 Available to backorder	Compression Spring 7	£0.48 £0.40
67	MK256633-1 Available to backorder	Collar Hd. Pin 6	£0.58 £0.48
68	MK231928-3 Available to backorder	Ring Spring 8	£0.48 £0.40
69	MK519649-0 Available to backorder	Rotor Assembly (INC. 70 71)	£46.02 £38.35
71	MK210017-7 Available to backorder	Ball Bearing 607Ddw	£4.62 £3.85
74	MK253842-3 Available to backorder	Flat Washer 14	£0.48 £0.40
76	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 100 \| 101)	£0.48 £0.40
78	MK688162-0 Available to backorder	Line Filter	£1.44 £1.20
79	MK140F99-0 Available to backorder	Cap Complete	£2.60 £2.17
79	MK818H07-8 Available to backorder	Cap Label (C20)	£0.70 £0.58
79	MK213A05-9 Available to backorder	O-Ring 16 (Alt.) (C11)	£0.48 £0.40
79	MK213218-6 Available to backorder	O-Ring 16 (C10)	£0.74 £0.62
80	MK459933-0 Available to backorder	Baffle Plate	£2.06 £1.72
81	MK629A26-5 Available to backorder	Stator	£37.40 £31.17
82	MK412926-8 Available to backorder	Motor Housing	£9.42 £7.85
84	MK911278-9 Available to backorder	Pan Head Screw M5x55 Wr	£0.74 £0.62
86	MK256123-4 Available to backorder	Pin 5	£1.32 £1.10
87	MK140X02-9 Available to backorder	Switch Plate Complete	£1.36 £1.13
88	MK631973-2 Available to backorder	Switch Unit	£9.82 £8.18
89	MK911268-2 Available to backorder	Pan Head Screw M5x45 Wr	£0.74 £0.62
90	MK417113-4 Available to backorder	Switch Button	£1.02 £0.85
91	MK183R96-5 Available to backorder	Handle Set (INC. 99)	£31.12 £25.93
92	MK632P64-8 Available to backorder	Terminal Unit	£10.64 £8.87
93	MK620E06-8 Available to backorder	Controller	£164.08 £136.73
94	MK231026-3 Available to backorder	Compression Spring 4	£0.48 £0.40
95	MK416533-9 Available to backorder	Lock Off Lever	£1.44 £1.20
97	MK651083-9 Available to backorder	Switch C3xa-1Pspm	£27.60 £23.00
98	MK620E08-4 Available to backorder	Power Supply Circuit	£19.92 £16.60
102	MK183R92-3 Available to backorder	Battery Housing Set (INC. 105)	£8.62 £7.18
102	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
103	MK459250-8 Available to backorder	Dust Nozzle	£2.32 £1.93
108	MK922331-6 Available to backorder	Hex. Socket Head Bolt M6x20 W	£0.74 £0.62
109	MK265484-1 Available to backorder	Hex. Socket Button Head Bolt M6x17	£0.74 £0.62
110	MK265B58-0 Available to backorder	Hex. Socket Head Bolt M6x45	£1.10 £0.92
111	MK941152-7 Available to backorder	Flat Washer 6	£0.48 £0.40
112	MK233343-7 Available to backorder	Compression Spring 7	£0.48 £0.40
113	MK266757-5 Available to backorder	Hex. Socket Head Bolt M6x16	£0.48 £0.40
114	MK266321-2 Available to backorder	Hex. Socket Set Screw (Flat Point) M6x16	£0.48 £0.40
115	MK327710-7 Available to backorder	Rod 16	£2.88 £2.40
116	MK416905-8 Available to backorder	Sleeve 17-23	£1.28 £1.07
117	MK232772-1 Available to backorder	Torsion Spring 29 <	£6.70 £5.58
119	MK327702-6 Available to backorder	Lock Pin 7-9	£1.52 £1.27
123	MK251267-5 Available to backorder	Pan Head Shoulder Screw M6	£1.16 £0.97
124	MK253215-0 Available to backorder	Flat Washer 8 (Refs 148 \| 155)	£0.48 £0.40
125	MK253948-7 Available to backorder	Wave Washer 8	£0.48 £0.40
126	MK344643-1 Available to backorder	Stopper Arm	£1.74 £1.45
129	MK140W83-7 Available to backorder	Front Arm Complete	£185.36 £154.47
130	MK922251-4 Available to backorder	Hex. Socket Head Bolt M5x30 W	£0.74 £0.62
131	MK327705-0 Available to backorder	Square Rod	£2.46 £2.05
133	MK412938-1 Available to backorder	Rail Holder	£1.92 £1.60
134	MK911128-8 Available to backorder	Pan Head Screw M4x16 Wr	£0.47 £0.39
135	MK412947-0 Available to backorder	Inlet	£1.36 £1.13
141	MK412943-8 Available to backorder	Indication Plate R	£0.96 £0.80
142	MK412942-0 Available to backorder	Indication Plate L	£0.96 £0.80
144	MK251582-7 Available to backorder	Hex. Socket Head Bolt M6x25 (Refs 175 \| 176)	£0.70 £0.58
145	MK271466-3 Available to backorder	Lever 30	£5.34 £4.45
146	MK232651-3 Available to backorder	Torsion Spring 8	£0.48 £0.40
147	MK257848-3 Available to backorder	Ring 8	£0.82 £0.68
150	MK141G28-2 Available to backorder	Arm Cover Complete S	£2.88 £2.40
150	MK8024V1-0 Available to backorder	Indication Label S (C10)	£0.48 £0.40
151	MK252130-5 Available to backorder	Hex. Lock Nut M10-17	£1.60 £1.33
152	MK253024-7 Available to backorder	Flat Washer 10	£0.74 £0.62
153	MK216413-7 Available to backorder	Thrust Needle Cage 1024	£2.18 £1.82
154	MK140W82-9 Available to backorder	Arm Complete	£93.78 £78.15
154	MK141F27-8 Available to backorder	Arm Complete S	£105.10 £87.58
156	MK961013-5 Available to backorder	Stop Ring (Ext) E-7 (Refs 227 \| 232)	£0.47 £0.39
158	MK412944-6 Available to backorder	Dust Guide Holder	£1.64 £1.37
160	MK422648-2 Available to backorder	Dust Guide	£4.92 £4.10
162	MK253400-5 Available to backorder	Flat Washer 4	£0.74 £0.62
163	MK347759-1 Available to backorder	Lock Plate	£1.24 £1.03
164	MK257849-1 Available to backorder	Sleeve 8	£1.10 £0.92
165	MK253731-2 Available to backorder	Flat Washer 8 (Refs 167 \| 172 \| 174 \| 186)	£0.48 £0.40
166	MK216415-3 Available to backorder	Thrust Needle Cage 821	£3.34 £2.78
168	MK162942-7 Available to backorder	Lock Shaft Complete	£16.80 £14.00
170	MK413C45-1 Available to backorder	Kerf Board (Alt.)	£4.52 £3.77
171	MK265442-7 Available to backorder	Hex. Head Bolt M8x40	£1.16 £0.97
177	MK327704-2 Available to backorder	Stopper Rod	£1.64 £1.37
178	MK234122-6 Available to backorder	Compression Spring 6	£0.48 £0.40
179	MK271465-5 Available to backorder	Lever 24	£1.10 £0.92
181	MK813L22-1 Available to backorder	Caution Label (C40)	£0.48 £0.40
181	MK140W81-1 Available to backorder	Turn Base Complete	£106.62 £88.85
181	MK812X85-6 Available to backorder	Caution Label (C30)	£0.48 £0.40
184	MK327698-1 Available to backorder	Center Shaft	£2.46 £2.05
185	MK231418-6 Available to backorder	Compression Spring 9	£0.48 £0.40
187	MK266432-3 Available to backorder	Adjust Bolt M8x27	£2.02 £1.68
188	MK961062-2 Available to backorder	Stop Ring (Ext) E-12	£0.48 £0.40
189	MK271464-7 Available to backorder	Grip 46	£19.54 £16.28
190	MK271463-9 Available to backorder	Grip 38	£5.06 £4.22
194	MK327700-0 Available to backorder	Lock Rod 6	£1.10 £0.92
195	MK313326-4 Available to backorder	Turn Stopper	£1.52 £1.27
196	MK256186-0 Available to backorder	Pin 5	£0.86 £0.72
199	MK312A46-3 Available to backorder	Pin Holder	£3.28 £2.73
201	MK412941-2 Available to backorder	Lead Block	£1.24 £1.03
203	MK256267-0 Available to backorder	Pin 3	£0.48 £0.40
204	MK327701-8 Available to backorder	Lock Pin 6	£3.54 £2.95
205	MK412939-9 Available to backorder	Lever 38	£1.24 £1.03
206	MK347760-6 Available to backorder	Lever Plate	£0.96 £0.80
208	MK911013-5 Available to backorder	Pan Head Screw M3x10 Wr	£0.48 £0.40
209	MK233201-7 Available to backorder	Compression Spring 6	£0.58 £0.48
211	MK312A45-5 Available to backorder	Gear Cover	£5.18 £4.32
213	MK140W85-3 Available to backorder	Upper Fence L Complete	£19.92 £16.60
213	MK810503-4 Available to backorder	Caution Label (C10)	£0.48 £0.40
214	MK140W86-1 Available to backorder	Upper Fence R Complete	£19.92 £16.60
215	MK265C19-6 Available to backorder	Hex. Socket Set Screw (Flat Point) M8x12	£0.48 £0.40
216	MK922344-7 Available to backorder	Hex. Socket Head Bolt M6x25 Wg	£0.74 £0.62
217	MK265701-9 In stock	Thumb Screw M6x14	£2.02 £1.68
218	MK312A38-2 Available to backorder	Guide Fence	£50.10 £41.75
219	MK347758-3 Available to backorder	Slide Plate	£1.24 £1.03
220	MK327706-8 Available to backorder	Base Supporter	£1.92 £1.60
221	MK265785-7 Available to backorder	Thumb Screw M5x10 (Refs 228 \| C20)	£0.86 £0.72
222	MK810486-8 Available to backorder	Caution Label (C10)	£0.48 £0.40
222	MK140W80-3 Available to backorder	Base Complete	£95.00 £79.17
223	MK266264-8 Available to backorder	Hex. Socket Set Screw (Flat Point) M5x6	£0.74 £0.62
224	MK327703-4 Available to backorder	Rod 10	£2.88 £2.40
225	MK312A42-1 Available to backorder	Sub Base L	£22.26 £18.55
226	MK922211-6 Available to backorder	Hex. Socket Head Bolt M5x12 W	£0.58 £0.48
230	MK312A43-9 Available to backorder	Sub Base R	£22.26 £18.55
233	MK286044-6 Available to backorder	Cap 13	£0.54 £0.45
234	MK251546-1 Available to backorder	Pan Head Shoulder Screw M5	£0.48 £0.40
235	MK347756-7 Available to backorder	Miter Scale Plate	£4.52 £3.77
236	MK347757-5 Available to backorder	Miter Lock Plate	£3.28 £2.73
237	MK127692-1 Available to backorder	Dust Nozzle Assembly (INC. 238-242)	£14.46 £12.05
239	MK245062-3 Available to backorder	Hose 20-0.4	£4.36 £3.63
240	MK458939-5 Available to backorder	Button A	£0.54 £0.45
241	MK232485-4 Available to backorder	Compression Spring 5	£0.48 £0.40
244	MK652119-7 Available to backorder	Pan Head Screw M2x6 S	£0.48 £0.40
901	MK127693-9 Available to backorder	Vise Assembly (A01)	£21.52 £17.93
901	MK312A56-0 Available to backorder	Vise Arm (C10)	£8.62 £7.18
901	MK327707-6 Available to backorder	Vise Rod (C30)	£3.28 £2.73
901	MK251370-2 Available to backorder	Pan Head Shoulder Screw M5x15.5 (C70)	£0.58 £0.48
901	MK343651-9 Available to backorder	Vise Plate (C60)	£1.32 £1.10
901	MK265B61-1 Available to backorder	Thumb Screw M10x70 (C40)	£5.60 £4.67
902	MK127512-9 Available to backorder	Dust Bag Assembly (A02)	£11.02 £9.18
903	MK762001-3 Available to backorder	Triangular Rule (A03)	£1.22 £1.02
903	MK198687-1 Available to backorder	Stand Set (F03)	£511.82 £426.52
904	MK198688-9 Available to backorder	Stand Set (F04)	£183.76 £153.13
904	MK198900-7 Available to backorder	Wireless Unit Set (A04)	£67.06 £55.88
905	MK783022-2 Available to backorder	Hex. Wrench 5 (A05)	£0.58 £0.48
