Model No. LM004J

Cordless Lawn Mower

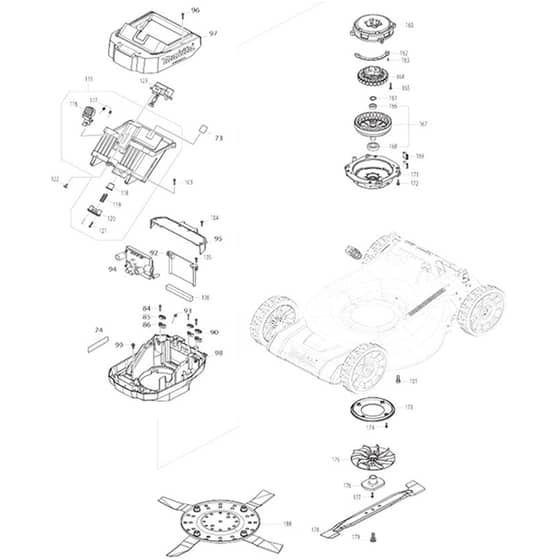

Power Tool 02 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
75	MK922441-9 Available to backorder	Hex. Socket Head Bolt M8x25 W	£0.48 £0.40
76	MK413L42-1 Available to backorder	Rear Grip	£6.98 £5.82
78	MK413L33-2 Available to backorder	Front Cover	£10.52 £8.77
80	MK413L43-9 Available to backorder	Height Adjust Plate	£8.74 £7.28
81	MK265B20-5 Available to backorder	Hex. Socket Button Head Bolt M8x14	£0.48 £0.40
82	MK922311-2 Available to backorder	Hex. Socket Head Bolt M6x12 W	£0.74 £0.62
83	MK162B98-8 Available to backorder	Height Adjust Lever Complete	£11.88 £9.90
84	MK266424-2 Available to backorder	Binding Head Tapping Screw 4x20 (Refs 087 \| 096 \| 100 \| 103 \| 104 \| 105 \| 121 \| 130 \| 177)	£0.48 £0.40
85	MK687123-7 Available to backorder	Strain Relief	£0.48 £0.40
86	MK687051-6 Available to backorder	Strain Relief	£0.74 £0.62
88	MK413L50-2 Available to backorder	Lead Cover	£1.10 £0.92
89	MK422526-6 Available to backorder	Grommet	£0.82 £0.68
90	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
91	MK413L35-8 Available to backorder	Deck Under Cover F	£10.92 £9.10
92	MK413L31-6 Available to backorder	Inner Plate	£4.52 £3.77
93	MK620J95-3 Available to backorder	Led Circuit	£4.92 £4.10
94	MK620J92-9 Available to backorder	Controller	£367.34 £306.12
95	MK141M33-5 Available to backorder	Cowling Cover Complete	£7.24 £6.03
97	MK122D39-8 Available to backorder	Cowling Upper Assembly	£22.54 £18.78
98	MK413L25-1 Available to backorder	Cowling Lower	£25.80 £21.50
99	MK911233-1 Available to backorder	Pan Head Screw M5x20 Wr	£0.48 £0.40
107	MK141S44-6 Available to backorder	Deck Complete	£168.86 £140.72
108	MK422956-1 Available to backorder	Sponge	£0.48 £0.40
110	MK232628-8 Available to backorder	Tension Spring 16	£5.34 £4.45
114	MK347A58-7 Available to backorder	Connecting Rod	£23.48 £19.57
122	MK265B00-1 Available to backorder	Flange Tapping Screw 4x12	£0.48 £0.40
124	MK699214-2 Available to backorder	Power Supply Cord Unit	£12.16 £10.13
125	MK265324-3 Available to backorder	Hex. Head Flange Bolt M8x12	£1.44 £1.20
126	MK141M25-4 Available to backorder	Tire 230 Complete	£26.36 £21.97
127	MK210163-6 Available to backorder	Ball Bearing 6001Ddw (Refs 133 \| 142)	£1.36 £1.13
128	MK162C00-7 Available to backorder	Front Shaft	£21.84 £18.20
129	MK347869-4 Available to backorder	Plate	£0.54 £0.45
131	MK252301-4 Available to backorder	Hex. Flange Lock Nut M6-10	£0.48 £0.40
134	MK141M26-2 Available to backorder	Tire 230 Complete	£26.62 £22.18
135	MK227A02-9 Available to backorder	Spur Gear 47	£8.62 £7.18
137	MK911213-7 Available to backorder	Pan Head Screw M5x12 Wr	£0.48 £0.40
138	MK413L41-3 Available to backorder	Wheel Cap	£5.34 £4.45
139	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
140	MK227A01-1 Available to backorder	Spur Gear 15	£3.42 £2.85
141	MK251951-2 Available to backorder	Hex. Socket Countersunk Head Screw M5x10	£0.48 £0.40
143	MK313390-5 Available to backorder	Rear Shaft Holder	£3.00 £2.50
144	MK162C02-3 Available to backorder	Rear Shaft	£31.40 £26.17
146	MK347865-2 Available to backorder	Clamp 19	£0.82 £0.68
147	MK922223-9 Available to backorder	Hex. Socket Head Bolt M5x16 Wr	£0.74 £0.62
148	MK122D28-3 Available to backorder	Drive Unit	£159.30 £132.75
149	MK347A59-5 Available to backorder	Bracket	£1.24 £1.03
152	MK683A20-1 Available to backorder	Tube Complete	£0.48 £0.40
153	MK162C45-5 Available to backorder	Grass Catcher Bracket	£21.84 £18.20
154	MK162C13-8 Available to backorder	Grass Catcher	£32.76 £27.30
158	MK911163-6 Available to backorder	Pan Head Screw M4x35 Wr	£0.48 £0.40
159	MK931102-0 Available to backorder	Hex. Nut M4 (C10)	£0.58 £0.48
159	MK413944-9 Available to backorder	Clamp	£0.96 £0.80
160	MK141M30-1 Available to backorder	Stator Base Complete	£29.08 £24.23
161	MK253455-0 Available to backorder	Wave Washer 19	£0.54 £0.45
162	MK620J44-0 Available to backorder	Controller B	£20.48 £17.07
163	MK265C89-5 Available to backorder	Flat Head Screw M3x10	£0.48 £0.40
164	MK629B85-5 Available to backorder	Stator	£57.48 £47.90
165	MK911158-9 Available to backorder	Pan Head Screw M4x30 Wr	£0.48 £0.40
166	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.04 £4.20
167	MK519786-0 Available to backorder	Rotor Assembly (INC. 166 168)	£160.52 £133.77
168	MK211332-2 Available to backorder	Ball Bearing 6004Llu	£5.48 £4.57
169	MK422955-3 Available to backorder	Grommet	£0.48 £0.40
171	MK312D43-7 Available to backorder	Bracket	£27.30 £22.75
173	MK413L53-6 Available to backorder	Baffle Plate	£5.60 £4.67
174	MK911126-2 Available to backorder	Pan Head Screw M4x16 W	£0.48 £0.40
175	MK240205-2 Available to backorder	Fan 170	£6.56 £5.47
176	MK312D48-7 Available to backorder	Blade Support 530	£11.34 £9.45
178	MK191V96-5 Available to backorder	Blade 530 Set	£42.94 £35.78
179	MK265A69-9 Available to backorder	Hex. Head Bolt M10x35 Wg	£1.32 £1.10
181	MK183X16-5 Available to backorder	Grass Guard Set (INC. 183)	£1.92 £1.60
182	MK413L37-4 Available to backorder	Deck Under Cover R	£32.76 £27.30
901	MK688140-0 Available to backorder	Line Filter (E01)	£4.48 £3.73
901	MK327589-6 Available to backorder	Rod 6 (A01)	£0.96 £0.80
902	MK413L55-2 Available to backorder	Mulching Plug 530 (A02)	£11.30 £9.42
903	MK413L57-8 Available to backorder	Discharge Chute (A03)	£20.34 £16.95
903	MK800A17-7 Available to backorder	Sound 94Db Label (E03)	£0.48 £0.40
904	MK782210-8 Available to backorder	Box Wrench (A04)	£5.94 £4.95
