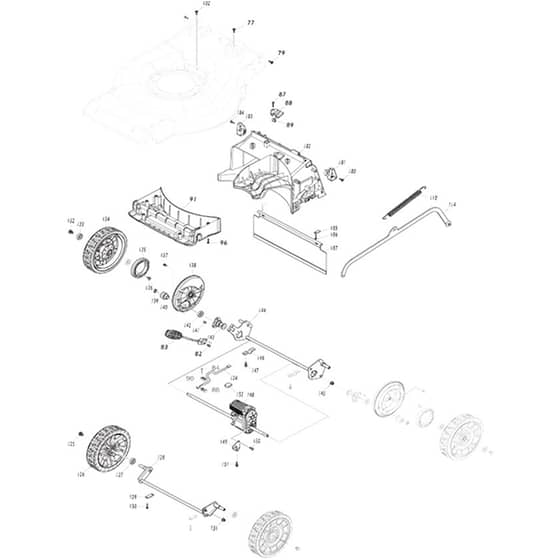

Makita LM002G - Cordless Lawn Mower - Power Tool 04 Diagram

Description

Model No. LM002G

Cordless Lawn Mower

Power Tool 04 Parts Diagrams

	Part No.	Details
78	MK413L33-2 Available to backorder	Front Cover	£10.92 £9.10
80	MK413L43-9 Available to backorder	Height Adjust Plate	£9.00 £7.50
81	MK265B20-5 Available to backorder	Hex. Socket Button Head Bolt M8x14	£0.48 £0.40
82	MK922311-2 Available to backorder	Hex. Socket Head Bolt M6x12 W	£0.89 £0.74
83	MK162B98-8 Available to backorder	Height Adjust Lever Complete	£12.36 £10.30
84	MK266424-2 Available to backorder	Binding Head Tapping Screw 4x20 (Refs 087 \| 096 \| 103 \| 104 \| 105 \| 130 \| 177)	£0.48 £0.40
85	MK687123-7 Available to backorder	Strain Relief	£0.48 £0.40
86	MK687051-6 Available to backorder	Strain Relief	£0.89 £0.74
88	MK413L50-2 Available to backorder	Lead Cover	£1.32 £1.10
89	MK422526-6 Available to backorder	Grommet	£0.98 £0.82
90	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
91	MK413L35-8 Available to backorder	Deck Under Cover F	£11.28 £9.40
92	MK413L30-8 Available to backorder	Inner Plate	£3.36 £2.80
93	MK620J46-6 Available to backorder	Led Circuit	£6.84 £5.70
94	MK539255-5 Available to backorder	Controller Assembly (INC. 70 100 *)	£453.77 £378.14
95	MK141M28-8 Available to backorder	Cowling Cover Complete	£6.12 £5.10
97	MK413L22-7 Available to backorder	Cowling Upper	£17.76 £14.80
98	MK413L21-9 Available to backorder	Cowling Lower	£19.20 £16.00
99	MK911233-1 Available to backorder	Pan Head Screw M5x20 Wr	£0.48 £0.40
100	MK652031-1 Available to backorder	Pan Head Screw M3x6	£0.48 £0.40
101	MK922441-9 Available to backorder	Hex. Socket Head Bolt M8x25 W	£0.48 £0.40
107	MK141S44-6 Available to backorder	Deck Complete	£162.12 £135.10
108	MK422956-1 Available to backorder	Sponge	£0.50 £0.42
110	MK232628-8 Available to backorder	Tension Spring 16	£5.52 £4.60
114	MK347A58-7 Available to backorder	Connecting Rod	£24.24 £20.20
124	MK699214-2 Available to backorder	Power Supply Cord Unit	£12.60 £10.50
125	MK265324-3 Available to backorder	Hex. Head Flange Bolt M8x12	£1.73 £1.44
126	MK141M25-4 Available to backorder	Tire 230 Complete	£27.24 £22.70
127	MK210163-6 Available to backorder	Ball Bearing 6001Ddw (Refs 133 \| 142)	£1.63 £1.36
128	MK162C00-7 Available to backorder	Front Shaft	£22.56 £18.80
129	MK347869-4 Available to backorder	Plate	£0.65 £0.54
131	MK252301-4 Available to backorder	Hex. Flange Lock Nut M6-10	£0.48 £0.40
134	MK141M26-2 Available to backorder	Tire 230 Complete	£27.48 £22.90
135	MK227913-2 Available to backorder	Spur Gear 49	£8.52 £7.10
136	MK265B00-1 Available to backorder	Flange Tapping Screw 4x12	£0.48 £0.40
137	MK911213-7 Available to backorder	Pan Head Screw M5x12 Wr	£0.48 £0.40
138	MK413L40-5 Available to backorder	Wheel Cap	£4.56 £3.80
139	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
140	MK227A00-3 Available to backorder	Spur Gear 12	£3.48 £2.90
141	MK251951-2 Available to backorder	Hex. Socket Countersunk Head Screw M5x10	£0.48 £0.40
143	MK313390-5 Available to backorder	Rear Shaft Holder	£3.12 £2.60
144	MK162C02-3 Available to backorder	Rear Shaft	£32.52 £27.10
146	MK347865-2 Available to backorder	Clamp 19	£0.98 £0.82
147	MK922223-9 Available to backorder	Hex. Socket Head Bolt M5x16 Wr	£0.89 £0.74
148	MK122E54-8 Available to backorder	Drive Unit	£145.56 £121.30
149	MK347A59-5 Available to backorder	Bracket	£1.49 £1.24
152	MK683A20-1 Available to backorder	Tube Complete	£0.48 £0.40
153	MK162C45-5 Available to backorder	Grass Catcher Bracket	£22.80 £19.00
154	MK162C13-8 Available to backorder	Grass Catcher	£35.88 £29.90
158	MK911163-6 Available to backorder	Pan Head Screw M4x35 Wr	£0.48 £0.40
159	MK931102-0 Available to backorder	Hex. Nut M4 (C10)	£0.70 £0.58
159	MK413944-9 Available to backorder	Clamp	£1.15 £0.96
160	MK141M30-1 Available to backorder	Stator Base Complete	£30.12 £25.10
161	MK253455-0 Available to backorder	Wave Washer 19	£0.65 £0.54
162	MK620J44-0 Available to backorder	Controller B	£21.24 £17.70
163	MK265C89-5 Available to backorder	Flat Head Screw M3x10	£0.48 £0.40
164	MK629B84-7 Available to backorder	Stator	£53.04 £44.20
165	MK911148-2 Available to backorder	Pan Head Screw M4x25 Wr	£0.48 £0.40
166	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.16 £4.30
167	MK519785-2 Available to backorder	Rotor Assembly (INC. 166 168)	£132.24 £110.20
168	MK211332-2 Available to backorder	Ball Bearing 6004Llu	£5.64 £4.70
169	MK422955-3 Available to backorder	Grommet	£0.50 £0.42
171	MK312D43-7 Available to backorder	Bracket	£28.20 £23.50
173	MK413L53-6 Available to backorder	Baffle Plate	£5.76 £4.80
174	MK911126-2 Available to backorder	Pan Head Screw M4x16 W	£0.48 £0.40
175	MK240205-2 Available to backorder	Fan 170	£6.84 £5.70
176	MK312D48-7 Available to backorder	Blade Support 530	£11.76 £9.80
178	MK191V96-5 Available to backorder	Blade 530 Set	£44.40 £37.00
179	MK265A69-9 Available to backorder	Hex. Head Bolt M10x35 Wg	£1.58 £1.32
181	MK183X16-5 Available to backorder	Grass Guard Set (INC. 183)	£2.10 £1.75
182	MK413L37-4 Available to backorder	Deck Under Cover R	£33.84 £28.20
901	MK327589-6 Available to backorder	Rod 6 (A01)	£1.15 £0.96
901	MK688140-0 Available to backorder	Line Filter (E01)	£4.68 £3.90
902	MK688131-1 Available to backorder	Line Filter (E02)	£0.70 £0.58
902	MK413L55-2 Available to backorder	Mulching Plug 530 (A02)	£11.64 £9.70
903	MK413L57-8 Available to backorder	Discharge Chute (A03)	£21.00 £17.50
903	MK800A17-7 Available to backorder	Sound 94Db Label (E03)	£0.48 £0.40
904	MK782210-8 Available to backorder	Box Wrench (A04)	£6.12 £5.10
905	MK412393-7 Available to backorder	Battery Cover (A05B)	£0.70 £0.58
