Makita LM002G - Cordless Lawn Mower - Power Tool 03 Diagram

Description

Model No. LM002G

Cordless Lawn Mower

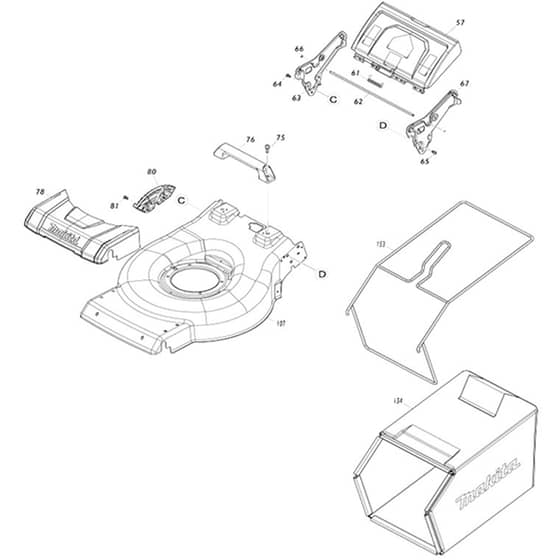

Power Tool 03 Parts Diagrams

	Part No.	Details
57	MK141M22-0 Available to backorder	Rear Flap Complete	£12.96 £10.80
58	MK961018-5 Available to backorder	Stop Ring (Ext) E-5	£0.48 £0.40
59	MK327536-7 Available to backorder	Rod 6	£1.15 £0.96
61	MK232721-8 Available to backorder	Torsion Spring 8	£1.66 £1.38
62	MK327A64-8 Available to backorder	Rod 6	£2.10 £1.75
63	MK347A56-1 Available to backorder	Handle Bracket R	£15.12 £12.60
64	MK265B20-5 Available to backorder	Hex. Socket Button Head Bolt M8x14 (Refs 065 \| 081)	£0.48 £0.40
67	MK347A55-3 Available to backorder	Handle Bracket L	£15.12 £12.60
68	MK266424-2 Available to backorder	Binding Head Tapping Screw 4x20 (Refs 072 \| 084 \| 087 \| 096 \| 103 \| 104 \| 105 \| 130)	£0.48 £0.40
69	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
69	MK183X12-3 Available to backorder	Terminal Housing Set (INC. 71)	£9.72 £8.10
70	MK632T08-2 Available to backorder	Terminal Unit	£7.32 £6.10
75	MK922441-9 Available to backorder	Hex. Socket Head Bolt M8x25 W	£0.48 £0.40
76	MK413L42-1 Available to backorder	Rear Grip	£7.20 £6.00
78	MK413L33-2 Available to backorder	Front Cover	£10.92 £9.10
80	MK413L43-9 Available to backorder	Height Adjust Plate	£9.00 £7.50
82	MK922311-2 Available to backorder	Hex. Socket Head Bolt M6x12 W	£0.89 £0.74
83	MK162B98-8 Available to backorder	Height Adjust Lever Complete	£12.36 £10.30
85	MK687123-7 Available to backorder	Strain Relief	£0.48 £0.40
86	MK687051-6 Available to backorder	Strain Relief	£0.89 £0.74
88	MK413L50-2 Available to backorder	Lead Cover	£1.32 £1.10
89	MK422526-6 Available to backorder	Grommet	£0.98 £0.82
90	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
91	MK413L35-8 Available to backorder	Deck Under Cover F	£11.28 £9.40
92	MK413L30-8 Available to backorder	Inner Plate	£3.36 £2.80
93	MK620J46-6 Available to backorder	Led Circuit	£6.84 £5.70
94	MK539255-5 Available to backorder	Controller Assembly (INC. 70 100 *)	£453.77 £378.14
95	MK141M28-8 Available to backorder	Cowling Cover Complete	£6.12 £5.10
97	MK413L22-7 Available to backorder	Cowling Upper	£17.76 £14.80
98	MK413L21-9 Available to backorder	Cowling Lower	£19.20 £16.00
99	MK911233-1 Available to backorder	Pan Head Screw M5x20 Wr	£0.48 £0.40
100	MK652031-1 Available to backorder	Pan Head Screw M3x6	£0.48 £0.40
107	MK141S44-6 Available to backorder	Deck Complete	£162.12 £135.10
108	MK422956-1 Available to backorder	Sponge	£0.50 £0.42
110	MK232628-8 Available to backorder	Tension Spring 16	£5.52 £4.60
114	MK347A58-7 Available to backorder	Connecting Rod	£24.24 £20.20
124	MK699214-2 Available to backorder	Power Supply Cord Unit	£12.60 £10.50
125	MK265324-3 Available to backorder	Hex. Head Flange Bolt M8x12	£1.73 £1.44
126	MK141M25-4 Available to backorder	Tire 230 Complete	£27.24 £22.70
127	MK210163-6 Available to backorder	Ball Bearing 6001Ddw (Refs 133 \| 142)	£1.63 £1.36
128	MK162C00-7 Available to backorder	Front Shaft	£22.56 £18.80
129	MK347869-4 Available to backorder	Plate	£0.65 £0.54
131	MK252301-4 Available to backorder	Hex. Flange Lock Nut M6-10	£0.48 £0.40
134	MK141M26-2 Available to backorder	Tire 230 Complete	£27.48 £22.90
135	MK227913-2 Available to backorder	Spur Gear 49	£8.52 £7.10
136	MK265B00-1 Available to backorder	Flange Tapping Screw 4x12	£0.48 £0.40
137	MK911213-7 Available to backorder	Pan Head Screw M5x12 Wr	£0.48 £0.40
138	MK413L40-5 Available to backorder	Wheel Cap	£4.56 £3.80
139	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
140	MK227A00-3 Available to backorder	Spur Gear 12	£3.48 £2.90
141	MK251951-2 Available to backorder	Hex. Socket Countersunk Head Screw M5x10	£0.48 £0.40
143	MK313390-5 Available to backorder	Rear Shaft Holder	£3.12 £2.60
144	MK162C02-3 Available to backorder	Rear Shaft	£32.52 £27.10
146	MK347865-2 Available to backorder	Clamp 19	£0.98 £0.82
147	MK922223-9 Available to backorder	Hex. Socket Head Bolt M5x16 Wr	£0.89 £0.74
148	MK122E54-8 Available to backorder	Drive Unit	£145.56 £121.30
149	MK347A59-5 Available to backorder	Bracket	£1.49 £1.24
152	MK683A20-1 Available to backorder	Tube Complete	£0.48 £0.40
153	MK162C45-5 Available to backorder	Grass Catcher Bracket	£22.80 £19.00
154	MK162C13-8 Available to backorder	Grass Catcher	£35.88 £29.90
