Model No. LC1230

Metal Cutting Saw 305mm

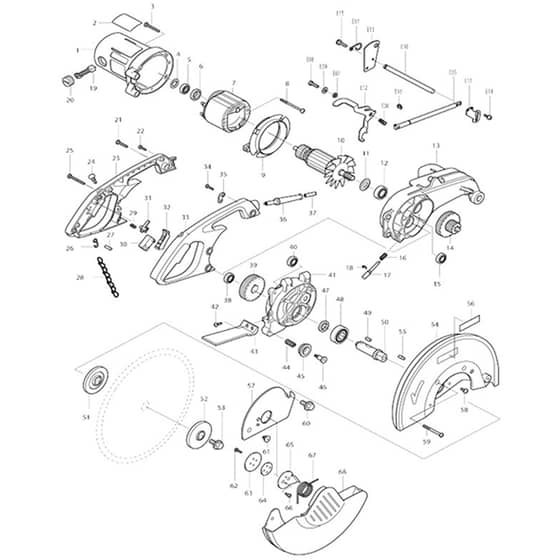

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK151641-6 Available to backorder	Motor Housing Complete	£48.96 £40.80
2	MK851537-8 Available to backorder	Name Plate Lc1230	£1.73 £1.44
2	MK855P11-4 Available to backorder	Lc1230 Name Plate <	£0.48 £0.40
3	MK266028-0 Available to backorder	Tapping Screw Bind Ct 5x40	£1.03 £0.86
4	MK253749-3 Available to backorder	Flat Washer 16	£1.03 £0.86
5	MK210042-8 Available to backorder	Ball Bearing 629Llb (Alt.)	£3.12 £2.60
6	MK681633-6 Available to backorder	Insulation Washer	£0.70 £0.58
6	MK681666-1 Available to backorder	Insulation Washer (Alt.)	£0.70 £0.58
8	MK266059-9 Available to backorder	Tapping Screw 5x75	£1.58 £1.32
9	MK415475-4 Available to backorder	Baffle Plate	£1.90 £1.58
11	MK267714-6 Available to backorder	Washer 15	£1.39 £1.16
12	MK211206-7 Available to backorder	Ball Bearing 6202Llb	£3.72 £3.10
13	MK317147-6 Available to backorder	Gear Housing L	£75.36 £62.80
14	MK226122-0 Available to backorder	Gear Complete 16-44	£47.52 £39.60
15	MK211064-1 Available to backorder	Ball Bearing 6000	£2.38 £1.98
16	MK231418-6 Available to backorder	Compression Spring 9	£0.48 £0.40
17	MK322678-2 Available to backorder	Shaft Lock	£4.32 £3.60
18	MK961014-3 Available to backorder	Stop Ring E-8 (Refs 101 \| E16A)	£0.48 £0.40
19	MK194991-6 In stock	Carbon Brush Set Cb203 (Alt.)	£5.10 £4.25
20	MK643700-5 Available to backorder	Brush Holder Cap 7-18	£1.03 £0.86
21	MK266032-9 Available to backorder	Tapping Screw Bind Ct 5x30	£0.70 £0.58
22	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
23	MK182628-7 Available to backorder	Handle Set (INC. 33)	£54.96 £45.80
24	MK411478-6 In stock	Switch Button	£1.45 £1.21
25	MK266033-7 Available to backorder	Tapping Screw Bind Ct 5x50	£1.03 £0.86
26	MK281216-8 Available to backorder	Hanger (Alt.)	£0.48 £0.40
26	MK281207-9 Available to backorder	Hanger	£1.73 £1.44
27	MK256012-3 Available to backorder	Pin 6	£0.98 £0.82
28	MK282016-9 In stock	Chain <	£0.84 £0.70
29	MK231397-8 Available to backorder	Compression Spring 4	£0.48 £0.40
30	MK651922-3 Available to backorder	Switch Tg71B	£14.76 £12.30
31	MK415366-9 Available to backorder	Switch Lock	£1.58 £1.32
32	MK152463-7 Available to backorder	Switch Lever Complete	£5.52 £4.60
35	MK687124-5 Available to backorder	Strain Relief (Alt.)	£0.48 £0.40
35	MK687052-4 Available to backorder	Strain Relief	£0.89 £0.74
36	MK682574-9 Available to backorder	Cord Guard 10-90 (Alt.)	£1.39 £1.16
36	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.58 £1.32
39	MK226427-8 Available to backorder	Helical Gear 38	£26.16 £21.80
40	MK211097-6 Available to backorder	Ball Bearing 6000Llb (Alt.)	£6.84 £5.70
40	MK211061-7 Available to backorder	Ball Bearing 6000Llb	£8.40 £7.00
41	MK317226-0 Available to backorder	Gear Housing R	£50.76 £42.30
42	MK266034-5 Available to backorder	Tapping Screw Ct 4x16 (Refs 062 \| 079)	£0.48 £0.40
43	MK416869-6 Available to backorder	Protector	£3.72 £3.10
44	MK231226-5 Available to backorder	Compression Spring 11	£0.70 £0.58
45	MK415474-6 Available to backorder	Blade Guide	£2.21 £1.84
46	MK266030-3 Available to backorder	Screw M6	£2.21 £1.84
47	MK257139-2 Available to backorder	Ring 20	£2.21 £1.84
48	MK211329-1 Available to backorder	Ball Bearing 6204Ddw	£7.92 £6.60
49	MK254229-2 Available to backorder	Key 5	£1.58 £1.32
50	MK323828-2 Available to backorder	Spindle	£28.68 £23.90
51	MK224308-0 Available to backorder	Inner Flange 69	£14.76 £12.30
52	MK224379-7 Available to backorder	Outer Flange 69 <	£13.68 £11.40
53	MK265414-2 Available to backorder	Hex. Flange Head Bolt M10x20	£2.69 £2.24
54	MK183089-4 Available to backorder	Blade Case Set	£45.72 £38.10
55	MK256405-4 Available to backorder	Pin 6-7	£1.90 £1.58
56	MK819064-1 Available to backorder	Makita Mark	£1.90 £1.58
57	MK344737-2 Available to backorder	Center Cover	£7.92 £6.60
58	MK266035-3 Available to backorder	Tapping Screw Bind Ct 5x12	£0.48 £0.40
59	MK911383-2 Available to backorder	Pan Head Screw M6x60	£1.58 £1.32
61	MK265121-7 Available to backorder	+ Flat Head Screw M6 <	£0.89 £0.74
63	MK344735-6 Available to backorder	Center Support	£1.58 £1.32
64	MK344734-8 Available to backorder	Center Washer	£1.58 £1.32
65	MK344736-4 Available to backorder	Center Plate	£22.68 £18.90
66	MK922107-1 Available to backorder	Hex. Socket Head Bolt M4x8	£0.48 £0.40
67	MK231643-9 Available to backorder	Torsion Spring 38	£1.39 £1.16
68	MK317152-3 Available to backorder	Safety Cover	£45.72 £38.10
69	MK256098-7 Available to backorder	Pin 5	£1.03 £0.86
70	MK323882-6 Available to backorder	Collared Shaft 12	£5.88 £4.90
71	MK253843-1 Available to backorder	Flat Washer 12	£1.39 £1.16
72	MK911103-4 Available to backorder	Pan Head Screw M4x6	£0.48 £0.40
73	MK816128-2 Available to backorder	Pointer	£1.03 £0.86
74	MK310086-9 Available to backorder	Vise	£46.68 £38.90
75	MK256453-3 Available to backorder	Pin 12	£1.73 £1.44
76	MK233103-7 Available to backorder	Compression Spring 45	£10.92 £9.10
77	MK165066-8 Available to backorder	Spring Holder	£8.64 £7.20
78	MK265412-6 Available to backorder	Hex. Bolt M8x20	£1.58 £1.32
80	MK232075-3 Available to backorder	Leaf Spring	£1.74 £1.45
81	MK265413-4 Available to backorder	Hex. Bolt M16	£14.64 £12.20
82	MK253771-0 Available to backorder	Flat Washer 16	£1.03 £0.86
83	MK252044-8 Available to backorder	Hex. Nut M16-24	£2.21 £1.84
84	MK344740-3 Available to backorder	Dust Box	£5.88 £4.90
85	MK421671-4 Available to backorder	Rubber Pad	£2.32 £1.93
86	MK421670-6 Available to backorder	Cushion	£0.89 £0.74
87	MK257222-5 Available to backorder	Ring 8	£1.90 £1.58
88	MK253731-2 Available to backorder	Flat Washer 8	£0.48 £0.40
89	MK268040-6 Available to backorder	Pin 16	£6.48 £5.40
90	MK344118-0 Available to backorder	Vice Plate	£4.68 £3.90
91	MK346633-0 Available to backorder	Link Plate S	£7.44 £6.20
92	MK267236-6 Available to backorder	Flat Washer 8 S	£0.70 £0.58
92	MK253139-0 Available to backorder	Flat Washer 8	£0.48 £0.40
93	MK265089-7 Available to backorder	+ Pan Head Screw M6 S	£0.89 £0.74
93	MK251331-2 Available to backorder	+ Pan Head Screw M6	£1.74 £1.45
94	MK912212-2 Available to backorder	Countersunk Head Screw M5x12	£0.48 £0.40
95	MK344119-8 Available to backorder	Guide Plate	£6.72 £5.60
96	MK344739-8 Available to backorder	Under Plate	£6.60 £5.50
97	MK266026-4 Available to backorder	Tapping Screw Bind Ct 4x12	£0.48 £0.40
98	MK810965-6 Available to backorder	Caution Label (C10)	£0.48 £0.40
98	MK286212-1 Available to backorder	Cap 20	£0.70 £0.58
98	MK813L22-1 Available to backorder	Caution Label (C20)	£0.48 £0.40
99	MK151624-6 Available to backorder	Base Complete	£155.52 £129.60
100	MK286236-7 Available to backorder	Cap 16	£0.89 £0.74
102	MK323883-4 Available to backorder	Lever Rod 10	£4.32 £3.60
103	MK253024-7 Available to backorder	Flat Washer 10	£0.89 £0.74
104	MK252161-4 Available to backorder	Hex. Nut M10-17	£2.83 £2.36
105	MK151622-0 Available to backorder	Lever Holder Complete	£4.80 £4.00
106	MK941152-7 Available to backorder	Flat Washer 6	£0.48 £0.40
107	MK265381-1 Available to backorder	Hex. Bolt M6x16	£1.73 £1.44
108	MK951063-8 Available to backorder	Spring Pin 3-16	£0.48 £0.40
109	MK322679-0 Available to backorder	Vice Screw	£26.16 £21.80
110	MK322209-7 Available to backorder	Vice Nut	£9.84 £8.20
111	MK911451-1 In stock	Pan Head Screw M8x30	£1.03 £0.86
112	MK311949-2 Available to backorder	Screw Guide	£10.44 £8.70
113	MK271072-4 Available to backorder	Handle 100 (Alt.)	£5.64 £4.70
114	MK951166-8 Available to backorder	Spring Pin 5-24	£0.48 £0.40
115	MK257157-0 Available to backorder	Ring 8	£1.39 £1.16
901	MK782210-8 Available to backorder	Socket Wrench 17 (A01)	£6.12 £5.10
902	MK192219-6 Available to backorder	Safety Goggle (A02)	£3.84 £3.20
905	MK151642-4 Available to backorder	Rod 12 Complete (E05A)	£9.60 £8.00
906	MK233197-2 Available to backorder	Compression Spring 7 (E06A)	£2.38 £1.98
907	MK257078-6 Available to backorder	Ring 6 (E07A)	£8.64 £7.20
909	MK267133-6 Available to backorder	Flat Washer 6 (E09A)	£1.03 £0.86
910	MK323885-0 Available to backorder	Lock Pin 12 (E10A)	£5.64 £4.70
911	MK344742-9 Available to backorder	Lock Plate (E11A)	£1.90 £1.58
912	MK344743-7 Available to backorder	Lock Lever (E12A)	£9.84 £8.20
913	MK346632-2 Available to backorder	Stopper Plate S (E13-2A)	£2.05 £1.71
914	MK911118-1 Available to backorder	Pan Head Screw M4x12 (E14A)	£0.48 £0.40
915	MK922331-6 Available to backorder	Hex. Socket Head Bolt M6x20 (E15A)	£0.89 £0.74
917	MK322049-3 Available to backorder	Hook (E17A)	£0.70 £0.58
