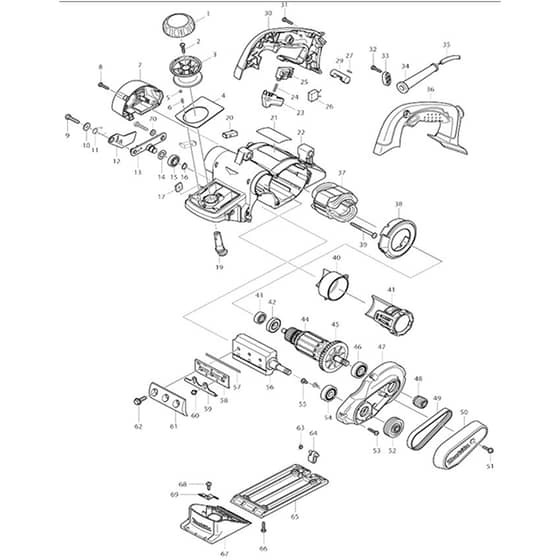

Makita KP0810 - Power Planer 82mm - Power Tool Diagram

Description

Model No. KP0810

Power Planer 82mm

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK419700-5 Available to backorder	Knob Cover	£5.94 £4.95
2	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 008 \| 031 \| 032 \| 053 \| 066)	£0.48 £0.40
3	MK419699-4 Available to backorder	Knob	£2.26 £1.88
4	MK345766-8 Available to backorder	Front Panel	£4.24 £3.53
5	MK216008-6 Available to backorder	Steel Ball 4	£0.48 £0.40
6	MK233325-9 Available to backorder	Compression Spring 3	£1.14 £0.95
7	MK419697-8 Available to backorder	Rear Cover	£3.66 £3.05
9	MK266041-8 Available to backorder	Tapping Screw 5x25	£0.58 £0.48
10	MK253194-2 Available to backorder	Flat Washer 5	£0.58 £0.48
11	MK233521-9 Available to backorder	Torsion Spring 10	£1.60 £1.33
12	MK345765-0 Available to backorder	Drum Cover	£2.32 £1.93
13	MK158184-9 Available to backorder	Drum Holder Complete	£27.02 £22.52
14	MK253758-2 Available to backorder	Flat Washer 10	£0.48 £0.40
15	MK210057-5 Available to backorder	Ball Bearing 6900Llb	£7.08 £5.90
16	MK961006-2 Available to backorder	Retaining Ring S-10	£0.48 £0.40
17	MK264002-2 Available to backorder	Square Nut M5	£0.58 £0.48
19	MK419702-1 Available to backorder	Cam	£1.40 £1.17
20	MK194984-3 Available to backorder	Carbon Brush Set Cb-132 (Alt.)	£6.70 £5.58
20	MK191972-1 Available to backorder	Carbon Brush Cb-132	£7.08 £5.90
21	MK863213-2 Available to backorder	Kp0810 Name Plate	£0.72 £0.60
22	MK419694-4 Available to backorder	Housing	£28.80 £24.00
23	MK419703-9 Available to backorder	Switch Lever	£1.57 £1.31
24	MK233408-5 Available to backorder	Compression Spring 3	£0.74 £0.62
25	MK651922-3 Available to backorder	Switch Tg71B	£14.30 £11.92
26	MK645185-1 Available to backorder	Noise Suppressor (Alt.)	£0.74 £0.62
26	MK645105-5 Available to backorder	Noise Suppressor	£2.18 £1.82
27	MK231433-0 Available to backorder	Compression Spring 4	£0.48 £0.40
29	MK419705-5 Available to backorder	Lock On Button x	£4.04 £3.37
29	MK419704-7 Available to backorder	Lock Off Button	£1.32 £1.10
30	MK188215-0 Available to backorder	Handle Set	£19.92 £16.60
33	MK687052-4 Available to backorder	Strain Relief	£0.74 £0.62
34	MK682504-0 Available to backorder	Cord Guard 10-85	£2.32 £1.93
35	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.52 £8.77
37	MK654069-2 Available to backorder	Receptacle (C10)	£0.48 £0.40
37	MK525748-8 Available to backorder	Field Ass'y 220-240V	£30.37 £25.31
38	MK419701-3 Available to backorder	Baffle Plate	£1.69 £1.41
39	MK266095-5 Available to backorder	Tapping Screw 5x55	£0.86 £0.72
40	MK419710-2 Available to backorder	Nozzle	£2.42 £2.02
41	MK125353-7 Available to backorder	Duct Ass'y	£5.06 £4.22
42	MK681659-8 Available to backorder	Insulation Washer	£1.44 £1.20
43	MK211031-6 Available to backorder	Ball Bearing 608Llb	£3.62 £3.02
44	MK513684-0 Available to backorder	Armature Ass'y 240V	£48.02 £40.02
45	MK240079-1 Available to backorder	Fan 62	£2.02 £1.68
46	MK211087-9 Available to backorder	Ball Bearing 6200Ddw	£8.96 £7.47
47	MK158149-1 Available to backorder	Bracket Complete	£12.29 £10.24
48	MK222125-2 Available to backorder	V-Pulley 4-20L	£5.64 £4.70
49	MK225007-7 Available to backorder	Poly V-Belt 4-241	£9.24 £7.70
50	MK419698-6 Available to backorder	Belt Cover	£5.94 £4.95
51	MK911133-5 Available to backorder	Pan Head Screw M4x18	£0.48 £0.40
52	MK222126-0 Available to backorder	V-Pulley 4-37	£8.08 £6.73
55	MK251291-8 Available to backorder	+ Screw M4x8	£0.48 £0.40
56	MK158156-4 Available to backorder	Drum Complete	£42.62 £35.52
57	MKD-07945 Available to backorder	82mm Tct Mini Planer Blade (Alt.)	£21.78 £18.15
58	MK343433-9 Available to backorder	Set Plate F/Mini Blade	£3.68 £3.07
60	MK251246-3 Available to backorder	+ Pan Head Screw M4x5	£0.48 £0.40
60	MK265132-2 Available to backorder	+ Pan Head Screw M4x5 (Alt.)	£0.48 £0.40
61	MK187676-1 Available to backorder	Drum Plate Set (Alt.)	£15.46 £12.88
62	MK251609-3 Available to backorder	Hex. Flange Head Bolt M6x17	£0.58 £0.48
63	MK231698-4 Available to backorder	Torsion Spring 7	£0.58 £0.48
64	MK419706-3 Available to backorder	Foot	£1.28 £1.07
65	MK318098-6 Available to backorder	Base	£19.92 £16.60
67	MK158360-5 Available to backorder	Front Base Complete	£21.46 £17.88
68	MK266026-4 Available to backorder	Tapping Screw Bind Ct 4x12	£0.48 £0.40
69	MK232232-3 Available to backorder	Leaf Spring	£1.28 £1.07
70	MK267012-8 Available to backorder	Flat Washer 5	£0.74 £0.62
901	MK251878-6 Available to backorder	Screw M5x20 (C30)	£0.86 £0.72
901	MK253807-5 Available to backorder	Flat Washer 5 (C40)	£0.48 £0.40
901	MK213022-3 Available to backorder	O Ring 3 (Alt.) (C10)	£0.48 £0.40
901	MK122785-9 Available to backorder	Guide Rule Ass'y (A01)	£13.28 £11.07
901	MK345768-4 Available to backorder	Guide Holder (C50)	£0.94 £0.78
901	MK213009-5 Available to backorder	O Ring 4 x (Alt.) (C11)	£0.48 £0.40
901	MK251871-0 Available to backorder	Screw M5x10 (C20)	£1.32 £1.10
902	MK127669-6 Available to backorder	Blade Gauge Assembly (Alt.) (A02-1)	£2.32 £1.93
902	MK265131-4 Available to backorder	Pan Head Screw M5x18 (C10)	£0.48 £0.40
902	MK411086-3 Available to backorder	Gauge Plate (C20)	£1.16 £0.97
902	MK123062-2 Available to backorder	Blade Gauge Ass'y (A02)	£9.16 £7.63
902	MK122695-0 Available to backorder	Blade Gauge Ass'y (Alt.) (A02-2)	£1.34 £1.12
902	MK911228-4 Available to backorder	Pan Head Screw M5x18 (C10)	£1.64 £1.37
902	MK418465-6 Available to backorder	Gauge Plate (C20)	£0.48 £0.40
903	MK782209-3 Available to backorder	Socket Wrench 9 (A03)	£3.52 £2.93
906	MK342390-8 Available to backorder	Depth Guide (A06)	£1.96 £1.63
907	MK824786-0 Available to backorder	Plastic Carrying Case (A07)	£51.34 £42.78
907	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
907	MK821551-8 Available to backorder	Connector Plastic Case (A07)	£62.48 £52.07
908	MK837659-8 Available to backorder	Inner Tray (A08)	£10.91 £9.09
908	MK805081-7 Available to backorder	Kp0810K Model No. Label (A08)	£0.56 £0.47
