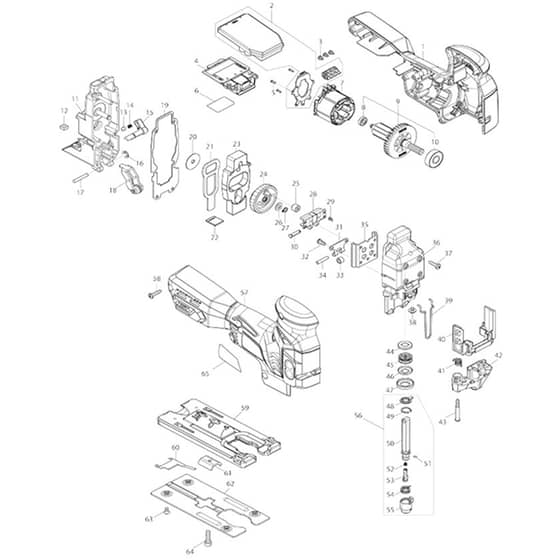

Makita JV001G - Cordless Jig Saw - Power Tool Diagram

Description

Model No. JV001G

Cordless Jig Saw

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK183W95-7 Out of stock	Housing Set (INC. 57 *)	£21.02 £17.52
1	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
2	MK620J88-0 Out of stock	Controller	£178.00 £148.33
3	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
4	MK632P65-6 Available to backorder	Terminal Unit	£10.64 £8.87
5	MK266490-9 Available to backorder	Tapping Screw Pt 2x6	£0.48 £0.40
7	MK629B64-3 Out of stock	Stator	£15.02 £12.52
8	MK210039-7 Available to backorder	Ball Bearing 695Ddw	£2.60 £2.17
9	MK519769-0 Out of stock	Rotor Ass'y (INC. 8 10)	£28.26 £23.55
10	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.04 £4.20
11	MK142111-6 Available to backorder	Gear Housing Complete	£33.38 £27.82
11	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
12	MK252171-1 Available to backorder	Square Nut M5-8	£0.48 £0.40
13	MK286032-3 Available to backorder	Cap 5	£0.74 £0.62
14	MK233139-6 Available to backorder	Compression Spring 3	£0.74 £0.62
15	MK272280-0 Available to backorder	Lever 17	£1.74 £1.45
16	MK961018-5 Available to backorder	Stop Ring E-5	£0.48 £0.40
17	MK268063-4 Available to backorder	Pin 4	£0.48 £0.40
18	MK142110-8 Available to backorder	Retainer Complete	£23.26 £19.38
19	MK442195-7 Available to backorder	Gasket	£2.02 £1.68
20	MK253196-8 Available to backorder	Flat Washer 6	£1.02 £0.85
21	MK346688-5 Available to backorder	Push Plate	£1.32 £1.10
22	MK454484-8 Available to backorder	Seal Plate	£0.48 £0.40
23	MK313260-8 Available to backorder	Balance Plate	£8.96 £7.47
24	MK142109-3 Available to backorder	Gear Complete	£39.00 £32.50
25	MK212092-9 Available to backorder	Needle Bearing 407	£1.44 £1.20
26	MK253715-0 Available to backorder	Flat Washer 6	£0.48 £0.40
27	MK961002-0 Available to backorder	Retaining Ring S-6	£0.48 £0.40
28	MK310837-0 Available to backorder	Slider	£12.00 £10.00
29	MK961017-7 Available to backorder	Stop Ring E-3	£0.48 £0.40
30	MK268090-1 Available to backorder	Pin 4	£1.74 £1.45
31	MK232207-2 Available to backorder	Leaf Spring	£0.58 £0.48
32	MK911111-5 Available to backorder	Pan Head Screw M4x10 With W	£0.48 £0.40
33	MK214031-5 Available to backorder	Plane Bearing 4	£0.74 £0.62
34	MK256117-9 Available to backorder	Pin 4	£0.58 £0.48
35	MK347B50-9 Out of stock	Linear Guide	£4.52 £3.77
36	MK141R27-0 Out of stock	Gear Housing Cover Complete	£13.92 £11.60
37	MK266034-5 Available to backorder	Tapping Screw Ct 4x16	£0.48 £0.40
38	MK265132-2 Available to backorder	+ Pan Head Screw M4x5 (Alt.)	£0.48 £0.40
38	MK911104-2 Available to backorder	Pan Head Screw M4x6	£0.48 £0.40
39	MK326302-9 Available to backorder	Safety Wire	£0.48 £0.40
40	MK620J89-8 Out of stock	Switch Unit	£33.72 £28.10
41	MK231659-4 Available to backorder	Torsion Spring 6	£0.58 £0.48
42	MK454483-0 Available to backorder	Tool Opener	£1.88 £1.57
43	MK265026-1 Available to backorder	+ Pan Head Screw M4	£1.74 £1.45
44	MK267854-0 Available to backorder	Cap Washer 8	£0.58 £0.48
45	MK421815-6 Available to backorder	Dust Seal 8	£1.16 £0.97
47	MK257347-5 Available to backorder	Ring 21	£1.88 £1.57
48	MK424569-4 Available to backorder	Dust Cover	£0.48 £0.40
49	MK962063-3 Available to backorder	Retaining Ring R-13	£0.74 £0.62
50	MK165724-6 Available to backorder	Rod	£23.98 £19.98
51	MK256528-8 Available to backorder	Pin 2	£0.58 £0.48
52	MK233314-4 Available to backorder	Compression Spring 4	£0.58 £0.48
53	MK310485-5 Available to backorder	Lock Pin	£5.78 £4.82
54	MK233591-8 Available to backorder	Torsion Spring 10	£0.58 £0.48
55	MK310547-9 Available to backorder	Blade Holder	£9.40 £7.83
56	MK135602-4 Available to backorder	Rod Ass'y (INC. 48-55)	£34.96 £29.13
58	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
59	MK312D19-4 Out of stock	Base	£7.64 £6.37
60	MK232208-0 Available to backorder	Leaf Spring	£1.16 £0.97
61	MK345237-5 Available to backorder	Crank Plate	£0.58 £0.48
62	MK347A23-6 Out of stock	Base Plate	£3.70 £3.08
63	MK265085-5 Available to backorder	+ Countersunk Head Screw M4x8	£0.48 £0.40
64	MK922231-0 Available to backorder	Hex. Socket Head Bolt M5x20	£0.58 £0.48
901	MK213023-1 Available to backorder	O Ring 4 (Alt.) (C10)	£0.48 £0.40
901	MK122C71-6 Out of stock	Dust Nozzle Assembly (A01)	£3.76 £3.13
901	MK194416-0 Available to backorder	Sheet 10000 Set (F01)	£39.90 £33.25
902	MK194417-8 Available to backorder	Rubber Sheet 10000 Set (F02)	£58.88 £49.07
903	MK415524-7 Available to backorder	Anti-Splintering Device (A03)	£0.98 £0.82
904	MK783202-0 Available to backorder	Hex. Wrench 4 (A04)	£1.88 £1.57
905	MKA-85737 Available to backorder	Jigsaw Blade No.B22 (A05)	£6.76 £5.63
906	MKA-85628 Available to backorder	Jigsaw Blade No.B10 (A06)	£6.88 £5.73
907	MKA-85793 Available to backorder	Jigsaw Blade No.Br13 (A07)	£5.02 £4.18
908	MK194368-5 Available to backorder	Guide Rail 1400 Set (F08)	£78.76 £65.63
913	MK199140-0 Available to backorder	Guide Rail 1000 Set (F13)	£53.02 £44.18
914	MK199141-8 Available to backorder	Guide Rail 1500 Set (F14)	£104.38 £86.98
919	MK192557-6 Available to backorder	Anti-Splitering Device (F19)	£10.32 £8.60
