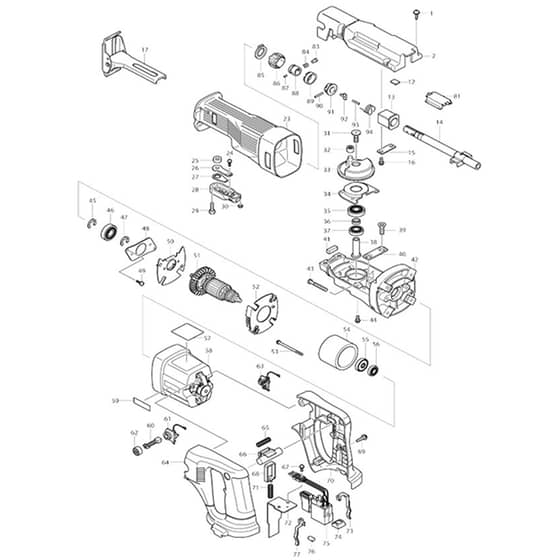

Makita JR180D - Cordless Recipro Saw - Power Tool Diagram

Description

Model No. JR180D

Cordless Recipro Saw

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK911228-4 Available to backorder	Pan Head Screw M5x18	£1.64 £1.37
2	MK151941-4 Out of stock	Gear Housing Cover Complete	£49.57 £41.31
3	MK216002-8 Available to backorder	Steel Ball 4.8	£0.48 £0.40
4	MK256454-1 Out of stock	Pin 5.5-6	£1.28 £1.07
5	MK310138-6 Out of stock	Clamp <	£19.20 £16.00
6	MK266272-9 Out of stock	Torx. S.H. Shoulder Bolt M5x10	£1.14 £0.95
7	MK162215-8 Out of stock	Push Button	£14.83 £12.36
8	MK323916-5 Out of stock	Push Pin	£3.26 £2.72
9	MK233018-8 Available to backorder	Compression Spring 3	£0.48 £0.40
10	MK233247-3 Out of stock	Compression Spring 16	£0.72 £0.60
11	MK257226-7 Out of stock	Ring 13	£1.69 £1.41
12	MK443070-0 Out of stock	Plate 12x16	£0.48 £0.40
13	MK214169-6 Out of stock	Plane Bearing 14	£1.28 £1.07
14	MK168376-2 Out of stock	Slider S	£43.20 £36.00
15	MK341462-6 Available to backorder	Plate	£0.74 £0.62
16	MK911225-0 Available to backorder	Pan Head Screw M5x16	£0.48 £0.40
23	MK421693-4 Out of stock	Insulation Cover	£17.51 £14.59
24	MK911114-9 Available to backorder	Pan Head Screw M4x10	£0.48 £0.40
25	MK257558-2 Out of stock	Sleeve 9	£1.14 £0.95
26	MK344732-2 Out of stock	Inner Plate	£0.85 £0.71
27	MK344733-0 Out of stock	Lock Plate	£0.85 £0.71
28	MK272240-2 Out of stock	Lever 60	£1.40 £1.17
29	MK921442-4 Out of stock	Hex. Bolt M8x25	£0.72 £0.60
30	MK931102-0 Available to backorder	Hex. Nut M4	£0.58 £0.48
31	MK266220-8 Out of stock	Torx Socket Head Bolt M6x15	£1.57 £1.31
32	MK212001-8 Available to backorder	Needle Bearing 708	£8.20 £6.83
33	MK153267-0 Out of stock	Gear Complete	£49.57 £41.31
34	MK285696-0 Out of stock	Bearing Retainer A	£2.42 £2.02
35	MK211061-7 Available to backorder	Ball Bearing 6000Llb	£8.08 £6.73
36	MK257146-5 Out of stock	Ring 10	£1.57 £1.31
37	MK210057-5 Available to backorder	Ball Bearing 6900Llb	£7.08 £5.90
37	MK210079-5 Out of stock	Ball Bearing 6900Llb (Alt.)	£7.22 £6.02
38	MK323887-6 Out of stock	Gear Shaft	£4.39 £3.66
39	MK251969-3 Out of stock	Hex. Socket Head Bolt M5x12	£0.48 £0.40
40	MK344795-8 Available to backorder	Plate C	£1.44 £1.20
41	MK443107-3 Out of stock	Felt 8x24	£0.56 £0.47
42	MK317229-4 Out of stock	Gear Housing	£35.17 £29.31
43	MK266373-3 Available to backorder	Tapping Screw 5x35 (Alt.)	£0.48 £0.40
43	MK265B72-6 Available to backorder	Tapping Screw 5x35 (Alt.)	£0.48 £0.40
43	MK266012-5 Available to backorder	Tapping Screw 5x35	£0.74 £0.62
44	MK911601-8 Out of stock	Pan Head Screw M5x8	£0.72 £0.60
45	MK961016-9 Available to backorder	Stop Ring E-10	£0.48 £0.40
46	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.22 £6.02
48	MK285697-8 Out of stock	Bearing Retainer B	£1.69 £1.41
49	MK911516-9 Available to backorder	Pan Head Screw M4x12	£0.58 £0.48
50	MK416960-0 Out of stock	Fan Guide	£1.14 £0.95
51	MK241869-5 Available to backorder	Fan 55 (C10)	£4.20 £3.50
51	MK519051-7 Out of stock	Armature Ass'y 18V	£76.82 £64.02
53	MK266209-6 Available to backorder	Tapping Screw 4x60	£1.32 £1.10
54	MK632828-4 Available to backorder	Yoke Unit	£25.28 £21.07
55	MK681652-2 Available to backorder	Insulation Washer	£0.58 £0.48
56	MK210017-7 Available to backorder	Ball Bearing 607Ddw	£4.62 £3.85
57	MK851734-6 Out of stock	Name Plate Jr180D	£0.85 £0.71
58	MK416957-9 Out of stock	Motor Housing	£10.74 £8.95
59	MK819720-3 Available to backorder	Makita Label	£0.48 £0.40
60	MK195022-4 In stock	Carbon Brush Set Cb-441 (Alt.)	£6.98 £5.82
64	MK183141-8 Out of stock	Handle Set	£16.82 £14.02
65	MK231469-9 Available to backorder	Compression Spring 4	£0.48 £0.40
66	MK416958-7 Out of stock	Lock-Off Button	£1.14 £0.95
67	MK911006-2 Available to backorder	Pan Head Screw M3x8	£0.48 £0.40
68	MK416976-5 Out of stock	Stopper	£0.56 £0.47
69	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
69	MK265A48-7 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
72	MK689090-2 Out of stock	Heat Sink	£5.23 £4.36
73	MK654195-7 Out of stock	Spring Terminal (Plus)	£2.54 £2.12
74	MK687085-9 Available to backorder	Holder	£0.74 £0.62
75	MK651979-4 Out of stock	Switch	£51.97 £43.31
76	MK263024-9 Available to backorder	Rubber Pin 4	£0.86 £0.72
77	MK654196-5 Out of stock	Spring Terminal (Minus)	£2.54 £2.12
81	MK344858-0 Out of stock	Slide Plate	£1.14 £0.95
82	MK267758-6 Out of stock	Spring Washer 5	£0.48 £0.40
83	MK256492-3 Available to backorder	Shoulder Pin 5 <	£1.16 £0.97
83	MK256471-1 Out of stock	Shoulder Pin 5	£3.16 £2.63
84	MK233345-3 Available to backorder	Compression Spring 6	£0.74 £0.62
85	MK961078-7 Available to backorder	Retaining Ring (Ext) S-18	£0.74 £0.62
86	MK162228-9 Out of stock	Driving Sleeve	£33.60 £28.00
87	MK268094-3 Available to backorder	Pin 3	£2.32 £1.93
88	MK331639-1 Available to backorder	Guide Sleeve	£6.22 £5.18
89	MK417791-0 Available to backorder	Driving Sleeve Guide	£2.02 £1.68
90	MK256158-5 Available to backorder	Pin 3	£0.74 £0.62
91	MK310129-7 Out of stock	Sleeve	£21.72 £18.10
91	MK418311-3 Available to backorder	Sleeve (Alt.)	£0.86 £0.72
92	MK345214-7 Available to backorder	Push Plate	£0.86 £0.72
93	MK233025-1 Available to backorder	Compression Spring 2	£0.58 £0.48
94	MK231687-9 Available to backorder	Torsion Spring 17 <	£0.58 £0.48
902	MK414938-7 Available to backorder	Battery Cover (A02)	£0.48 £0.40
903	MK417152-4 Available to backorder	Latch (C10)	£1.84 £1.53
904	MK193102-0 Available to backorder	Battery 1834 Set (A04B)	£183.18 £152.65
904	MK192827-3 Available to backorder	Battery 1822 Set (A04)	£129.44 £107.87
904	MK193061-8 Available to backorder	Battery 1835 Set (A04C)	£157.50 £131.25
