Makita JR1000FT - Recipro Saw - Power Tool Diagram

Description

Model No. JR1000FT

Recipro Saw

Power Tool Parts Diagrams

	Part No.	Details
1	MK911148-2 Available to backorder	Pan Head Screw M4x25	£0.48 £0.40
2	MK153877-3 Out of stock	Gear Housing Cover Complete	£33.96 £28.30
3	MK345428-8 Out of stock	Slide Plate	£1.73 £1.44

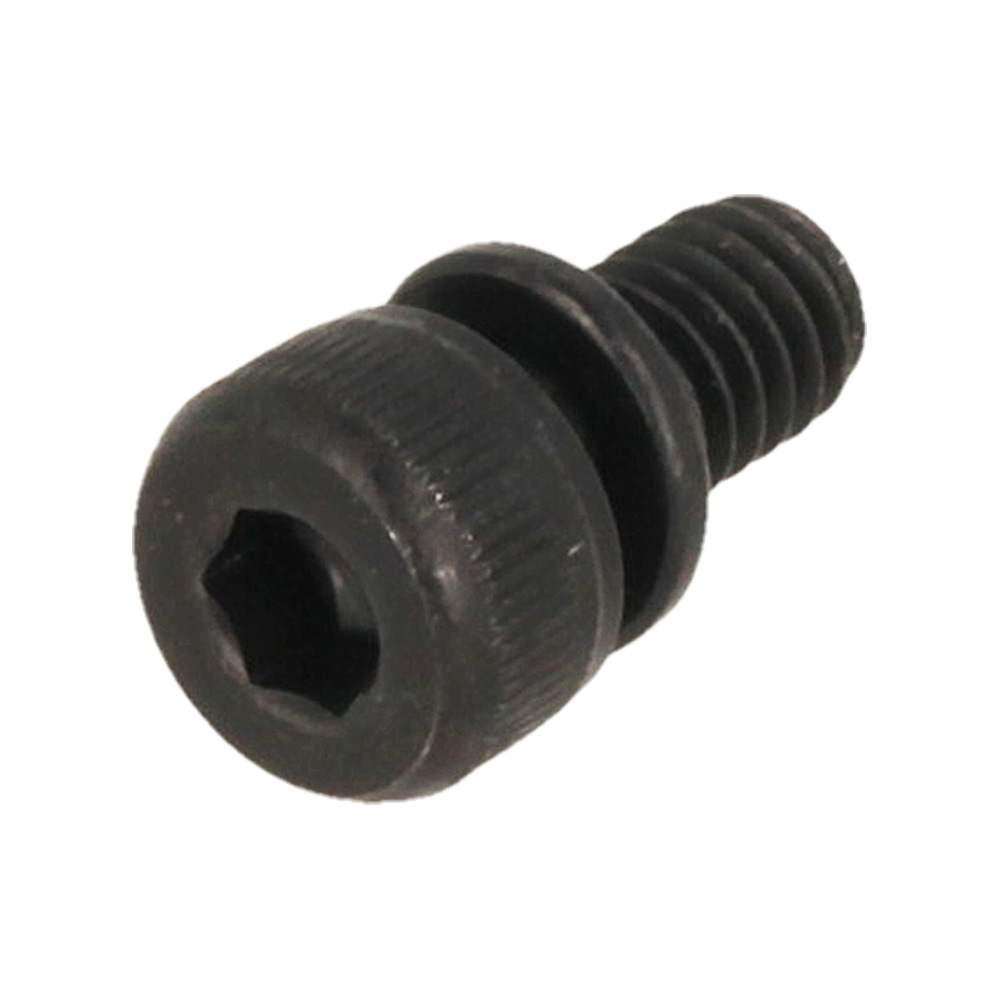

4	MK922106-3 Available to backorder	Hex. Socket Head Bolt M4x8	£0.48 £0.40
5	MK421864-3 Out of stock	Packing	£3.72 £3.10
6	MK418636-5 Out of stock	Holder Cover	£2.53 £2.11
7	MK310136-0 Available to backorder	Blade Holder	£12.12 £10.10
8	MK231660-9 Available to backorder	Torsion Spring 15	£0.70 £0.58
9	MK310135-2 Available to backorder	Push Pin	£4.44 £3.70
10	MK165391-7 Out of stock	Rod	£37.20 £31.00
11	MK962068-3 Available to backorder	Retaining Ring R-18	£0.70 £0.58
12	MK421817-2 Available to backorder	Dust Cover	£0.70 £0.58
13	MK317787-0 Out of stock	Holder	£4.68 £3.90
14	MK310028-3 Available to backorder	Slider	£16.92 £14.10
15	MK265035-0 Available to backorder	Countersunk Head Screw M4x10	£0.70 £0.58
16	MK344232-2 Available to backorder	Thrust Plate	£1.03 £0.86
17	MK212010-7 Available to backorder	Needle Bearing 607	£10.56 £8.80
18	MK253332-6 Available to backorder	Thin Washer 6	£0.70 £0.58
19	MK324435-4 Out of stock	Gear Shaft	£30.48 £25.40
20	MK227463-7 Out of stock	Spiral Bevel Gear 37	£27.96 £23.30
21	MK257151-2 Out of stock	Ring 10	£1.58 £1.32
22	MK285713-6 Out of stock	Bearing Retainer 37	£4.32 £3.60
23	MK211051-0 Available to backorder	Ball Bearing 609Llb	£4.44 £3.70
24	MK931403-6 Available to backorder	Hex. Nut M8	£0.70 £0.58
25	MK210006-2 Available to backorder	Ball Bearing 696Zz	£3.12 £2.60
26	MK912112-6 In stock	Countersunk Head Screw M4x10	£0.54 £0.45
27	MK345429-6 Out of stock	Plate	£2.83 £2.36
28	MK911516-9 Available to backorder	Pan Head Screw M4x12	£0.70 £0.58
29	MK317785-4 Out of stock	Gear Housing	£26.16 £21.80
30	MK421865-1 Out of stock	Insulation Cover	£10.32 £8.60
31	MK324436-2 Out of stock	Shoe	£5.52 £4.60
32	MK911506-2 Out of stock	Pan Head Screw M4x8	£0.70 £0.58
33	MK345435-1 Out of stock	Plate	£1.90 £1.58
34	MK922111-0 Available to backorder	Hex. Socket Head Bolt M4x10	£0.70 £0.58
35	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 052 \| 053)	£0.48 £0.40
36	MK961006-2 Available to backorder	Retaining Ring S-10	£0.48 £0.40
37	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.16 £4.30
38	MK267070-4 Available to backorder	Flat Washer 10	£0.70 £0.58
39	MK285714-4 Out of stock	Bearing Retainer 43	£3.60 £3.00
40	MK240061-0 Available to backorder	Fan 48	£1.90 £1.58
41	MK517603-8 Out of stock	Armature Ass'y 220-240V (INC. 40 42 43)	£69.36 £57.80
42	MK681636-0 Available to backorder	Insulation Washer	£2.21 £1.84
43	MK211021-9 Available to backorder	Ball Bearing 607Llb	£8.04 £6.70
44	MK421494-0 Available to backorder	Rubber Ring 19	£5.88 £4.90
45	MK418033-5 Available to backorder	Baffle Plate	£1.39 £1.16
46	MK266315-7 Available to backorder	Tapping Screw Mt 4x65	£1.03 £0.86
47	MK635083-7 Out of stock	Field 220-240V	£9.84 £8.20
48	MK183560-8 Available to backorder	Motor Housing (INC. 67)	£11.76 £9.80
49	MK861519-2 Out of stock	Name Plate Jr1000Ft	£0.70 £0.58
50	MK183797-7 Out of stock	Rear Cover Set (INC. 63)	£8.64 £7.20
51	MK266053-1 Available to backorder	Tapping Screw 4x35	£0.70 £0.58
54	MK687052-4 Available to backorder	Strain Relief	£0.89 £0.74
56	MK682559-5 Available to backorder	Cord Guard 8	£1.03 £0.86
57	MK631527-5 Available to backorder	Power Supply Circuit	£15.36 £12.80
58	MK153477-9 Available to backorder	Switch Lever Complete	£4.68 £3.90
59	MK418037-7 Available to backorder	Speed Change Dial	£2.53 £2.11
60	MK418040-8 Available to backorder	Cam	£1.03 £0.86
61	MK213034-6 Available to backorder	O Ring 3 (Alt.)	£0.48 £0.40
62	MK650200-8 Available to backorder	Switch Tg803Ba-1	£26.16 £21.80
64	MK191962-4 Available to backorder	Carbon Brush Cb-419	£5.40 £4.50
64	MK195015-1 Available to backorder	Carbon Brush Set Cb-419 (Alt.)	£5.04 £4.20
65	MK643810-8 Out of stock	Brush Holder	£9.00 £7.50
66	MK687139-2 Available to backorder	Support	£2.21 £1.84
67	MK819063-3 Available to backorder	Makita Label	£1.39 £1.16
68	MK638340-2 Out of stock	Lead Unit	£4.44 £3.70
69	MK631609-3 Out of stock	Led Circuit	£13.92 £11.60
70	MK418637-3 Out of stock	Light Cover	£3.60 £3.00
71	MK911128-8 In stock	P.H.Screw M4x16 With Wr	£0.54 £0.45
901	MK410048-8 Available to backorder	Wrench Holder 3.4 (A01)	£2.00 £1.67
902	MK783201-2 Available to backorder	Hex. Wrench 3 (A02)	£1.49 £1.24
903	MK417059-4 Available to backorder	Latch (C10)	£0.82 £0.68
903	MK824722-6 Out of stock	Plastic Carrying Case (A03)	£31.32 £26.10
903	MK821549-5 Available to backorder	Connector Plastic Case (A03)	£46.56 £38.80
903	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
904	MK837881-7 Out of stock	Inner Tray (A04)	£11.52 £9.60
909	MKA-85628 Available to backorder	Jigsaw Blade No.B10 (A09)	£7.08 £5.90
911	MKB-04961 Out of stock	Jig Saw Blade No.B-30 (A11)	£6.60 £5.50
912	MKB-04949 Out of stock	Jig Saw Blade No.B-22S (A12)	£8.16 £6.80
913	MKB-04955 Out of stock	Jig Saw Blade No.B-24S (A13)	£7.20 £6.00
914	MKA-80416 Out of stock	Jig Saw Blade No.B-K (A14)	£23.16 £19.30
915	MKB-04933 Out of stock	Jig Saw Blade No.B-19S (A15)	£9.84 £8.20
916	MKA-40945 Out of stock	File Round Type (A16)	£57.96 £48.30
917	MKA-40951 Out of stock	File Flat Type (A17)	£57.96 £48.30
