Makita JN1601 - Nibbler - Power Tool Diagram

Name: Makita JN1601 - Nibbler - Power Tool Diagram
SKU: jn1601_nibbler_power_tool-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita JN1601 - Nibbler - Power Tool Diagram

Description

Model No. JN1601

Nibbler

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK266053-1 Available to backorder	Tapping Screw 4x35	£0.58 £0.48
2	MK159757-1 Available to backorder	Gear Housing Complete	£65.52 £54.60
2	MK144734-6 Available to backorder	Gear Housing Complete S	£66.06 £55.05
3	MK331438-1 Available to backorder	Rod	£16.34 £13.62
4	MK212222-2 Available to backorder	Needle Bearing 1612	£9.12 £7.60
5	MK322704-7 Available to backorder	Crank Shaft	£19.92 £16.60
6	MK226286-0 Available to backorder	Spur Gear 34	£19.92 £16.60
7	MK253215-0 Available to backorder	Flat Washer 8	£0.48 £0.40
8	MK212011-5 Available to backorder	Needle Bearing 609 (C30)	£6.52 £5.43
8	MK212005-0 Available to backorder	Needle Bearing 810 (C20)	£2.60 £2.17
8	MK951051-5 Available to backorder	Spring Pin 3-8 (C10)	£0.48 £0.40
8	MK159758-9 Available to backorder	Gear Housing Cover Complete (INC. 10)	£36.72 £30.60
9	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£7.80 £6.50
10	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
11	MK241875-0 Available to backorder	Fan 54	£1.92 £1.60
13	MK681636-0 Available to backorder	Insulation Washer	£2.02 £1.68
14	MK211021-9 Available to backorder	Ball Bearing 607Llb	£7.80 £6.50
15	MK421479-6 Available to backorder	Rubber Ring 19	£6.22 £5.18
16	MK857617-8 Available to backorder	Name Plate Jn1601	£1.28 £1.07
17	MK159755-5 Available to backorder	Motor Housing Complete	£23.15 £19.29
17	MK654125-8 Available to backorder	Terminal (C10)	£0.56 £0.47
18	MK415303-3 Available to backorder	Switch Knob	£1.44 £1.20
20	MK415490-8 Available to backorder	Baffle Plate	£0.85 £0.71
21	MK254002-0 Available to backorder	Woodruff Key 3	£0.58 £0.48
22	MK267133-6 Available to backorder	Flat Washer 6	£0.86 £0.72
23	MK226123-8 Available to backorder	Gear Complete 13-37	£32.06 £26.72
24	MK266026-4 Available to backorder	Tapping Screw Bind Ct 4x12	£0.48 £0.40
25	MK344116-4 Available to backorder	Stopper	£1.44 £1.20
26	MK256111-1 Available to backorder	Pin 6	£1.32 £1.10
27	MK322703-9 Available to backorder	Ram	£11.72 £9.77

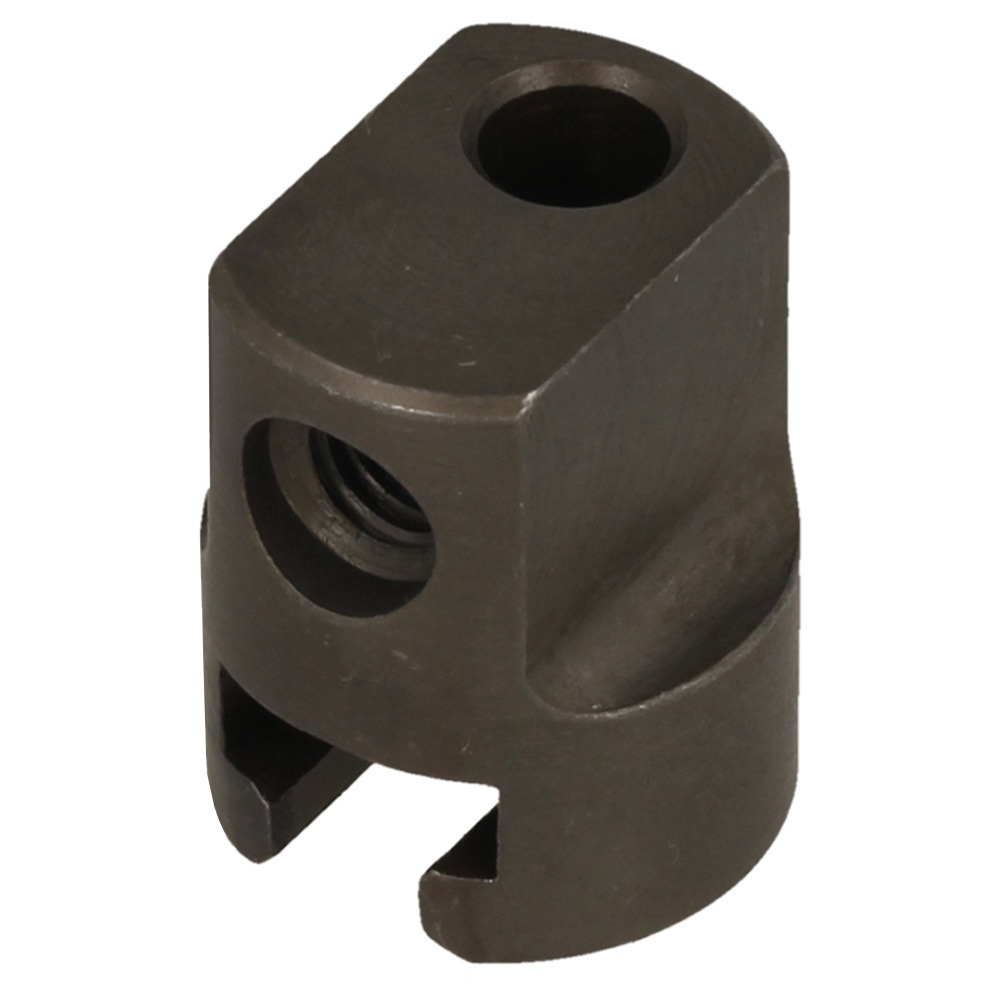

28	MK322702-1 Available to backorder	Punch Holder	£28.82 £24.02

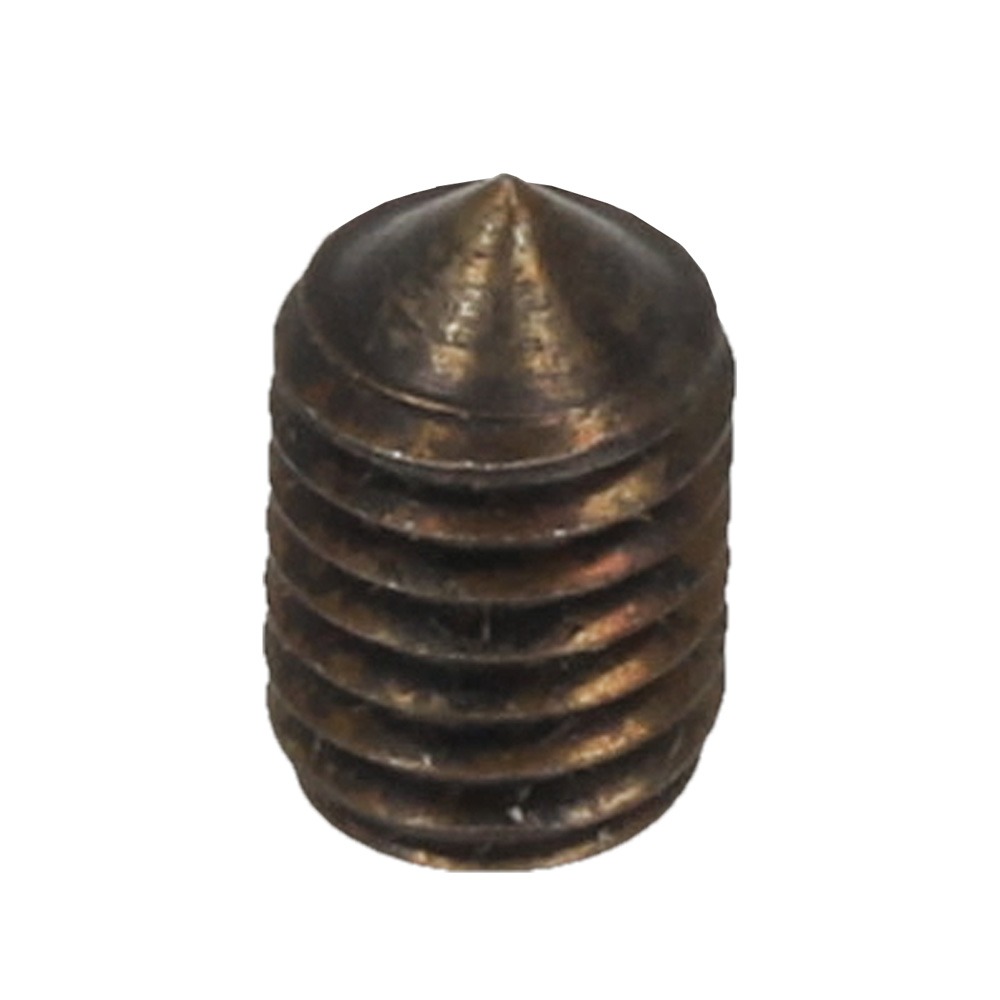

29	MK265880-3 Available to backorder	H.S.Set Screw (Cone Point) M5x8	£3.31 £2.76
30	MKA-83951 Available to backorder	Punch	£35.20 £29.33
31	MKA-15051 Available to backorder	Die	£33.14 £27.62
32	MK322701-3 Available to backorder	Die Holder	£145.88 £121.57
33	MK266080-8 Available to backorder	Hex. Socket Head Bolt M3x12	£0.48 £0.40
34	MK322748-7 Available to backorder	Lock Nut	£11.14 £9.28
35	MK266060-4 Available to backorder	Tapping Screw 4x65	£1.02 £0.85
36	MK819063-3 Available to backorder	Makita Label	£1.16 £0.97
37	MK643922-7 Available to backorder	Brush Holder	£3.62 £3.02
38	MK195010-1 Available to backorder	Carbon Brush Set Cb-411 (Alt.)	£3.16 £2.63
39	MK643550-8 Available to backorder	Brush Holder Cap 5-8	£0.58 £0.48
40	MK651418-4 Available to backorder	Switch St115A-40	£9.12 £7.60
41	MK233071-4 Available to backorder	Compression Spring 4	£0.48 £0.40
42	MK415541-7 Available to backorder	Switch Lever	£1.14 £0.95
43	MK645253-0 Available to backorder	Noise Suppressor	£4.62 £3.85
44	MK687069-7 Available to backorder	Support	£2.98 £2.48
45	MK682505-8 Available to backorder	Cord Guard 10-90 (Alt.)	£1.32 £1.10
45	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
46	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.52 £8.77
47	MK687052-4 Available to backorder	Strain Relief x	£0.74 £0.62
47	MK687063-9 Available to backorder	Cord Clamp	£0.48 £0.40
48	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
49	MK415540-9 Available to backorder	Rear Cover	£11.00 £9.17
51	MK422169-4 Available to backorder	Gasket S	£3.70 £3.08
901	MK781028-4 Available to backorder	Wrench 32 (Alt.) (A01-1)	£3.16 £2.63
901	MK654531-7 Available to backorder	Terminal Block 2P (E01)	£2.02 £1.68
901	MK781013-7 Available to backorder	Wrench 32 (A01)	£2.20 £1.83
901	MK654741-6 Available to backorder	Terminal Block (Alt.) (E01-1)	£1.52 £1.27
902	MK783208-8 Available to backorder	Hex. Wrench 2.5 (A02)	£0.72 £0.60
904	MK654128-2 Available to backorder	Earth Terminal (E04)	£0.58 £0.48
