Model No. HTR4900

Engine Hedge Trimmer

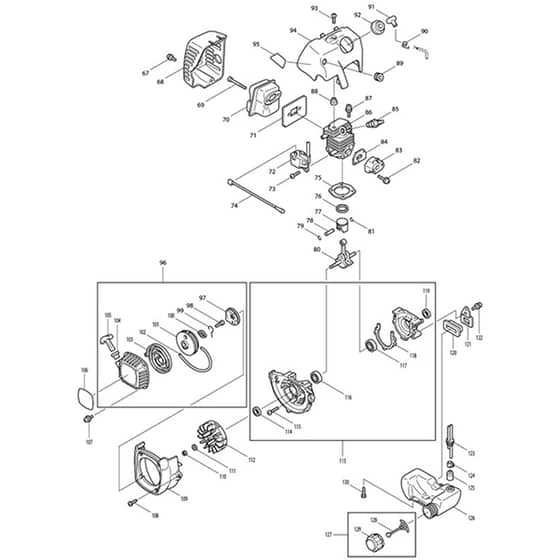

Power Tool 02 Parts Diagrams

	Part No.	Details
67	MK265A10-2 Available to backorder	Pan Head Screw M5x14 (Alt.)	£0.84 £0.70
68	MK5193500201 Available to backorder	Muffler Cover	£8.64 £7.20
69	MK266697-7 Available to backorder	Socket Head Bolt M5x45 (Alt.)	£2.21 £1.84
70	MK5193020000 Available to backorder	Exhaust Muffler	£37.20 £31.00

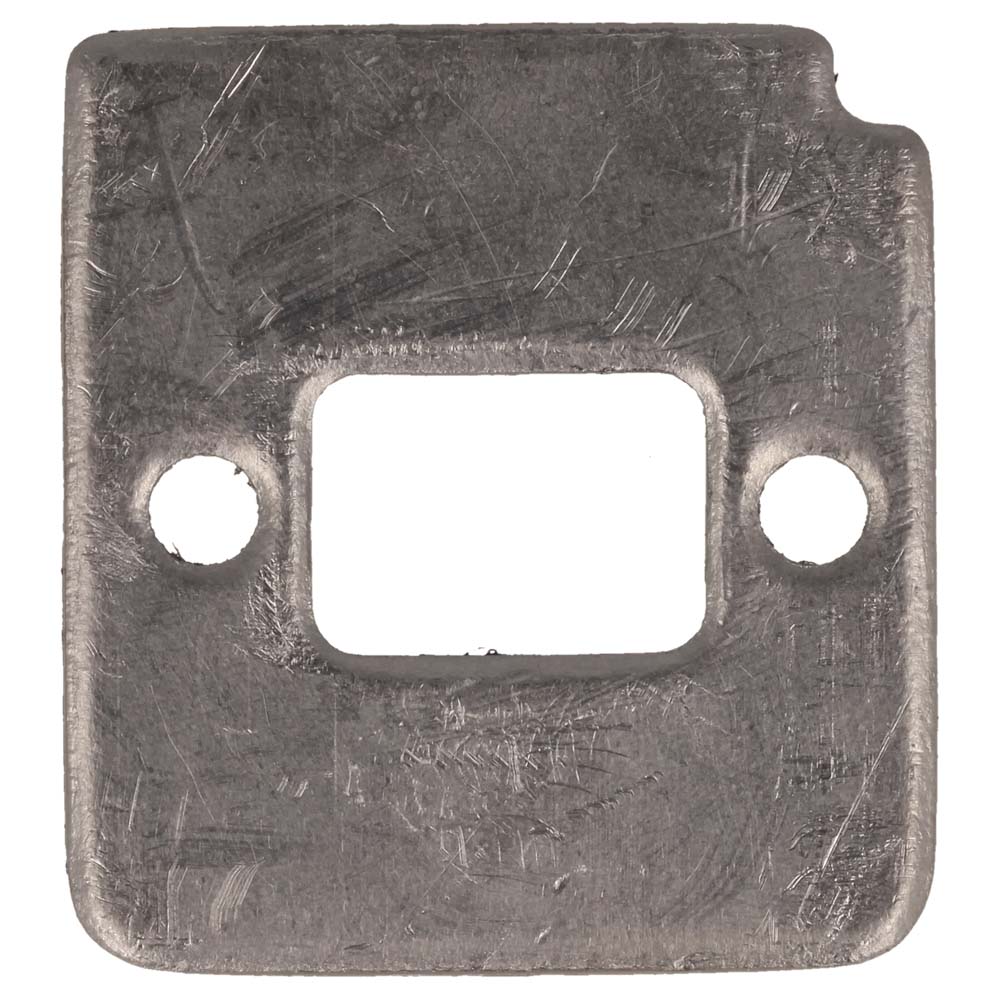

71	MK5193500302 Available to backorder	Muffler Insulator	£2.83 £2.36
72	MK5197003021 Available to backorder	Coil	£117.84 £98.20
74	MK5257018001 Available to backorder	Wire Complete	£2.53 £2.11
74	MK638665-4 Available to backorder	Lead Unit (Alt.)	£1.39 £1.16
75	MK442173-7 Available to backorder	Cylinder Gasket (Alt.)	£2.69 £2.24
75	MK5191500301 Available to backorder	Cylinder Gasket	£2.38 £1.98
76	MK257320-5 Available to backorder	Piston Ring (Alt.)	£5.28 £4.40
76	MK5212500500 Available to backorder	Piston Ring	£5.40 £4.50
77	MK318831-6 Available to backorder	Piston (Alt.)	£22.68 £18.90
78	MK268277-5 Available to backorder	Piston Pin (Alt.)	£3.72 £3.10
78	MK5192500500 Available to backorder	Piston Pin	£3.72 £3.10
79	MK233976-8 Available to backorder	Clip (Alt.)	£0.48 £0.40
80	MK5192003004 Available to backorder	Crankshaft Complete (Alt.)	£166.68 £138.90
82	MK265A09-7 Available to backorder	Pan Head Screw M5x20 (Alt.)	£0.84 £0.70
83	MK5213001000 Available to backorder	Insulator Complete	£4.80 £4.00
84	MK424448-6 Available to backorder	Insulator Gasket (Alt.)	£1.73 £1.44
84	MK5233503902 Available to backorder	Insulator Gasket	£1.73 £1.44
86	MK5191500901 Available to backorder	Cylinder	£98.28 £81.90
86	MK318785-7 Available to backorder	Cylinder (Alt.)	£82.20 £68.50
87	MK266814-9 Available to backorder	Hex Socket Head Bolt M5x20	£1.66 £1.38
88	MK5503503001 Available to backorder	Spacer	£2.38 £1.98
89	MK5257500300 Available to backorder	Grommet	£1.74 £1.45
89	MK424313-9 Available to backorder	Grommet (Alt.)	£0.70 £0.58
90	MK324891-8 Available to backorder	Plug Cap Spring (Alt.)	£0.70 £0.58
91	MK424337-5 Available to backorder	Plug Cap (Alt.)	£1.73 £1.44
92	MK5197500002 Available to backorder	Plug Cap Cover	£3.84 £3.20
94	MK5195500701 Available to backorder	Cylinder Cover	£11.76 £9.80
95	MK6279505700 Available to backorder	Trade Mark Label	£4.68 £3.90
96	MK5195003003 Available to backorder	Rewind Starter	£33.96 £28.30
97	MK168483-1 Available to backorder	Pulley (Alt.)	£1.73 £1.44
97	MK5195500000 Available to backorder	Pulley	£2.38 £1.98
98	MK5195002060 Available to backorder	Set Screw	£3.48 £2.90
98	MK266585-8 Available to backorder	Tapping Screw 5x12 (Alt.)	£1.90 £1.58
99	MK325923-4 Available to backorder	Swing Arm (Alt.)	£1.03 £0.86
100	MK5195002110 Available to backorder	Collar	£1.22 £1.02
101	MK452972-9 Available to backorder	Reel (Alt.)	£6.12 £5.10
101	MK5195002030 Available to backorder	Reel	£5.52 £4.60
102	MK444024-0 Available to backorder	Starter Rope (Alt.)	£1.90 £1.58
102	MK5255016020 Available to backorder	Starter Rope	£9.48 £7.90
103	MK234220-6 Available to backorder	Spiral Spring (Alt.)	£11.16 £9.30
104	MK424359-5 Available to backorder	Damper (Alt.)	£1.22 £1.02
104	MK5255001040 Available to backorder	Damper	£3.60 £3.00
105	MK5225004020 Available to backorder	Handle	£6.12 £5.10
105	MK424319-7 Available to backorder	Starter Knob (Alt.)	£2.38 £1.98
106	MK6019508400 Available to backorder	Model Label	£6.72 £5.60
108	MK266713-5 Available to backorder	Tapping Screw 5x20 (Alt.)	£0.84 £0.70
109	MK5195500800 Available to backorder	Blower Housing	£11.64 £9.70
110	MK931403-6 Available to backorder	Hex. Nut M8 (Alt.)	£0.70 £0.58
111	MK941202-8 Available to backorder	Flat Washer 8 (Alt.)	£0.48 £0.40
112	MK5197003014 Available to backorder	Flywheel	£78.72 £65.60
113	MK5191006000 Available to backorder	Crank Case Ass'y	£129.00 £107.50
113	MK126755-0 Available to backorder	Crank Case Assembly (Alt.)	£74.16 £61.80
114	MK213638-4 Available to backorder	Oil Seal (Alt.)	£3.12 £2.60
115	MK922241-7 Available to backorder	115-2 922241-7	£0.89 £0.74
116	MK210086-8 Available to backorder	Ball Bearing 6000 (Alt.)	£11.16 £9.30
118	MK442174-5 Available to backorder	Crank Case Gasket (Alt.)	£13.68 £11.40
118	MK5191500400 Available to backorder	Crankcase Gasket	£13.68 £11.40
120	MK5196500302 Available to backorder	Damper	£2.38 £1.98
120	MK424104-8 Available to backorder	Damper (Alt.)	£2.05 £1.71
121	MK5196500201 Available to backorder	Fuel Tank Plate	£5.64 £4.70
122	MK911208-0 Available to backorder	Pan Head Screw M5x10 (Alt.)	£0.48 £0.40
124	MK345920-4 Available to backorder	Hose Clamp (Alt.)	£0.70 £0.58
125	MK163447-0 In stock	Fuel Filter (Alt.)	£2.64 £2.20
126	MK5196011000 Available to backorder	Fuel Tank Complete	£24.48 £20.40
127	MK168668-9 Available to backorder	Fuel Tank Cap Complete (Alt.)	£13.56 £11.30
128	MK140436-2 Available to backorder	Strap Complete (Alt.)	£5.76 £4.80
128	MK5256067000 Available to backorder	Strap	£6.84 £5.70
129	MK452920-8 Available to backorder	Fuel Tank Cap (Alt.)	£8.28 £6.90
130	MK266714-3 Available to backorder	Tapping Screw 5x16 (Alt.)	£0.84 £0.70
