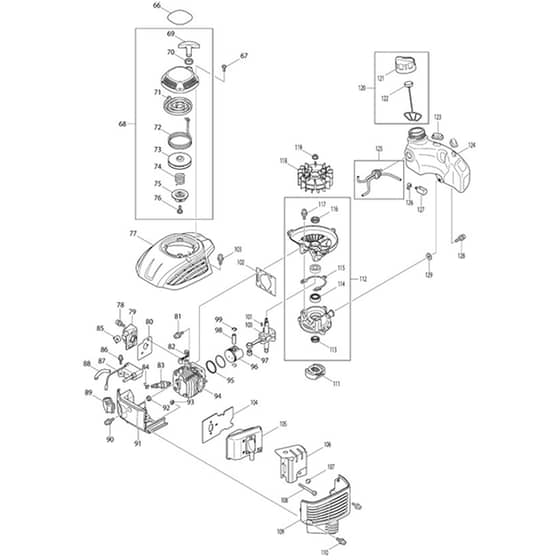

Makita HT2350D - Petrol Hedge Trimmer - Power Tool 02 Diagram

Name: Makita HT2350D - Petrol Hedge Trimmer - Power Tool 02 Diagram
SKU: ht2350d_petrol_hedge_trimmer_power_tool_02-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita HT2350D - Petrol Hedge Trimmer - Power Tool 02 Diagram

Description

Model No. HT2350D

Petrol Hedge Trimmer

Power Tool 02 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
68	MK125753-1 Available to backorder	Recoil Starter Assembly	£53.16 £44.30
69	MK424319-7 Available to backorder	Starter Knob	£2.18 £1.82
70	MK424359-5 Available to backorder	Damper	£1.02 £0.85
71	MK232258-5 Available to backorder	Spiral Spring	£9.24 £7.70
72	MK444028-2 Available to backorder	Starter Rope	£3.92 £3.27
73	MK452402-0 Available to backorder	Reel	£13.28 £11.07
74	MK233991-2 Available to backorder	Damper Spring	£9.12 £7.60
75	MK452403-8 Available to backorder	Cam Plate	£10.84 £9.03
76	MK266585-8 Available to backorder	Tapping Screw 5x12	£1.74 £1.45
77	MK452949-4 Available to backorder	Blower Housing	£8.54 £7.12
78	MK266760-6 Available to backorder	H.S.H.Bolt M5x18 With Wrm (Refs 090 \| 110)	£0.74 £0.62
79	MK451911-6 Available to backorder	Insulator	£8.38 £6.98
80	MK346268-7 Available to backorder	Insulator Gasket	£1.88 £1.57
81	MK266787-6 Available to backorder	H.S.H.Bolt M5x18 With Wr (Refs 103 \| 117)	£0.74 £0.62
82	MK452556-3 Available to backorder	Spacer	£1.78 £1.48
83	7222 In stock	Spark Plug	£4.99 £4.16
84	MK324891-8 Available to backorder	Plug Cap Spring	£0.58 £0.48
85	MK424491-5 Available to backorder	Grommet	£0.96 £0.80
86	MK922138-0 Available to backorder	H.S.H.Bolt M4x20 With Wr (Alt.)	£2.76 £2.30
88	MK412102-4 Available to backorder	Tube	£0.82 £0.68
89	MK424302-4 Available to backorder	Plug Cap	£2.60 £2.17
91	MK451860-7 Available to backorder	Cylinder Cover	£5.48 £4.57
92	MK5503503001 Available to backorder	Spacer	£2.18 £1.82
93	MK264050-1 Available to backorder	Square Nut M5-8	£0.48 £0.40
94	MK141381-4 Available to backorder	Cylinder Complete	£51.42 £42.85
95	MK257334-4 Available to backorder	Piston Ring 33	£2.18 £1.82
96	MK318858-6 Available to backorder	Piston	£10.12 £8.43
97	MK212702-8 Available to backorder	Needle Cage 810	£7.38 £6.15
98	MK268287-2 Available to backorder	Piston Pin 8 (Alt.)	£1.64 £1.37
98	MK256543-2 Available to backorder	Piston Pin 8	£1.60 £1.33
99	MK234243-4 Available to backorder	Clip	£0.48 £0.40
100	MK140429-9 Available to backorder	Crankshaft Complete	£45.94 £38.28
101	MK254041-0 Available to backorder	Woodruff Key	£0.82 £0.68
102	MK346267-9 Available to backorder	Cylinder Gasket	£2.02 £1.68
104	MK346260-3 Available to backorder	Muffler Gasket	£3.92 £3.27
105	MK161555-1 Available to backorder	Muffler <	£57.64 £48.03
105	MK162530-0 Available to backorder	Muffler <	£65.24 £54.37
105	MK168565-9 Available to backorder	Muffler	£92.82 £77.35
106	MK346343-9 Available to backorder	Muffler Cover	£8.66 £7.22
108	MK266754-1 Available to backorder	Socket Head Bolt	£1.74 £1.45
109	MK451861-5 Available to backorder	Muffler Cover	£7.22 £6.02
111	MK141150-3 Available to backorder	Clutch Complete	£40.88 £34.07
112	MK5231016000 Available to backorder	Crankcase Assembly	£129.28 £107.73
113	MK213769-9 Available to backorder	Oil Seal 10	£3.34 £2.78
114	MK211064-1 Available to backorder	Ball Bearing 6000	£2.18 £1.82
115	MK413139-4 Available to backorder	Crankcase Gasket	£1.44 £1.20
118	MK126046-9 Available to backorder	Flywheel Assembly	£32.80 £27.33
119	MK264073-9 Available to backorder	Corned Disc Spring Hex Nut M6	£1.36 £1.13
120	MK125770-1 Available to backorder	Fuel Tank Cap Assembly	£21.24 £17.70
120	MK127110-9 Available to backorder	Fuel Tank Cap Assembly (Alt.)	£17.04 £14.20
123	MK424080-6 Available to backorder	Buffer Rubber	£0.86 £0.72
124	MK451867-3 Available to backorder	Fuel Tank	£15.44 £12.87
124	MK458743-2 Available to backorder	Fuel Tank S	£10.56 £8.80
125	MK168568-3 Available to backorder	Fuel Tube Assembly	£7.22 £6.02
126	MK345920-4 Available to backorder	Hose Clamp	£0.58 £0.48
127	MK163518-3 Available to backorder	Gasoline Filter	£3.76 £3.13
128	MK251583-5 Available to backorder	H.Socket Head Shoulder Bolt M5	£1.24 £1.03
129	MK452197-5 Available to backorder	Spacer	£1.64 £1.37
