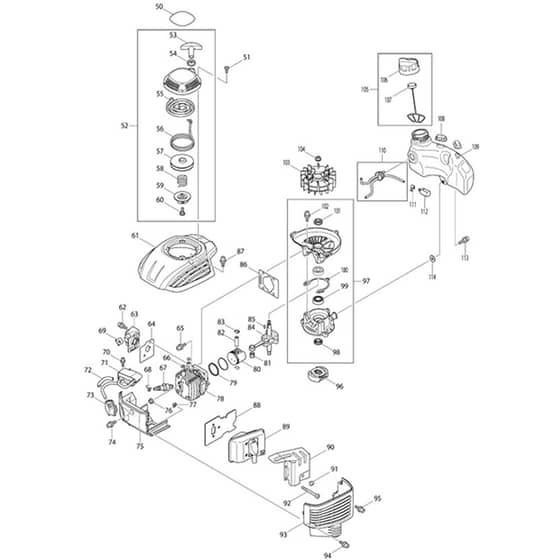

Makita HT-2475 - Petrol Hedge Trimmer - Power Tool 02 Diagram

Description

Model No. HT-2475

Petrol Hedge Trimmer

Power Tool 02 Parts Diagrams

	Part No.	Details
52	MK125753-1 Available to backorder	Recoil Starter Assembly	£54.96 £45.80
53	MK424319-7 Available to backorder	Starter Knob (Alt.)	£2.38 £1.98
53	MK5225004020 Available to backorder	Handle	£6.12 £5.10
54	MK424359-5 Available to backorder	Damper (Alt.)	£1.22 £1.02
54	MK5255001040 Available to backorder	Damper	£3.60 £3.00
55	MK5215002030 Available to backorder	Spiral Spring	£9.48 £7.90
55	MK232258-5 Available to backorder	Spiral Spring (Alt.)	£9.60 £8.00
56	MK444028-2 Available to backorder	Starter Rope	£4.08 £3.40
57	MK452402-0 Available to backorder	Reel	£13.68 £11.40
58	MK233991-2 Available to backorder	Damper Spring	£9.48 £7.90
59	MK452403-8 Available to backorder	Cam Plate	£11.16 £9.30
60	MK266585-8 Available to backorder	Tapping Screw 5x12 (Alt.)	£1.90 £1.58
60	MK5195002060 Available to backorder	Set Screw	£3.48 £2.90
61	MK452949-4 Available to backorder	Blower Housing S	£8.88 £7.40
62	MK266760-6 Available to backorder	H.S.H.Bolt M5x18 With Wrm (Alt.) (Refs 074 \| 094)	£0.89 £0.74
63	MK451911-6 Available to backorder	Insulator	£8.64 £7.20
64	MK346268-7 Available to backorder	Insulator Gasket	£2.05 £1.71
65	MK266787-6 Available to backorder	H.S.H.Bolt M5x18 With Wr (Alt.) (Refs 087 \| 095 \| 102)	£0.89 £0.74
66	MK452556-3 Available to backorder	Spacer (Alt.)	£1.94 £1.62
67	7222 In stock	Spark Plug (Alt.)	£8.04 £6.70
68	MK324891-8 Available to backorder	Plug Cap Spring (Alt.)	£0.70 £0.58
69	MK424491-5 Available to backorder	Grommet (Alt.)	£1.15 £0.96
70	MK922138-0 Available to backorder	H.S.H.Bolt M4x20 With Wr (Alt.)	£3.01 £2.51
72	MK412102-4 Available to backorder	Tube (Alt.)	£0.98 £0.82
73	MK424302-4 Available to backorder	Plug Cap	£2.83 £2.36
75	MK451860-7 Available to backorder	Cylinder Cover	£5.64 £4.70
76	MK5503503001 Available to backorder	Spacer	£2.38 £1.98
77	MK264050-1 Available to backorder	Square Nut M5-8 (Alt.)	£0.48 £0.40
78	MK141381-4 Available to backorder	Cylinder Complete (Alt.)	£53.16 £44.30
79	MK257334-4 Available to backorder	Piston Ring 33 (Alt.)	£2.38 £1.98
79	MKS115113650 Available to backorder	Piston Ring	£3.12 £2.60
80	MKS115313750 Available to backorder	Piston	£11.76 £9.80
80	MK318858-6 Available to backorder	Piston (Alt.)	£10.44 £8.70
81	MK212702-8 Available to backorder	Needle Cage 810 (Alt.)	£7.68 £6.40
82	MK256543-2 Available to backorder	Piston Pin 8 (Alt.)	£1.74 £1.45
82	MK268287-2 Available to backorder	Piston Pin 8 (Alt.)	£1.79 £1.49
83	MK234243-4 Available to backorder	Clip (Alt.)	£0.48 £0.40
83	MKS198343210 Available to backorder	Clip	£0.89 £0.74
84	MK140429-9 Available to backorder	Crankshaft Complete	£47.52 £39.60
85	MK254041-0 Available to backorder	Woodruff Key (Alt.)	£0.98 £0.82
86	MK346267-9 Available to backorder	Cylinder Gasket	£2.21 £1.84
88	MK346260-3 Available to backorder	Muffler Gasket	£4.08 £3.40
89	MK161555-1 Available to backorder	Muffler <	£59.64 £49.70
89	MK162530-0 Available to backorder	Muffler <	£67.44 £56.20
89	MK168565-9 Available to backorder	Muffler	£96.00 £80.00
90	MK346343-9 Available to backorder	Muffler Cover	£9.00 £7.50
92	MK266754-1 Available to backorder	Socket Head Bolt (Alt.)	£1.90 £1.58
93	MK451861-5 Available to backorder	Muffler Cover	£7.44 £6.20
96	MK141150-3 Available to backorder	Clutch Complete (Alt.)	£42.24 £35.20
97	MK5231016000 Available to backorder	Crankcase Assembly	£124.08 £103.40
98	MK213148-1 Available to backorder	Oil Seal 10 (Alt.)	£2.83 £2.36
98	MK213769-9 Available to backorder	Oil Seal 10 (Alt.)	£3.48 £2.90
99	MK210086-8 Available to backorder	Ball Bearing 6000 (Alt.)	£11.16 £9.30
99	MK211064-1 Available to backorder	Ball Bearing 6000 (Alt.)	£2.38 £1.98
100	MK413139-4 Available to backorder	Crankcase Gasket	£1.73 £1.44
103	MK126046-9 Available to backorder	Flywheel Assembly S	£33.96 £28.30
104	MK264073-9 Available to backorder	Corned Disc Spring Hex Nut M6	£1.63 £1.36
105	MK125770-1 Available to backorder	Fuel Tank Cap Assembly	£21.96 £18.30
105	MK127110-9 Available to backorder	Fuel Tank Cap Assembly (Alt.)	£17.64 £14.70
108	MK424080-6 Available to backorder	Buffer Rubber	£1.03 £0.86
109	MK451867-3 Available to backorder	Fuel Tank	£15.96 £13.30
109	MK458743-2 Available to backorder	Fuel Tank S	£10.92 £9.10
110	MK168568-3 Available to backorder	Fuel Tube Assembly	£7.44 £6.20
111	MK345920-4 Available to backorder	Hose Clamp (Alt.)	£0.70 £0.58
112	MK163518-3 Available to backorder	Gasoline Filter (Alt.)	£4.68 £3.90
113	MK251583-5 Available to backorder	H.Socket Head Shoulder Bolt M5	£1.49 £1.24
114	MK452197-5 Available to backorder	Spacer	£1.79 £1.49
