Makita HT-2475 - Petrol Hedge Trimmer - Power Tool 01 Diagram

Description

Model No. HT-2475

Petrol Hedge Trimmer

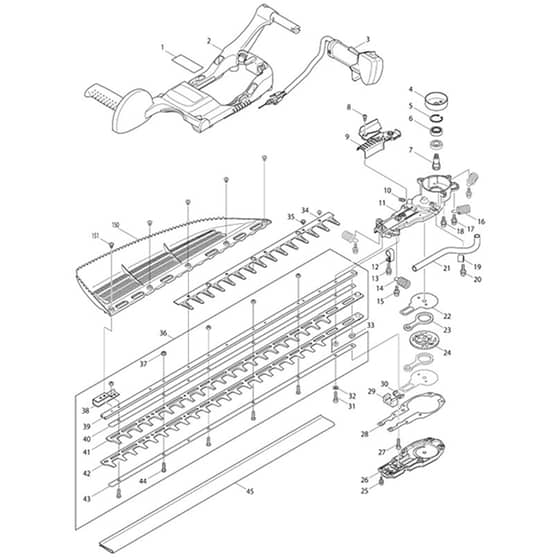

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK819811-0 Available to backorder	Caution Label	£5.64 £4.70
2	MK140504-1 Available to backorder	Handle Complete	£56.64 £47.20
3	MK125772-7 Available to backorder	Control Lever Assembly	£71.16 £59.30
4	MK168567-5 Available to backorder	Clutch Drum	£20.28 £16.90
5	MK962106-1 Available to backorder	Retaining Ring R-28 (Alt.)	£1.58 £1.32
6	MK211138-8 Available to backorder	Ball Bearing 6001Llu (Alt.)	£4.20 £3.50
7	MK221600-5 Available to backorder	Spur Gear 9 (Alt.)	£6.00 £5.00
7	MK227247-3 Available to backorder	Spur Gear 9	£10.44 £8.70
8	MK922212-4 Available to backorder	Hex. Socket Head Bolt M5x12	£0.48 £0.40
9	MK451865-7 Available to backorder	Baffle Plate	£3.84 £3.20
10	MK243107-1 Available to backorder	Grease Nipple	£1.90 £1.58
11	MK141033-7 Available to backorder	Gear Case Complete (Alt.)	£64.44 £53.70
12	MK346253-0 Available to backorder	Clamp	£2.05 £1.71
13	MK922213-2 Available to backorder	H.S.H.Bolt M5x12 With Wr (Alt.)	£0.70 £0.58
14	MK234182-8 Available to backorder	Compression Spring 15	£7.80 £6.50
15	MK922224-7 Available to backorder	H.S.H.Bolt M5x16 With Wg (Alt.)	£0.48 £0.40

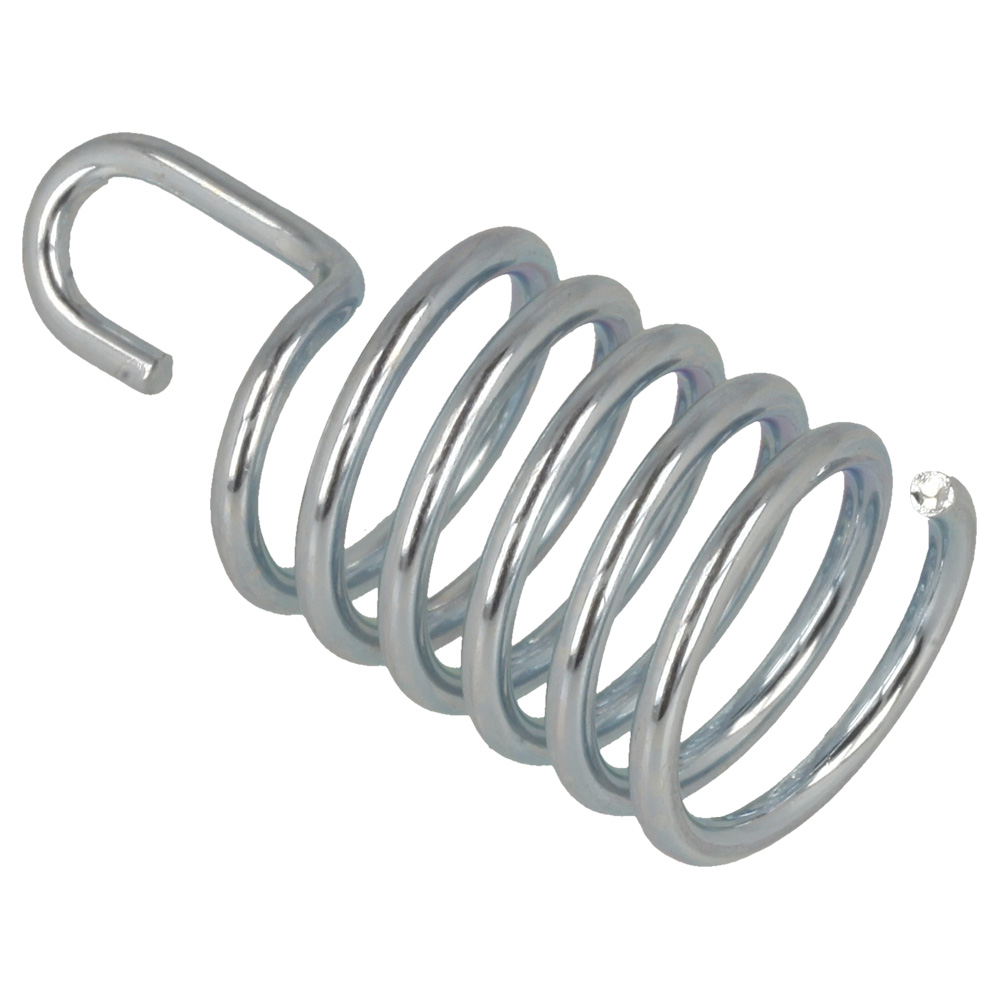

16	MK234202-8 Available to backorder	Compression Spring 15	£6.84 £5.70
18	MK266787-6 Available to backorder	H.S.H.Bolt M5x18 With Wr (Alt.)	£0.89 £0.74
19	MK346252-2 Available to backorder	Clamp	£1.90 £1.58
21	MK331896-1 Available to backorder	Pipe	£7.80 £6.50
22	MK346255-6 Available to backorder	Friction Plate	£4.32 £3.60
23	MK346251-4 Available to backorder	Connecting Rod	£11.40 £9.50
24	MK227248-1 Available to backorder	Spur Gear 43	£29.64 £24.70
25	MK922128-3 Available to backorder	Hex. Socket Head Bolt M4x16	£0.89 £0.74
26	MK318610-2 Available to backorder	Gear Case Cover	£20.28 £16.90
27	MK266573-5 Available to backorder	Hex. Socket Head Bolt M5x33	£0.70 £0.58
27	MK922237-8 Available to backorder	Hex. Socket Head Bolt M5x22	£1.03 £0.86
28	MK413137-8 Available to backorder	Gear Case Gasket	£4.44 £3.70
29	MK443159-4 Available to backorder	Seal	£6.84 £5.70
30	MK346256-4 Available to backorder	Holder	£3.84 £3.20
32	MK941101-4 Available to backorder	Flat Washer 5 (Alt.)	£0.48 £0.40
33	MK313195-3 Available to backorder	Sleeve 5	£2.83 £2.36
34	MK346259-8 Available to backorder	Blade Guard	£27.96 £23.30
34	MK346731-0 Available to backorder	Blade Guard <	£34.92 £29.10
35	MK266572-7 Available to backorder	+ Truss Head Screw M5x8 x	£0.48 £0.40
35	MK266875-9 Available to backorder	H.S.H.Bolt M5x8 <	£0.48 £0.40
37	MK264089-4 Available to backorder	Hex. Lock Nut M6-10 (Alt.)	£0.48 £0.40
38	MK346668-1 Available to backorder	End Cover (Alt.)	£13.08 £10.90
39	MK332060-7 Available to backorder	Guide Bar (Alt.)	£15.84 £13.20
40	MK346667-3 Available to backorder	Plate (Alt.)	£14.40 £12.00
41	MK725185-8 Available to backorder	Shear Blade A (Alt.)	£119.40 £99.50

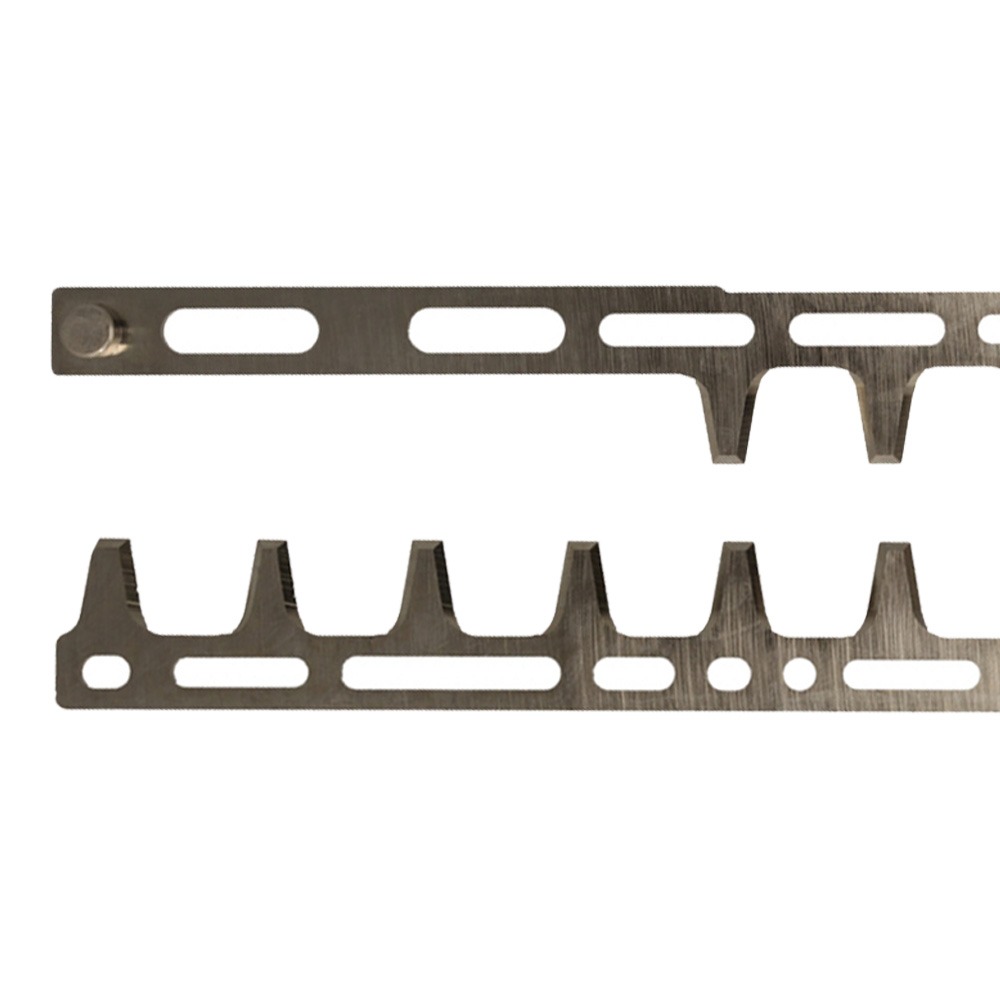

42	MK725186-6 Available to backorder	Shear Blade B (Alt.)	£116.52 £97.10
44	MK266824-6 Available to backorder	H.S. Button Head Bolt M6x20	£0.48 £0.40
45	MK451868-1 Available to backorder	Blade Cover	£7.92 £6.60
151	MK915211-3 Available to backorder	Binding Head Screw M5x12	£0.48 £0.40
