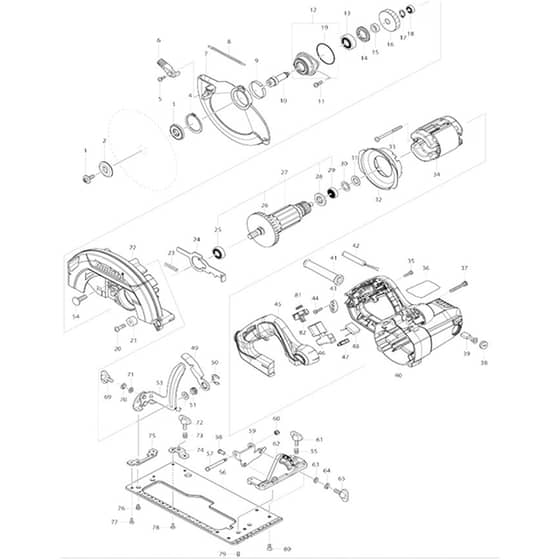

Makita HS7611 - 185 190mm Circular Saw - Power Tool Diagram

Description

Model No. HS7611

185 190mm Circular Saw

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK266024-8 Available to backorder	Hex. Socket Head Bolt M6x20	£1.60 £1.33
2	MK224409-4 In stock	Outer Flange 35	£2.18 £1.82
3	MK224593-5 Available to backorder	Inner Flange 35	£1.88 £1.57
4	MK961155-5 Available to backorder	Retaining Ring S-38	£1.32 £1.10
5	MK266034-5 Available to backorder	Tapping Screw Ct 4x16	£0.48 £0.40
6	MK271444-3 Available to backorder	Lever 37	£1.36 £1.13
7	MK319188-8 Available to backorder	Safety Cover	£16.04 £13.37
8	MK231887-1 Available to backorder	Tension Spring 4	£2.18 £1.82
9	MK345391-5 Available to backorder	Thickness Ring	£1.32 £1.10
10	MK326444-9 Available to backorder	Spindle	£3.76 £3.13
11	MK911226-8 Available to backorder	Pan Head Screw M5x18	£0.48 £0.40
12	MK135947-0 Available to backorder	Bearing Box Assembly	£4.20 £3.50
13	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
14	MK285852-2 Available to backorder	Bearing Retainer 19-33	£1.44 £1.20
15	MK257173-2 Available to backorder	Ring 12	£0.48 £0.40
16	MK221575-8 Available to backorder	Helical Gear 43	£5.20 £4.33
17	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
18	MK210028-2 Available to backorder	Ball Bearing 606Zz	£1.16 £0.97
19	MK213560-5 Available to backorder	O Ring 44 (Alt.)	£1.44 £1.20
20	MK265117-8 Available to backorder	+Pan Head Screw M6x20	£0.58 £0.48
21	MK262556-3 Available to backorder	Rubber Sleeve 6	£0.58 £0.48
22	MK213415-4 Available to backorder	O Ring 28 (Alt.) (C10)	£0.74 £0.62
22	MK144729-9 Available to backorder	Blade Case Complete	£46.22 £38.52
23	MK233117-6 Available to backorder	Compression Spring 6	£0.58 £0.48
24	MK347284-2 Available to backorder	Shaft Lock	£1.24 £1.03
25	MK210216-1 Available to backorder	Ball Bearing 6001Ddw >	£2.18 £1.82
25	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.22 £6.02
26	MK241876-8 Available to backorder	Fan 76	£3.62 £3.02
28	MK681644-1 Available to backorder	Insulation Washer	£0.74 £0.62
29	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£7.80 £6.50
30	MK253192-6 Available to backorder	Flat Washer 14	£0.48 £0.40
31	MK261109-5 Available to backorder	Rubber Washer 13	£0.58 £0.48
32	MK458033-3 Available to backorder	Baffle Plate	£0.82 £0.68
33	MK266352-1 Available to backorder	Tapping Screw 5x65	£0.58 £0.48
34	MK654485-8 Available to backorder	Parallel Splice (Alt.) (C21)	£0.48 £0.40
34	MK594679-2 Available to backorder	Field Assy 220-240V	£23.84 £19.87
34	MK654020-2 Available to backorder	Ring Terminal (C10)	£0.74 £0.62
34	MK654501-6 Available to backorder	Connector P-1.25 (C20)	£0.48 £0.40
34	MK689055-4 Available to backorder	Ring Terminal Retainer 15.5 (C30)	£0.54 £0.45
35	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
36	MK854B74-3 Available to backorder	Hs7611 Name Plate	£0.48 £0.40
37	MK265104-7 Available to backorder	Pan Head Screw M5x40	£0.48 £0.40
38	MK643750-0 Available to backorder	Brush Holder Cap 7-11	£1.32 £1.10
39	MK194996-6 Available to backorder	Carbon Brush Set Cb-303 (Alt.)	£3.92 £3.27
40	MK144767-1 Available to backorder	Motor Housing Complete	£18.78 £15.65
40	MK643708-9 Available to backorder	Brush Holder 5-11 (C10)	£2.18 £1.82
41	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
41	MK682574-9 Available to backorder	Cord Guard 10-90 (Alt.)	£1.16 £0.97
43	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
45	MK458087-0 Available to backorder	Handle Cover	£5.06 £4.22
46	MK650245-6 Available to backorder	Switch Sge115Cdy-10	£5.94 £4.95
47	MK654532-5 Available to backorder	Terminal Block 1P	£3.46 £2.88
49	MK346311-2 Available to backorder	Lever Plate	£1.88 £1.57
50	MK257953-6 Available to backorder	Bow Stop Ring E-12	£0.58 £0.48
51	MK252199-9 Available to backorder	Hex. Nut M8-13	£0.86 £0.72
52	MK941201-0 Available to backorder	Flat Washer 8	£0.48 £0.40
53	MK161776-5 Available to backorder	Depth Guide Complete	£4.04 £3.37
54	MK266396-1 Available to backorder	Flathead Squareneckbolt M8x24	£0.74 £0.62
55	MK233376-2 Available to backorder	Compression Spring 8	£0.48 £0.40
56	MK346826-9 Available to backorder	Base	£13.58 £11.32
57	MK265118-6 Available to backorder	+ Pan Head Screw M5	£0.74 £0.62
58	MK256480-0 Available to backorder	Shoulder Pin 6-7	£0.48 £0.40
59	MK346827-7 Available to backorder	Angular Guide	£1.44 £1.20
60	MK252103-8 Available to backorder	Hex. Lock Nut M5-8	£0.48 £0.40
61	MK265701-9 In stock	Thumb Screw M6x14 (Refs 069 \| 072)	£2.02 £1.68
62	MK317031-5 Available to backorder	Angular Plate	£6.22 £5.18
63	MK941151-9 Available to backorder	Flat Washer 6	£0.48 £0.40
64	MK253428-3 Available to backorder	Spring Washer 6 (Alt.)	£0.48 £0.40
65	MK265708-5 Available to backorder	Thumb Screw M6x20	£2.32 £1.93
74	MK346847-1 Available to backorder	Bracket	£0.86 £0.72
75	MK346846-3 Available to backorder	Plate	£0.86 £0.72
76	MK911106-8 Available to backorder	Pan Head Screw M4x8	£0.48 £0.40
77	MK265085-5 Available to backorder	+ Countersunk Head Screw M4x8	£0.48 £0.40
79	MK266436-5 Available to backorder	H.S.Set Screw (Flat Point) M5x8	£0.58 £0.48
80	MK912212-2 Available to backorder	Countersunk Head Screw M5x12	£0.48 £0.40
81	MK231469-9 Available to backorder	Compression Spring 4	£0.48 £0.40
82	MK453284-3 Available to backorder	Lock Off Button	£0.74 £0.62
901	MK783217-7 Available to backorder	Hex. Wrench 5 (A01)	£0.56 £0.47
902	MK194368-5 Available to backorder	Guide Rail 1400 Set (F02)	£78.76 £65.63
902	MKB-07967 Available to backorder	T.C.T.Saw Blade 190x30x12T (A02)	£25.20 £21.00
903	MK164095-8 In stock	Guide Rule (A03)	£4.32 £3.60
904	MK196520-1 Available to backorder	Dust Nozzle Set (A04)	£5.64 £4.70
904	MK194416-0 Available to backorder	Sheet 10000 Set (F04)	£39.90 £33.25
905	MK194417-8 Available to backorder	Rubber Sheet 10000 Set (F05)	£58.88 £49.07
913	MK196664-7 Available to backorder	Bevel Guide Set (F13)	£44.48 £37.07
915	MK197005-0 Available to backorder	Guide Rail Adapter C Set (F15)	£93.76 £78.13
917	MK199140-0 Available to backorder	Guide Rail 1000 Set (F17)	£53.02 £44.18
918	MK199141-8 Available to backorder	Guide Rail 1500 Set (F18)	£104.38 £86.98
