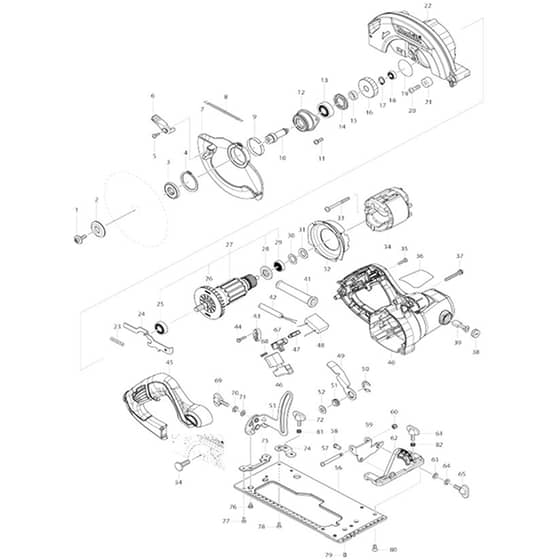

Makita HS6601 - 165mm Circular Saw - Power Tool Diagram

Description

Model No. HS6601

165mm Circular Saw

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK266024-8 Available to backorder	Hex. Socket Head Bolt M6x20	£1.60 £1.33
2	MK224409-4 In stock	Outer Flange 35	£2.18 £1.82
3	MK224593-5 Available to backorder	Inner Flange 35 <	£1.88 £1.57
4	MK961155-5 Available to backorder	Retaining Ring (Ext) S-38	£1.32 £1.10
5	MK266034-5 Available to backorder	Binding Head Tapping Screw 4x16	£0.48 £0.40
6	MK271444-3 Available to backorder	Lever 37 (Alt.)	£1.36 £1.13
6	MK272258-3 Available to backorder	Lever 37	£1.60 £1.33
7	MK319307-6 Available to backorder	Safety Cover	£11.26 £9.38
8	MK231893-6 Available to backorder	Tension Spring 4	£0.58 £0.48
9	MK345391-5 Available to backorder	Thickness Ring	£1.32 £1.10
10	MK326444-9 Available to backorder	Spindle	£3.76 £3.13
11	MK911226-8 Available to backorder	Pan Head Screw M5x18 W	£0.48 £0.40
12	MK319088-2 Available to backorder	Bearing Box	£3.92 £3.27
13	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
14	MK285852-2 Available to backorder	Bearing Retainer 19-33	£1.44 £1.20
15	MK257173-2 Available to backorder	Ring 12	£0.48 £0.40
16	MK227793-6 Available to backorder	Helical Gear 38	£7.22 £6.02
17	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
18	MK210028-2 Available to backorder	Ball Bearing 606Zz	£1.16 £0.97
19	MK213512-6 Available to backorder	O-Ring 39	£2.18 £1.82
20	MK265117-8 Available to backorder	Pan Head Screw M6x20	£0.58 £0.48
21	MK262502-6 Available to backorder	Rubber Sleeve 6	£0.58 £0.48
22	MK213821-3 Available to backorder	O-Ring 26 (C10)	£0.48 £0.40
22	MK143224-6 Available to backorder	Blade Case Complete	£33.66 £28.05
23	MK233117-6 Available to backorder	Compression Spring 6	£0.58 £0.48
24	MK345317-7 Available to backorder	Shaft Lock	£1.32 £1.10
25	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.04 £4.20
26	MK240064-4 Available to backorder	Fan 70	£1.74 £1.45
27	MK513459-7 Available to backorder	Armature Assembly 240V (INC. 25 26 28 29)	£35.12 £29.27
28	MK681644-1 Available to backorder	Insulation Washer	£0.74 £0.62
29	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£7.80 £6.50
30	MK253192-6 Available to backorder	Flat Washer 14	£0.48 £0.40
31	MK261109-5 Available to backorder	Rubber Washer 13	£0.58 £0.48
32	MK455354-4 Available to backorder	Baffle Plate	£0.74 £0.62
33	MK266418-7 Available to backorder	Binding Head Tapping Screw 5x55	£0.48 £0.40
34	MK593894-5 Available to backorder	Field Assembly 240V	£24.72 £20.60
34	MK654020-2 Available to backorder	Ring Terminal 36L (C10)	£0.74 £0.62
34	MK654485-8 Available to backorder	Non-Insulated Splice (Alt.) (C21)	£0.48 £0.40
34	MK654501-6 Available to backorder	Non-Insulated Splice P-1.25 (C20)	£0.48 £0.40
35	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
36	MK851N51-8 Available to backorder	Name Plate Hs6601	£0.48 £0.40
37	MK265104-7 Available to backorder	Pan Head Screw M5x40	£0.48 £0.40
38	MK643750-0 Available to backorder	Holder Cap 7-11	£1.32 £1.10
39	MK194996-6 Available to backorder	Carbon Brush Set (Alt.)	£3.92 £3.27
40	MK142798-4 Available to backorder	Motor Housing Complete	£25.00 £20.83
40	MK643708-9 Available to backorder	Brush Holder 5-11 (C10)	£2.18 £1.82
41	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
41	MK682574-9 Available to backorder	Cord Guard 10 (Alt.)	£1.16 £0.97
43	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
45	MK455362-5 Available to backorder	Handle Cover	£5.64 £4.70
46	MK650245-6 Available to backorder	Switch Sge115Cdy-10	£5.94 £4.95
47	MK654532-5 Available to backorder	Terminal Block 1P	£3.46 £2.88
48	MK645192-4 Available to backorder	Noise Suppressor	£0.74 £0.62
49	MK346311-2 Available to backorder	Lever Plate	£1.88 £1.57
50	MK257953-6 Available to backorder	Bow Stop Ring (Ext) E-12	£0.58 £0.48
51	MK252199-9 Available to backorder	Hex. Nut M8-13	£0.86 £0.72
52	MK941201-0 Available to backorder	Flat Washer 8	£0.48 £0.40
53	MK161337-1 Available to backorder	Depth Guide Complete	£4.20 £3.50
54	MK266396-1 Available to backorder	Flat Head Square Neck Bolt M8x24	£0.74 £0.62
56	MK346894-2 Available to backorder	Base	£12.28 £10.23
57	MK265118-6 Available to backorder	Pan Head Shoulder Screw M5	£0.74 £0.62
58	MK256480-0 Available to backorder	Shoulder Pin 6-7	£0.48 £0.40
59	MK346827-7 Available to backorder	Angular Guide	£1.44 £1.20
60	MK252103-8 Available to backorder	Hex. Lock Nut M5-8	£0.48 £0.40
61	MK265701-9 In stock	Thumb Screw M6x14	£2.02 £1.68
62	MK319308-4 Available to backorder	Angular Plate	£8.96 £7.47
63	MK941151-9 Available to backorder	Flat Washer 6	£0.48 £0.40
64	MK253428-3 Available to backorder	Spring Washer 6 (Alt.)	£0.48 £0.40
65	MK265708-5 Available to backorder	Thumb Screw M6x20	£2.32 £1.93
67	MK453284-3 Available to backorder	Lock Off Button	£0.74 £0.62
68	MK231469-9 Available to backorder	Compression Spring 4	£0.48 £0.40
74	MK346847-1 Available to backorder	Bracket	£0.86 £0.72
75	MK346846-3 Available to backorder	Plate	£0.86 £0.72
76	MK911106-8 Available to backorder	Pan Head Screw M4x8 W	£0.48 £0.40
77	MK265085-5 Available to backorder	Countersunk Head Screw M4x8 <	£0.48 £0.40
77	MK912107-9 In stock	Countersunk Head Screw M4x8	£0.48 £0.40
79	MK266436-5 Available to backorder	Hex. Socket Set Screw (Flat Point) M5x8	£0.58 £0.48
80	MK912212-2 Available to backorder	Countersunk Head Screw M5x12	£0.48 £0.40
81	MK233376-2 Available to backorder	Compression Spring 8	£0.48 £0.40
901	MK164095-8 In stock	Guide Rule (A01)	£4.32 £3.60
902	MK194368-5 Available to backorder	Guide Rail 1400 Set (F02)	£78.76 £65.63
902	MKB-02917 Available to backorder	T.C.T.Saw Blade 165mm (A02)	£17.86 £14.88
903	MK783217-7 Available to backorder	Hex. Wrench 5 (A03)	£0.56 £0.47
904	MK196520-1 Available to backorder	Dust Nozzle Set (A04)	£5.64 £4.70
904	MK194416-0 Available to backorder	Sheet 10000 Set (F04)	£39.90 £33.25
905	MK194417-8 Available to backorder	Rubber Sheet 10000 Set (F05)	£58.88 £49.07
905	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
905	MK821551-8 Available to backorder	Connector Plastic Case (Type 3) (A05B)	£62.48 £52.07
906	MK838314-5 Available to backorder	Inner Tray (A06B)	£11.16 £9.30
912	MK196664-7 Available to backorder	Bevel Guide Set (F12)	£44.48 £37.07
914	MK197462-2 Available to backorder	Guide Rail Adapter E Set (F14)	£43.54 £36.28
916	MK199140-0 Available to backorder	Guide Rail 1000 Set (F16)	£53.02 £44.18
917	MK199141-8 Available to backorder	Guide Rail 1500 Set (F17)	£104.38 £86.98
