Makita HS6101 - 165mm Circular Saw - Power Tool Diagram

Description

Model No. HS6101

165mm Circular Saw

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 006 \| 017)	£0.48 £0.40
2	MK453288-5 Available to backorder	Rear Cover	£1.44 £1.20
3	MK643650-4 Available to backorder	Holder Cap 6.5-13.5	£0.74 £0.62
4	MK196018-8 Available to backorder	Carbon Brush Set Cb-174	£8.96 £7.47
7	MK911268-2 Available to backorder	Pan Head Screw M5x45 Wr	£0.74 £0.62
8	MK643536-2 Available to backorder	Brush Holder 6.5x13.5 < (C11)	£2.18 £1.82
8	MK643653-8 Available to backorder	Brush Holder 6.5x13.5 (C10)	£3.46 £2.88
9	MK631710-4 Available to backorder	Light Circuit	£10.92 £9.10
12	MK453284-3 Available to backorder	Lock Off Button	£0.74 £0.62
13	MK231469-9 Available to backorder	Compression Spring 4	£0.48 £0.40
16	MK654531-7 Available to backorder	Terminal Block	£2.02 £1.68
18	MK687052-4 Available to backorder	Strain Relief	£0.74 £0.62
19	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.52 £8.77
20	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
21	MK453282-7 Available to backorder	Handle Cover	£8.08 £6.73
22	MK654020-2 Available to backorder	Ring Terminal 36L (C10)	£0.74 £0.62
22	MK654502-4 Available to backorder	Non-Insulated Splice (C20)	£0.58 £0.48
23	MK266095-5 Available to backorder	Binding Head Tapping Screw 5x55	£0.86 £0.72
24	MK453283-5 Available to backorder	Baffle Plate	£1.02 £0.85
25	MK261103-7 Available to backorder	Rubber Washer 13	£0.58 £0.48
26	MK421479-6 Available to backorder	Rubber Ring 19	£6.22 £5.18
27	MK210016-9 Available to backorder	Ball Bearing 698Zz	£10.84 £9.03
28	MK681654-8 Available to backorder	Insulation Washer	£0.74 £0.62
30	MK240133-1 Available to backorder	Fan 70	£3.04 £2.53
31	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.22 £6.02
32	MK346547-3 Available to backorder	Shaft Lock	£1.60 £1.33
33	MK233429-7 Available to backorder	Compression Spring 7	£0.48 £0.40
34	MK286275-7 Available to backorder	Cap	£0.58 £0.48
35	MK911118-1 Available to backorder	Pan Head Screw M4x12 Wr	£0.48 £0.40
36	MK453292-4 Available to backorder	Blade Cover	£6.22 £5.18
38	MK453290-8 Available to backorder	Duct	£1.36 £1.13
39	MK141314-9 Available to backorder	Blade Case Complete	£51.06 £42.55
40	MK265594-4 Available to backorder	Hex. Head Bolt M6x18	£7.66 £6.38
41	MK266229-0 Available to backorder	Hex. Socket Set Screw (Cup Point) M5x8	£0.74 £0.62
42	MK262552-1 Available to backorder	Rubber Sleeve 6	£1.02 £0.85
43	MK251247-1 Available to backorder	Pan Head Screw M6x20	£0.48 £0.40
44	MK213560-5 Available to backorder	O-Ring 44	£1.44 £1.20
45	MK211022-7 Available to backorder	Ball Bearing 607Zz	£10.56 £8.80
46	MK227755-4 Available to backorder	Helical Gear 40	£26.20 £21.83
47	MK326127-1 Available to backorder	Spindle	£4.62 £3.85
48	MK318820-1 Available to backorder	Bearing Box	£4.78 £3.98
49	MK911223-4 Available to backorder	Pan Head Screw M5x16 Wr	£0.48 £0.40
50	MK211275-8 Available to backorder	Ball Bearing 6003Ddw	£11.72 £9.77
51	MK285848-3 Available to backorder	Bearing Retainer 23-36	£1.16 £0.97
52	MK231878-2 Available to backorder	Tension Spring 4	£0.58 £0.48
53	MK318826-9 Available to backorder	Safety Cover	£21.72 £18.10
54	MK272271-1 Available to backorder	Lever 37	£1.02 £0.85
55	MK266034-5 Available to backorder	Binding Head Tapping Screw 4x16	£0.48 £0.40
56	MK961201-4 Available to backorder	Retaining Ring (Ext) S-42	£1.32 £1.10
57	MK257279-6 Available to backorder	Ring 17	£0.58 £0.48
58	MK224593-5 Available to backorder	Inner Flange 35 <	£1.88 £1.57

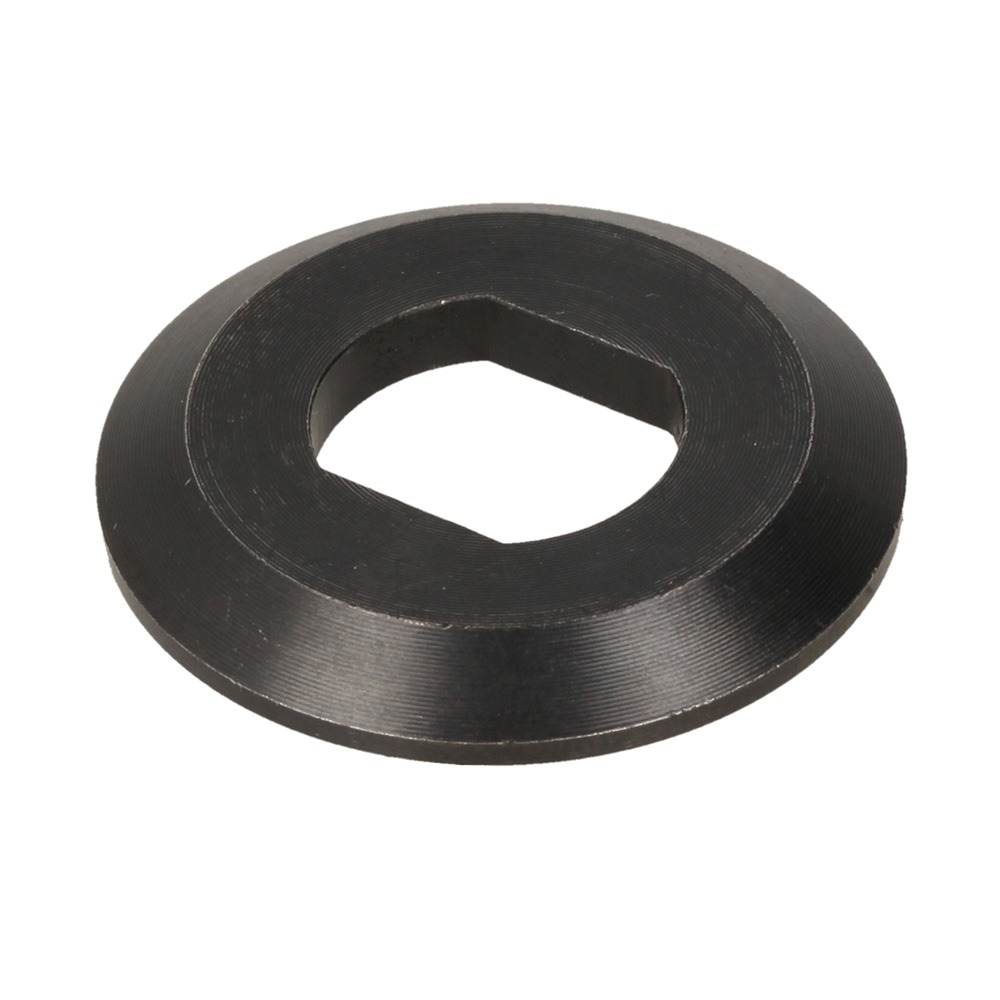

59	MK224409-4 In stock	Outer Flange 35	£2.18 £1.82
60	MK266283-4 Available to backorder	Hex. Socket Hex. Head Flange Bolt M8x20	£1.74 £1.45
61	MK911108-4 Available to backorder	Pan Head Screw M4x8 Wr	£0.48 £0.40
62	MK453362-9 Available to backorder	Lock Plate	£0.86 £0.72
63	MK272273-7 Available to backorder	Lever 70	£3.34 £2.78
64	MK264071-3 Available to backorder	Hex. Nut M6	£2.32 £1.93
65	MK267100-1 Available to backorder	Flat Washer 6 (Refs 067 \| 089 \| 095)	£0.74 £0.62
66	MK257669-3 Available to backorder	Sleeve 6	£0.94 £0.78
68	MK141315-7 Available to backorder	Depth Guide Complete	£7.38 £6.15
69	MK251919-8 Available to backorder	Flat Head Square Neck Bolt M6x20	£0.74 £0.62
70	MK165670-3 Available to backorder	Rear Angular Guide	£1.60 £1.33
71	MK922137-2 Available to backorder	Hex. Socket Head Bolt M4x20	£0.54 £0.45
72	MK256480-0 Available to backorder	Shoulder Pin 6-7	£0.48 £0.40
73	MK252126-6 Available to backorder	Hex. Lock Nut M4-7	£0.86 £0.72
74	MK252103-8 Available to backorder	Hex. Lock Nut M5-8	£0.48 £0.40
75	MK345590-9 Available to backorder	Angular Guide	£4.04 £3.37
77	MK318823-5 Available to backorder	Stopper	£1.60 £1.33
78	MK213062-1 Available to backorder	O-Ring 9	£0.48 £0.40
79	MK266734-7 Available to backorder	Truss Head Shoulder Screw M5x55.6	£1.74 £1.45
80	MK265571-6 Available to backorder	Hex. Head Bolt M6x10	£4.20 £3.50
81	MK961012-7 Available to backorder	Stop Ring (Ext) E-6	£0.48 £0.40
82	MK453165-1 Available to backorder	Lock Lever	£1.32 £1.10
83	MK233596-8 Available to backorder	Torsion Spring 11	£0.74 £0.62
84	MK911203-0 Available to backorder	Pan Head Screw M5x8 Wr	£0.48 £0.40
86	MK257982-9 Available to backorder	Bow Stop Ring (Ext) E-8	£0.58 £0.48
87	MK272272-9 Available to backorder	Lever 45	£1.88 £1.57
88	MK266735-5 Available to backorder	Hex. Head Bolt M6x20	£1.74 £1.45
90	MK266208-8 Available to backorder	Hex. Socket Set Screw (Cup Point) M6x8 (Refs 091 \| 092 \| 094)	£0.74 £0.62
93	MK318825-1 Available to backorder	Base	£39.32 £32.77
96	MK252631-3 Available to backorder	Thumb Nut M6	£3.04 £2.53

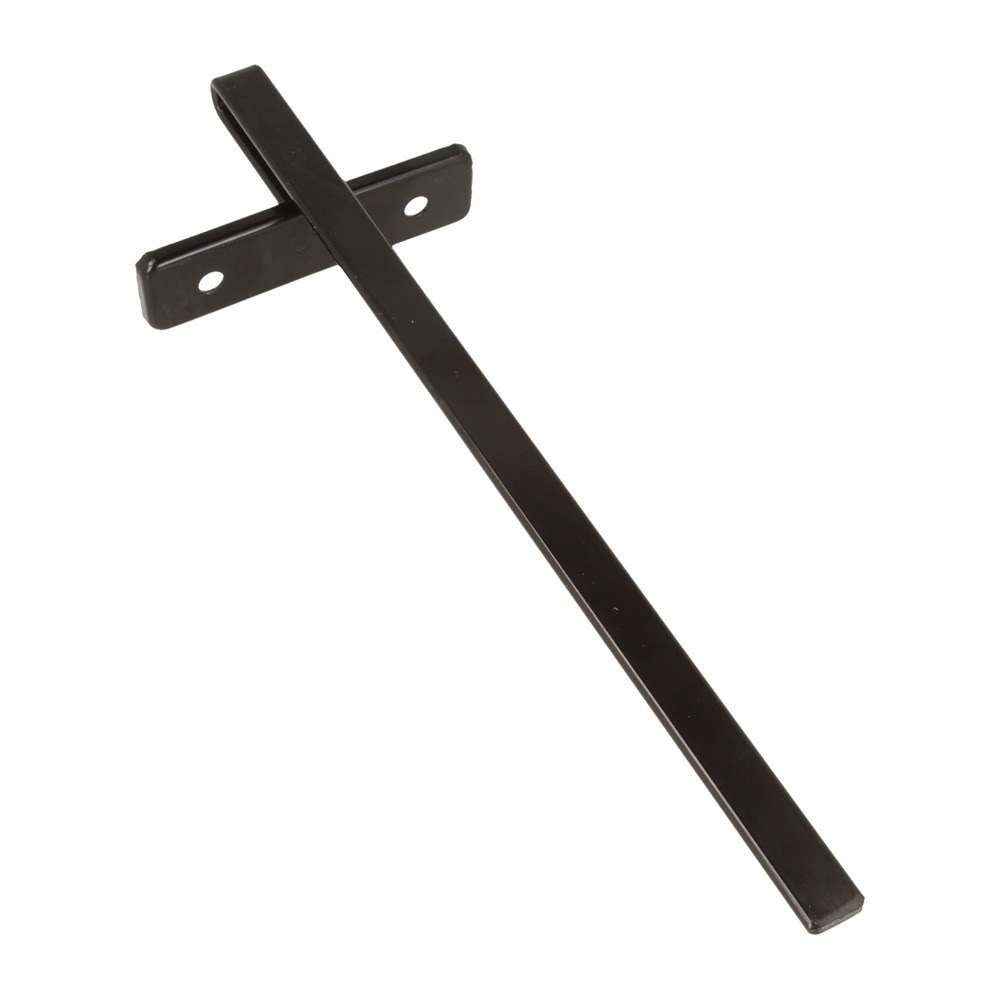

901	MK164095-8 In stock	Guide Rule (A01)	£4.32 £3.60
902	MK453289-3 Available to backorder	Dust Nozzle (A02)	£5.36 £4.47
902	MK194368-5 Available to backorder	Guide Rail 1400 Set (F02)	£78.76 £65.63
903	MK911128-8 Available to backorder	Pan Head Screw M4x16 Wr (A03)	£0.47 £0.39
904	MKB-02917 Available to backorder	T.C.T.Saw Blade 165mm (A04)	£17.86 £14.88
904	MK194416-0 Available to backorder	Sheet 10000 Set (F04)	£39.90 £33.25
905	MK194417-8 Available to backorder	Rubber Sheet 10000 Set (F05)	£58.88 £49.07
905	MK783204-6 Available to backorder	Hex. Wrench 6 (A05)	£1.84 £1.53
906	MK821552-6 Available to backorder	Connector Plastic Case (Type 4) (A06)	£74.82 £62.35
906	MK195838-7 Available to backorder	Guide Rail Adapter B Set (A06B) (Refs A06 \| A10 \| A10D)	£58.08 £48.40
906	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
906	MK162271-8 In stock	Latch (C20)	£1.98 £1.65
906	MK450990-1 Available to backorder	Handle (C30)	£2.32 £1.93
907	MK453471-4 Available to backorder	Handle (C10)	£40.16 £33.47
907	MK453472-2 Available to backorder	Latch (C20)	£10.12 £8.43
907	MK837807-9 Available to backorder	Inner Tray < (A07-1)	£11.16 £9.30
908	MK196664-7 Available to backorder	Bevel Guide Set (Alt.) (F08-1)	£44.48 £37.07
913	MK197252-3 Available to backorder	Guide Rail Adapter Set (Alt.) (F13-2)	£93.76 £78.13
915	MK199140-0 Available to backorder	Guide Rail 1000 Set (F15)	£53.02 £44.18
916	MK199141-8 Available to backorder	Guide Rail 1500 Set (F16)	£104.38 £86.98
917	MK199826-6 Available to backorder	Ratchet Clamp Set (F17)	£83.52 £69.60
949	MK1913K5-7 Available to backorder	Push Clamp Set (G49)	£45.22 £37.68
