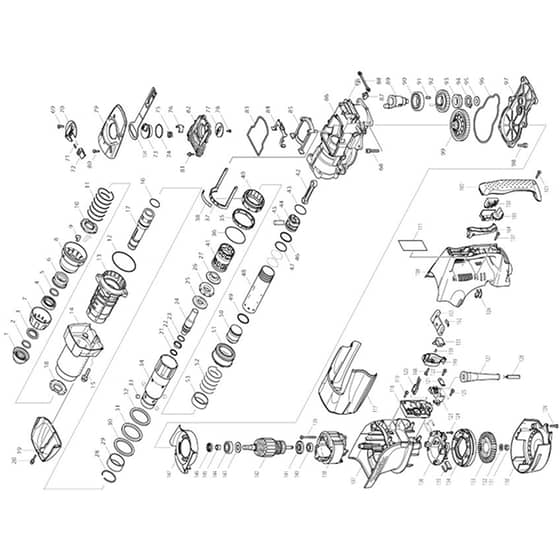

Model No. HR5201C

Rotary Hammer 52mm

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK286272-3 Available to backorder	Tool Holder Cap	£2.06 £1.72
2	MK233948-3 Available to backorder	Ring Spring 25	£1.16 £0.97
3	MK257280-1 Available to backorder	Ring 28	£5.20 £4.33
4	MK419002-9 Available to backorder	Spacer	£1.32 £1.10
6	MK324752-2 Available to backorder	Chuck Ring	£21.96 £18.30
7	MK419778-8 Available to backorder	Chuck Cover	£2.18 £1.82
8	MK419779-6 Available to backorder	Release Cover	£3.76 £3.13
9	MK310178-4 Available to backorder	Tool Retainer	£6.94 £5.78
10	MK345804-6 Available to backorder	Spring Guide	£1.74 £1.45
11	MK233496-2 Available to backorder	Compression Spring 50	£2.32 £1.93
12	MK213766-5 Available to backorder	O-Ring 78	£2.02 £1.68
13	MK214657-3 Available to backorder	Plane Bearing 52 (C20)	£5.64 £4.70
13	MK214658-1 Available to backorder	Plane Bearing 57 (C30)	£5.46 £4.55
13	MK158175-0 Available to backorder	Barrel Complete	£58.06 £48.38
13	MK213576-0 Available to backorder	Oil Seal 45 (C10)	£5.48 £4.57
14	MK158179-2 Available to backorder	Barrel Cover Complete	£13.28 £11.07
15	MK922456-6 Available to backorder	Hex. Socket Head Bolt M8x35 W	£0.86 £0.72
16	MK213492-6 Available to backorder	O-Ring 32	£2.32 £1.93
17	MK324740-9 Available to backorder	Tool Holder A	£86.66 £72.22
19	MK419791-6 Available to backorder	Gear Housing Cover	£5.06 £4.22
20	MK922148-7 Available to backorder	Hex. Socket Head Bolt M4x25 Wr	£0.74 £0.62
21	MK213274-6 Available to backorder	O-Ring 18	£0.58 £0.48
22	MK213392-0 Available to backorder	Fluoro Carbon Resin Ring 25	£8.66 £7.22
23	MK213317-4 Available to backorder	O-Ring 20	£0.74 £0.62
24	MK324753-0 Available to backorder	Impact Bolt	£13.28 £11.07
25	MK324756-4 Available to backorder	Ring 20	£7.66 £6.38
26	MK424000-0 Available to backorder	Rubber Ring 24	£5.64 £4.70
27	MK324757-2 Available to backorder	Shoulder Sleeve 20	£7.22 £6.02
28	MK233949-1 Available to backorder	Ring Spring 44	£0.58 £0.48
29	MK257282-7 Available to backorder	Ring 47	£42.62 £35.52
30	MK267287-9 Available to backorder	Flat Washer 57	£1.44 £1.20
31	MK262122-6 Available to backorder	Urethane Ring 57	£13.16 £10.97
33	MK256265-4 Available to backorder	Pin 10	£2.46 £2.05
34	MK324741-7 Available to backorder	Tool Holder B	£145.76 £121.47
35	MK419776-2 Available to backorder	Lock Sleeve	£1.60 £1.33
36	MK213654-6 Available to backorder	O-Ring 60	£2.02 £1.68
37	MK165459-9 Available to backorder	Link Arm	£20.38 £16.98
38	MK419775-4 Available to backorder	Link Arm Guide	£1.16 £0.97
40	MK313138-5 Available to backorder	Driving Sleeve	£21.96 £18.30
41	MK419780-1 Available to backorder	Slide Sleeve	£2.32 £1.93
42	MK451516-2 Available to backorder	Connecting Rod S	£7.80 £6.50
43	MK213460-9 Available to backorder	O-Ring 35	£2.02 £1.68
44	MK419771-2 Available to backorder	Piston	£2.46 £2.05
45	MK268121-6 Available to backorder	Pin 12	£0.86 £0.72
46	MK213296-6 Available to backorder	O-Ring 34 S	£3.34 £2.78
46	MK213482-9 Available to backorder	O-Ring 34	£1.16 £0.97
47	MK213510-0 Available to backorder	O-Ring 36	£1.44 £1.20
48	MK331748-6 Available to backorder	Cylinder 40	£78.58 £65.48
50	MK324754-8 Available to backorder	Striker	£10.56 £8.80
51	MK227511-2 Available to backorder	Straight Bevel Gear 33	£53.16 £44.30
52	MK233498-8 Available to backorder	Compression Spring 46	£3.76 £3.13
53	MK257281-9 Available to backorder	Ring 45	£6.52 £5.43
68	MK922361-7 Available to backorder	Hex. Socket Head Bolt M6x40 W	£1.16 £0.97
69	MK266192-7 Available to backorder	Binding Head Tapping Screw 4x14 (Refs 080 \| 119 \| 122 \| 125 \| 148)	£0.48 £0.40
70	MK419020-7 Available to backorder	Change Lever	£4.20 £3.50
71	MK233436-0 Available to backorder	Compression Spring 3	£0.48 £0.40
72	MK419777-0 Available to backorder	Lock Button	£1.16 £0.97
73	MK450687-2 Available to backorder	Crank Lever S	£2.60 £2.17
73	MK419784-3 Available to backorder	Crank Lever	£1.44 £1.20
74	MK213515-0 Available to backorder	O-Ring 36	£0.96 £0.80
74	MK213534-6 Available to backorder	O-Ring 36 <	£1.16 £0.97
75	MK233506-5 Available to backorder	Torsion Spring 15	£0.86 £0.72
76	MK310207-3 Available to backorder	Link Lever	£6.52 £5.43
77	MK345778-1 Available to backorder	Retainer Plate	£3.46 £2.88
78	MK266020-6 Available to backorder	Binding Head Tapping Screw 4x12	£0.48 £0.40
78	MK265014-8 Available to backorder	Pan Head Screw M4x12 S	£1.02 £0.85
79	MK318130-6 Available to backorder	Crank Cap Cover	£23.40 £19.50
81	MK911133-5 Available to backorder	Pan Head Screw M4x18 Wr	£0.48 £0.40
82	MK419789-3 Available to backorder	Crank Cap	£4.62 £3.85
83	MK421998-2 Available to backorder	Seal Ring	£2.02 £1.68
84	MK345779-9 Available to backorder	Link Plate	£4.20 £3.50
85	MK419781-9 Available to backorder	Link Plate Guide	£1.74 £1.45
87	MK419008-7 Available to backorder	Fix Guide	£0.58 £0.48
88	MK423366-5 Available to backorder	Cushion Plate	£0.74 £0.62
89	MK324739-4 Available to backorder	Crankshaft	£29.46 £24.55
90	MK211418-2 Available to backorder	Ball Bearing 6006Llu	£10.40 £8.67
91	MK254229-2 Available to backorder	Key 5	£1.32 £1.10
92	MK226646-6 Available to backorder	Helical Gear 47	£20.38 £16.98
93	MK227176-0 Available to backorder	Spur Gear 24	£8.66 £7.22
94	MK961102-6 Available to backorder	Retaining Ring (Ext) S-22	£0.74 £0.62
95	MK253843-1 Available to backorder	Flat Washer 12	£1.16 £0.97
96	MK421999-0 Available to backorder	Seal Ring	£3.04 £2.53
97	MK158178-4 Available to backorder	Gear Housing Complete	£53.16 £44.30
98	MK922341-3 Available to backorder	Hex. Socket Head Bolt M6x25 W	£0.74 £0.62
99	MK125374-9 Available to backorder	Torque Limiter Assembly	£144.16 £120.13
100	MK419796-6 Available to backorder	Handle Cover	£15.46 £12.88
101	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
102	MK650676-9 Available to backorder	Switch C3Pa-1111 <	£11.42 £9.52
103	MK154626-1 Available to backorder	Switch Holder Complete	£2.02 £1.68
104	MK419028-1 Available to backorder	Switch Lever	£1.60 £1.33
107	MK266041-8 Available to backorder	Binding Head Tapping Screw 5x25	£0.58 £0.48
117	MK419794-0 Available to backorder	Crank Housing Cover	£13.16 £10.97
118	MK631727-7 Available to backorder	Controller	£61.24 £51.03
119	MK266901-4 Available to backorder	Binding Head Tapping Screw 4x14	£1.02 £0.85
120	MK638510-3 Available to backorder	Lead Unit	£2.06 £1.72
121	MK687169-3 Available to backorder	Strain Relief	£0.48 £0.40
123	MK419024-9 Available to backorder	Strain Relief Base	£1.32 £1.10
126	MK419774-6 Available to backorder	Lens	£1.32 £1.10
127	MK682560-0 Available to backorder	Cord Guard 10	£2.18 £1.82
128	MK695123-3 Available to backorder	Power Supply Cord 1.5-2-4.0	£39.58 £32.98
130	MK419790-8 Available to backorder	Rear Cover	£15.46 £12.88
131	MK252178-7 Available to backorder	Hex. Nut M8-12	£0.74 £0.62
132	MK253165-9 Available to backorder	Flat Washer 8	£0.74 £0.62
133	MK240016-5 Available to backorder	Fan 90	£8.08 £6.73
134	MK419782-7 Available to backorder	Fan Guide	£2.18 £1.82
135	MK195844-2 In stock	Carbon Brush Set Cb-175 (Alt.)	£8.96 £7.47
136	MK632D00-2 Available to backorder	Brush Holder Unit <	£8.96 £7.47
137	MK419795-8 Available to backorder	Motor Housing	£34.38 £28.65
138	MK636303-2 Available to backorder	Field 220-240V	£32.80 £27.33
139	MK266095-5 Available to backorder	Binding Head Tapping Screw 5x55	£0.86 £0.72
140	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.04 £4.20
141	MK681642-5 Available to backorder	Insulation Washer	£9.98 £8.32
142	MK516993-6 Available to backorder	Armature Assembly 220-240V (INC. 140 141 145)	£117.86 £98.22
143	MK267025-9 Available to backorder	Flat Washer 15	£0.58 £0.48
144	MK211238-4 Available to backorder	Ball Bearing 6202Llu	£9.40 £7.83
145	MK331596-3 Available to backorder	Sleeve 12	£5.06 £4.22
146	MK213231-4 Available to backorder	Oil Seal 15	£7.08 £5.90
147	MK419788-5 Available to backorder	Baffle Plate	£2.32 £1.93
150	MK263027-3 Available to backorder	Rubber Pin 4	£0.58 £0.48
151	MK651418-4 Available to backorder	Switch St115A-40	£9.12 £7.60
152	MK232209-8 Available to backorder	Leaf Spring	£0.86 £0.72
153	MK154635-0 Available to backorder	Slide Lever Complete	£5.36 £4.47
154	MK419785-1 Available to backorder	Control Plate	£4.62 £3.85
155	MK819362-3 Available to backorder	Clear Label	£1.52 £1.27
901	MK158131-0 Available to backorder	Grip 36 Complete (A01)	£11.08 £9.23
902	MK163467-4 Available to backorder	Latch (C10)	£2.60 £2.17
902	MK162271-8 In stock	Latch (C20)	£1.98 £1.65
903	MK181573-3 Available to backorder	Grease Vessel Set (A03)	£4.76 £3.97
903	MK817105-7 Available to backorder	Caution Label (C10)	£0.58 £0.48
903	MK199143-4 Available to backorder	Dust Extractor Attachment Set < (F03-1)	£24.04 £20.03
904	MK265439-6 Available to backorder	Hex. Head Bolt M8x150 (C20)	£2.02 £1.68
904	MK951166-8 Available to backorder	Spring Pin 5-24 (C70)	£0.48 £0.40
904	MK417003-1 Available to backorder	Side Handle (C60)	£11.42 £9.52
904	MK135269-8 Available to backorder	Side Handle 82 Assembly (Alt.) (A04-1)	£90.00 £75.00
904	MK318506-7 Available to backorder	Side Handle Base 82B (C40)	£17.92 £14.93
904	MK252640-2 Available to backorder	Thumb Nut M8 (C10)	£5.48 £4.57
904	MK417002-3 Available to backorder	Side Handle Cam (C50)	£1.44 £1.20
905	MK265701-9 In stock	Thumb Screw M6x14 (A05)	£2.02 £1.68
906	MK199144-2 Available to backorder	Dust Extractor Attachment Set < (F06-1)	£68.64 £57.20
906	MK417766-9 Available to backorder	Front Cuff 38 (C20)	£4.86 £4.05
906	MK266163-4 Available to backorder	Round Head Square Neck Bolt M8x80 (A06)	£3.04 £2.53
906	MK417765-1 Available to backorder	Front Cuff 22 (C10)	£2.02 £1.68
906	MK415021-3 Available to backorder	Hose Joint (C30)	£3.78 £3.15
907	MK321248-4 Available to backorder	Depth Gauge (A07)	£5.56 £4.63
908	MK344492-6 Available to backorder	Plate (A08)	£1.32 £1.10
909	MK345780-4 Available to backorder	Grip Spring 82 (A09)	£9.24 £7.70
910	MK419792-4 Available to backorder	Side Grip Base 82 (A10)	£5.18 £4.32
911	MK443122-7 Available to backorder	Cloth (A11)	£3.34 £2.78
912	MK931302-2 Available to backorder	Hex. Nut M6 (A12)	£0.48 £0.40
915	MK135380-6 Available to backorder	Grip 36 Assembly (A15)	£41.32 £34.43
