Makita HR3541FC - Combination Hammer 35mm - Power Tool Diagram

Description

Model No. HR3541FC

Combination Hammer 35mm

Power Tool Parts Diagrams

	Part No.	Details
1	MK286269-2 Available to backorder	Tool Holder Cap	£1.74 £1.45
2	MK450592-3 Available to backorder	Chuck Cover	£3.72 £3.10
3	MK231984-3 Available to backorder	Ring Spring 25	£1.39 £1.16
4	MK331823-8 Available to backorder	Chuck Ring	£15.72 £13.10
5	MK310257-8 Available to backorder	Tool Retainer	£6.24 £5.20
6	MK345928-8 Available to backorder	Spring Guide	£8.28 £6.90
7	MK234063-6 Available to backorder	Compression Spring 52	£3.84 £3.20
8	MK345976-7 Available to backorder	Spring Holder	£3.72 £3.10
9	MK424110-3 Available to backorder	Rubber Ring 13	£8.52 £7.10
18	MK922341-3 Available to backorder	Hex. Socket Head Bolt M6x25	£0.89 £0.74
19	MK213498-4 Available to backorder	Oil Seal 32 (C10)	£5.52 £4.60
19	MK214508-0 Available to backorder	Plane Bearing 38 (C30)	£5.64 £4.70
19	MK158674-2 Available to backorder	Barrel Complete	£47.52 £39.60
19	MK213533-8 Available to backorder	O-Ring 39 (C20)	£0.48 £0.40
20	MK213656-2 Available to backorder	O Ring 53 (Alt.)	£1.90 £1.58
21	MK257294-0 Available to backorder	Ring 38	£8.88 £7.40
22	MK262143-8 Available to backorder	Urethane Ring 38	£2.21 £1.84
23	MK267381-7 Available to backorder	Flat Washer 39	£3.12 £2.60
24	MK324900-3 Available to backorder	Tool Holder	£76.92 £64.10
25	MK324901-1 Available to backorder	Impact Bolt	£12.36 £10.30
26	MK213309-3 Available to backorder	O Ring 19 (Alt.)	£3.84 £3.20
28	MK213996-8 Available to backorder	Fluoro Carbon Resin Ring 24	£6.48 £5.40
29	MK324899-2 Available to backorder	Ring 13	£6.48 £5.40
30	MK324838-2 Available to backorder	Slide Plate	£2.53 £2.11
31	MK256266-2 Available to backorder	Pin 6	£0.70 £0.58
32	MK331822-0 Available to backorder	Cylinder 25	£151.08 £125.90
33	MK450243-8 Available to backorder	Slide Sleeve	£1.74 £1.45
34	MK331805-0 Available to backorder	Ring 29	£9.60 £8.00
35	MK267360-5 Available to backorder	Flat Washer 40	£1.90 £1.58
36	MK234052-1 Available to backorder	Compression Spring 42	£2.69 £2.24
37	MK450236-5 Available to backorder	Lock Sleeve	£1.74 £1.45
38	MK234050-5 Available to backorder	Compression Spring 34	£2.53 £2.11
39	MK331795-7 Available to backorder	Driving Sleeve	£26.16 £21.80
40	MK213434-0 Available to backorder	O Ring 26 (Alt.)	£0.70 £0.58
41	MK324898-4 Available to backorder	Striker	£7.32 £6.10
42	MK213283-5 Available to backorder	O-Ring 18	£2.21 £1.84
44	MK256087-2 Available to backorder	Pin 7	£0.53 £0.44
45	MK324918-4 Available to backorder	Piston	£20.28 £16.90
46	MK213262-3 Available to backorder	O Ring 18 (Alt.)	£0.70 £0.58
47	MK450235-7 Available to backorder	Conecting Rod	£1.58 £1.32
48	MK227531-6 Available to backorder	Spiral Bevel Gear 37	£35.52 £29.60
49	MK345867-2 Available to backorder	Link Arm	£5.52 £4.60
50	MK213030-4 Available to backorder	O Ring 8 (Alt.) (Refs 052 \| 061 \| 063 \| 084)	£0.48 £0.40
51	MK450248-8 Available to backorder	Pipe Holder	£2.21 £1.84
53	MK450239-9 Available to backorder	Spring Guide	£1.03 £0.86
54	MK234048-2 Available to backorder	Compression Spring 10	£2.21 £1.84
55	MK213275-4 Available to backorder	O Ring 18 (Alt.)	£0.70 £0.58
56	MK331800-0 Available to backorder	Pipe 15	£3.72 £3.10
58	MK324862-5 Available to backorder	Counter Weight	£12.96 £10.80
64	MK266041-8 Available to backorder	Tapping Screw 5x25 (Refs 137 \| 138)	£0.70 £0.58
65	MK922128-3 Available to backorder	Hex. Socket Head Bolt M4x16	£0.89 £0.74
66	MK450593-1 Available to backorder	Crank Housing Cover	£12.36 £10.30
67	MK266192-7 Available to backorder	Tapping Screw 4x14 (Refs 089 \| 128 \| 131 \| 133)	£0.48 £0.40
68	MK318201-9 Available to backorder	Crank Cap Cover	£11.52 £9.60
69	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 124 \| 125 \| 153)	£0.48 £0.40
70	MK450249-6 Available to backorder	Change Lever	£2.83 £2.36
71	MK233436-0 Available to backorder	Compression Spring 3	£0.48 £0.40
72	MK450250-1 Available to backorder	Lock Button	£1.73 £1.44
73	MK911128-8 In stock	P.H.Screw M4x16 With Wr	£0.54 £0.45
74	MK450241-2 Available to backorder	Crank Cap	£3.12 £2.60
75	MK213223-3 Available to backorder	O Ring 16 (Alt.)	£0.70 £0.58
76	MK158437-6 Available to backorder	Spur Gear 33 Complete	£1.90 £1.58
77	MK424064-4 Available to backorder	Seal Ring B	£1.39 £1.16
78	MK345868-0 Available to backorder	Link Plate	£1.73 £1.44
79	MK450247-0 Available to backorder	Air Pipe	£3.12 £2.60
80	MK263005-3 In stock	Rubber Pin 6	£0.52 £0.43
81	MK452126-8 Available to backorder	Gear Shaft S	£2.83 £2.36
82	MK158712-0 Available to backorder	Crank Housing Complete	£52.44 £43.70
82	MK213579-4 Available to backorder	O-Ring 44 (C10)	£1.03 £0.86
83	MK443138-2 Available to backorder	Filter	£0.48 £0.40
85	MK450238-1 Available to backorder	Filter Cap	£1.39 £1.16
86	MK450244-6 Available to backorder	Crank Gear	£1.73 £1.44
87	MK213176-6 Available to backorder	O Ring 14 < (Alt.)	£0.48 £0.40
88	MK450237-3 Available to backorder	Cap Holder	£1.58 £1.32
90	MK324839-0 Available to backorder	Crank Shaft	£12.12 £10.10
91	MK211332-2 Available to backorder	Ball Bearing 6004Llu	£5.64 £4.70
92	MK961060-6 Available to backorder	Retaining Ring S-20	£0.70 £0.58
93	MK231991-6 Available to backorder	Conical Comp. Spring 21-31	£0.89 £0.74
94	MK254239-9 Available to backorder	Key 4	£1.73 £1.44
95	MK324848-9 Available to backorder	Clutch	£4.44 £3.70
96	MK227188-3 Available to backorder	Spur Gear 33	£16.92 £14.10
97	MK253197-6 Available to backorder	Flat Washer 10	£0.48 £0.40
98	MK961036-3 Available to backorder	Retaining Ring Wr-10	£0.70 £0.58
99	MK345869-8 Available to backorder	Cup Washer 18	£1.74 £1.45
100	MK424063-6 Available to backorder	Seal Ring A	£1.03 £0.86
101	MK158534-8 Available to backorder	Gear Housing Complete	£12.24 £10.20
102	MK213415-4 Available to backorder	O Ring 28 (Alt.)	£0.89 £0.74
103	MK227533-2 Available to backorder	Spiral Bevel Gear 9	£17.76 £14.80
105	MK210105-0 Available to backorder	Ball Bearing 6001Llu	£4.80 £4.00
106	MK125421-6 Available to backorder	Torque Limiter Ass'y	£60.12 £50.10
107	MK257291-6 Available to backorder	Ring 10	£1.74 £1.45
108	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£8.04 £6.70
109	MK450251-9 Available to backorder	Baffle Plate	£2.53 £2.11
110	MK213133-4 Available to backorder	Oil Seal 12	£6.84 £5.70
113	MK253084-9 Available to backorder	Flat Washer 12	£0.70 £0.58
114	MK241863-7 Available to backorder	Fan 70	£2.21 £1.84
115	MK513748-0 Available to backorder	Armature Ass'y 220-240V (INC. 112-114 116 117)	£69.36 £57.80
116	MK681650-6 Available to backorder	Insulation Washer	£6.24 £5.20
118	MK266056-5 Available to backorder	Tapping Screw 5x45	£1.03 £0.86
119	MK625813-4 Available to backorder	Field 220-240V	£22.68 £18.90
120	MK450260-8 Available to backorder	Motor Housing	£24.48 £20.40
121	MK631785-3 Available to backorder	Led Circuit	£11.40 £9.50
122	MK194160-9 In stock	Carbon Brush Cb-350	£3.85 £3.21
123	MK450253-5 Available to backorder	Rear Cover	£5.88 £4.90
126	MK638519-5 Available to backorder	Brush Holder Unit	£10.80 £9.00
127	MK631783-7 Available to backorder	Controller	£67.80 £56.50
128	MK266901-4 Available to backorder	Tapping Screw 4x14 <	£1.22 £1.02
129	MK638406-8 Available to backorder	Lead Unit	£1.74 £1.45
130	MK450246-2 Available to backorder	Cord Clamp Base	£1.90 £1.58
132	MK687169-3 Available to backorder	Strain Relief	£0.48 £0.40
134	MK450240-4 Available to backorder	Lens	£1.58 £1.32
135	MK682560-0 Available to backorder	Cord Guard 10	£2.38 £1.98
136	MK695123-3 Available to backorder	Power Supply Cord 1.5-2-4.0	£40.92 £34.10
139	MK450352-3 Available to backorder	Shoulder Sleeve 6	£1.03 £0.86
140	MK8580T5-2 Available to backorder	Hr3541Fc Name Plate (Alt.)	£1.15 £0.96
140	MK865380-9 Available to backorder	Hr3541Fc Name Plate	£0.89 £0.74
141	MK911233-1 Available to backorder	Pan Head Screw M5x20	£0.48 £0.40
142	MK266211-9 Available to backorder	Tapping Screw 5x40	£0.89 £0.74
143	MK267066-5 Available to backorder	Flat Washer 5	£0.70 £0.58
144	MK234051-3 Available to backorder	Compression Spring 11	£1.74 £1.45
145	MK450255-1 Available to backorder	Handle Base	£18.48 £15.40
146	MK419014-2 Available to backorder	Dust Cover Support	£1.74 £1.45
147	MK421912-8 Available to backorder	Dust Cover	£3.12 £2.60
148	MK450256-9 Available to backorder	Handle	£8.28 £6.90
149	MK419025-7 Available to backorder	Switch Lever	£2.21 £1.84
150	MK154626-1 Available to backorder	Switch Holder Complete	£2.21 £1.84
151	MK650676-9 Available to backorder	Switch C3Pa-1111 <	£11.76 £9.80
152	MK450257-7 Available to backorder	Handle Cover	£14.16 £11.80
154	MK267383-3 Available to backorder	Flat Washer 22	£0.48 £0.40
155	MK267721-9 Available to backorder	Wave Washer 15	£0.48 £0.40
156	MK213083-3 Available to backorder	O Ring 9 (Alt.)	£1.22 £1.02
901	MK195192-9 Available to backorder	Hammer Service Kit Set (B01)	£38.16 £31.80
901	MK417765-1 Available to backorder	Front Cuff 22 (C10)	£2.21 £1.84
901	MK198993-4 In stock	Grease Vessel Set < (A01-2)	£9.00 £7.50
901	MK417766-9 Available to backorder	Front Cuff 38 (C20)	£5.04 £4.20
901	MK1914C5-7 In stock	Grease Set (Alt.) (C11)	£8.58 £7.15
901	MK415021-3 Available to backorder	Hose Joint (C30)	£3.96 £3.30
901	MK181573-3 Available to backorder	Grease Vessel 93G (A01)	£4.92 £4.10

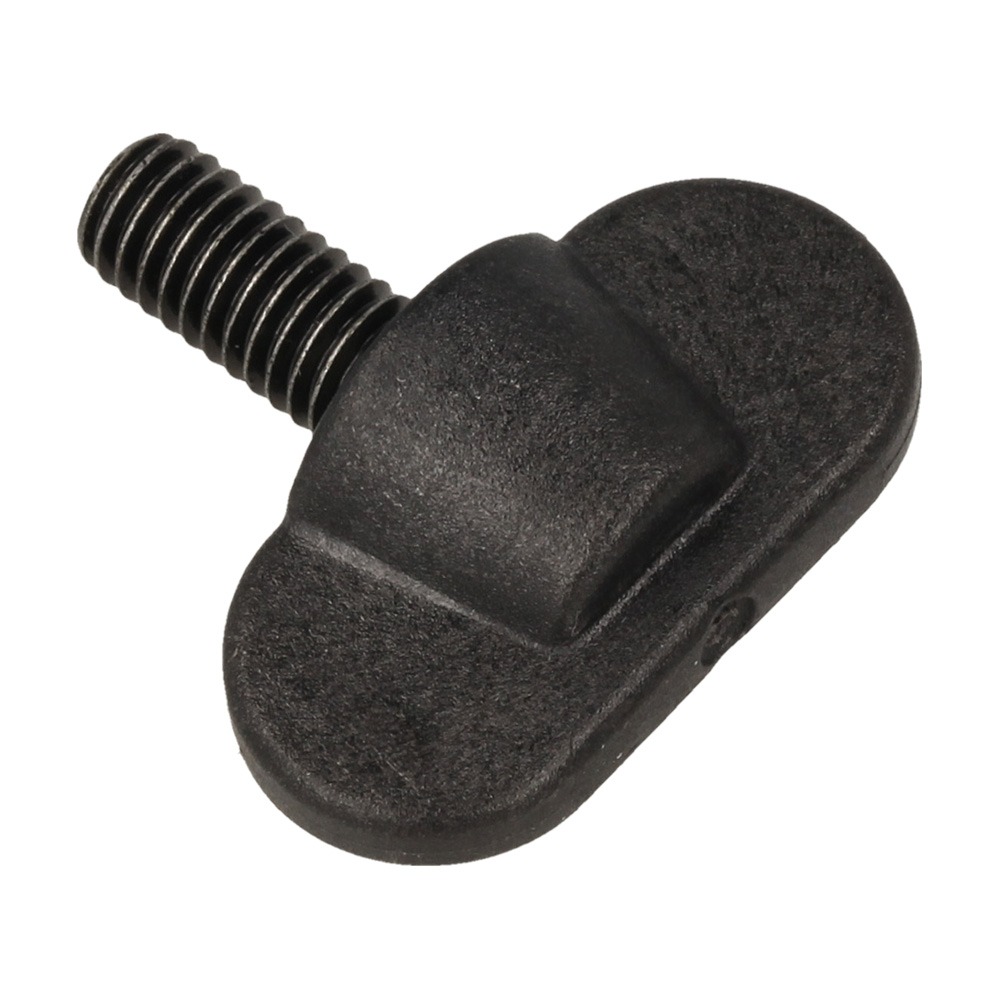

902	MK265701-9 In stock	Thumb Screw M6x14 (C10)	£2.21 £1.84
902	MK344491-8 Available to backorder	Grip Spring 68 (C40)	£7.20 £6.00
902	MK416299-1 Available to backorder	Side Grip Base 68 (C60)	£8.52 £7.10
902	MK266163-4 Available to backorder	Cup Square Neck Bolt M8x80 (C20)	£3.12 £2.60
902	MK135209-6 Available to backorder	Grip 36 Ass'y (A02)	£25.20 £21.00
902	MK344492-6 Available to backorder	Plate (C50)	£1.58 £1.32
902	MK931302-2 Available to backorder	Hex. Nut M6 (C70)	£0.48 £0.40
902	MK321248-4 Available to backorder	Depth Gauge (C30)	£5.76 £4.80
903	MK824819-1 Available to backorder	Plastic Carrying Case (A03)	£63.24 £52.70
903	MK163467-4 Available to backorder	Latch (C10)	£2.83 £2.36
903	MK824825-6 Available to backorder	Plastic Carrying Case < (A03-1)	£88.08 £73.40
904	MK443122-7 Available to backorder	Cloth (A04)	£3.48 £2.90
905	MK810409-6 Available to backorder	Caution Card (A05)	£0.89 £0.74
