Model No. HR3210FCT

Rotary Hammer 32mm

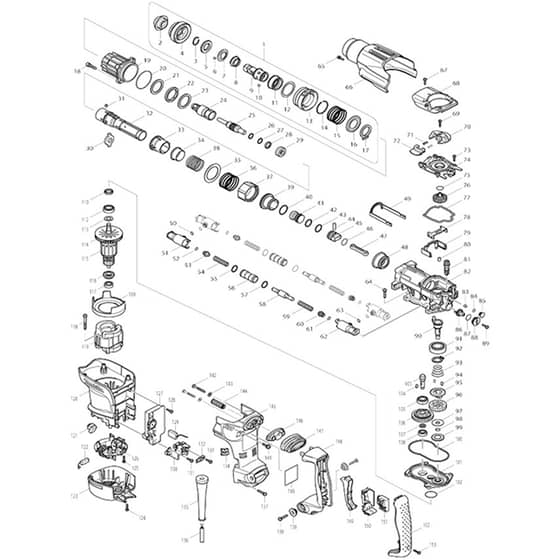

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK125420-8 Available to backorder	Tool Holder Assembly (INC. 2-17)	£80.18 £66.82
2	MK286282-0 Available to backorder	Tool Holder Cap	£1.44 £1.20
3	MK233940-9 In stock	Ring Spring 19	£0.48 £0.40
4	MK450245-4 Available to backorder	Chuck Cover	£2.18 £1.82
5	MK257288-5 Available to backorder	Ring 21	£10.40 £8.67
6	MK216022-2 Available to backorder	Steel Ball 7.0	£0.48 £0.40
7	MK345873-7 Available to backorder	Guide Washer	£1.44 £1.20
8	MK234049-0 Available to backorder	Conical Compression Spring	£0.58 £0.48
9	MK324842-1 Available to backorder	Tool Holder	£40.16 £33.47
10	MK216013-3 Available to backorder	Steel Ball 6	£0.48 £0.40
11	MK331801-8 Available to backorder	Change Ring	£4.20 £3.50
12	MK267362-1 Available to backorder	Flat Washer 37	£1.44 £1.20
13	MK450258-5 Available to backorder	Change Cover	£3.46 £2.88
14	MK231988-5 Available to backorder	Ring Spring 34	£0.86 £0.72
15	MK234052-1 Available to backorder	Compression Spring 42	£2.46 £2.05
16	MK345870-3 Available to backorder	Washer 28	£4.34 £3.62
17	MK961108-4 Available to backorder	Retaining Ring (Ext) S-28	£0.86 £0.72
18	MK922341-3 Available to backorder	Hex. Socket Head Bolt M6x25 W	£0.74 £0.62
19	MK213436-6 Available to backorder	Oil Seal 28 (C10)	£2.60 £2.17
19	MK158533-0 Available to backorder	Barrel Complete	£25.28 £21.07
19	MK213142-3 Available to backorder	O-Ring 35 (Alt.) (C21)	£0.74 £0.62
20	MK213656-2 Available to backorder	O-Ring 53	£1.74 £1.45
21	MK267810-0 Available to backorder	Flat Washer 34	£6.22 £5.18
22	MK262138-1 Available to backorder	Urethane Ring 34	£1.60 £1.33
24	MK324841-3 Available to backorder	Tool Holder Guide	£29.46 £24.55
25	MK324850-2 Available to backorder	Impact Bolt	£11.56 £9.63
26	MK213228-3 Available to backorder	O-Ring 15	£0.58 £0.48
28	MK213321-3 Available to backorder	Fluoro Carbon Resin Ring 20	£9.40 £7.83
29	MK424062-8 Available to backorder	Rubber Ring 13	£7.66 £6.38
30	MK324838-2 Available to backorder	Slide Plate	£2.32 £1.93
31	MK256266-2 Available to backorder	Pin 6	£0.58 £0.48
32	MK331794-9 Available to backorder	Cylinder 25	£112.96 £94.13
33	MK450243-8 Available to backorder	Slide Sleeve	£1.60 £1.33
34	MK331805-0 Available to backorder	Ring 29	£9.24 £7.70
35	MK267360-5 Available to backorder	Flat Washer 40	£1.74 £1.45
37	MK450236-5 Available to backorder	Lock Sleeve	£1.60 £1.33
38	MK234050-5 Available to backorder	Compression Spring 34	£2.32 £1.93
39	MK331795-7 Available to backorder	Driving Sleeve	£25.28 £21.07
40	MK213434-0 Available to backorder	O-Ring 26	£0.58 £0.48
41	MK324858-6 Available to backorder	Striker	£4.62 £3.85
42	MK213283-5 Available to backorder	O-Ring 18	£2.02 £1.68
44	MK256087-2 Available to backorder	Pin 7	£0.48 £0.40
45	MK324918-4 Available to backorder	Piston	£19.64 £16.37
46	MK213262-3 Available to backorder	O-Ring 18	£0.58 £0.48
47	MK450235-7 Available to backorder	Connecting Rod	£1.32 £1.10
48	MK227531-6 Available to backorder	Spiral Bevel Gear 37	£34.38 £28.65
49	MK345867-2 Available to backorder	Link Arm	£5.36 £4.47
50	MK213030-4 Available to backorder	O-Ring 8 (Refs 052 \| 061 \| 063 \| 084)	£0.48 £0.40
51	MK450248-8 Available to backorder	Pipe Holder	£2.02 £1.68
53	MK450239-9 Available to backorder	Spring Guide	£0.86 £0.72
54	MK234048-2 Available to backorder	Compression Spring 10	£2.02 £1.68
55	MK213275-4 Available to backorder	O-Ring 18	£0.58 £0.48
56	MK331800-0 Available to backorder	Pipe 15	£3.62 £3.02
58	MK324862-5 Available to backorder	Counter Weight	£12.58 £10.48
64	MK266041-8 Available to backorder	Binding Head Tapping Screw 5x25 (Refs 137 \| 138)	£0.58 £0.48
65	MK922123-3 Available to backorder	Hex. Socket Head Bolt M4x14 Wr	£0.58 £0.48
66	MK450254-3 Available to backorder	Crank Housing Cover	£8.66 £7.22
67	MK266192-7 Available to backorder	Binding Head Tapping Screw 4x14 (Refs 089 \| 128 \| 131 \| 133)	£0.48 £0.40
68	MK318201-9 Available to backorder	Crank Cap Cover	£11.14 £9.28
69	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 124 \| 125 \| 153)	£0.48 £0.40
70	MK450249-6 Available to backorder	Change Lever	£2.60 £2.17
71	MK233436-0 Available to backorder	Compression Spring 3	£0.48 £0.40
72	MK450250-1 Available to backorder	Lock Button	£1.44 £1.20
73	MK911128-8 Available to backorder	Pan Head Screw M4x16 Wr	£0.47 £0.39
74	MK450241-2 Available to backorder	Crank Cap	£3.04 £2.53
75	MK213223-3 Available to backorder	O-Ring 16	£0.58 £0.48
76	MK158437-6 Available to backorder	Spur Gear 33 Complete	£1.74 £1.45
77	MK424064-4 Available to backorder	Seal Ring B	£1.16 £0.97
78	MK345868-0 Available to backorder	Link Plate	£1.44 £1.20
79	MK450247-0 Available to backorder	Air Pipe	£3.04 £2.53
80	MK263005-3 In stock	Rubber Pin 6	£0.47 £0.39
81	MK452126-8 Available to backorder	Gear Shaft S	£2.60 £2.17
82	MK213579-4 Available to backorder	O-Ring 44 (C10)	£0.86 £0.72
82	MK158712-0 Available to backorder	Crank Housing Complete (Alt.)	£50.72 £42.27
83	MK443138-2 Available to backorder	Filter	£0.48 £0.40
85	MK450238-1 Available to backorder	Filter Cap	£1.16 £0.97
86	MK450244-6 Available to backorder	Crank Gear	£1.44 £1.20
87	MK213176-6 Available to backorder	O-Ring 14 <	£0.48 £0.40
88	MK450237-3 Available to backorder	Cap Holder	£1.32 £1.10
90	MK324839-0 Available to backorder	Crankshaft	£11.72 £9.77
91	MK211332-2 Available to backorder	Ball Bearing 6004Llu	£5.48 £4.57
92	MK961060-6 Available to backorder	Retaining Ring (Ext) S-20	£0.58 £0.48
93	MK231991-6 Available to backorder	Conical Compression Spring	£0.74 £0.62
94	MK254239-9 Available to backorder	Key 4	£1.44 £1.20
95	MK324848-9 Available to backorder	Clutch	£4.34 £3.62
96	MK227188-3 Available to backorder	Spur Gear 33	£16.34 £13.62
97	MK253197-6 Available to backorder	Flat Washer 10	£0.48 £0.40
98	MK961036-3 Available to backorder	Retaining Ring (Ext) Wr-10	£0.58 £0.48
99	MK345869-8 Available to backorder	Cup Washer 18	£1.60 £1.33
100	MK424063-6 Available to backorder	Seal Ring A	£0.86 £0.72
101	MK158534-8 Available to backorder	Gear Housing Complete	£11.84 £9.87
102	MK213415-4 Available to backorder	O-Ring 28	£0.74 £0.62
103	MK227533-2 Available to backorder	Spiral Bevel Gear 9	£17.20 £14.33
105	MK210105-0 Available to backorder	Ball Bearing 6001Llu	£4.62 £3.85
106	MK125421-6 Available to backorder	Torque Limiter Assembly	£58.06 £48.38
107	MK257291-6 Available to backorder	Ring 10	£1.60 £1.33
108	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£7.80 £6.50
109	MK450251-9 Available to backorder	Baffle Plate	£2.32 £1.93
110	MK213133-4 Available to backorder	Oil Seal 12	£6.56 £5.47
113	MK253084-9 Available to backorder	Flat Washer 12	£0.58 £0.48
114	MK241863-7 Available to backorder	Fan 70	£2.02 £1.68
115	MK513748-0 Available to backorder	Armature Assembly 220-240V (INC. 112-114 116 117)	£67.02 £55.85
116	MK681650-6 Available to backorder	Insulation Washer	£6.06 £5.05
118	MK266056-5 Available to backorder	Binding Head Tapping Screw 5x45	£0.86 £0.72
119	MK625813-4 Available to backorder	Field 220-240V	£21.96 £18.30
120	MK450260-8 Available to backorder	Motor Housing	£23.68 £19.73
121	MK631785-3 Available to backorder	Led Circuit	£10.98 £9.15
122	MK194160-9 In stock	Carbon Brush Set Cb-350	£3.62 £3.02
123	MK450253-5 Available to backorder	Rear Cover	£5.64 £4.70
126	MK638519-5 Available to backorder	Brush Holder Unit	£10.40 £8.67
127	MK631783-7 Available to backorder	Controller	£65.58 £54.65
128	MK266901-4 Available to backorder	Binding Head Tapping Screw 4x14	£1.02 £0.85
129	MK638406-8 Available to backorder	Lead Unit	£1.60 £1.33
130	MK450246-2 Available to backorder	Strain Relief Base	£1.74 £1.45
132	MK687169-3 Available to backorder	Strain Relief	£0.48 £0.40
134	MK450240-4 Available to backorder	Lens	£1.32 £1.10
135	MK682560-0 Available to backorder	Cord Guard 10	£2.18 £1.82
136	MK695123-3 Available to backorder	Power Supply Cord 1.5-2-4.0	£39.58 £32.98
139	MK450352-3 Available to backorder	Shoulder Sleeve 6	£0.86 £0.72
140	MK8580L2-2 Available to backorder	Name Plate Hr3210Fct (Alt.)	£0.96 £0.80
140	MK864544-2 Available to backorder	Name Plate Hr3210Fct	£0.74 £0.62
141	MK911233-1 Available to backorder	Pan Head Screw M5x20 Wr	£0.48 £0.40
142	MK266211-9 Available to backorder	Binding Head Tapping Screw 5x40	£0.74 £0.62
143	MK267066-5 Available to backorder	Flat Washer 5	£0.58 £0.48
144	MK234051-3 Available to backorder	Compression Spring 11	£1.60 £1.33
145	MK450255-1 Available to backorder	Handle Base	£17.92 £14.93
146	MK419014-2 Available to backorder	Dust Cover Support	£1.60 £1.33
147	MK421912-8 Available to backorder	Dust Cover	£3.04 £2.53
148	MK450256-9 Available to backorder	Handle	£7.96 £6.63
149	MK419025-7 Available to backorder	Switch Lever	£2.02 £1.68
150	MK154626-1 Available to backorder	Switch Holder Complete	£2.02 £1.68
151	MK650676-9 Available to backorder	Switch C3Pa-1111 <	£11.42 £9.52
152	MK450257-7 Available to backorder	Handle Cover	£13.74 £11.45
154	MK267383-3 Available to backorder	Flat Washer 22	£0.48 £0.40
155	MK267721-9 Available to backorder	Wave Washer 15	£0.48 £0.40
156	MK213083-3 Available to backorder	O-Ring 9	£1.02 £0.85
901	MK195199-5 Available to backorder	Hammer Service Kit (B01)	£33.52 £27.93
901	MK1914C5-7 In stock	Grease Set (Alt.) (C11)	£7.54 £6.28
901	MK194568-7 Available to backorder	Drill Chuck Set (A01)	£99.02 £82.52
902	MK181573-3 Available to backorder	Grease Vessel Set (A02)	£4.76 £3.97
902	MK198993-4 In stock	Grease Vessel Set < (A02-2)	£8.74 £7.28
903	MK931302-2 Available to backorder	Hex. Nut M6 (C70)	£0.48 £0.40
903	MK265701-9 In stock	Thumb Screw M6x14 (C10)	£2.02 £1.68
903	MK417026-9 Available to backorder	Side Grip Base 63 (C60)	£4.48 £3.73
903	MK266163-4 Available to backorder	Round Head Square Neck Bolt M8x80 (C20)	£3.04 £2.53
903	MK321248-4 Available to backorder	Depth Gauge (C30)	£5.56 £4.63
903	MK344811-6 Available to backorder	Grip Spring 63 (C50)	£5.94 £4.95
903	MK344492-6 Available to backorder	Plate (C40)	£1.32 £1.10
903	MK135197-7 Available to backorder	Grip 36 Assembly (A03)	£24.98 £20.82
904	MK163467-4 Available to backorder	Latch (C10)	£2.60 £2.17
904	MK824825-6 Available to backorder	Plastic Case (A04)	£85.14 £70.95
904	MK824819-1 Available to backorder	Plastic Case (Alt.) (A04-1)	£61.12 £50.93
905	MK810409-6 Available to backorder	Caution Tag (A05)	£0.74 £0.62
906	MK806483-0 Available to backorder	Model No. Label Hr3210Fct (A06)	£0.58 £0.48
