Model No. HR3012FC

30mm Combination Hammer

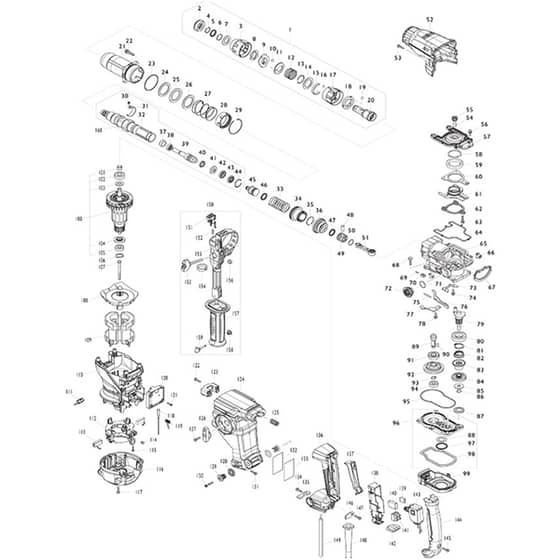

Power Tool Parts Diagrams

	Part No.	Details
1	MK127219-7 Available to backorder	Tool Holder Assembly	£45.48 £37.90
2	MK422570-3 Available to backorder	Cap 35	£1.49 £1.24
3	MK459162-5 Available to backorder	Chuck Cover	£3.96 £3.30
4	MK233989-9 In stock	Ring Spring 14	£0.73 £0.61
5	MK346834-0 Available to backorder	Washer 16 (Alt.)	£0.89 £0.74
5	MK346221-3 Available to backorder	Washer 16	£1.03 £0.86
6	MK233992-0 In stock	Ring Spring 15	£0.73 £0.61
7	MK253467-3 Available to backorder	Washer 17	£1.79 £1.49
8	MK347687-0 Available to backorder	Plate	£0.84 £0.70
9	MK310926-1 Available to backorder	Stopper	£6.12 £5.10
10	MK216022-2 In stock	Steel Ball 7.0	£0.48 £0.40
11	MK347745-2 Available to backorder	Guide Washer	£1.32 £1.10
12	MK232554-1 Available to backorder	Compression Spring 26	£0.48 £0.40
13	MK233924-7 Available to backorder	Ring Spring 21	£0.70 £0.58
14	MK253468-1 Available to backorder	Flat Washer 24	£0.98 £0.82
15	MK232555-9 Available to backorder	Leaf Spring	£0.65 £0.54
16	MK216018-3 Available to backorder	Steel Ball 5.0	£0.48 £0.40
17	MK459159-4 Available to backorder	Change Cover A	£4.20 £3.50
18	MK347496-7 Available to backorder	Change Ring A	£6.48 £5.40
19	MK216013-3 Available to backorder	Steel Ball 6	£0.48 £0.40
20	MK327264-4 Available to backorder	Tool Holder	£13.68 £11.40
21	MK213636-8 Available to backorder	Oil Seal 25 (C10)	£6.24 £5.20
21	MK140J35-0 Available to backorder	Barrel Complete	£17.64 £14.70
22	MK266793-1 Available to backorder	Hex. S.H.B. M5x25 With Wr	£2.21 £1.84
23	MK213620-3 Available to backorder	O Ring 46 (Alt.)	£0.89 £0.74
24	MK267354-0 Available to backorder	Flat Washer 31	£0.89 £0.74
25	MK422493-5 Available to backorder	Rubber Ring 31	£2.38 £1.98
27	MK232496-9 Available to backorder	Compression Spring 37	£0.84 £0.70
28	MK419986-1 Available to backorder	Lock Sleeve	£0.89 £0.74
29	MK233952-2 Available to backorder	Ring Spring 41	£0.48 £0.40
30	MK256598-7 Available to backorder	Shoulder Pin 4	£1.49 £1.24
31	MK347501-0 Available to backorder	Leaf Spring	£0.84 £0.70
32	MK327272-5 Available to backorder	Tool Holder Guide	£48.96 £40.80
33	MK232497-7 Available to backorder	Compression Spring 27	£0.84 £0.70
34	MK327276-7 Available to backorder	Driving Sleeve	£8.52 £7.10
35	MK232501-2 Available to backorder	Ring Spring 24	£0.48 £0.40
36	MK226868-8 Available to backorder	Spiral Bevel Gear 31	£21.36 £17.80
37	MK327515-5 Available to backorder	Sleeve 11	£1.94 £1.62
38	MK327516-3 Available to backorder	Ring 11	£1.94 £1.62
39	MK140S90-6 Available to backorder	Impact Bolt B Complete	£11.88 £9.90
40	MK213880-7 Available to backorder	Seal Ring 12	£1.66 £1.38
41	MK327268-6 Available to backorder	Ring 11	£1.94 £1.62
42	MK424267-0 Available to backorder	Cushion Ring 12	£1.74 £1.45
43	MK327271-7 Available to backorder	Washer 11	£2.10 £1.75
44	MK231987-7 Available to backorder	Ring Spring 21	£0.89 £0.74
45	MK327266-0 Available to backorder	Striker	£3.48 £2.90
46	MK213881-5 Available to backorder	O Ring 16 (Alt.)	£5.40 £4.50
48	MK268122-4 Available to backorder	Pin 7	£0.65 £0.54
49	MK319807-6 Available to backorder	Piston	£5.40 £4.50
50	MK213226-7 Available to backorder	O Ring 16 (Alt.)	£1.58 £1.32
51	MK140J36-8 Available to backorder	Connecting Rod Complete	£4.56 £3.80
52	MK459167-5 Available to backorder	Barrel Cover	£7.44 £6.20
53	MK266326-2 Available to backorder	Tapping Screw 4x18 (Refs 117 \| 122 \| 127 \| 131 \| 134 \| 145 \| 147)	£0.48 £0.40
54	MK443153-6 Available to backorder	Felt	£0.89 £0.74
55	MK459180-3 Available to backorder	Filter Cap	£0.84 £0.70
56	MK922123-3 Available to backorder	Hex. Socket Head Bolt M4x14 (Refs 074 \| 078)	£0.70 £0.58
57	MK319802-6 Available to backorder	Crank Cap	£7.44 £6.20
58	MK961140-8 Available to backorder	Retaining Ring	£1.03 £0.86
59	MK211423-9 Available to backorder	Ball Bearing 6806Ddw	£4.32 £3.60
60	MK347500-2 Available to backorder	Bearing Retainer B	£1.49 £1.24
61	MK140J31-8 Available to backorder	Counter Weight Complete	£54.12 £45.10
62	MK310927-9 Available to backorder	Weight Retainer	£3.36 £2.80
63	MK266948-8 Available to backorder	Hex S. H. Bolt M4x20 With Wr	£0.65 £0.54
64	MK459182-9 Available to backorder	Seal Ring B	£1.32 £1.10
65	MK140J33-4 Available to backorder	Crank Housing Complete	£33.48 £27.90
66	MK455165-7 Available to backorder	Fix Guide	£0.65 £0.54
67	MK422492-7 Available to backorder	Cushion	£1.49 £1.24
68	MK266021-4 Available to backorder	Tapping Screw 5x20 <	£0.48 £0.40
68	MK266420-0 Available to backorder	Tapping Screw 5x20	£0.48 £0.40
69	MK232499-3 Available to backorder	Compression Spring 2	£0.48 £0.40
70	MK310929-5 Available to backorder	Push Corn	£0.98 £0.82
71	MK213262-3 Available to backorder	O Ring 18 (Alt.)	£0.70 £0.58
72	MK459175-6 Available to backorder	Link Lever	£1.79 £1.49
73	MK347497-5 Available to backorder	Bearing Retainer A	£0.98 £0.82
75	MK234019-9 Available to backorder	Compression Spring 4	£0.48 £0.40
76	MK345814-3 Available to backorder	Link Plate	£0.70 £0.58
77	MK347498-3 Available to backorder	Guide Plate	£0.98 £0.82
79	MK140M22-7 Available to backorder	Crank Shaft Complete	£12.96 £10.80
80	MK211323-3 Available to backorder	Ball Bearing 6904Llu	£10.92 £9.10
81	MK961060-6 Available to backorder	Retaining Ring S-20	£0.70 £0.58
82	MK232498-5 Available to backorder	Conical Comp. Spring 21-26	£0.48 £0.40
83	MK327273-3 Available to backorder	Clutch	£4.08 £3.40
84	MK226869-6 Available to backorder	Helical Gear 31	£7.92 £6.60
85	MK267353-2 Available to backorder	Flat Washer 8	£0.70 £0.58
86	MK961034-7 Available to backorder	Retaining Ring	£0.70 £0.58
87	MK345818-5 Available to backorder	Cup Washer 16	£0.48 £0.40
88	MK253749-3 Available to backorder	Flat Washer 16	£1.03 £0.86
89	MK226867-0 Available to backorder	Spiral Bevel Gear 8	£10.68 £8.90
90	MK254239-9 Available to backorder	Key 4	£1.73 £1.44
91	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.44 £6.20
92	MK125386-2 Available to backorder	Torque Limiter Ass'y	£52.44 £43.70
93	MK961006-2 Available to backorder	Retaining Ring S-10	£0.48 £0.40
94	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£8.04 £6.70
95	MK459181-1 Available to backorder	Seal Ring A	£0.98 £0.82
96	MK136330-4 Available to backorder	Gear Housing Ass'y	£15.00 £12.50
97	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
98	MK459183-7 Available to backorder	Sponge Sheet	£0.84 £0.70
99	MK140J32-6 Available to backorder	Air Duct Complete	£5.88 £4.90
100	MK515448-8 Available to backorder	Armature Ass'y 220-240V	£55.56 £46.30
101	MK331775-3 Available to backorder	Sleeve 10	£1.39 £1.16
102	MK211097-6 Available to backorder	Ball Bearing 6000Llb	£6.84 £5.70
103	MK253171-4 Available to backorder	Flat Washer 10	£0.70 £0.58
104	MK681644-1 Available to backorder	Insulation Washer	£0.89 £0.74
106	MK267804-5 Available to backorder	Wave Washer 15	£0.48 £0.40
108	MK459172-2 Available to backorder	Baffle Plate	£1.63 £1.36
109	MK621899-6 Available to backorder	Field	£32.28 £26.90
110	MK459158-6 Available to backorder	Motor Housing	£12.12 £10.10
111	MK620C43-0 Available to backorder	Led Circuit	£5.76 £4.80
112	MK632N59-9 Available to backorder	Brush Holder Unit	£18.84 £15.70
113	MK197244-2 Available to backorder	Carbon Brush Cb-351 (Alt.)	£10.20 £8.50
114	MK652044-2 Available to backorder	+Bind Screw M3.5x5.0	£0.48 £0.40
115	MK266404-8 Available to backorder	Tapping Screw Bind 3x14	£0.48 £0.40
116	MK459169-1 Available to backorder	Rear Cover	£5.88 £4.90
118	MK632P88-4 Available to backorder	Lead Unit	£1.15 £0.96
119	MK632P89-2 Available to backorder	Lead Unit	£2.38 £1.98
120	MK620C41-4 Available to backorder	Controller	£53.88 £44.90
123	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
123	MK140M21-9 Available to backorder	Handle Stopper Complete	£1.49 £1.24
124	MK459161-7 Available to backorder	Handle Base	£9.60 £8.00
125	MK232500-4 Available to backorder	Compression Spring 10	£0.65 £0.54
126	MK459174-8 Available to backorder	Change Lever	£0.98 £0.82
128	MK459184-5 Available to backorder	Cushion Ring 12	£0.65 £0.54
129	MK459176-4 Available to backorder	Shoulder Sleeve 5	£0.84 £0.70
130	MK266041-8 Available to backorder	Tapping Screw 5x25 <	£0.70 £0.58
130	MK266459-3 Available to backorder	Tapping Screw 5x25	£0.48 £0.40
132	MK856V90-1 Available to backorder	Hr3012Fc Name Plate	£0.48 £0.40
133	MK818U61-0 Available to backorder	Clear Label	£0.48 £0.40
135	MK347502-8 Available to backorder	Lock Plate	£1.66 £1.38
136	MK459164-1 Available to backorder	Handle	£5.52 £4.60
137	MK459177-2 Available to backorder	Switch Lever	£1.49 £1.24
138	MK459178-0 Available to backorder	Switch Holder	£1.79 £1.49
139	MK646755-9 Available to backorder	Resistor	£1.74 £1.45
140	MK645190-8 Available to backorder	Noise Suppressor	£0.89 £0.74
141	MK654531-7 Available to backorder	Terminal Block 2P	£2.21 £1.84
141	MK654741-6 Available to backorder	Terminal Block (Alt.)	£1.66 £1.38
142	MK424031-9 Available to backorder	Sponge Sheet	£0.65 £0.54
143	MK651385-3 Available to backorder	Switch C3Jw-A1B-Pa7	£30.84 £25.70
144	MK459166-7 Available to backorder	Handle Cover	£6.96 £5.80
146	MK687169-3 Available to backorder	Strain Relief	£0.48 £0.40
148	MK682573-1 Available to backorder	Cord Guard 10	£0.89 £0.74
149	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.92 £9.10
150	MK126882-3 Available to backorder	Grip Assembly	£19.32 £16.10
151	MK144959-2 Available to backorder	Lock Button Complete	£1.32 £1.10
152	MK233360-7 Available to backorder	Compression Spring 4	£0.48 £0.40
153	MK265625-9 Available to backorder	Thumb Screw M6x50	£1.39 £1.16
154	MK422258-5 Available to backorder	Sponge Sheet	£0.48 £0.40
155	MK458355-1 Available to backorder	Side Handle Base	£5.64 £4.70
156	MK931302-2 Available to backorder	Hex. Nut M6	£0.48 £0.40
157	MK458357-7 Available to backorder	Grip 36	£4.68 £3.90
158	MK422255-1 Available to backorder	Cap	£1.49 £1.24
159	MK161838-9 Available to backorder	Fix Pin	£3.84 £3.20
160	MK136305-3 Available to backorder	Tool Holder Ass'y	£74.40 £62.00
901	MK191F46-4 Available to backorder	Drill Chuck Set (A01)	£65.16 £54.30
902	MK331886-4 Available to backorder	Depth Gauge (A02)	£2.18 £1.82
903	MK8012G9-4 Available to backorder	Hr3012Fcj Indication Label (A03)	£0.50 £0.42
904	MK8012H0-9 Available to backorder	Hr3012Fcj Plastic Case Label (A04)	£0.48 £0.40
905	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
905	MK821552-6 Available to backorder	Connector Plastic Case (A05)	£77.40 £64.50
906	MK835B25-5 Available to backorder	Inner Tray (A06)	£10.92 £9.10
910	MK191G00-4 Available to backorder	Dx11Dust Collection System Set (F10)	£151.92 £126.60
931	MK199557-7 Available to backorder	Filter Set (F31)	£14.28 £11.90
