Makita HR2670FT - Combination Hammer - Power Tool Diagram

Description

Model No. HR2670FT

Combination Hammer

Power Tool Parts Diagrams

	Part No.	Details
1	MK127219-7 Available to backorder	Tool Holder Assembly (INC. 2-20)	£45.48 £37.90
2	MK422570-3 Available to backorder	Cap 35	£1.49 £1.24

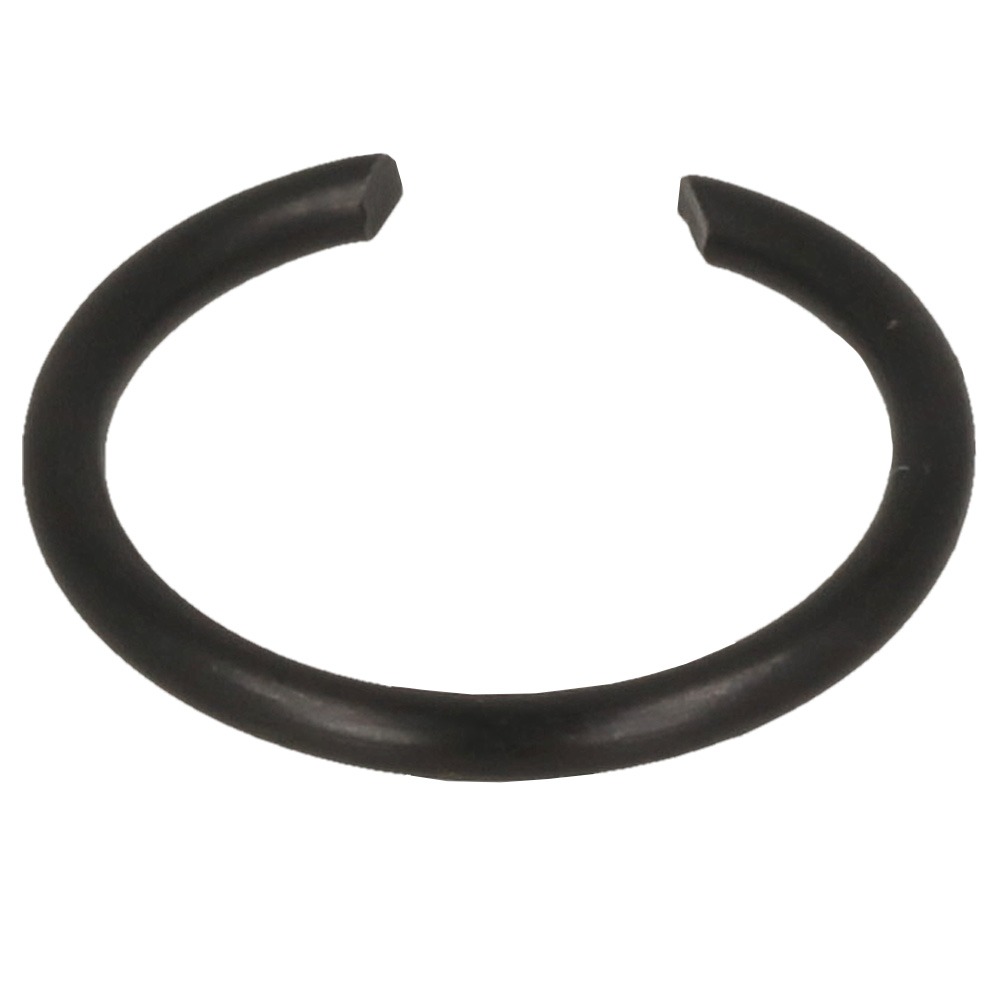

3	MK233989-9 In stock	Ring Spring 14	£0.73 £0.61
4	MK346834-0 Available to backorder	Washer 16	£0.89 £0.74

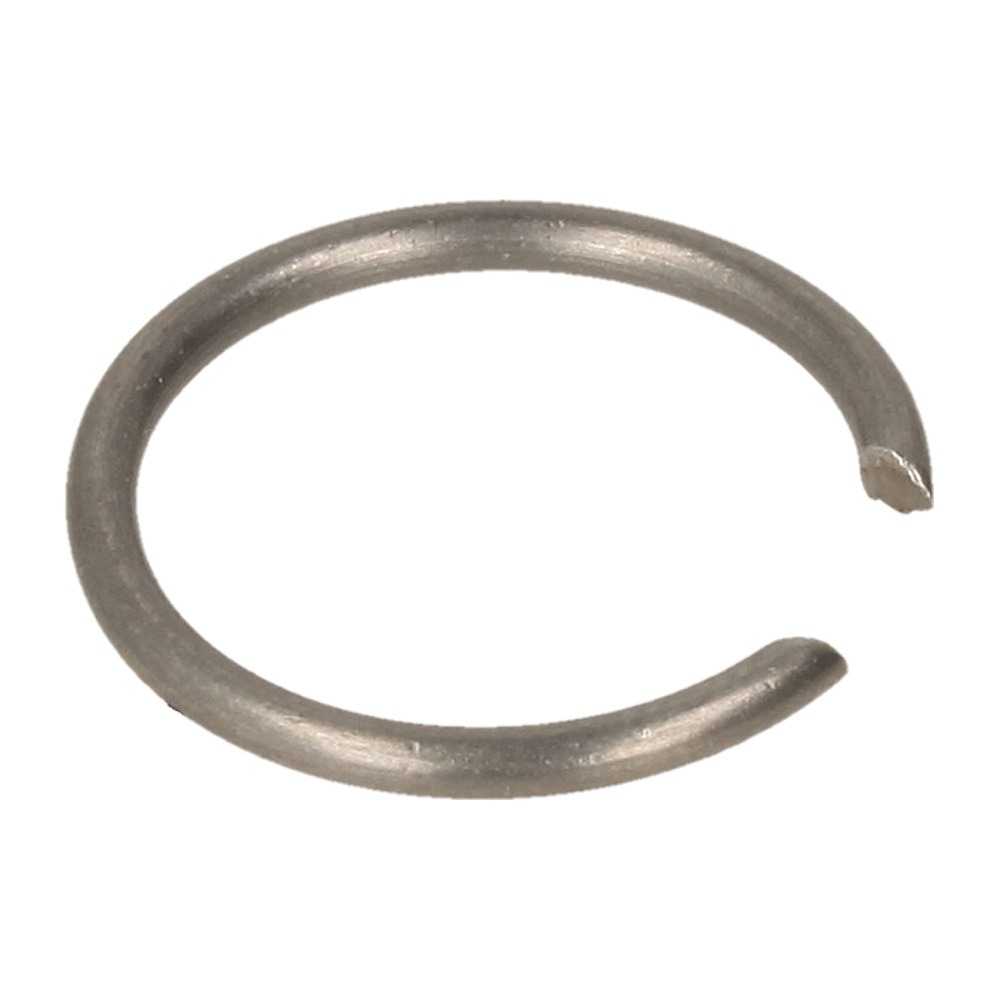

5	MK233992-0 In stock	Ring Spring 15	£0.73 £0.61
6	MK253467-3 Available to backorder	Washer 17	£1.79 £1.49
7	MK459162-5 Available to backorder	Chuck Cover	£3.96 £3.30
8	MK347687-0 Available to backorder	Plate	£0.84 £0.70
9	MK310926-1 Available to backorder	Stopper	£6.12 £5.10
10	MK216022-2 In stock	Steel Ball 7.0	£0.48 £0.40
11	MK347745-2 Available to backorder	Guide Washer	£1.32 £1.10
12	MK232554-1 Available to backorder	Compression Spring 26	£0.48 £0.40
13	MK233924-7 Available to backorder	Ring Spring 21	£0.70 £0.58
14	MK253468-1 Available to backorder	Flat Washer 24	£0.98 £0.82
15	MK232555-9 Available to backorder	Leaf Spring	£0.65 £0.54
16	MK216018-3 Available to backorder	Steel Ball 5.0	£0.48 £0.40
17	MK459159-4 Available to backorder	Change Cover A	£4.20 £3.50
18	MK347496-7 Available to backorder	Change Ring A	£6.48 £5.40
19	MK327264-4 Available to backorder	Tool Holder	£13.68 £11.40
20	MK216013-3 Available to backorder	Steel Ball 6	£0.48 £0.40
22	MK210143-2 Available to backorder	Ball Bearing 626Zz	£1.74 £1.45
22	MK211499-6 Available to backorder	Ball Bearing 626Zz (Alt.)	£1.58 £1.32
23	MK233360-7 Available to backorder	Compression Spring 4	£0.48 £0.40
25	MK232286-0 Available to backorder	Leaf Spring	£0.70 £0.58
26	MK213278-8 Available to backorder	O-Ring 17	£0.48 £0.40
27	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
28	MK267153-0 Available to backorder	Flat Washer 30	£0.89 £0.74
29	MK455394-2 Available to backorder	Change Lever Cap	£0.70 £0.58
32	MK216019-1 Available to backorder	Steel Ball 3	£0.48 £0.40
35	MK234148-8 Available to backorder	Compression Spring 31	£2.05 £1.71
37	MK257932-4 Available to backorder	Spiro Lock Washer 30	£4.68 £3.90
40	MK325792-3 Available to backorder	Washer 10	£2.38 £1.98
41	MK234149-6 Available to backorder	Compression Spring 20	£0.89 £0.74
42	MK325793-1 Available to backorder	O-Ring Case B	£2.69 £2.24
43	MK213073-6 In stock	O-Ring 9	£1.39 £1.16
44	MK233979-2 In stock	Ring Spring 28	£0.48 £0.40
45	MK325784-2 Available to backorder	Striker	£3.12 £2.60
46	MK213258-4 In stock	O-Ring 17.5	£2.38 £1.98
52	MK310678-4 Available to backorder	Clutch Cam	£1.73 £1.44
57	MK234343-0 Available to backorder	Compression Spring 5	£0.48 £0.40
58	MK346833-2 Available to backorder	Change Plate B	£1.39 £1.16
59	MK346832-4 Available to backorder	Change Plate A	£1.73 £1.44
60	MK213728-3 Available to backorder	O-Ring 68	£1.58 £1.32
62	MK213407-3 Available to backorder	O-Ring 26	£1.03 £0.86
64	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.16 £4.30
65	MK961006-2 Available to backorder	Retaining Ring (Ext) S-10	£0.48 £0.40
67	MK681652-2 Available to backorder	Insulation Washer	£0.70 £0.58
68	MK210023-2 Available to backorder	Ball Bearing 627Ddw	£3.48 £2.90
69	MK267804-5 Available to backorder	Wave Washer 15	£0.48 £0.40
71	MK266340-8 Available to backorder	Binding Head Tapping Screw 4x65	£0.48 £0.40
73	MK266053-1 Available to backorder	Binding Head Tapping Screw 4x35	£0.70 £0.58

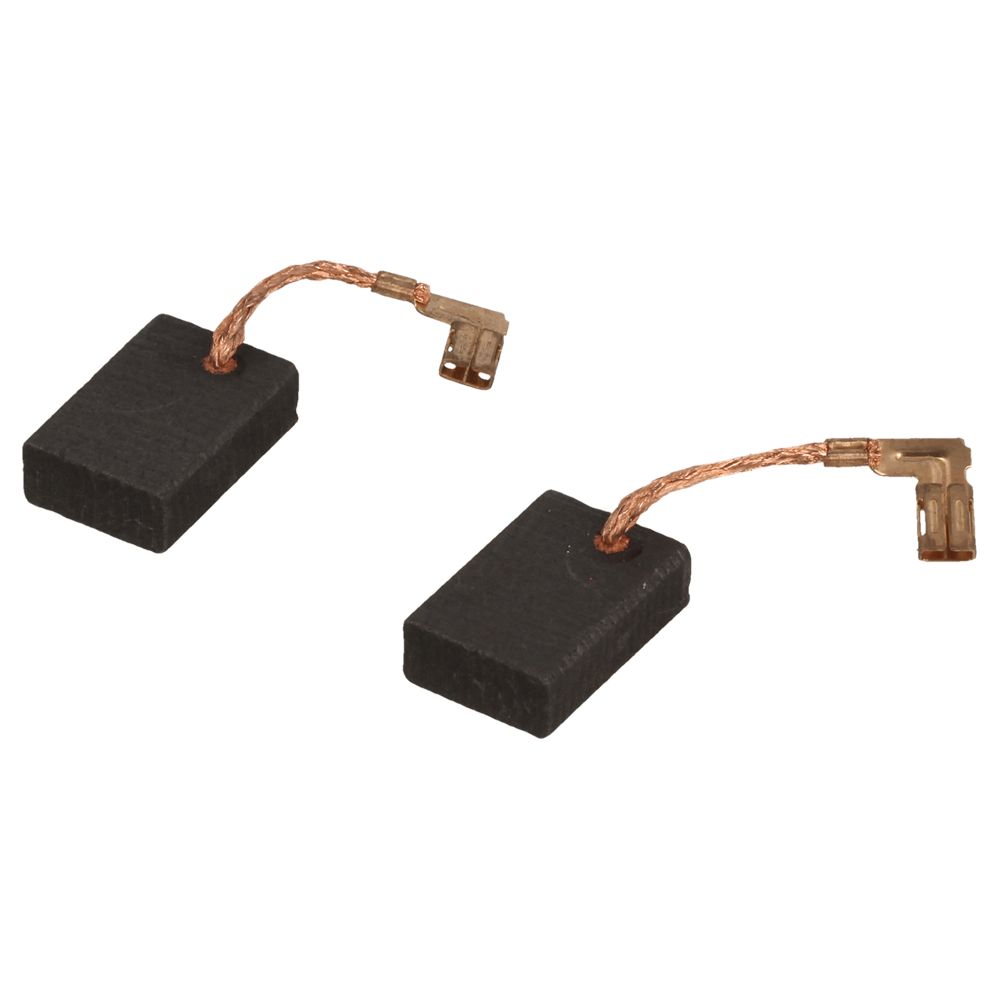

75	MK194074-2 In stock	Carbon Brush Set Cb-325	£2.80 £2.33
77	MK682566-8 Available to backorder	Cord Guard 10	£1.39 £1.16
78	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.92 £9.10
79	MK651086-3 Available to backorder	Switch	£15.96 £13.30
80	MK687682-1 Available to backorder	Strain Relief	£0.70 £0.58
81	MK265B74-2 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
81	MK266385-6 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
82	MK631937-6 Available to backorder	Light Circuit	£8.04 £6.70
83	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
83	MK265B67-9 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
901	MK195127-0 Available to backorder	Oil Vessel Set (C10)	£3.60 £3.00
902	MK191F46-4 Available to backorder	Drill Chuck Set (A02)	£65.16 £54.30
903	MK321144-6 Available to backorder	Depth Gauge (A03)	£1.73 £1.44
904	MK417724-5 Available to backorder	Latch (C10)	£0.82 £0.68
908	MK1914L8-4 Available to backorder	Dust Cup Set (F08)	£10.56 £8.80
909	MK1914M0-7 Available to backorder	Dust Cup Set (F09)	£12.84 £10.70
914	MK194254-0 Available to backorder	Keyless Drill Chuck Set (F14)	£101.28 £84.40
