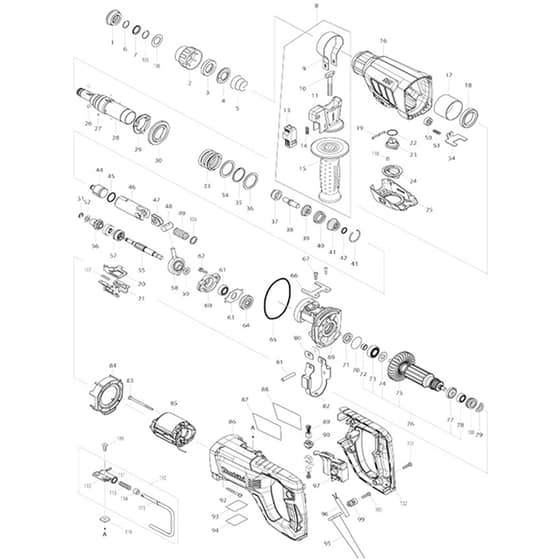

Makita HR2641 - 26mm Combination Hammer - Power Tool Diagram

Description

Model No. HR2641

26mm Combination Hammer

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK286288-8 In stock	Cap 35	£0.80 £0.67
2	MK455393-4 Available to backorder	Chuck Cover	£0.74 £0.62
3	MK325813-1 In stock	Ring 21	£1.60 £1.33
4	MK346177-0 In stock	Guide Washer	£0.64 £0.53
5	MK233916-6 In stock	Conical Comp. Spring 21-29	£0.48 £0.40
6	MK233989-9 In stock	Ring Spring 14	£0.64 £0.53
7	MK346834-0 Available to backorder	Washer 16	£0.74 £0.62
8	MK122878-2 Available to backorder	Grip Assembly (INC. 9-11 13-15)	£12.96 £10.80
9	MK346181-9 Available to backorder	Grip Spring 50	£2.32 £1.93
10	MK266349-0 Available to backorder	Square Bolt M8x50	£2.32 £1.93
11	MK451539-0 Available to backorder	Grip Base	£1.32 £1.10
13	MK141765-6 Available to backorder	Lock Button Complete	£1.16 £0.97
14	MK233360-7 Available to backorder	Compression Spring 4	£0.48 £0.40
15	MK154935-8 Available to backorder	Grip 36 Complete	£4.04 £3.37
16	MK142970-8 Available to backorder	Gear Housing Complete	£10.98 £9.15
16	MK213636-8 Available to backorder	Oil Seal 25 (C10)	£6.06 £5.05
17	MK331890-3 Available to backorder	Cup Sleeve	£3.46 £2.88
18	MK211294-4 Available to backorder	Ball Bearing 6806Llu	£11.56 £9.63
19	MK232286-0 Available to backorder	Leaf Spring	£0.58 £0.48
20	MK346833-2 Available to backorder	Change Plate B	£1.16 £0.97
21	MK346832-4 Available to backorder	Change Plate A	£1.44 £1.20
22	MK213278-8 Available to backorder	O Ring 17 (Alt.)	£0.48 £0.40
23	MK455392-6 Available to backorder	Change Lever	£0.74 £0.62
24	MK455394-2 Available to backorder	Change Lever Cap	£0.58 £0.48
25	MK455391-8 Available to backorder	Change Lever Cover	£1.74 £1.45
26	MK216022-2 Available to backorder	Steel Ball 7.0	£0.48 £0.40
27	MK216019-1 Available to backorder	Steel Ball 3	£0.47 £0.39
28	MK213344-1 Available to backorder	Oil Seal 9 (C10)	£4.48 £3.73
28	MK142972-4 Available to backorder	Tool Holder Complete	£28.46 £23.72
29	MK332139-4 Available to backorder	Driving Flange	£5.20 £4.33
30	MK227360-7 Available to backorder	Spur Gear 51	£6.52 £5.43
33	MK234148-8 Available to backorder	Compression Spring 31	£1.88 £1.57
34	MK267153-0 Available to backorder	Flat Washer 30	£0.74 £0.62
35	MK257932-4 Available to backorder	Spiro Lock Washer 30	£4.48 £3.73
37	MK325783-4 Available to backorder	Sleeve 9B	£1.32 £1.10
38	MK325789-2 Available to backorder	Impact Bolt A	£1.44 £1.20
39	MK325792-3 Available to backorder	Washer 10	£2.18 £1.82
40	MK234149-6 Available to backorder	Compression Spring 20	£0.74 £0.62
41	MK325793-1 Available to backorder	O-Ring Case B	£2.46 £2.05
42	MK213073-6 Available to backorder	O Ring 9 (Alt.)	£1.16 £0.97
43	MK233979-2 Available to backorder	Ring Spring 28	£0.48 £0.40
44	MK325784-2 Available to backorder	Striker	£3.04 £2.53
45	MK213258-4 Available to backorder	O Ring 17.5 (Alt.)	£2.18 £1.82
46	MK310345-1 Available to backorder	Piston Cylinder	£9.54 £7.95
47	MK346036-8 Available to backorder	Guide Plate	£0.74 £0.62
48	MK324215-8 Available to backorder	Piston Joint	£1.60 £1.33
49	MK234098-7 Available to backorder	Compression Spring 14	£0.58 £0.48
50	MK210028-2 Available to backorder	Ball Bearing 606Zz	£1.16 £0.97
51	MK257336-0 Available to backorder	Stop Ring Ext U-6	£0.48 £0.40
52	MK253186-1 Available to backorder	Flat Washer 7	£0.58 £0.48
54	MK346831-6 Available to backorder	Lock Plate	£0.74 £0.62
55	MK326448-1 Available to backorder	Cam Shaft	£5.94 £4.95
56	MK227359-2 Available to backorder	Spur Gear 10	£20.22 £16.85
57	MK310678-4 Available to backorder	Clutch Cam (Alt.)	£1.44 £1.20
58	MK219023-9 Available to backorder	Swash Bearing 10	£28.46 £23.72
59	MK257321-3 Available to backorder	Ring 8	£0.58 £0.48
60	MK310344-3 Available to backorder	Bearing Box	£2.76 £2.30
61	MK211032-4 Available to backorder	Ball Bearing 608Zz	£8.38 £6.98
62	MK266437-3 Available to backorder	Hex. Socket Head Bolt M4x16	£1.02 £0.85
63	MK285735-6 Available to backorder	Bearing Retainer	£0.86 £0.72
64	MK227748-1 Available to backorder	Helical Gear 27	£2.02 £1.68
65	MK213728-3 Available to backorder	O-Ring 68	£1.32 £1.10
66	MK346222-1 Available to backorder	Plate	£0.86 £0.72
67	MK265353-6 Available to backorder	Hex. Socket Head Bolt M4x12	£0.74 £0.62
69	MK443153-6 Available to backorder	Felt (C10)	£0.74 £0.62
69	MK141573-5 Available to backorder	Inner Housing Complete	£15.44 £12.87
70	MK213407-3 Available to backorder	O Ring 26 (Alt.)	£0.86 £0.72
71	MK213678-2 Available to backorder	Oil Seal 12	£5.64 £4.70
72	MK262571-7 Available to backorder	Sleeve 8	£0.96 £0.80
73	MK211097-6 Available to backorder	Ball Bearing 6000Llb	£6.64 £5.53
74	MK267213-8 Available to backorder	Flat Washer 10	£0.48 £0.40
75	MK240092-9 Available to backorder	Fan 64	£1.16 £0.97
77	MK681636-0 Available to backorder	Insulation Washer	£2.02 £1.68
78	MK211021-9 Available to backorder	Ball Bearing 607Llb	£7.80 £6.50
79	MK267804-5 Available to backorder	Wave Washer 15	£0.48 £0.40
80	MK346180-1 Available to backorder	Weight Holder Guide	£0.58 £0.48
81	MK256246-8 Available to backorder	Pin 6	£0.74 £0.62
82	MK165593-5 Available to backorder	Counter Weight	£6.64 £5.53
83	MK266334-3 Available to backorder	Tapping Screw 4x60	£0.48 £0.40
89	MK191962-4 Available to backorder	Carbon Brush Cb-419	£5.68 £4.73
89	MK195015-1 Available to backorder	Carbon Brush Set Cb-419 (Alt.)	£4.92 £4.10
90	MK643936-6 Available to backorder	Brush Holder	£1.16 £0.97
92	MK266351-3 Available to backorder	Tapping Screw 4x35	£0.48 £0.40
94	MK819390-8 Available to backorder	Clear Label	£0.48 £0.40
95	MK682573-1 Available to backorder	Cord Guard 10	£0.74 £0.62
96	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.52 £8.77
97	MK650508-0 Available to backorder	Switch Tg813Tlb-1	£27.02 £22.52
99	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
100	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
104	MK267447-3 Available to backorder	Flat Washer 14	£0.58 £0.48
105	MK233992-0 In stock	Ring Spring 15	£0.58 £0.48
106	MK267114-0 Available to backorder	Flat Washer 17	£0.74 £0.62
108	MK421868-5 Available to backorder	Labyrinth Rubber Ring 19	£1.16 £0.97
109	MK912207-5 Available to backorder	Countersunk Head Screw M5x10	£0.48 £0.40
111	MK951057-3 Available to backorder	Spring Pin 3-12	£0.48 £0.40
113	MK233455-6 Available to backorder	Compression Spring 7	£0.48 £0.40
114	MK262561-0 Available to backorder	Sleeve 6	£0.58 £0.48
115	MK281218-4 Available to backorder	Hook	£1.44 £1.20
116	MK264002-2 Available to backorder	Square Nut M5	£0.58 £0.48
117	MK234343-0 Available to backorder	Compression Spring 5	£0.48 £0.40
118	MK263005-3 In stock	Rubber Pin 6	£0.47 £0.39
901	MK645253-0 Available to backorder	Noise Suppressor (E01)	£4.62 £3.85
901	MK331886-4 Available to backorder	Depth Gauge (A01)	£2.00 £1.67
901	MK195127-0 Available to backorder	Oil Vessel Set (C10)	£3.44 £2.87
902	MK417724-5 Available to backorder	Latch (C10)	£0.68 £0.57
902	MK819144-3 Available to backorder	Makita Logo Label (C20)	£0.74 £0.62
902	MK824695-3 Available to backorder	Plastic Carrying Case (A02)	£27.78 £23.15
