Makita HR2631FT - 26mm Combination Hammer - Power Tool Diagram

Description

Model No. HR2631FT

26mm Combination Hammer

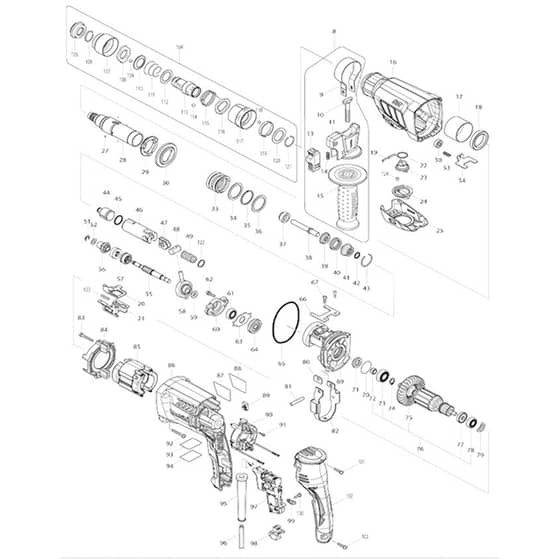

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
8	MK122878-2 Available to backorder	Grip Assembly (INC. 9-11 13-15 *)	£12.96 £10.80
8	MK127293-5 Available to backorder	Grip Assembly (Alt.) (INC. 9-11 13-15 *)	£11.46 £9.55
9	MK346181-9 Available to backorder	Grip Spring 50	£2.32 £1.93
10	MK266349-0 Available to backorder	Square Bolt M8x50	£2.32 £1.93
11	MK451539-0 Available to backorder	Grip Base	£1.32 £1.10
13	MK141765-6 Available to backorder	Lock Button Complete	£1.16 £0.97
14	MK233360-7 Available to backorder	Compression Spring 4	£0.48 £0.40
15	MK154935-8 Available to backorder	Grip 36 Complete	£4.04 £3.37
16	MK142970-8 Available to backorder	Gear Housing Complete	£10.98 £9.15
16	MK213636-8 Available to backorder	Oil Seal 25 (C10)	£6.06 £5.05
17	MK331890-3 Available to backorder	Cup Sleeve	£3.46 £2.88
18	MK211294-4 Available to backorder	Ball Bearing 6806Llu	£11.56 £9.63
19	MK232286-0 Available to backorder	Leaf Spring	£0.58 £0.48
20	MK346833-2 Available to backorder	Change Plate B x	£1.16 £0.97
20	MK346832-4 Available to backorder	Change Plate A	£1.44 £1.20
22	MK213278-8 Available to backorder	O Ring 17 (Alt.)	£0.48 £0.40
23	MK455392-6 Available to backorder	Change Lever	£0.74 £0.62
24	MK455394-2 Available to backorder	Change Lever Cap	£0.58 £0.48
25	MK455391-8 Available to backorder	Change Lever Cover	£1.74 £1.45
27	MK216019-1 Available to backorder	Steel Ball 3	£0.47 £0.39
28	MK213344-1 Available to backorder	Oil Seal 9 (C10)	£4.48 £3.73
28	MK140266-1 Available to backorder	Tool Holderguide Complete	£34.38 £28.65
29	MK332139-4 Available to backorder	Driving Flange	£5.20 £4.33
30	MK227360-7 Available to backorder	Spur Gear 51	£6.52 £5.43
33	MK234148-8 Available to backorder	Compression Spring 31	£1.88 £1.57
34	MK267153-0 Available to backorder	Flat Washer 30	£0.74 £0.62
35	MK257932-4 Available to backorder	Spiro Lock Washer 30	£4.48 £3.73
37	MK325783-4 Available to backorder	Sleeve 9B	£1.32 £1.10
38	MK325791-5 Available to backorder	Impact Bolt B	£2.02 £1.68
39	MK325792-3 Available to backorder	Washer 10	£2.18 £1.82
40	MK234149-6 Available to backorder	Compression Spring 20	£0.74 £0.62
41	MK325793-1 Available to backorder	O-Ring Case B	£2.46 £2.05
42	MK213073-6 Available to backorder	O Ring 9 (Alt.)	£1.16 £0.97
43	MK233979-2 Available to backorder	Ring Spring 28	£0.48 £0.40
44	MK325784-2 Available to backorder	Striker	£3.04 £2.53
45	MK213258-4 Available to backorder	O Ring 17.5 (Alt.)	£2.18 £1.82
46	MK310345-1 Available to backorder	Piston Cylinder	£9.54 £7.95
47	MK346036-8 Available to backorder	Guide Plate	£0.74 £0.62
48	MK324215-8 Available to backorder	Piston Joint	£1.60 £1.33
49	MK234098-7 Available to backorder	Compression Spring 14	£0.58 £0.48
50	MK210028-2 Available to backorder	Ball Bearing 606Zz	£1.16 £0.97
51	MK257336-0 Available to backorder	Stop Ring Ext U-6	£0.48 £0.40
52	MK253186-1 Available to backorder	Flat Washer 7	£0.58 £0.48
54	MK346831-6 Available to backorder	Lock Plate	£0.74 £0.62
55	MK326448-1 Available to backorder	Cam Shaft	£5.94 £4.95
56	MK227359-2 Available to backorder	Spur Gear 10	£20.22 £16.85
57	MK310678-4 Available to backorder	Clutch Cam (Alt.)	£1.44 £1.20
58	MK219023-9 Available to backorder	Swash Bearing 10	£28.46 £23.72
59	MK257321-3 Available to backorder	Ring 8	£0.58 £0.48
60	MK310344-3 Available to backorder	Bearing Box	£2.76 £2.30
61	MK211032-4 Available to backorder	Ball Bearing 608Zz	£8.38 £6.98
61	MK210223-4 Available to backorder	Ball Bearing 608Zz (Alt.)	£2.60 £2.17
62	MK266437-3 Available to backorder	Hex. Socket Head Bolt M4x16	£1.02 £0.85
63	MK285735-6 Available to backorder	Bearing Retainer	£0.86 £0.72
64	MK227719-8 Available to backorder	Helical Gear 26	£4.48 £3.73
65	MK213728-3 Available to backorder	O-Ring 68	£1.32 £1.10
66	MK346222-1 Available to backorder	Plate	£0.86 £0.72
67	MK265353-6 Available to backorder	Hex. Socket Head Bolt M4x12	£0.74 £0.62
69	MK141573-5 Available to backorder	Inner Housing Complete	£15.44 £12.87
69	MK443153-6 Available to backorder	Felt (C10)	£0.74 £0.62
70	MK213407-3 Available to backorder	O Ring 26 (Alt.)	£0.86 £0.72
71	MK213678-2 Available to backorder	Oil Seal 12	£5.64 £4.70
72	MK262569-4 Available to backorder	Sleeve 9	£1.02 £0.85
73	MK211097-6 Available to backorder	Ball Bearing 6000Llb	£6.64 £5.53
74	MK961006-2 Available to backorder	Retaining Ring S-10	£0.48 £0.40
75	MK240121-8 Available to backorder	Fan 65	£1.44 £1.20
76	MK515359-7 Available to backorder	Armature Assembly 240V (INC. 72-75 77 78)	£39.28 £32.73
77	MK681652-2 Available to backorder	Insulation Washer	£0.58 £0.48
78	MK210023-2 Available to backorder	Ball Bearing 627Ddw	£3.34 £2.78
79	MK267804-5 Available to backorder	Wave Washer 15	£0.48 £0.40
80	MK346180-1 Available to backorder	Weight Holder Guide	£0.58 £0.48
81	MK256246-8 Available to backorder	Pin 6	£0.74 £0.62
82	MK165593-5 Available to backorder	Counter Weight	£6.64 £5.53
83	MK265B70-0 Available to backorder	Tapping Screw 4x30 (Alt.)	£0.48 £0.40
83	MK266361-0 Available to backorder	Tapping Screw 4x30	£0.48 £0.40
84	MK451527-7 Available to backorder	Baffle Plate	£1.02 £0.85
85	MK626634-7 Available to backorder	Field 240V	£24.56 £20.47
86	MK451535-8 Available to backorder	Motor Housing	£10.56 £8.80
87	MK850L76-7 Available to backorder	Hr2631Ft Name Plate	£0.48 £0.40
88	MK819390-8 Available to backorder	Clear Label	£0.48 £0.40
89	MK194074-2 In stock	Carbon Brush Cb-325	£2.46 £2.05
90	MK638655-7 Available to backorder	Brush Holder Unit	£8.96 £7.47
91	MK266556-5 Available to backorder	Tapping Screw 3x12	£0.48 £0.40
94	MK816R89-4 Available to backorder	Clear Label (Alt.)	£0.48 £0.40
94	MK819389-3 Available to backorder	Clear Label	£0.48 £0.40
95	MK682566-8 Available to backorder	Cord Guard 10	£1.16 £0.97
96	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.52 £8.77
97	MK650625-6 Available to backorder	Switch	£21.96 £18.30
98	MK631937-6 Available to backorder	Light Circuit	£7.80 £6.50
99	MK687682-1 Available to backorder	Strain Relief	£0.58 £0.48
100	MK266385-6 Available to backorder	Tapping Screw 4x14	£0.48 £0.40
100	MK265B74-2 Available to backorder	Tapping Screw 4x14 (Alt.)	£0.48 £0.40
101	MK265B67-9 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
101	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
102	MK451528-5 Available to backorder	Handle Cover	£4.78 £3.98
104	MK194080-7 Available to backorder	Tool Holder Set (INC. 105-121)	£42.00 £35.00
105	MK286263-4 Available to backorder	Cap 35	£0.86 £0.72
106	MK233940-9 In stock	Ring Spring 19	£0.48 £0.40
107	MK418217-5 Available to backorder	Chuck Cover	£1.16 £0.97
108	MK345333-9 Available to backorder	Stopper	£0.74 £0.62
109	MK216022-2 Available to backorder	Steel Ball 7.0	£0.48 £0.40
110	MK345187-4 Available to backorder	Guide Washer	£0.86 £0.72
111	MK233916-6 In stock	Conical Comp. Spring 21-29	£0.48 £0.40
112	MK267279-8 Available to backorder	Flat Washer 21	£0.48 £0.40
113	MK324355-2 Available to backorder	Tool Holder	£56.48 £47.07
114	MK216013-3 Available to backorder	Steel Ball 6	£0.48 £0.40
115	MK231669-1 Available to backorder	Torsion Spring 31	£0.58 £0.48
116	MK345334-7 Available to backorder	Change Ring	£1.44 £1.20
117	MK418218-3 Available to backorder	Change Cover	£1.16 £0.97
118	MK216018-3 Available to backorder	Steel Ball 5.0	£0.48 £0.40
119	MK345335-5 Available to backorder	Leaf Spring	£0.58 £0.48
120	MK267270-6 Available to backorder	Flat Washer 24	£0.74 £0.62
121	MK233924-7 Available to backorder	Ring Spring 21	£0.58 £0.48
122	MK267447-3 Available to backorder	Flat Washer 14	£0.58 £0.48
123	MK234343-0 Available to backorder	Compression Spring 5	£0.48 £0.40
124	MK263005-3 In stock	Rubber Pin 6	£0.47 £0.39
901	MK195108-4 Available to backorder	Hammer Service Kit (B01)	£14.44 £12.03
901	MK195127-0 Available to backorder	Oil Vessel Set (C10)	£3.44 £2.87
901	MK194079-2 Available to backorder	Drill Chuck Set (A01)	£106.92 £89.10
902	MK331886-4 Available to backorder	Depth Gauge (A02)	£2.00 £1.67
903	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
903	MK821550-0 Available to backorder	Connector Plastic Case (A03B)	£54.34 £45.28
906	MK837914-8 Available to backorder	Inner Tray (A06B)	£11.16 £9.30
