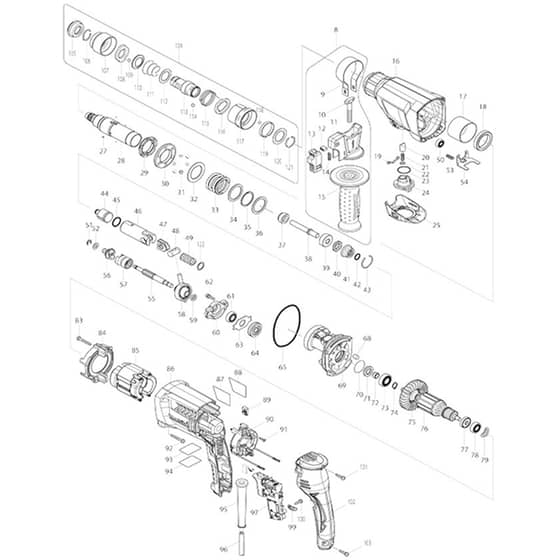

Makita HR2610T - 26mm Combination Hammer - Power Tool Diagram

Description

Model No. HR2610T

26mm Combination Hammer

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
8	MK122878-2 Available to backorder	Grip Assembly (INC. 9-15)	£12.96 £10.80
9	MK346181-9 Available to backorder	Grip Spring 50	£2.32 £1.93
10	MK266349-0 Available to backorder	Square Bolt M8x50	£2.32 £1.93
11	MK451539-0 Available to backorder	Grip Base	£1.32 £1.10
12	MK313179-1 Available to backorder	Rack	£0.58 £0.48
13	MK451540-5 Available to backorder	Lock Button	£0.74 £0.62
13	MK141765-6 Available to backorder	Lock Button Complete S	£1.16 £0.97
14	MK233360-7 Available to backorder	Compression Spring 4	£0.48 £0.40
15	MK154935-8 Available to backorder	Grip 36 Complete	£4.04 £3.37
16	MK140422-3 Available to backorder	Gear Housing Complete	£11.26 £9.38
16	MK816445-0 Available to backorder	Indication Label (C20)	£0.48 £0.40
16	MK213636-8 Available to backorder	Oil Seal 25 (C10)	£6.06 £5.05
17	MK331890-3 Available to backorder	Cup Sleeve	£3.46 £2.88
18	MK211294-4 Available to backorder	Ball Bearing 6806Llu	£11.56 £9.63
19	MK232152-1 Available to backorder	Leaf Spring	£2.02 £1.68
20	MK325785-0 Available to backorder	Push Corn	£1.12 £0.93
20	MK326850-8 Available to backorder	Push Corn S	£0.86 £0.72
21	MK234147-0 Available to backorder	Compression Spring 5	£0.48 £0.40
22	MK253308-3 In stock	Thin Washer 6	£0.47 £0.39
23	MK213381-5 Available to backorder	O Ring 21 (Alt.)	£3.46 £2.88
24	MK451529-3 Available to backorder	Change Lever A	£0.86 £0.72
25	MK451530-8 Available to backorder	Change Lever Cover A	£1.32 £1.10
27	MK216019-1 Available to backorder	Steel Ball 3	£0.47 £0.39
28	MK140266-1 Available to backorder	Tool Holderguide Complete	£34.38 £28.65
29	MK332139-4 Available to backorder	Driving Flange S	£5.20 £4.33
30	MK227360-7 Available to backorder	Spur Gear 51 S	£6.52 £5.43
31	MK268226-2 Available to backorder	Pin 6	£5.06 £4.22
32	MK267414-8 Available to backorder	Flat Washer 30	£1.16 £0.97
33	MK234148-8 Available to backorder	Compression Spring 31	£1.88 £1.57
34	MK267153-0 Available to backorder	Flat Washer 30	£0.74 £0.62
35	MK257932-4 Available to backorder	Spiro Lock Washer 30	£4.48 £3.73
37	MK325783-4 Available to backorder	Sleeve 9B	£1.32 £1.10
38	MK325791-5 Available to backorder	Impact Bolt B	£2.02 £1.68
39	MK325795-7 Available to backorder	Ring 10B	£2.02 £1.68
40	MK424267-0 Available to backorder	Cushion Ring 12	£1.60 £1.33
41	MK325798-1 Available to backorder	O-Ring Case A	£3.34 £2.78
42	MK213073-6 Available to backorder	O Ring 9 (Alt.)	£1.16 £0.97
43	MK233979-2 Available to backorder	Ring Spring 28	£0.48 £0.40
44	MK325784-2 Available to backorder	Striker	£3.04 £2.53
45	MK213258-4 Available to backorder	O Ring 17.5 (Alt.)	£2.18 £1.82
46	MK310345-1 Available to backorder	Piston Cylinder	£9.54 £7.95
47	MK346036-8 Available to backorder	Guide Plate	£0.74 £0.62
48	MK324215-8 Available to backorder	Piston Joint	£1.60 £1.33
49	MK234098-7 Available to backorder	Compression Spring 14	£0.58 £0.48
50	MK210028-2 Available to backorder	Ball Bearing 606Zz (Alt.)	£1.16 £0.97
50	MK211012-0 Available to backorder	Ball Bearing 606Zz	£12.86 £10.72
51	MK961012-7 Available to backorder	Stop Ring E-6	£0.48 £0.40
51	MK257336-0 Available to backorder	Stop Ring Ext U-6 S	£0.48 £0.40
52	MK253186-1 Available to backorder	Flat Washer 7 S	£0.58 £0.48
54	MK346176-2 Available to backorder	Lock Plate	£0.74 £0.62
55	MK325786-8 Available to backorder	Cam Shaft	£5.48 £4.57
56	MK227231-8 Available to backorder	Spur Gear 10	£27.02 £22.52
57	MK331814-9 Available to backorder	Clutch Cam A	£5.36 £4.47
57	MK326849-3 Available to backorder	Clutch Cam A S	£5.48 £4.57
58	MK219020-5 Available to backorder	Swash Bearing 10	£35.12 £29.27
59	MK267234-0 Available to backorder	Flat Washer 8	£0.58 £0.48
60	MK310344-3 Available to backorder	Bearing Box	£2.76 £2.30
61	MK211032-4 Available to backorder	Ball Bearing 608Zz	£8.38 £6.98
62	MK266437-3 Available to backorder	Hex. Socket Head Bolt M4x16	£1.02 £0.85
63	MK285735-6 Available to backorder	Bearing Retainer	£0.86 £0.72
64	MK227719-8 Available to backorder	Helical Gear 26	£4.48 £3.73
65	MK213728-3 Available to backorder	O-Ring 68	£1.32 £1.10
68	MK443153-6 Available to backorder	Felt	£0.74 £0.62
69	MK141572-7 Available to backorder	Inner Housing Complete S	£11.26 £9.38
69	MK140269-5 Available to backorder	Inner Housing Complete	£11.26 £9.38
70	MK213407-3 Available to backorder	O Ring 26 (Alt.)	£0.86 £0.72
71	MK213133-4 Available to backorder	Oil Seal 12	£6.56 £5.47
71	MK213678-2 Available to backorder	Oil Seal 12 (Alt.)	£5.64 £4.70
72	MK262569-4 Available to backorder	Sleeve 9	£1.02 £0.85
73	MK211097-6 Available to backorder	Ball Bearing 6000Llb	£6.64 £5.53
74	MK961006-2 Available to backorder	Retaining Ring S-10	£0.48 £0.40
75	MK240121-8 Available to backorder	Fan 65	£1.44 £1.20
76	MK515359-7 Available to backorder	Armature Assembly 240V (INC. 72-75 77 78)	£39.28 £32.73
77	MK681652-2 Available to backorder	Insulation Washer	£0.58 £0.48
78	MK210023-2 Available to backorder	Ball Bearing 627Ddw	£3.34 £2.78
79	MK267804-5 Available to backorder	Wave Washer 15	£0.48 £0.40
83	MK266361-0 Available to backorder	Tapping Screw 4x30	£0.48 £0.40
84	MK451527-7 Available to backorder	Baffle Plate	£1.02 £0.85
85	MK626634-7 Available to backorder	Field 240V	£24.56 £20.47
86	MK451536-6 Available to backorder	Motor Housing	£10.84 £9.03
87	MK867711-8 Available to backorder	Hr2610T Name Plate	£1.02 £0.85
88	MK819390-8 Available to backorder	Clear Label	£0.48 £0.40
89	MK194074-2 In stock	Carbon Brush Cb-325	£2.46 £2.05
90	MK638655-7 Available to backorder	Brush Holder Unit	£8.96 £7.47
91	MK266556-5 Available to backorder	Tapping Screw 3x12	£0.48 £0.40
94	MK819389-3 Available to backorder	Clear Label	£0.48 £0.40
95	MK682566-8 Available to backorder	Cord Guard 10	£1.16 £0.97
96	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.52 £8.77
97	MK650625-6 Available to backorder	Switch	£21.96 £18.30
99	MK687682-1 Available to backorder	Strain Relief	£0.58 £0.48
100	MK266385-6 Available to backorder	Tapping Screw 4x14	£0.48 £0.40
101	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
102	MK451528-5 Available to backorder	Handle Cover	£4.78 £3.98
104	MK194080-7 Available to backorder	Tool Holder Set (INC. 105-121)	£42.00 £35.00
105	MK286263-4 Available to backorder	Cap 35	£0.86 £0.72
106	MK233940-9 In stock	Ring Spring 19	£0.48 £0.40
107	MK418217-5 Available to backorder	Chuck Cover	£1.16 £0.97
108	MK345333-9 Available to backorder	Stopper	£0.74 £0.62
109	MK216022-2 Available to backorder	Steel Ball 7.0	£0.48 £0.40
110	MK345187-4 Available to backorder	Guide Washer	£0.86 £0.72
111	MK233916-6 In stock	Conical Comp. Spring 21-29	£0.48 £0.40
112	MK267279-8 Available to backorder	Flat Washer 21	£0.48 £0.40
113	MK324355-2 Available to backorder	Tool Holder	£56.48 £47.07
114	MK216013-3 Available to backorder	Steel Ball 6	£0.48 £0.40
115	MK231669-1 Available to backorder	Torsion Spring 31	£0.58 £0.48
116	MK345334-7 Available to backorder	Change Ring	£1.44 £1.20
117	MK418218-3 Available to backorder	Change Cover	£1.16 £0.97
118	MK216018-3 Available to backorder	Steel Ball 5.0	£0.48 £0.40
119	MK345335-5 Available to backorder	Leaf Spring	£0.58 £0.48
120	MK267270-6 Available to backorder	Flat Washer 24	£0.74 £0.62
121	MK233924-7 Available to backorder	Ring Spring 21	£0.58 £0.48
122	MK267447-3 Available to backorder	Flat Washer 14	£0.58 £0.48
901	MK331886-4 Available to backorder	Depth Gauge (A01)	£2.00 £1.67
902	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
902	MK324319-6 Available to backorder	Shaft (C20)	£1.48 £1.23
902	MK451749-9 Available to backorder	Handle (C30)	£1.74 £1.45
902	MK816938-7 Available to backorder	Indication Label (C40)	£0.58 £0.48
902	MK140404-5 Available to backorder	Plastic Case Complete (A02A)	£42.46 £35.38
902	MK162302-3 Available to backorder	Latch (C10)	£1.58 £1.32
903	MK816984-0 Available to backorder	Hr2610T Plastic Case Label (A03A)	£0.58 £0.48
904	MK194079-2 Available to backorder	Drill Chuck Set (A04)	£106.92 £89.10
908	MK837914-8 Available to backorder	Inner Tray (A08B)	£11.16 £9.30
934	MK195127-0 Available to backorder	Oil Vessel Set (F34)	£3.44 £2.87
