Makita HR2510 - Rotary Hammer 25mm - Power Tool Diagram

Description

Model No. HR2510

Rotary Hammer 25mm

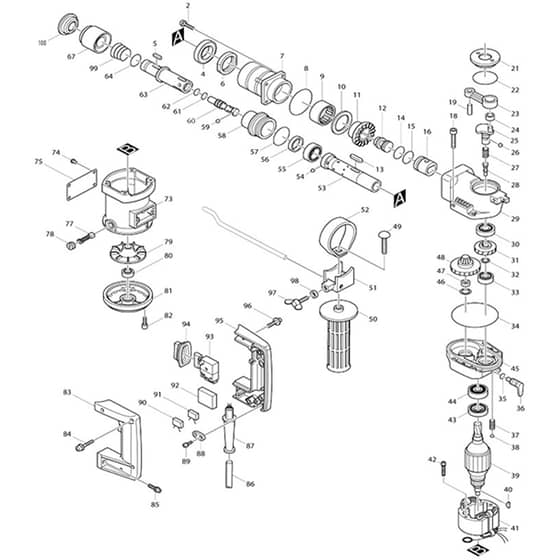

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
2	MK922341-3 Available to backorder	Hex. Socket Head Bolt M6x25	£0.74 £0.62
4	MK211441-7 Available to backorder	Ball Bearing 3009	£11.14 £9.28
5	MK322255-0 Available to backorder	Roller 6.5	£5.36 £4.47
6	MK252214-9 Available to backorder	Nut M30.3-36	£12.42 £10.35
7	MK315606-4 Available to backorder	Barrel	£67.02 £55.85
8	MK213606-7 Available to backorder	O Ring 48 (Alt.)	£1.32 £1.10
9	MK212455-9 Available to backorder	Needle Bearing 3516	£11.42 £9.52
10	MK253802-5 Available to backorder	Flat Washer 35	£4.62 £3.85
11	MK221333-2 Available to backorder	Spiral Bevel Gear 33	£32.48 £27.07
12	MK322505-3 Available to backorder	Striker	£11.84 £9.87
13	MK254231-5 Available to backorder	Key 4	£1.32 £1.10
14	MK213308-5 Available to backorder	O Ring 19 (Alt.)	£5.06 £4.22
16	MK321685-2 Available to backorder	Piston	£9.24 £7.70
18	MK922366-7 Available to backorder	Hex. Socket Head Bolt M6x45	£1.16 £0.97
19	MK256099-5 Available to backorder	Pin 6	£1.32 £1.10
21	MK810712-5 Available to backorder	Caution Label (C20)	£0.74 £0.62
22	MK213554-0 Available to backorder	O Ring 44 (Alt.)	£1.32 £1.10
23	MK315146-2 Available to backorder	Rod	£37.56 £31.30
24	MK212025-4 Available to backorder	Needle Bearing 810	£6.52 £5.43
25	MK321615-3 Available to backorder	Crank Shaft	£58.06 £48.38
26	MK216011-7 Available to backorder	Steel Ball 5.6	£0.48 £0.40
27	MK231327-9 Available to backorder	Compression Spring 6	£0.58 £0.48
28	MK321618-7 Available to backorder	Change Pin 8	£2.18 £1.82
29	MK213459-4 Available to backorder	O Ring 32 (Alt.) (C10)	£2.02 £1.68
29	MK159504-0 Available to backorder	Crank Housing	£59.80 £49.83
30	MK211204-1 Available to backorder	Ball Bearing 6002	£8.08 £6.73
31	MK221719-0 Available to backorder	Helical Gear 36	£14.32 £11.93
32	MK253147-1 Available to backorder	Flat Washer 15	£0.48 £0.40
33	MK211221-1 Available to backorder	Ball Bearing 6902	£14.32 £11.93
34	MK213806-9 Available to backorder	O Ring 90 (Alt.)	£2.18 £1.82
35	MK213011-8 Available to backorder	O Ring 7 (Alt.)	£0.58 £0.48
36	MK321614-5 Available to backorder	Change Lever	£18.78 £15.65
37	MK231328-7 Available to backorder	Compression Spring 2	£1.32 £1.10
38	MK216008-6 Available to backorder	Steel Ball 4	£0.48 £0.40
40	MK654019-7 Available to backorder	Ring Terminal (C10)	£0.58 £0.48
40	MK654501-6 Available to backorder	Connector P-1.25 (C20)	£0.48 £0.40
40	MK254031-3 Available to backorder	Woodruff Key 3	£0.86 £0.72
42	MK265347-1 Available to backorder	+ Hex. Bolt M5x45	£0.48 £0.40
43	MK213157-0 Available to backorder	Oil Seal 13	£20.38 £16.98
44	MK211069-1 Available to backorder	Ball Bearing 6200	£5.64 £4.70
45	MK157166-8 Available to backorder	Gear Housing	£29.46 £24.55
45	MK213406-5 Available to backorder	O Ring 30 (Alt.) (C10)	£1.32 £1.10
46	MK253314-8 Available to backorder	Thin Washer 15	£0.74 £0.62
47	MK211034-0 Available to backorder	Ball Bearing 608	£3.34 £2.78
48	MK151162-8 Available to backorder	Torque Limiter Complete	£114.68 £95.57
49	MK923456-9 Available to backorder	Cap Square Neck Bolt M8x35	£0.74 £0.62
51	MK315145-4 Available to backorder	Grip Base	£3.46 £2.88
52	MK342633-8 Available to backorder	Belt	£3.46 £2.88
53	MK331407-2 Available to backorder	Cylinder Liner 24	£116.28 £96.90
54	MK216007-8 Available to backorder	Steel Ball 6.4	£0.48 £0.40
55	MK213377-6 Available to backorder	Oil Seal 21	£9.40 £7.83
56	MK443061-1 Available to backorder	Felt Ring 20	£0.48 £0.40
58	MK322096-4 Available to backorder	Seal Holder	£42.62 £35.52
60	MK321616-1 Available to backorder	Impact Bolt	£25.28 £21.07
61	MK213058-2 Available to backorder	O Ring 10 (Alt.)	£2.32 £1.93
63	MK322254-2 Available to backorder	Drill Holder	£91.74 £76.45
64	MK213064-7 Available to backorder	O Ring 10 (Alt.)	£4.04 £3.37
67	MK414425-6 Available to backorder	Change Ring	£20.38 £16.98
73	MK643603-3 Available to backorder	Brush Holder 6-10 (C10)	£3.34 £2.78
74	MK953106-2 Available to backorder	Rivet 0-5	£0.48 £0.40
75	MK854940-2 Available to backorder	Name Plate Hr2510	£2.02 £1.68
77	MK181038-5 Available to backorder	A.C. Carbon Brush Cb-105	£9.98 £8.32
78	MK643600-9 Available to backorder	Brush Holder Cap 6-10	£0.74 £0.62
79	MK241819-0 Available to backorder	Fan 65	£5.48 £4.57
81	MK213008-7 Available to backorder	O Ring 22.4 (Alt.) (C10)	£0.74 £0.62
81	MK152229-5 Available to backorder	Bearing Box Complete	£11.56 £9.63
82	MK911241-2 In stock	Pan Head Screw M5x25	£0.48 £0.40
83	MK181562-8 Available to backorder	Handle Set	£25.28 £21.07
84	MK911243-8 Available to backorder	Pan Head Screw M5x25	£0.48 £0.40
85	MK911343-4 Available to backorder	Pan Head Screw M6x25	£0.74 £0.62
87	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
87	MK682505-8 Available to backorder	Cord Guard 10-90 (Alt.)	£1.32 £1.10
88	MK687031-2 Available to backorder	Strain Relief	£0.58 £0.48
89	MK911133-5 Available to backorder	Pan Head Screw M4x18	£0.48 £0.40
90	MK645253-0 Available to backorder	Noise Suppressor	£4.62 £3.85
92	MK685700-9 Available to backorder	Sponge Sheet	£0.48 £0.40
93	MK651258-0 Available to backorder	Switch Sge106Cv-1A	£35.98 £29.98
94	MK421145-5 Available to backorder	Dust Cover	£1.32 £1.10
97	MK924216-2 Available to backorder	Wing Bolt M5x15	£0.96 £0.80
98	MK261042-1 Available to backorder	Rubber Washer 4.5	£0.48 £0.40
99	MK231946-1 Available to backorder	Conical Compr. Spring 21-25	£0.58 £0.48
100	MK286220-2 Available to backorder	Cap 34	£3.04 £2.53
400	MK321144-6 Available to backorder	Depth Gauge	£1.44 £1.20
404	MK153614-5 Available to backorder	Plastic Carrying Case Complete	£40.32 £33.60
404	MK819140-1 Available to backorder	Makita Logo Label (C40)	£5.36 £4.47
404	MK819033-2 Available to backorder	Makita Label (C10)	£0.58 £0.48
404	MK162202-7 Available to backorder	Latch (C10)	£1.16 £0.97
407	MK122376-6 Available to backorder	Dust Collecter Ass'y	£20.56 £17.13
900	MK646325-4 Available to backorder	Line Coil	£12.58 £10.48
928	MK1914C5-7 In stock	Grease Set (F28)	£7.54 £6.28
