Makita HR2450 - Rotary Hammer 24mm - Power Tool Diagram

Name: Makita HR2450 - Rotary Hammer 24mm - Power Tool Diagram
SKU: hr2450_rotary_hammer_24mm_power_tool-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita HR2450 - Rotary Hammer 24mm - Power Tool Diagram

Description

Model No. HR2450

Rotary Hammer 24mm

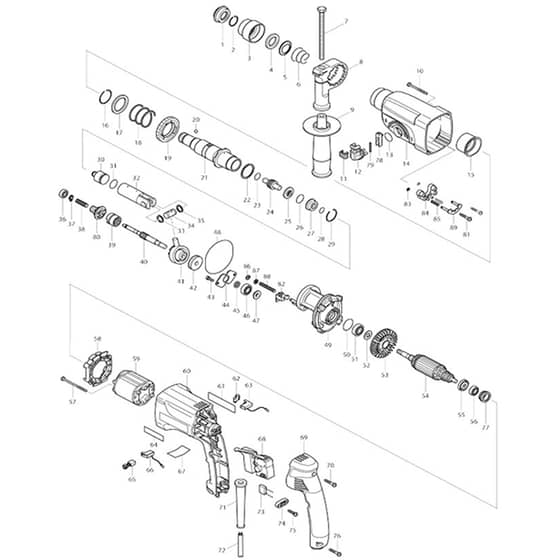

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK286263-4 Available to backorder	Cap 35	£0.86 £0.72
2	MK233940-9 In stock	Ring Spring 19 (Alt.)	£0.48 £0.40
3	MK417629-9 Available to backorder	Chuck Cover	£0.74 £0.62
4	MK257241-1 Available to backorder	Ring 21	£1.32 £1.10
5	MK345187-4 Available to backorder	Guide Washer	£0.86 £0.72
6	MK233916-6 In stock	Conical Comp. Spring 21-29	£0.48 £0.40
7	MK921923-8 Available to backorder	Hex. Bolt M8x120	£1.10 £0.92
8	MK417630-4 Available to backorder	Grip Base	£1.74 £1.45
9	MK152521-9 Available to backorder	Grip 36 Complete	£2.18 £1.82
9	MK135302-6 Available to backorder	Grip 36 Ass'y (Alt.)	£5.06 £4.22
10	MK266069-6 Available to backorder	Tapping Screw 4x45	£0.74 £0.62
10	MK266425-0 Available to backorder	Tapping Screw 4x45 (Alt.)	£0.48 £0.40
11	MK417794-4 Available to backorder	Cap	£0.58 £0.48
12	MK162229-7 Available to backorder	Change Lever Complete	£2.02 £1.68
13	MK213278-8 Available to backorder	O Ring 17 (Alt.)	£0.48 £0.40
14	MK183441-6 Available to backorder	Gear Housing Set	£27.74 £23.12
15	MK153290-5 Available to backorder	Needle Bearing Complete	£4.62 £3.85
16	MK233918-2 Available to backorder	Ring Spring 28	£0.48 £0.40
17	MK267228-5 Available to backorder	Washer 30	£1.16 £0.97
18	MK233328-3 Available to backorder	Compression Spring 31	£1.44 £1.20
19	MK227028-5 Available to backorder	Spur Gear 51	£11.84 £9.87
20	MK216022-2 Available to backorder	Steel Ball 7.0	£0.48 £0.40
21	MK153365-0 Available to backorder	Tool Holder Complete	£88.40 £73.67
22	MK267229-3 Available to backorder	Flat Washer 28	£0.58 £0.48
23	MK213128-7 Available to backorder	O Ring 12 (Alt.)	£1.16 £0.97
24	MK324396-8 Available to backorder	Impact Bolt <	£11.72 £9.77
25	MK324218-2 Available to backorder	Ring 9	£5.06 £4.22
26	MK213232-2 Available to backorder	O Ring 15 (Alt.)	£1.74 £1.45
27	MK324216-6 Available to backorder	O Ring Case (Alt.)	£6.06 £5.05
28	MK213073-6 Available to backorder	O Ring 9 (Alt.)	£1.16 £0.97
29	MK233917-4 Available to backorder	Ring Spring 28	£0.48 £0.40
30	MK324214-0 Available to backorder	Striker	£2.46 £2.05
31	MK213227-5 Available to backorder	O Ring 16 (Alt.)	£1.32 £1.10
32	MK331632-5 Available to backorder	Piston Cylinder	£25.28 £21.07
33	MK267104-3 Available to backorder	Flat Washer 12	£0.74 £0.62
34	MK324215-8 Available to backorder	Piston Joint	£1.60 £1.33
36	MK210028-2 Available to backorder	Ball Bearing 606Zz (Alt.)	£1.16 £0.97
36	MK211012-0 Available to backorder	Ball Bearing 606Zz	£12.86 £10.72
37	MK961003-8 Available to backorder	Retaining Ring S-7	£0.48 £0.40
38	MK233343-7 Available to backorder	Compression Spring 7	£0.48 £0.40
39	MK331993-3 Available to backorder	Clutch Cam <	£7.80 £6.50
39	MK331634-1 Available to backorder	Clutch Cam	£11.84 £9.87
40	MK324248-3 Available to backorder	Cam Shaft	£18.78 £15.65
41	MK219014-0 Available to backorder	Swash Bearing 10	£50.72 £42.27
42	MK226550-9 Available to backorder	Helical Gear 26	£4.62 £3.85
43	MK266273-7 Available to backorder	Hex. Socket Head Bolt M4x12	£0.58 £0.48
44	MK345179-3 Available to backorder	Bearing Retainer	£0.58 £0.48
45	MK267234-0 Available to backorder	Flat Washer 8	£0.58 £0.48
46	MK211032-4 Available to backorder	Ball Bearing 608Zz	£8.38 £6.98
46	MK210029-0 Available to backorder	Ball Bearing 608Zz (Alt.)	£1.16 £0.97
47	MK324212-4 Available to backorder	Ring 8	£5.48 £4.57
48	MK213725-9 Available to backorder	O Ring 68 (Alt.)	£1.32 £1.10
49	MK153687-8 Available to backorder	Inner Housing Complete <	£6.64 £5.53
50	MK213380-7 Available to backorder	O Ring 24 (Alt.)	£0.74 £0.62
51	MK210060-6 Available to backorder	Ball Bearing 609Llu	£4.20 £3.50
52	MK267231-6 Available to backorder	Flat Washer 9	£0.48 £0.40
53	MK240084-8 Available to backorder	Fan 60 (Alt.)	£1.16 £0.97
54	MK515668-4 Available to backorder	Armature Ass'y 220-240V (Alt.)	£27.74 £23.12
55	MK681636-0 Available to backorder	Insulation Washer	£2.02 £1.68
56	MK211021-9 Available to backorder	Ball Bearing 607Llb	£7.80 £6.50
57	MK266334-3 Available to backorder	Tapping Screw 4x60 (Alt.)	£0.48 £0.40
57	MK266052-3 Available to backorder	Tapping Screw 4x60	£0.86 £0.72
58	MK419201-3 Available to backorder	Baffle Plate (Alt.)	£0.58 £0.48
59	MK633488-5 Available to backorder	Field 220-240V	£8.08 £6.73
60	MK183409-2 Available to backorder	Motor Housing	£13.74 £11.45
60	MK418084-8 Available to backorder	Motor Housing (Alt.)	£11.72 £9.77
61	MK853822-5 Available to backorder	Name Plate Hr2450	£0.58 £0.48
62	MK689111-0 Available to backorder	Spacer	£0.58 £0.48
63	MK643988-7 Available to backorder	Brush Holder	£3.04 £2.53
64	MK819063-3 Available to backorder	Makita Label	£1.16 £0.97
65	MK195015-1 Available to backorder	Carbon Brush Set Cb-419 (Alt.)	£4.92 £4.10
65	MK191962-4 Available to backorder	Carbon Brush Cb-419	£5.68 £4.73
66	MK643989-5 Available to backorder	Brush Holder	£3.04 £2.53
67	MK815978-2 Available to backorder	Hr2450 Serial Number Label x	£0.48 £0.40
68	MK650508-0 Available to backorder	Switch Tg813Tlb-1	£27.02 £22.52
69	MK153284-0 Available to backorder	Handle Cover Complete	£12.86 £10.72
69	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
70	MK265999-8 Available to backorder	Tapping Screw 4x25 (Refs 076 \| 081)	£0.48 £0.40
70	MK266374-1 Available to backorder	Tapping Screw 4x25 (Alt.) (Refs 076 \| 081)	£0.48 £0.40
71	MK682566-8 Available to backorder	Cord Guard 10	£1.16 £0.97
72	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.52 £8.77
73	MK645253-0 Available to backorder	Noise Suppressor	£4.62 £3.85
74	MK687124-5 Available to backorder	Strain Relief (Alt.)	£0.48 £0.40
74	MK687052-4 Available to backorder	Strain Relief	£0.74 £0.62
75	MK266326-2 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
75	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
77	MK421494-0 Available to backorder	Rubber Ring 19	£5.64 £4.70
78	MK417795-2 Available to backorder	Lock Button	£0.58 £0.48
79	MK233341-1 Available to backorder	Compression Spring 3	£0.48 £0.40
80	MK226399-7 Available to backorder	Spur Gear 10	£19.64 £16.37
82	MK345220-2 Available to backorder	Change Plate	£0.86 £0.72
82	MK345363-0 Available to backorder	Change Plate S	£1.32 £1.10
83	MK961017-7 Available to backorder	Stop Ring E-3	£0.48 £0.40
84	MK417796-0 Available to backorder	Guide Base	£0.74 £0.62
85	MK233344-5 Available to backorder	Compression Spring 4	£0.48 £0.40
86	MK961011-9 Available to backorder	Stop Ring E-4	£0.48 £0.40
87	MK941102-2 Available to backorder	Flat Washer 5	£0.48 £0.40
88	MK233342-9 Available to backorder	Compression Spring 6	£0.48 £0.40
89	MK163430-7 Available to backorder	Lock Plate Complete	£2.02 £1.68
90	MK345280-4 Available to backorder	Hex. Washer	£0.58 £0.48
91	MK267271-4 Available to backorder	Flat Washer 9	£0.58 £0.48
901	MK324219-0 Available to backorder	Depth Gauge (A01)	£0.74 £0.62
902	MK821896-4 Available to backorder	Plastic Case (Alt.) (A02-1)	£18.30 £15.25
902	MK819144-3 Available to backorder	Makita Logo Label (C20)	£0.74 £0.62
902	MK824650-5 Available to backorder	Plastic Carrying Case (A02)	£16.46 £13.72
902	MK417724-5 Available to backorder	Latch (C10)	£0.68 £0.57
905	MKD-14093 Available to backorder	Chuck Adapter (Sds-Plus) (Alt.) (C21)	£9.14 £7.62
905	MK122823-7 Available to backorder	Keyless Drill Chuck Assembly (A05)	£34.66 £28.88
906	MK192349-3 Available to backorder	Joint 25 (F06)	£8.60 £7.17
