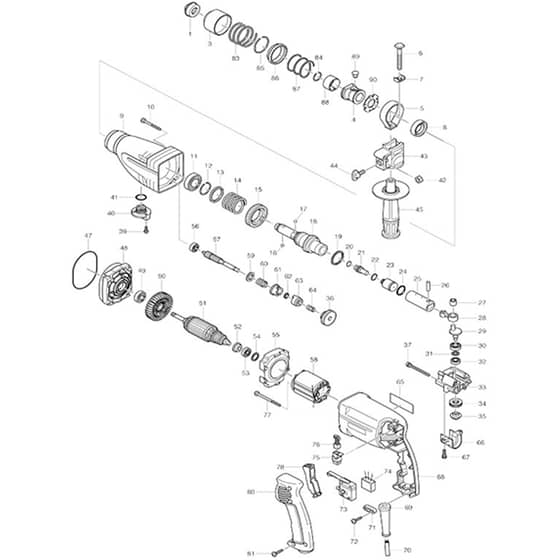

Makita HR2410 - Rotary Hammer - Power Tool Diagram

Description

Model No. HR2410

Rotary Hammer

Power Tool Parts Diagrams

	Part No.	Details
1	MK286251-1 Available to backorder	Cap 37 x	£2.21 £1.84
1	MK286265-0 Available to backorder	Cap 31 x	£1.03 £0.86
3	MK416410-5 Available to backorder	Chuck Cover x	£1.73 £1.44
3	MK415076-8 Available to backorder	Change Ring Cover	£3.84 £3.20
4	MK323820-8 Available to backorder	Chuck Ring x	£16.32 £13.60
5	MK344205-5 Available to backorder	Belt	£0.89 £0.74
6	MK266092-1 Available to backorder	Square Bolt M8x60	£0.89 £0.74
7	MK267719-6 Available to backorder	Square Washer 9	£0.70 £0.58
8	MK213313-2 Available to backorder	Oil Seal 20	£9.60 £8.00
9	MK159759-7 Available to backorder	Gear Housing Complete	£24.00 £20.00
9	MK216011-7 Available to backorder	Steel Ball 5.6 (C10)	£0.48 £0.40
9	MK150965-7 Available to backorder	Gear Housing Complete x	£11.64 £9.70
9	MK231234-6 Available to backorder	Compression Spring 3.5 (C20)	£0.70 £0.58
10	MK266069-6 Available to backorder	Binding Head Tapping Screw 4x45	£0.89 £0.74
11	MK211323-3 Available to backorder	Ball Bearing 6904Llu	£10.92 £9.10
12	MK231962-3 Available to backorder	Ring Spring 26	£0.48 £0.40
13	MK267132-8 Available to backorder	Flat Washer 29	£2.53 £2.11
14	MK233109-5 Available to backorder	Compression Spring 29	£2.38 £1.98
15	MK226290-9 Available to backorder	Spur Gear 48	£32.16 £26.80
16	MK216009-4 Available to backorder	Steel Ball 7.1	£0.48 £0.40
16	MK216022-2 In stock	Steel Ball 7.0 (Alt.)	£0.48 £0.40
18	MK323822-4 Available to backorder	Tool Holder x	£56.64 £47.20
19	MK267129-7 Available to backorder	Flat Washer 27	£1.03 £0.86
20	MK213063-9 Available to backorder	O-Ring 10	£4.20 £3.50
21	MK322739-8 Available to backorder	Impact Bolt	£5.40 £4.50
21	MK323818-5 Available to backorder	Impact Bolt x	£3.48 £2.90
22	MK213117-2 Available to backorder	O-Ring 11	£2.21 £1.84
23	MK322740-3 Available to backorder	Striker	£8.64 £7.20
24	MK213214-4 Available to backorder	O-Ring 16	£3.48 £2.90
25	MK331446-2 Available to backorder	Piston Cylinder	£24.48 £20.40
26	MK256099-5 Available to backorder	Pin 6	£1.58 £1.32
27	MK212005-0 Available to backorder	Needle Bearing 810	£2.83 £2.36
28	MK331447-0 Available to backorder	Connecting Rod	£8.04 £6.70
29	MK322741-1 Available to backorder	Crankshaft	£24.48 £20.40
30	MK211098-4 Available to backorder	Ball Bearing 699Zz	£7.92 £6.60
31	MK267130-2 Available to backorder	Flat Washer 9	£0.48 £0.40
32	MK211099-2 Available to backorder	Ball Bearing 689Zz	£8.64 £7.20
33	MK159761-0 Available to backorder	Crank Housing Complete	£37.20 £31.00
34	MK212110-3 Available to backorder	Thrust Needle Bearing 1224	£9.72 £8.10
35	MK226726-8 Available to backorder	Straight Bevel Gear 12	£24.48 £20.40
36	MK226434-1 Available to backorder	Helical Gear 31	£13.92 £11.60
37	MK911576-1 Available to backorder	Pan Head Screw M4x50 Wrm	£1.03 £0.86
39	MK251392-2 Available to backorder	Pan Head Shoulder Screw M4	£0.48 £0.40
40	MK152471-8 Available to backorder	Change Lever Complete	£3.72 £3.10
41	MK213261-5 Available to backorder	O-Ring 17	£1.90 £1.58
42	MK931202-6 Available to backorder	Hex. Nut M5	£0.48 £0.40
44	MK265720-5 Available to backorder	Thumb Screw M5x14	£1.73 £1.44
45	MK135344-0 Available to backorder	Grip 36 Assembly (Alt.) (INC. 5-7 42-44)	£9.60 £8.00
45	MK152521-9 Available to backorder	Grip 36 Complete (C11)	£2.38 £1.98
45	MK134777-6 Available to backorder	Grip 36 Assembly (INC. 5 6 7 42-44 *)	£9.84 £8.20
47	MK213720-9 Available to backorder	O-Ring 67	£1.90 £1.58
48	MK159760-2 Available to backorder	Inner Housing Complete	£37.20 £31.00
49	MK211051-0 Available to backorder	Ball Bearing 609Llb	£4.44 £3.70
50	MK241883-1 Available to backorder	Fan 60	£2.24 £1.87
51	MK517143-6 Available to backorder	Armature Assembly 220V	£72.00 £60.00
52	MK681600-1 Available to backorder	Insulation Washer	£0.65 £0.54
52	MK681661-1 Available to backorder	Insulation Washer (Alt.)	£0.89 £0.74
53	MK211021-9 Available to backorder	Ball Bearing 607Llb	£8.04 £6.70
54	MK253842-3 Available to backorder	Flat Washer 14	£0.48 £0.40
55	MK415628-5 Available to backorder	Baffle Plate	£2.38 £1.98
56	MK211012-0 Available to backorder	Ball Bearing 606Zz	£13.32 £11.10
57	MK226293-3 Available to backorder	Spur Gear 10	£32.16 £26.80
59	MK253744-3 Available to backorder	Flat Washer 12	£0.70 £0.58
60	MK233089-5 Available to backorder	Compression Spring 12	£0.65 £0.54
61	MK322743-7 Available to backorder	Clutch Cam	£15.24 £12.70
62	MK267131-0 Available to backorder	Flat Washer 8	£0.48 £0.40
63	MK226725-0 Available to backorder	Straight Bevel Gear 14	£44.04 £36.70
64	MK233110-0 Available to backorder	Compression Spring 8	£0.48 £0.40
65	MK857630-6 Available to backorder	Name Plate	£1.03 £0.86
66	MK415630-8 Available to backorder	Gear Cover	£1.73 £1.44
67	MK911526-6 Available to backorder	Pan Head Screw M4x16 Wrm	£0.70 £0.58
68	MK416970-7 Available to backorder	Motor Housing x	£35.52 £29.60
69	MK682504-0 Available to backorder	Cord Guard	£2.53 £2.11
69	MK682516-3 Available to backorder	Cord Guard	£1.39 £1.16
71	MK687052-4 Available to backorder	Strain Relief x	£0.89 £0.74
71	MK687063-9 Available to backorder	Strain Relief	£0.48 £0.40
71	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
72	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
73	MK650514-5 Available to backorder	Switch Tg803Bla-1 (Alt.)	£33.96 £28.30
73	MK651973-6 Available to backorder	Switch J2Mk711x x (Refs 073A2 \| 073A3)	£27.12 £22.60
74	MK645253-0 Available to backorder	Noise Suppressor	£4.80 £4.00
75	MK643923-5 Available to backorder	Brush Holder 6.5-9.5	£1.73 £1.44
76	MK195015-1 Available to backorder	Carbon Brush Set Cb-419 (Alt.)	£5.04 £4.20
76	MK191962-4 Available to backorder	Carbon Brush Set Cb-419	£5.40 £4.50
77	MK266052-3 Available to backorder	Binding Head Tapping Screw 4x60	£1.03 £0.86
78	MK415629-3 Available to backorder	Switch Lever	£2.53 £2.11
79	MK819063-3 Available to backorder	Makita Logo Label	£1.39 £1.16
80	MK415627-7 Available to backorder	Handle Cover	£12.24 £10.20
81	MK266045-0 Available to backorder	Binding Head Tapping Screw 4x20	£0.48 £0.40
83	MK233203-3 Available to backorder	Compression Spring 38	£1.58 £1.32
84	MK231979-6 Available to backorder	Ring Spring 16	£0.70 £0.58
85	MK231936-4 Available to backorder	Ring Spring 30.5	£0.70 £0.58
86	MK323819-3 Available to backorder	Spring Guide	£2.21 £1.84
87	MK233234-2 Available to backorder	Compression Spring 35	£0.89 £0.74
88	MK232190-3 Available to backorder	Leaf Spring 26	£2.21 £1.84
89	MK256447-8 Available to backorder	Shoulder Pin 8	£2.53 £2.11
90	MK344690-2 Available to backorder	Guide Washer	£1.03 £0.86
901	MK321144-6 Available to backorder	Depth Gauge (A01)	£1.73 £1.44
902	MK824445-6 Available to backorder	Plastic Case (A02B)	£31.56 £26.30
902	MK182935-8 Available to backorder	Slide Latch Rl Set (C10)	£1.68 £1.40
902	MK186347-7 Available to backorder	Slide Latch Rl Set (C10)	£1.79 £1.49
902	MK819143-5 Available to backorder	Makita Logo Label (C20)	£0.89 £0.74
911	MK122823-7 Available to backorder	Keyless Drill Chuck Assembly (E11C)	£35.88 £29.90
911	MKD-14093 Available to backorder	Chuck Adapter (Sds-Plus) (Alt.) (C21)	£9.48 £7.90
