Makita HR2230 - Rotary Hammer 22mm - Power Tool Diagram

Description

Model No. HR2230

Rotary Hammer 22mm

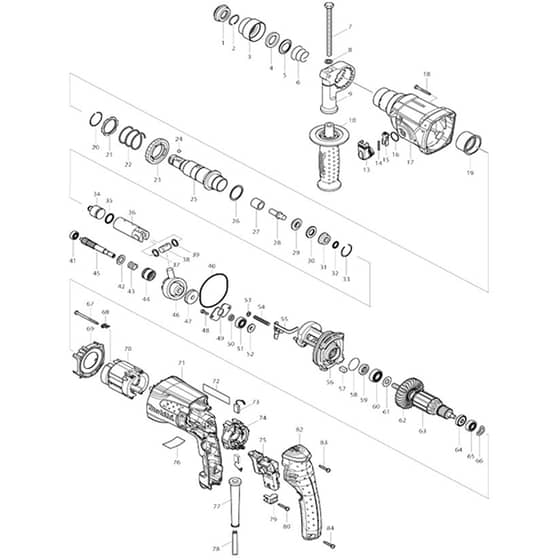

Power Tool Parts Diagrams

	Part No.	Details
1	MK286263-4 Available to backorder	Cap 35	£1.03 £0.86
2	MK233940-9 In stock	Ring Spring 19	£0.48 £0.40
3	MK417629-9 Available to backorder	Chuck Cover	£0.89 £0.74
4	MK257241-1 Available to backorder	Ring 21	£1.58 £1.32
5	MK345187-4 Available to backorder	Guide Washer	£1.03 £0.86
6	MK233916-6 In stock	Conical Comp. Spring 21-29	£0.48 £0.40
7	MK921923-8 Available to backorder	Hex. Bolt M8x120	£1.32 £1.10
8	MK345280-4 Available to backorder	Hex. Washer	£0.70 £0.58
9	MK417630-4 Available to backorder	Grip Base	£1.90 £1.58
10	MK158057-6 Available to backorder	Grip 36 Complete	£6.60 £5.50
10	MK931402-8 Available to backorder	Hex. Nut M8 (C10)	£0.70 £0.58
13	MK162244-1 Available to backorder	Change Lever	£1.03 £0.86
14	MK233459-8 Available to backorder	Compression Spring 3	£0.48 £0.40
15	MK419192-8 Available to backorder	Lock Button	£0.70 £0.58
16	MK213278-8 Available to backorder	O Ring 17 (Alt.)	£0.48 £0.40
17	MK213965-9 Available to backorder	Oil Seal 25 (C10)	£3.84 £3.20
17	MK213345-9 Available to backorder	Oil Seal 25 (Alt.) (C11)	£1.90 £1.58
17	MK158305-3 Available to backorder	Gear Housing Complete	£16.92 £14.10
18	MK266351-3 Available to backorder	Tapping Screw 4x35	£0.48 £0.40
19	MK153290-5 Available to backorder	Needle Bearing Complete	£4.80 £4.00
20	MK233918-2 Available to backorder	Ring Spring 28	£0.48 £0.40
21	MK267805-3 Available to backorder	Washer 30	£0.89 £0.74
22	MK233328-3 Available to backorder	Compression Spring 31	£1.73 £1.44
23	MK227019-6 Available to backorder	Spur Gear 51	£6.24 £5.20
24	MK216022-2 In stock	Steel Ball 7.0	£0.48 £0.40
25	MK158575-4 Available to backorder	Tool Holder Complete <	£45.72 £38.10
26	MK267229-3 Available to backorder	Flat Washer 28	£0.70 £0.58
27	MK331769-8 Available to backorder	Sleeve 9	£2.38 £1.98
28	MK324669-9 Available to backorder	Impact Bolt	£2.69 £2.24
29	MK324402-9 Available to backorder	Ring 10	£1.58 £1.32
30	MK421955-0 Available to backorder	Cushion Ring 13	£1.90 £1.58
31	MK324216-6 Available to backorder	O Ring Case (Alt.)	£6.24 £5.20
32	MK213073-6 In stock	O Ring 9 (Alt.)	£1.39 £1.16
33	MK233917-4 Available to backorder	Ring Spring 28	£0.48 £0.40
34	MK324214-0 Available to backorder	Striker	£2.69 £2.24
35	MK213227-5 Available to backorder	O Ring 16 (Alt.)	£1.58 £1.32
36	MK317517-9 Available to backorder	Piston Cylinder	£10.80 £9.00
37	MK267104-3 Available to backorder	Flat Washer 12	£0.89 £0.74
38	MK324215-8 Available to backorder	Piston Joint	£1.74 £1.45
40	MK213727-5 Available to backorder	O-Ring 63	£3.60 £3.00
41	MK211012-0 Available to backorder	Ball Bearing 606Zz	£13.32 £11.10
41	MK210028-2 Available to backorder	Ball Bearing 606Zz (Alt.)	£1.39 £1.16
42	MK267212-0 Available to backorder	Flat Washer 12	£0.48 £0.40
43	MK233347-9 Available to backorder	Compression Spring 12	£0.70 £0.58
44	MK331734-7 Available to backorder	Clutch Cam	£5.40 £4.50
45	MK227182-5 Available to backorder	Spur Gear 10	£7.92 £6.60
46	MK219021-3 Available to backorder	Swash Bearing 10 (Alt.)	£17.76 £14.80
46	MK219014-0 Available to backorder	Swash Bearing 10	£52.44 £43.70
47	MK226656-3 Available to backorder	Helical Gear 26	£4.80 £4.00
48	MK266273-7 Available to backorder	Hex. Socket Head Bolt M4x12	£0.70 £0.58
49	MK345179-3 Available to backorder	Bearing Retainer	£0.70 £0.58
50	MK267234-0 Available to backorder	Flat Washer 8	£0.70 £0.58
51	MK210029-0 Available to backorder	Ball Bearing 608Zz (Alt.)	£1.39 £1.16
51	MK211032-4 Available to backorder	Ball Bearing 608Zz	£8.64 £7.20
52	MK324212-4 Available to backorder	Ring 8	£5.64 £4.70
53	MK961011-9 Available to backorder	Stop Ring E-4	£0.48 £0.40
54	MK233388-5 Available to backorder	Compression Spring 5	£0.48 £0.40
55	MK346035-0 Available to backorder	Change Plate <	£1.58 £1.32
56	MK141575-1 Available to backorder	Inner Housing Complete S	£13.80 £11.50
56	MK158308-7 Available to backorder	Inner Housing Complete	£10.92 £9.10
57	MK443126-9 Available to backorder	Felt	£0.48 £0.40
58	MK213407-3 Available to backorder	O Ring 26 (Alt.)	£1.03 £0.86
59	MK213077-8 Available to backorder	Oil Seal 10	£4.80 £4.00
60	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.16 £4.30
61	MK267213-8 Available to backorder	Flat Washer 10	£0.48 £0.40
62	MK240092-9 Available to backorder	Fan 64	£1.39 £1.16
63	MK515284-2 Available to backorder	Armature Ass'y 240V	£41.52 £34.60
64	MK681670-0 Available to backorder	Insulation Washer <	£0.48 £0.40
64	MK681652-2 Available to backorder	Insulation Washer	£0.70 £0.58
65	MK210023-2 Available to backorder	Ball Bearing 627Ddw	£3.48 £2.90
66	MK267804-5 Available to backorder	Wave Washer 15	£0.48 £0.40
67	MK266415-3 Available to backorder	Tapping Screw 4x55	£0.48 £0.40
68	MK344871-8 Available to backorder	Retainer	£0.89 £0.74
69	MK419716-0 Available to backorder	Baffle Plate	£1.03 £0.86
70	MK626574-9 Available to backorder	Field 240V	£20.28 £16.90
71	MK419720-9 Available to backorder	Motor Housing	£12.00 £10.00
72	MK863508-3 Available to backorder	Hr2230 Name Plate	£0.70 £0.58
73	MK194074-2 In stock	Carbon Brush Cb-325	£2.80 £2.33
74	MK638500-6 Available to backorder	Brush Holder Unit	£12.24 £10.20
75	MK650588-6 Available to backorder	Switch C3Va-2L-C	£21.12 £17.60
76	MK814954-3 Available to backorder	Hr2230 Serial No.Label	£0.70 £0.58
77	MK682566-8 Available to backorder	Cord Guard 10	£1.39 £1.16
78	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.92 £9.10
79	MK687260-7 Available to backorder	Strain Relief	£0.48 £0.40
80	MK266324-6 Available to backorder	Tapping Screw 4x22 (Refs 083 \| 084)	£0.48 £0.40
82	MK419717-8 Available to backorder	Handle Cover	£6.24 £5.20
901	MK195263-2 Available to backorder	Hammer Service Kit Set (B01)	£27.12 £22.60
901	MK324219-0 Available to backorder	Depth Gauge (A01)	£0.89 £0.74
901	MK195127-0 Available to backorder	Oil Vessel Set (C10)	£3.60 £3.00
902	MK417724-5 Available to backorder	Latch (C20)	£0.82 £0.68
902	MK824799-1 Available to backorder	Plastic Carrying Case (A02)	£31.68 £26.40
902	MK419216-0 Available to backorder	Handle (C30)	£1.74 £1.45
902	MK324319-6 Available to backorder	Shaft (C10)	£1.78 £1.48
903	MK805425-1 Available to backorder	Hr2230 Plastic Case Label (A03)	£0.89 £0.74
