Model No. HR2010

Rotary Hammer 20mm

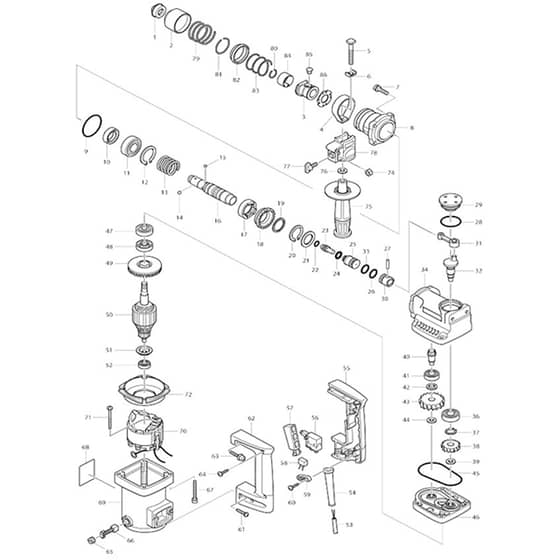

Power Tool Parts Diagrams

	Part No.	Details
1	MK286251-1 Available to backorder	Cap 37	£2.21 £1.84
1	MK286265-0 Available to backorder	Cap 31 x	£1.03 £0.86
2	MK415076-8 Available to backorder	Change Ring Cover	£3.84 £3.20
2	MK416410-5 Available to backorder	Chuck Cover x	£1.73 £1.44
3	MK258022-6 Available to backorder	Spring Pin 4-6 (C20)	£0.48 £0.40
3	MK232122-0 Available to backorder	Leaf Spring (C10)	£1.39 £1.16
3	MK323820-8 Available to backorder	Chuck Ring x	£16.32 £13.60
4	MK344205-5 Available to backorder	Belt	£0.89 £0.74
5	MK266092-1 Available to backorder	Square Bolt M8x60	£0.89 £0.74
6	MK267719-6 Available to backorder	Square Washer 9	£0.70 £0.58
7	MK922231-0 Available to backorder	Hex. Socket Head Bolt M5x20	£0.70 £0.58
8	MK317102-8 Available to backorder	Barrel x	£10.80 £9.00
8	MK316781-9 Available to backorder	Barrel	£10.56 £8.80
9	MK213604-1 Available to backorder	O Ring 50 (Alt.)	£2.21 £1.84
10	MK213313-2 Available to backorder	Oil Seal 20	£9.60 £8.00
11	MK211304-7 Available to backorder	Ball Bearing 6004	£5.28 £4.40
12	MK961110-7 Available to backorder	Retaining Ring S-30	£1.22 £1.02
13	MK233145-1 Available to backorder	Compression Spring 31	£2.21 £1.84
14	MK216022-2 In stock	Steel Ball 7.0 (Alt.)	£0.48 £0.40
14	MK216009-4 Available to backorder	Steel Ball 7.1	£0.48 £0.40
15	MK216011-7 Available to backorder	Steel Ball 5.6	£0.48 £0.40
16	MK322843-3 Available to backorder	Tool Holder	£60.12 £50.10
16	MK323821-6 Available to backorder	Tool Holder x	£73.56 £61.30
17	MK223112-4 Available to backorder	Clutch Cam	£8.40 £7.00
18	MK226732-3 Available to backorder	Spiral Bevel Gear 33	£19.44 £16.20
19	MK267127-1 Available to backorder	Flat Washer 26	£1.03 £0.86
20	MK961106-8 Available to backorder	Retaining Ring S-26	£0.89 £0.74
21	MK267148-3 Available to backorder	Flat Washer 23	£0.89 £0.74
22	MK213063-9 Available to backorder	O Ring 10 (Alt.)	£4.20 £3.50
23	MK323818-5 Available to backorder	Impact Bolt x	£3.48 £2.90
23	MK322739-8 Available to backorder	Impact Bolt	£5.40 £4.50
24	MK213117-2 Available to backorder	O Ring 11 (Alt.)	£2.21 £1.84
25	MK322864-5 Available to backorder	Striker	£8.40 £7.00
26	MK213172-4 Available to backorder	O Ring 15 (Alt.)	£2.38 £1.98
27	MK256123-4 Available to backorder	Pin 5	£1.58 £1.32
28	MK213510-0 Available to backorder	O Ring 36 (Alt.)	£1.73 £1.44
29	MK415902-1 Available to backorder	Crank Cap	£2.21 £1.84
30	MK316819-0 Available to backorder	Piston	£7.44 £6.20
31	MK212043-2 Available to backorder	Needle Bearing 810 (C10)	£1.90 £1.58
31	MK152504-9 Available to backorder	Connecting Rod Complete	£8.40 £7.00
32	MK322842-5 Available to backorder	Crank Shaft	£20.28 £16.90
34	MK159847-0 Available to backorder	Crank Housing Complete	£58.44 £48.70
36	MK211204-1 Available to backorder	Ball Bearing 6002	£8.40 £7.00
37	MK961055-9 Available to backorder	Retaining Ring S-15	£0.48 £0.40
38	MK226458-7 Available to backorder	Helical Gear 29	£10.92 £9.10
39	MK253865-1 Available to backorder	Flat Washer 8 (Refs 044 \| 076)	£0.89 £0.74
40	MK226731-5 Available to backorder	Spiral Bevel Gear 9	£22.68 £18.90
41	MK211104-5 Available to backorder	Ball Bearing 6001	£8.88 £7.40
42	MK253744-3 Available to backorder	Flat Washer 12	£0.70 £0.58
43	MK226459-5 Available to backorder	Helical Gear 43	£15.36 £12.80
45	MK213760-7 Available to backorder	O Ring 78 (Alt.)	£1.74 £1.45
46	MK159846-2 Available to backorder	Gear Housing Complete	£44.04 £36.70
47	MK211064-1 Available to backorder	Ball Bearing 6000	£2.38 £1.98
48	MK213112-2 Available to backorder	Oil Seal 12	£2.83 £2.36
49	MK241879-2 Available to backorder	Fan 60	£3.12 £2.60
50	MK516269-1 Available to backorder	Armature Ass'y 240V	£102.24 £85.20
51	MK681625-5 Available to backorder	Insulation Washer	£0.70 £0.58
52	MK211033-2 Available to backorder	Ball Bearing 608Lb	£5.52 £4.60
53	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.92 £9.10
54	MK682505-8 Available to backorder	Cord Guard 10-90	£1.58 £1.32
55	MK182816-6 Available to backorder	Handle Set	£21.12 £17.60
56	MK651919-2 Available to backorder	Switch Sge106Cv-1P (INC. 49 51 52)	£28.68 £23.90
57	MK415903-9 Available to backorder	Switch Lever	£1.90 £1.58
58	MK645253-0 Available to backorder	Noise Suppressor	£4.80 £4.00
59	MK687063-9 Available to backorder	Cord Clamp	£0.48 £0.40
59	MK687052-4 Available to backorder	Strain Relief x	£0.89 £0.74
60	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
61	MK266041-8 Available to backorder	Tapping Screw 5x25	£0.70 £0.58
63	MK911243-8 Available to backorder	Pan Head Screw M5x25	£0.48 £0.40
65	MK643600-9 Available to backorder	Brush Holder Cap 6-10	£0.89 £0.74
66	MK181038-5 Available to backorder	A.C. Carbon Brush Cb-105	£10.32 £8.60
67	MK922910-0 Available to backorder	Hex. Socket Head Bolt M5x45	£3.12 £2.60
68	MK858055-7 Available to backorder	Name Plate Hr2010	£1.03 £0.86
69	MK159889-4 Available to backorder	Motor Housing Complete	£41.52 £34.60
69	MK654019-7 Available to backorder	Ring Terminal (C10)	£0.70 £0.58
69	MK654501-6 Available to backorder	Connector P-1.25 (C20)	£0.48 £0.40
69	MK643603-3 Available to backorder	Brush Holder 6-10 (C20)	£3.48 £2.90
70	MK594254-4 Available to backorder	Field Ass'y 240V	£52.44 £43.70
71	MK266046-8 Available to backorder	Tapping Screw 5x50	£1.03 £0.86
72	MK415904-7 Available to backorder	Baffle Plate	£1.58 £1.32
74	MK931202-6 Available to backorder	Hex. Nut M5	£0.48 £0.40
75	MK152521-9 Available to backorder	Grip 36 Complete	£2.38 £1.98
77	MK265720-5 Available to backorder	Thumb Screw M5x14	£1.73 £1.44
79	MK233203-3 Available to backorder	Compression Spring 38	£1.58 £1.32
80	MK231979-6 Available to backorder	Ring Spring 17	£0.70 £0.58
81	MK231936-4 Available to backorder	Ring Spring 30.5	£0.70 £0.58
82	MK323819-3 Available to backorder	Spring Guide	£2.21 £1.84
83	MK233234-2 Available to backorder	Compression Spring 35	£0.89 £0.74
84	MK232190-3 Available to backorder	Leaf Spring 26	£2.21 £1.84
85	MK256447-8 Available to backorder	Pin 8	£2.53 £2.11
86	MK344690-2 Available to backorder	Guide Washer	£1.03 £0.86
901	MK321144-6 Available to backorder	Depth Gauge (A01)	£1.73 £1.44
902	MK417059-4 Available to backorder	Latch x (C11)	£0.82 £0.68
902	MK824464-2 Available to backorder	Plastic Carrying Case (A02)	£30.96 £25.80
902	MK186347-7 Available to backorder	Slide Latch Set (C10)	£1.79 £1.49
903	MK421342-3 Available to backorder	Dust Cup 5 (A03)	£3.36 £2.80
