Model No. HR1840

18mm Rotary Hammer

Power Tool Parts Diagrams

	Part No.	Details
1	MK286037-3 Available to backorder	Cap 34	£1.22 £1.02
2	MK961057-5 Available to backorder	Retaining Ring S-17	£0.48 £0.40
3	MK253377-4 Available to backorder	Flat Washer 17	£0.70 £0.58
4	MK457214-6 Available to backorder	Chuck Cover	£1.03 £0.86
5	MK257416-2 Available to backorder	Ring 21	£1.90 £1.58
6	MK216022-2 In stock	Steel Ball 7.0	£0.48 £0.40
7	MK346177-0 In stock	Guide Washer	£0.70 £0.58
8	MK232347-6 Available to backorder	Conical Comp. Spring	£0.48 £0.40
9	MK921923-8 Available to backorder	Hex. Bolt M8x120	£1.32 £1.10
10	MK417911-6 Available to backorder	Grip Base	£2.21 £1.84
11	MK266053-1 Available to backorder	Tapping Screw 4x35	£0.70 £0.58
12	MK144272-8 Available to backorder	Gear Housing Complete	£18.48 £15.40
12	MK211375-4 Available to backorder	Ball Bearing 6805Llb (C20)	£20.28 £16.90
12	MK213636-8 Available to backorder	Oil Seal 25 (C10)	£6.24 £5.20
13	MK213278-8 Available to backorder	O Ring 17 (Alt.)	£0.48 £0.40
14	MK161568-2 Available to backorder	Lock Button Complete	£1.58 £1.32
15	MK232344-2 Available to backorder	Compression Spring 3	£0.48 £0.40
16	MK161569-0 Available to backorder	Change Lever Complete	£1.73 £1.44
17	MK158057-6 Available to backorder	Grip 36 Complete	£6.60 £5.50
17	MK931402-8 Available to backorder	Hex. Nut M8 (C10)	£0.70 £0.58
18	MK457356-6 Available to backorder	Plate	£0.48 £0.40
19	MK853K43-5 Available to backorder	Hr1840 Serial No. Label	£0.48 £0.40
20	MK347555-7 Available to backorder	Spiral Retaining Ring 25 (Alt.)	£0.84 £0.70
20	MK961135-1 Available to backorder	Retaining(Ext) Wr-25	£0.84 £0.70
21	MK267304-5 Available to backorder	Flat Washer 25	£0.89 £0.74
22	MK232360-4 Available to backorder	Compression Spring 25	£1.15 £0.96
23	MK221494-8 Available to backorder	Spur Gear 44	£5.40 £4.50
24	MK327039-1 Available to backorder	Driving Flange	£3.01 £2.51
25	MK216019-1 Available to backorder	Steel Ball 3	£0.48 £0.40
26	MK326886-7 Available to backorder	Tool Holder	£15.12 £12.60
27	MK326887-5 Available to backorder	Impact Bolt	£1.63 £1.36
28	MK213117-2 Available to backorder	O Ring 11 (Alt.)	£2.21 £1.84
29	MK253380-5 Available to backorder	Flat Washer 13	£0.48 £0.40
30	MK326888-3 Available to backorder	Ring 10	£1.49 £1.24
31	MK232357-3 Available to backorder	Compression Spring 10A	£0.65 £0.54
32	MK327038-3 Available to backorder	Cup Sleeve	£2.38 £1.98
33	MK233942-5 Available to backorder	Ring Spring 22	£1.03 £0.86
34	MK267175-0 Available to backorder	Flat Washer 24	£0.89 £0.74
35	MK345681-6 Available to backorder	Joint Plate	£0.89 £0.74
36	MK347128-6 Available to backorder	Change Plate	£1.15 £0.96
37	MK233458-0 Available to backorder	Compression Spring 32	£0.89 £0.74
38	MK326889-1 Available to backorder	Striker	£2.24 £1.87
39	MK213832-8 Available to backorder	O-Ring 13	£1.15 £0.96
40	MK326890-6 Available to backorder	Piston Cylinder	£5.64 £4.70
41	MK347127-8 Available to backorder	Guide Plate	£0.48 £0.40
42	MK324612-8 Available to backorder	Piston Joint	£1.39 £1.16
43	MK232361-2 Available to backorder	Conical Comp. Spring	£0.48 £0.40
44	MK347130-9 Available to backorder	Spring Guide	£0.48 £0.40
45	MK211016-2 Available to backorder	Ball Bearing 626Llb	£5.88 £4.90
46	MK221495-6 Available to backorder	Spur Gear 12	£3.01 £2.51
47	MK326892-2 Available to backorder	Cam Shaft	£3.48 £2.90
48	MK326891-4 Available to backorder	Clucth Cam	£4.08 £3.40
49	MK219029-7 Available to backorder	Swash Bearing 9	£15.00 £12.50
50	MK253383-9 Available to backorder	Flat Washer 9	£0.98 £0.82
54	MK221496-4 Available to backorder	Helical Gear 23	£4.08 £3.40
57	MK213833-6 Available to backorder	O-Ring 60	£0.98 £0.82
58	MK144270-2 Available to backorder	Inner Housing Complete	£16.92 £14.10
59	MK213118-0 Available to backorder	O Ring 12 (Alt.)	£0.48 £0.40
60	MK326893-0 Available to backorder	Ring 9	£1.49 £1.24
61	MK210162-8 Available to backorder	Ball Bearing 609Llu	£5.04 £4.20
62	MK267231-6 Available to backorder	Flat Washer 9	£0.48 £0.40

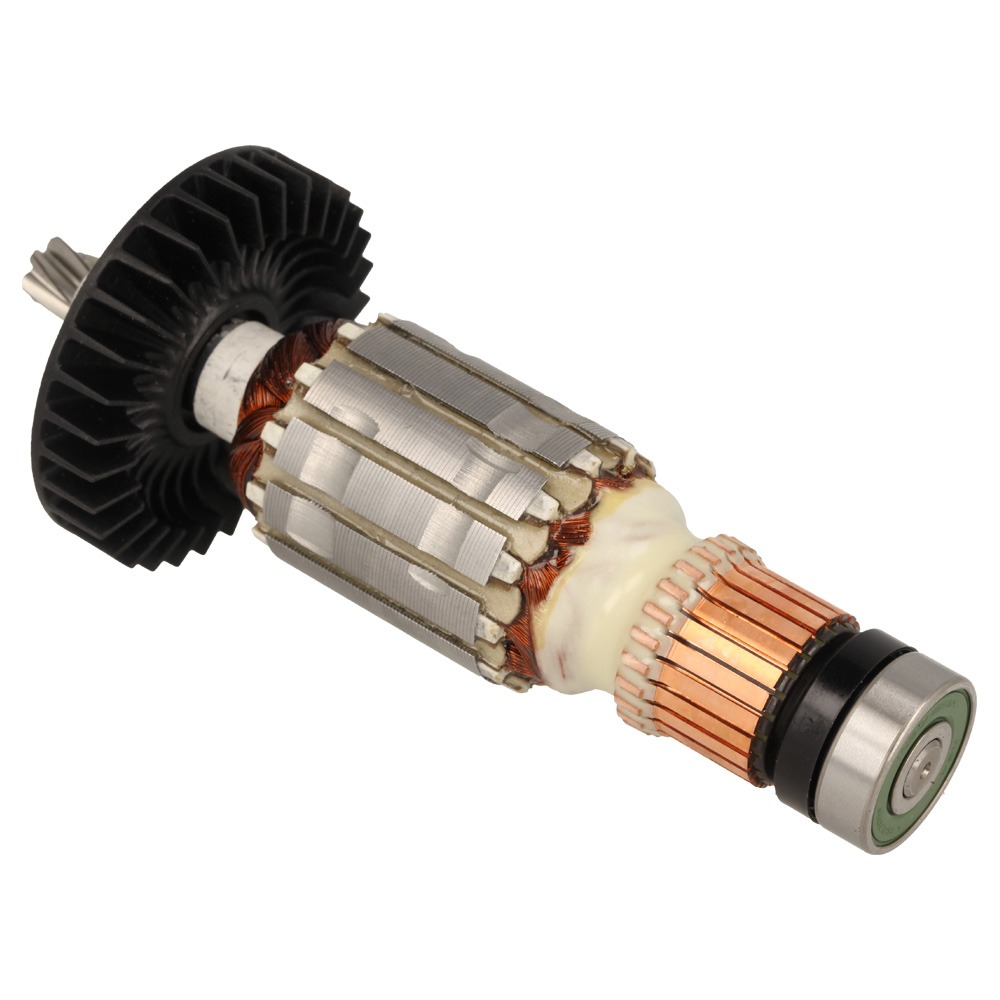

63	MK513989-8 Available to backorder	Armature Ass'y 240V	£34.32 £28.60
64	MK681670-0 Available to backorder	Insulation Washer	£0.48 £0.40
65	MK210023-2 Available to backorder	Ball Bearing 627Ddw	£3.48 £2.90
66	MK267804-5 Available to backorder	Wave Washer 15	£0.48 £0.40
67	MK457351-6 Available to backorder	Buffle Plate B	£1.63 £1.36
68	MK266069-6 Available to backorder	Tapping Screw 4x45	£0.89 £0.74

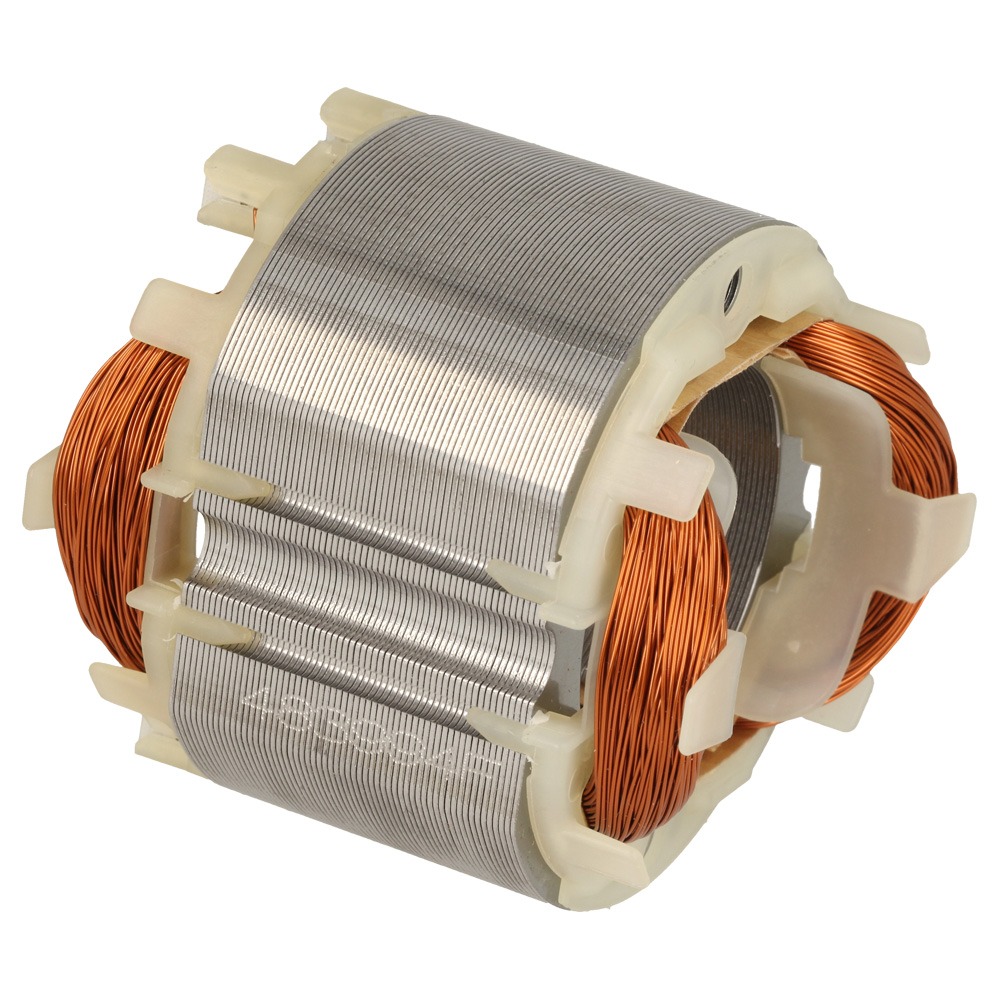

69	MK633994-0 Available to backorder	Field	£8.52 £7.10
74	MK457353-2 Available to backorder	Motor Housing B	£20.88 £17.40
77	MK195026-6 In stock	Carbon Brush Set Cb-459 (Alt.)	£2.94 £2.45
78	MK632K41-0 Available to backorder	Brush Holder Unit	£9.24 £7.70
80	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
81	MK457354-0 Available to backorder	Handle Cover	£7.32 £6.10
82	MK266385-6 Available to backorder	Tapping Screw 4x14	£0.48 £0.40
83	MK687682-1 Available to backorder	Strain Relief	£0.70 £0.58
84	MK682566-8 Available to backorder	Cord Guard 10	£1.39 £1.16
85	MK665890-4 Available to backorder	Power Supply Cord	£10.92 £9.10
86	MK651086-3 Available to backorder	Switch Tg853Tb-2	£15.96 £13.30
87	MK853K39-6 Available to backorder	Hr1840 Name Plate	£0.48 £0.40
88	MK813E00-9 Available to backorder	Clear Label	£0.48 £0.40
901	MK415486-9 Available to backorder	Depth Gauge (A01)	£1.46 £1.22
901	MK198627-9 Available to backorder	Hammer Service Kit (B01)	£12.12 £10.10
901	MK195127-0 Available to backorder	Oil Vessel Set (C10)	£3.60 £3.00
902	MK324679-6 Available to backorder	Shaft (C20)	£1.06 £0.88
902	MK457340-1 Available to backorder	Handle (C30)	£2.10 £1.75
902	MK162315-4 Available to backorder	Latch (C10)	£2.56 £2.13
902	MK821706-5 Available to backorder	Plastic Carrying Case (A02)	£22.80 £19.00
903	MK813D85-9 Available to backorder	Hr1840 Plastic Case Label (A03)	£16.32 £13.60
